Eaton Char-Lynn 6000 Series Motor | 112-1088-006 112-1094-006 112-1089-006

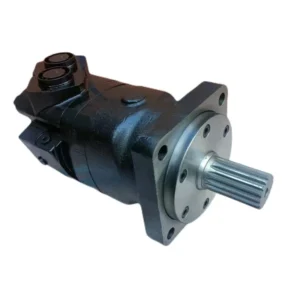

Eaton Char-Lynn 6000 Series Heavy-Duty Disc Valve Orbit Motors

Product Overview: The Eaton Char-Lynn 6000 Series (commonly known as the 6 Series) is a globally recognized benchmark for heavy-duty orbital hydraulic driving technology. This category highlights the flagship models: 112-1088-006, 112-1094-006, and 112-1089-006. Engineered with advanced Disc Valve technology, the 6000 Series is designed to maintain peak volumetric efficiency under continuous high-pressure and high-flow conditions. Its patented Geroler® roller set design significantly reduces mechanical friction, ensuring unparalleled power stability in Low Speed High Torque (LSHT) applications. These motors are the premier choice for large harvester propel drives, construction machinery wheel drives, heavy-duty winches, and massive forestry equipment.

Key Technical Advantages:

• Heavy-Duty Disc Valve Precision: The independent valve plate automatically balances clearances under pressure, providing superior efficiency and significantly longer service life compared to spool valve motors under high-pressure loads.

• Geroler® Roller Geometry: Internal roller supports minimize startup pressure and ensure smooth, pulse-free operation even at minimal speeds.

• Elite Load Resilience: Equipped with oversized tapered roller bearings, the housing handles massive radial and axial loads directly—ideal for direct-drive wheel or gear-driven setups.

• Technical Decoding:

  • 112-1088-006 / 112-1089-006: Features standard 4-Bolt mounting configurations for maximum structural stability.

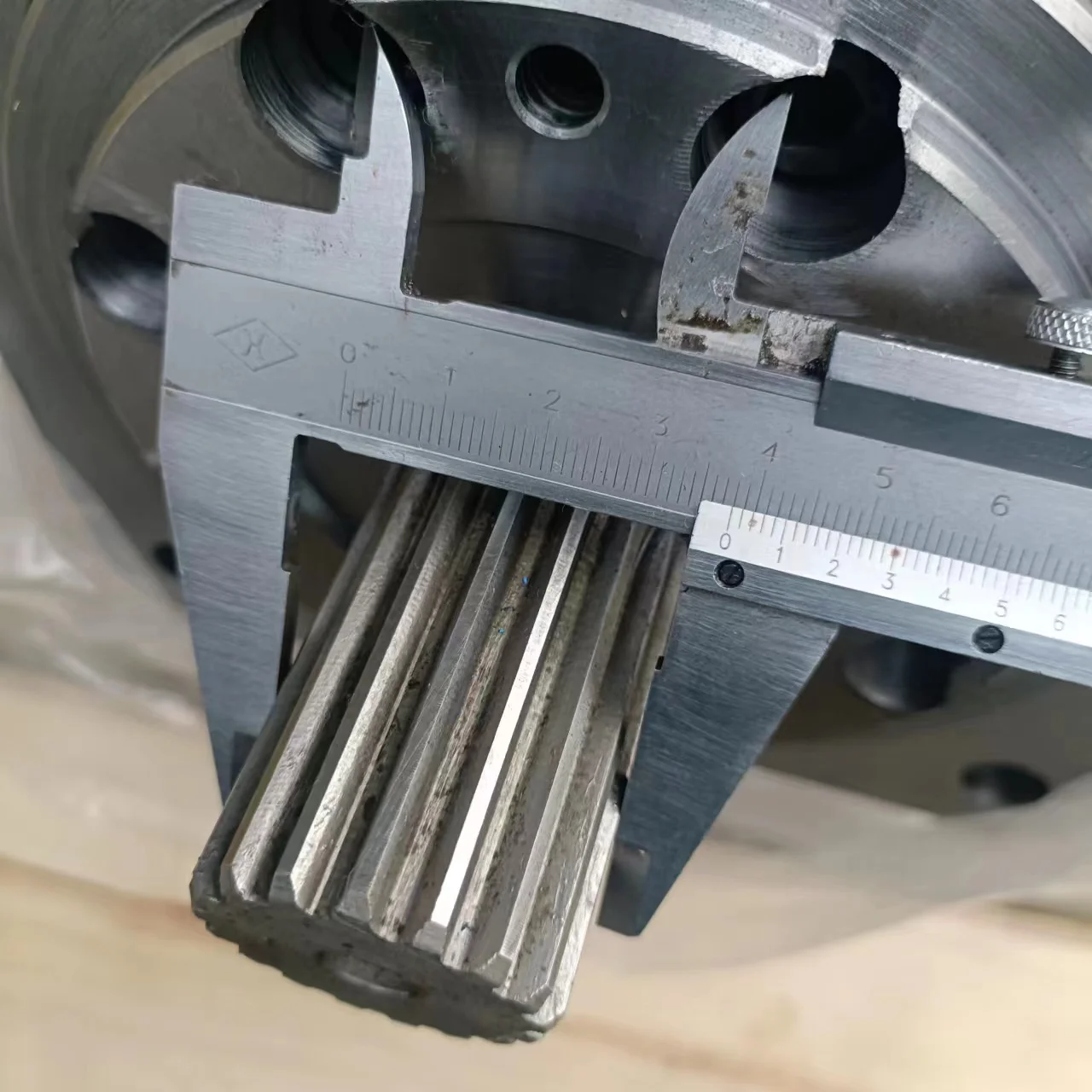

  • 112-1094-006: Optimized for specific output shaft specifications (e.g., large-diameter splined shafts) to handle extreme torque transmission.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 6000 Series (6 Series).

• Featured Model Matrix: 112-1088-006, 112-1094-006, 112-1089-006.

• Core Performance Specs:

  • Displacement Range: 195 cc/rev to 985 cc/rev (12.0 – 60.0 cu in/rev).

  • Rated Pressure: Continuous up to 200-240 Bar (3000-3500 PSI); intermittent peaks up to 310 Bar.

  • Torque Capability: Continuous torque exceeds 1500 Nm, with peak torque surpassing 2200 Nm.

  • Flow Rate: Supports continuous flow inputs up to 150 L/min (40 GPM).

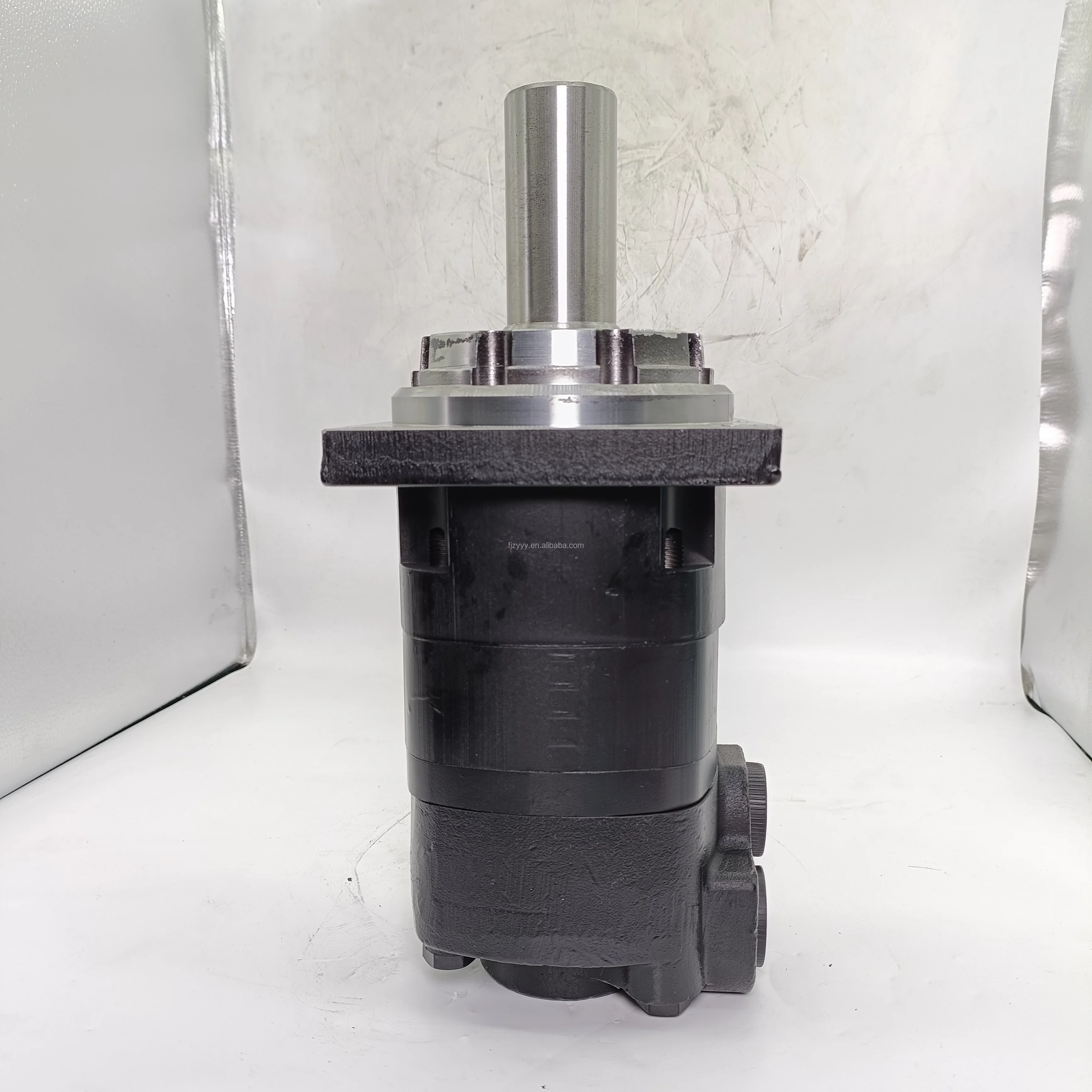

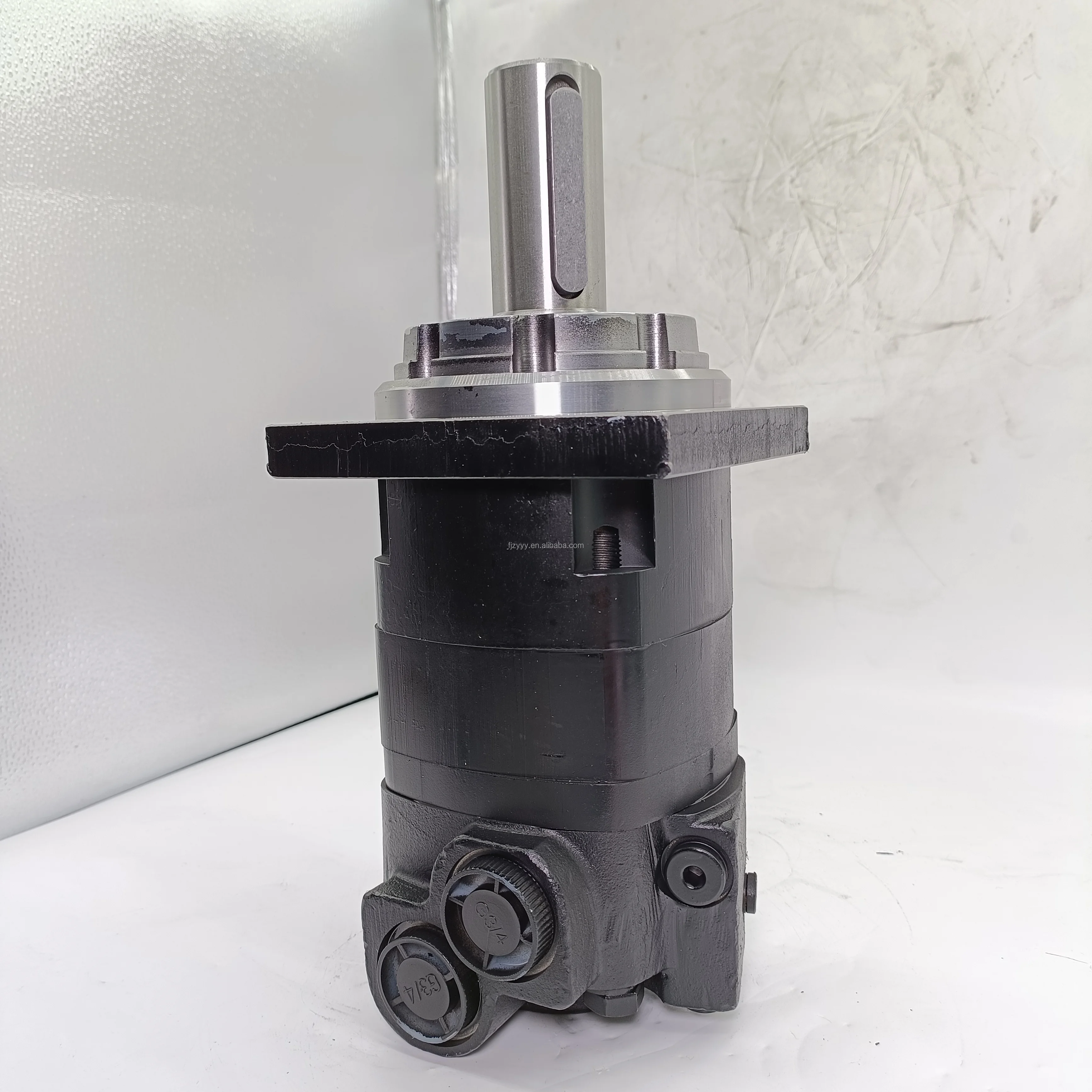

  • Mounting Standards: Standard 4-Bolt SAE CC or Wheel Mount flanges with Keyed, Splined, or Tapered shaft options.
