Eaton Char-Lynn 6000 Series Motor | 112-1062-006 112-1131-006 112-1216-006 | Disc Valve Orbit Motor

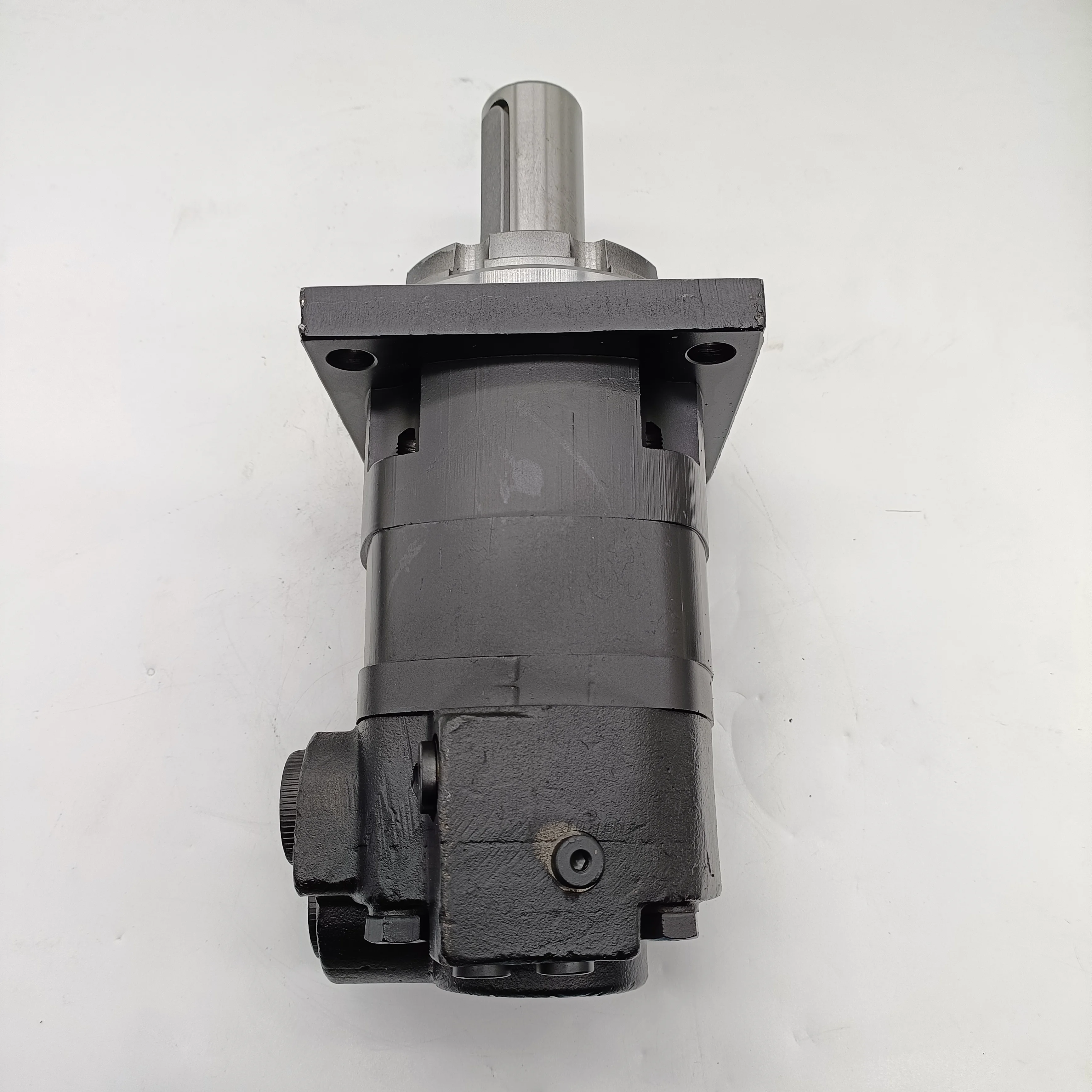

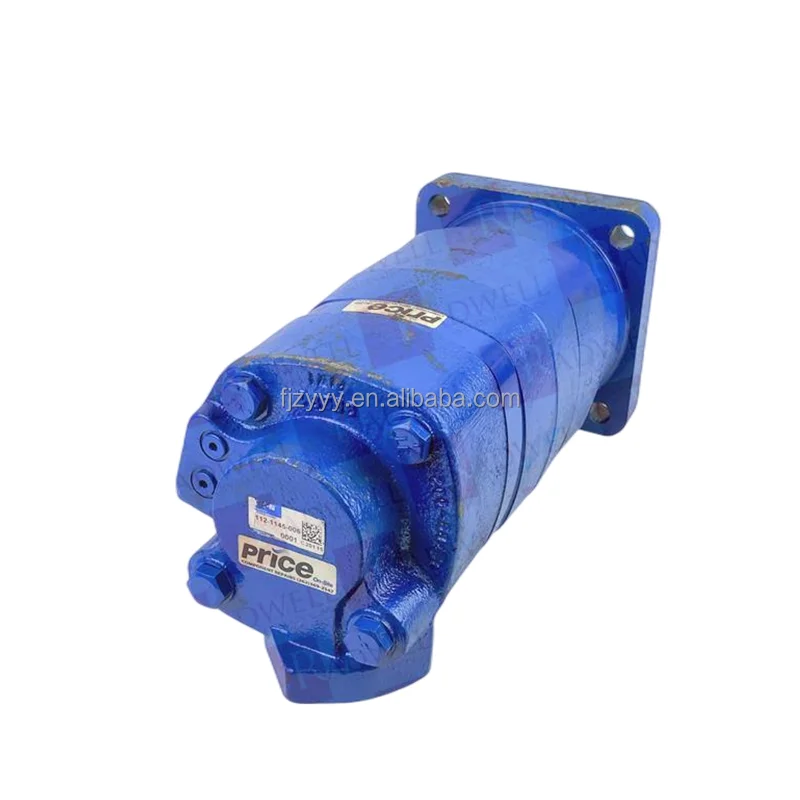

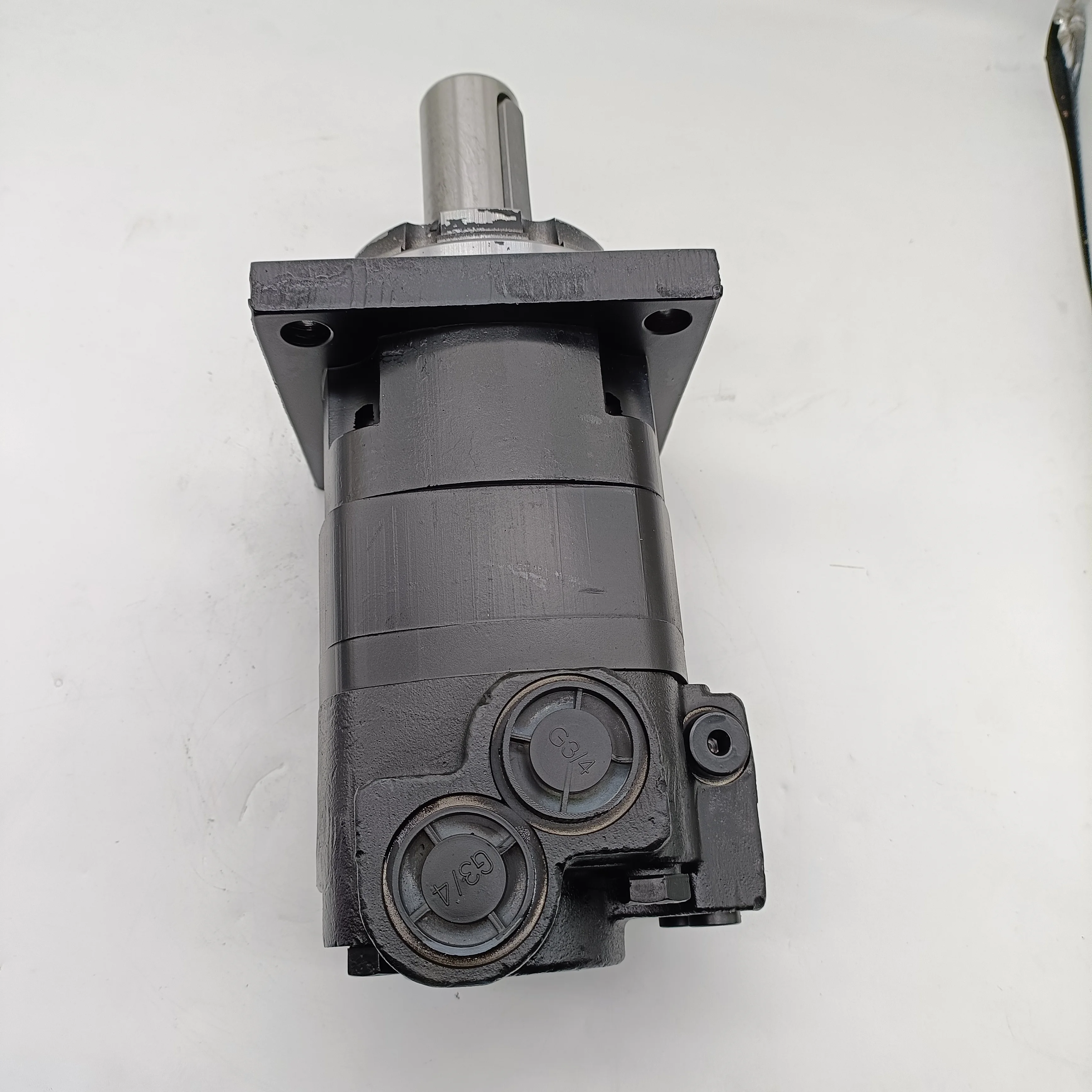

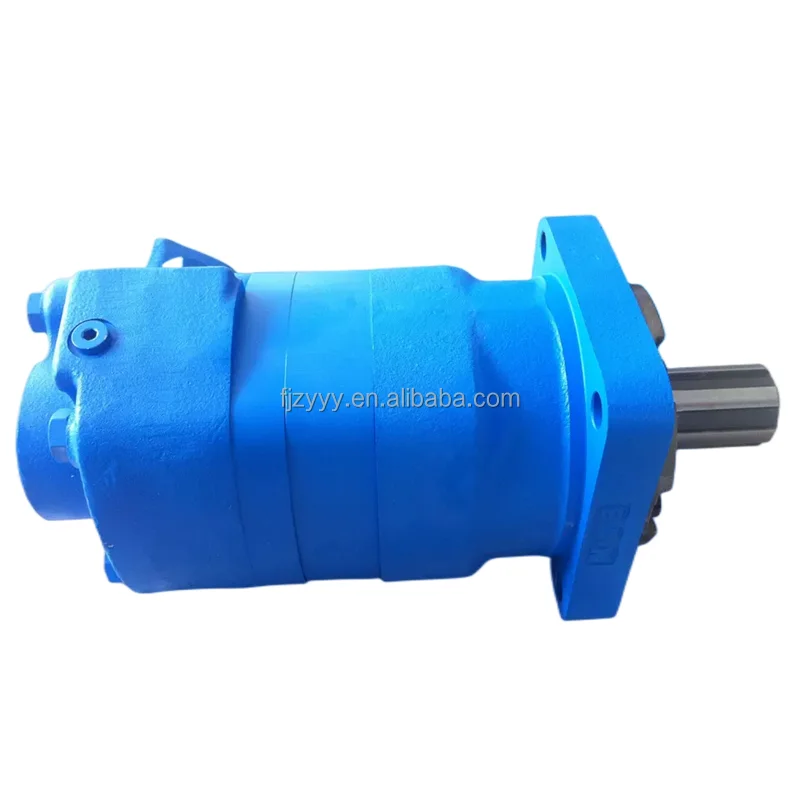

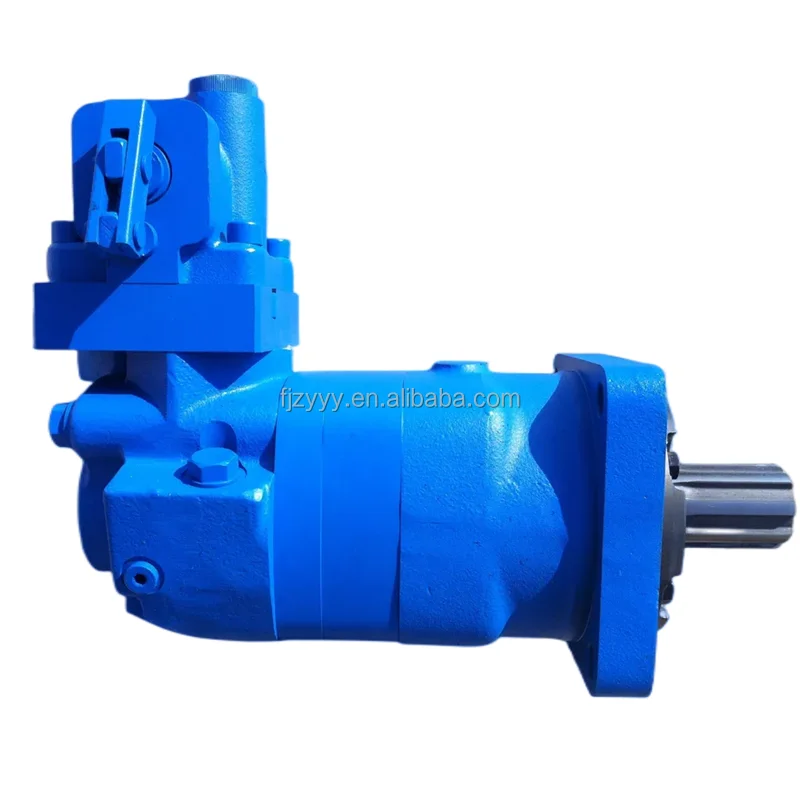

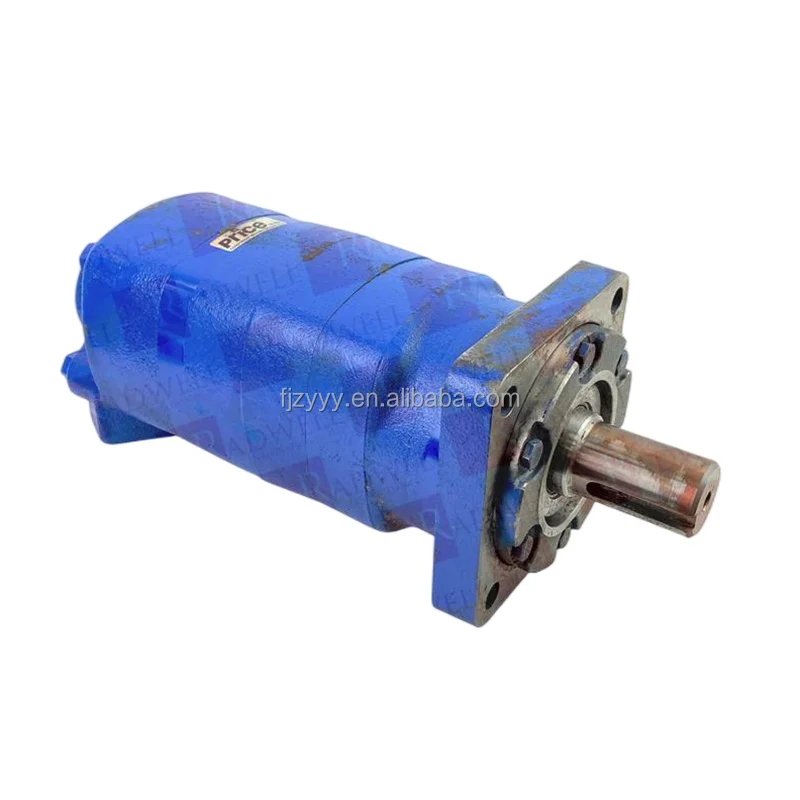

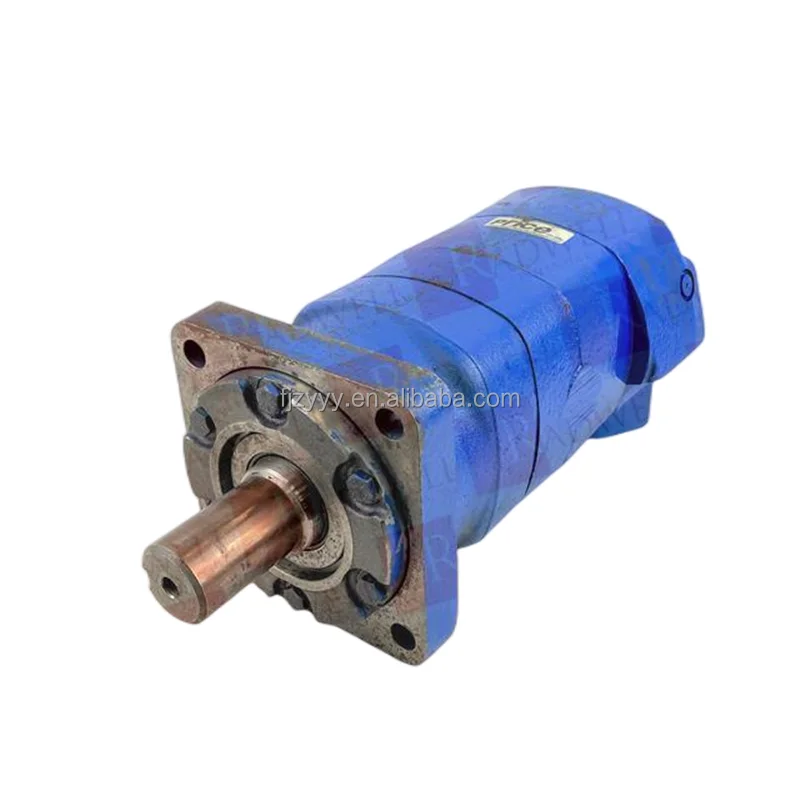

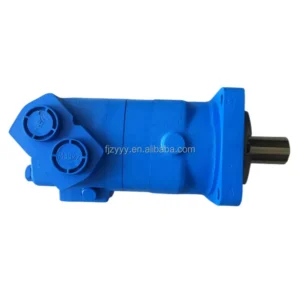

Eaton Char-Lynn 6000 Series Heavy-Duty Orbital Hydraulic Motors

Product Overview: The Eaton Char-Lynn 6000 Series (112- series sequence) stands as the heavyweight champion in the orbital hydraulic motor industry. This category features the premier drive models: 112-1062-006, 112-1131-006, 112-1096-006, 112-1359-006, and 112-1216-006. Engineered with advanced Disc Valve technology and Geroler® geometry, these motors are built to withstand extreme pressure and immense radial loads. They are the premier power source for combine harvester propel drives, heavy industrial mixers, massive winches, off-road drilling rigs, and marine deck machinery.

Key Technical Advantages:

• Disc Valve Precision: The independent valve plate design compensates for clearance wear, ensuring superior volumetric efficiency even under ultra-high pressure and continuous duty cycles.

• Geroler® Roller Geometry: Incorporates roller contacts in the internal star-and-ring set to minimize friction, ensuring pulse-free, ultra-smooth operation in Low Speed High Torque (LSHT) tasks.

• Superior Radial Load Resilience: Equipped with oversized tapered roller bearings, the shaft handles massive side loads directly—simplifying machine design by removing the need for external bearing supports.

• High-Pressure Seal Integrity: A proprietary sealing system manages high back-pressures, ensuring leak-free performance during prolonged operation in dusty, humid, or high-intensity environments.

• Technical Spec Decoding:

  • 112- Series: Identifies the classic Eaton 6000 Series heavy-duty architecture.

  • 1062 / 1131 / 1216: Relates to displacement specifics (195cc to 985cc), mounting flanges, and shaft configurations.

Detailed Models & Specifications:

• Core Series: Eaton Char-Lynn 6000 Series (Heavy Duty).

• Featured Model Matrix:

  • 112-1062-006 / 112-1131-006: Core displacement frames balancing high flow with massive power.

  • 112-1096-006 / 112-1216-006: Reinforced torque variants optimized for heavy lifting and propulsion.

  • 112-1359-006: Specialized industrial configuration with optimized interface compatibility.

• Core Performance Specs:

  • Max Pressure: Continuous operating pressure up to 240 Bar (3500 PSI).

  • Torque Capability: Peak torque outputs ranging from 1200 Nm up to over 2500 Nm (displacement dependent).

  • Mounting Standards: Fully compliant with SAE standard flanges and diverse shaft options (Splined/Keyed).
