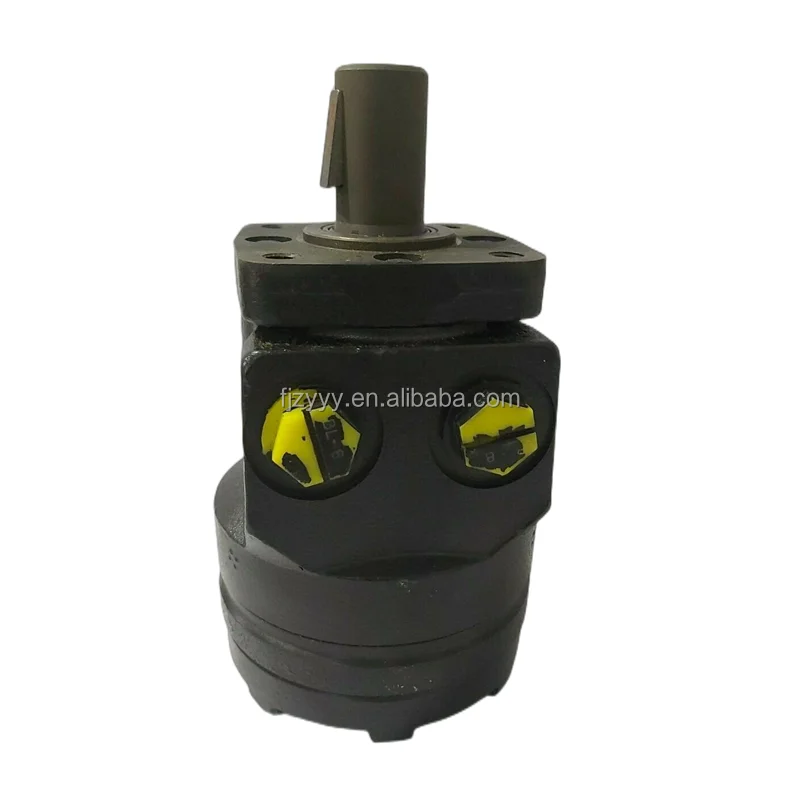

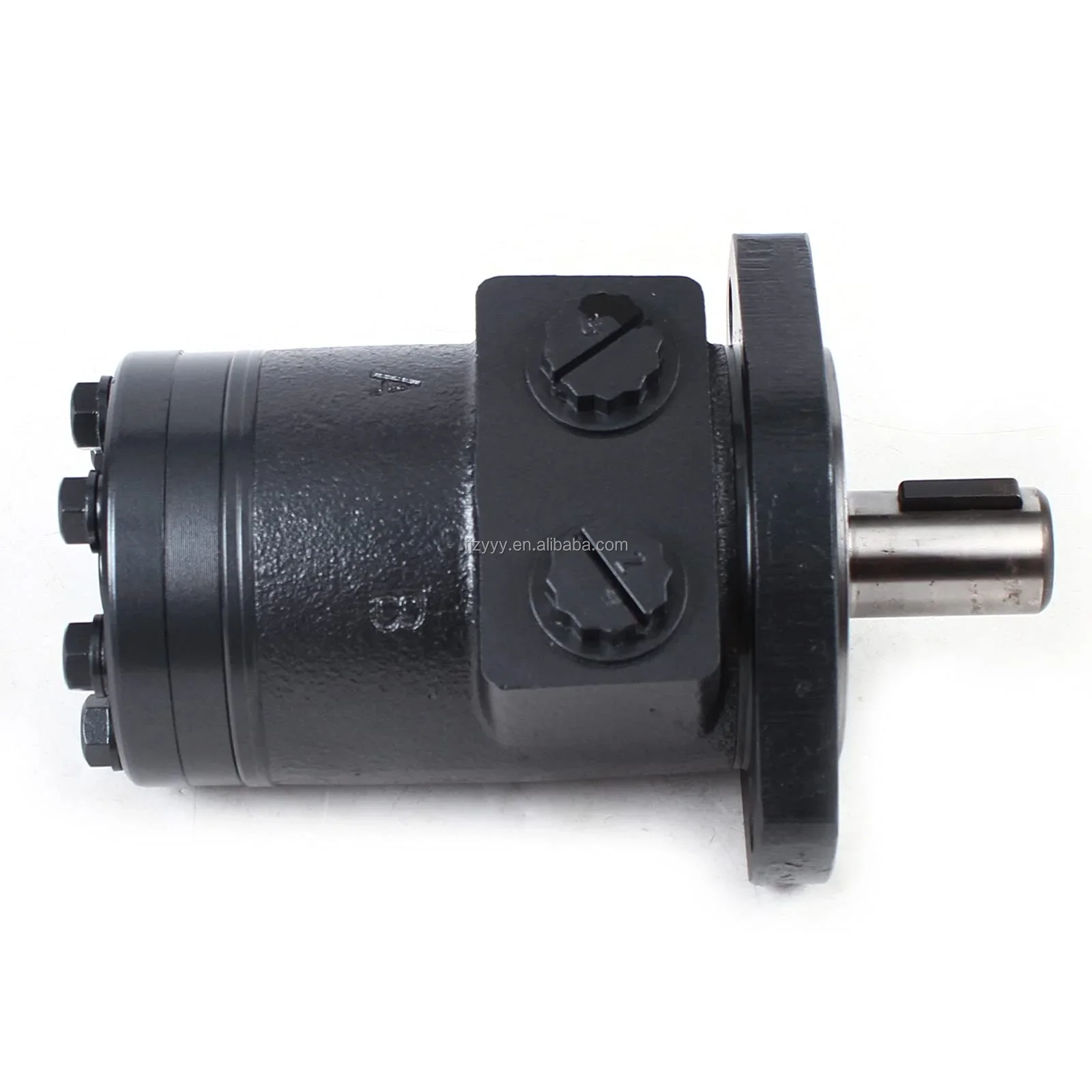

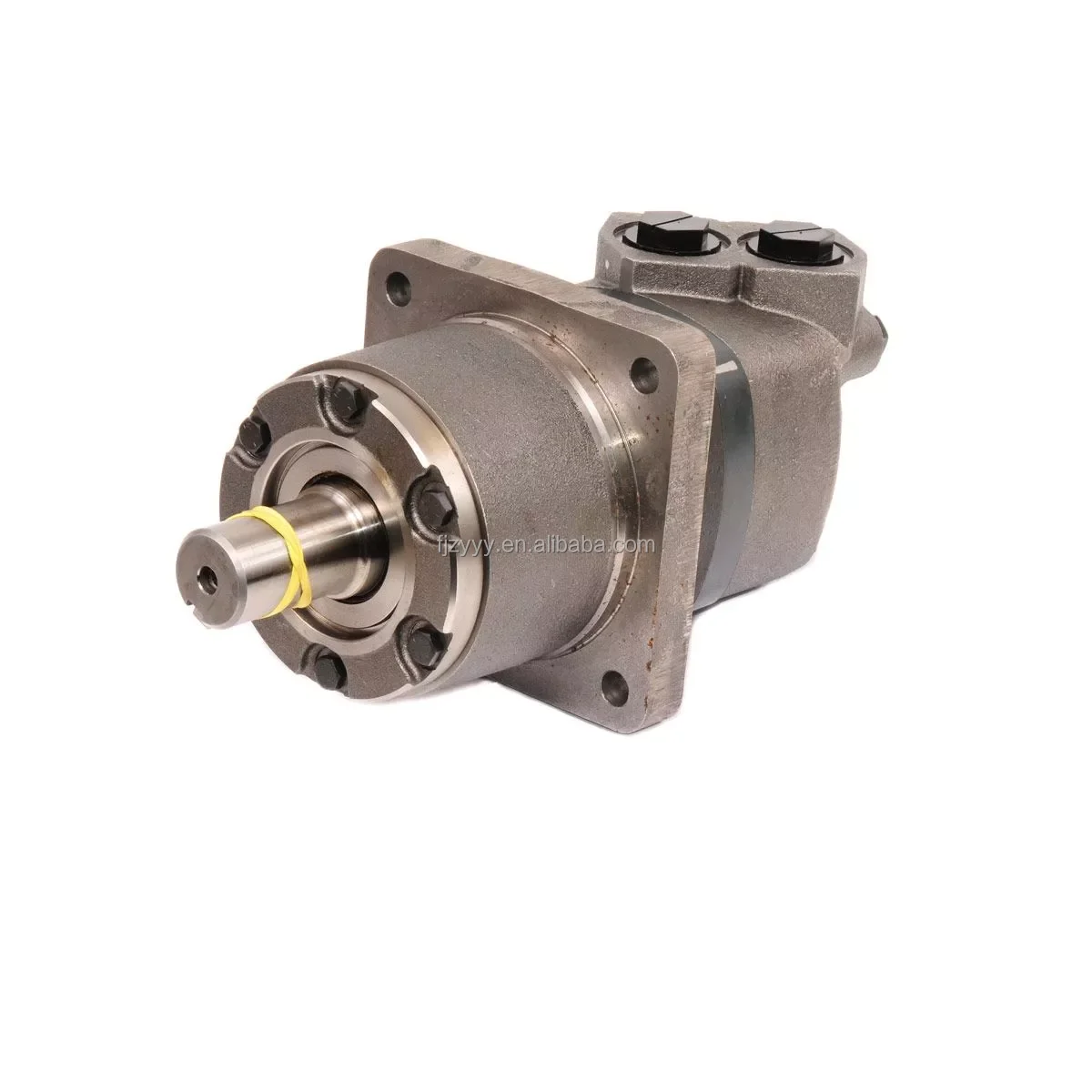

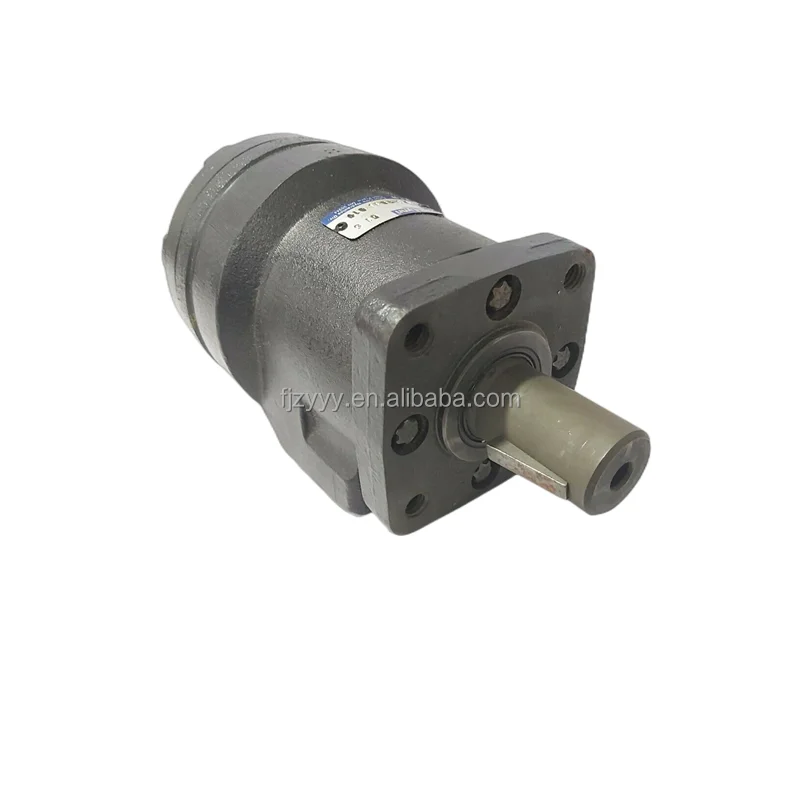

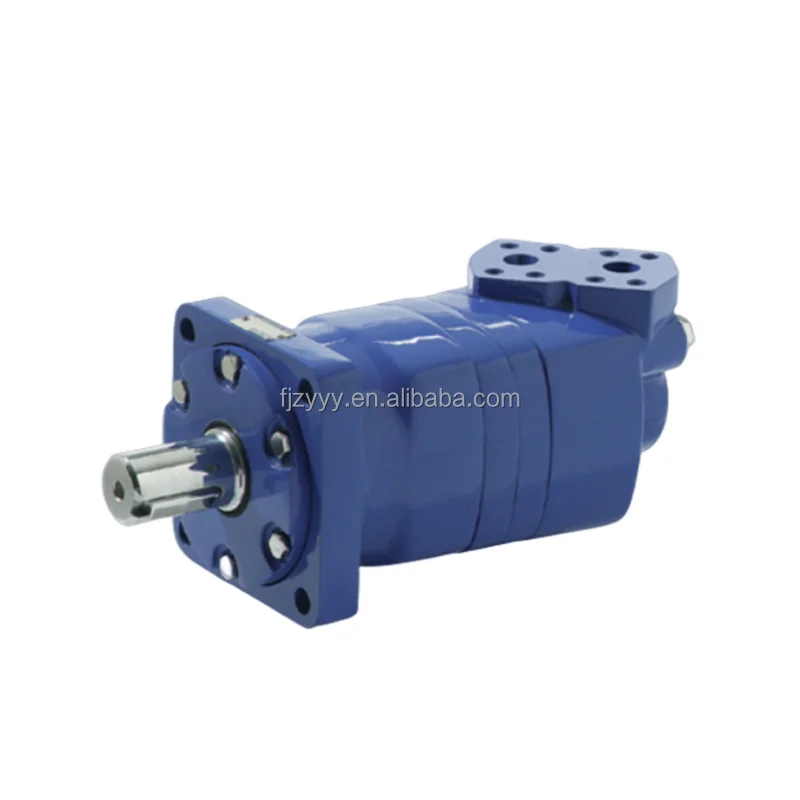

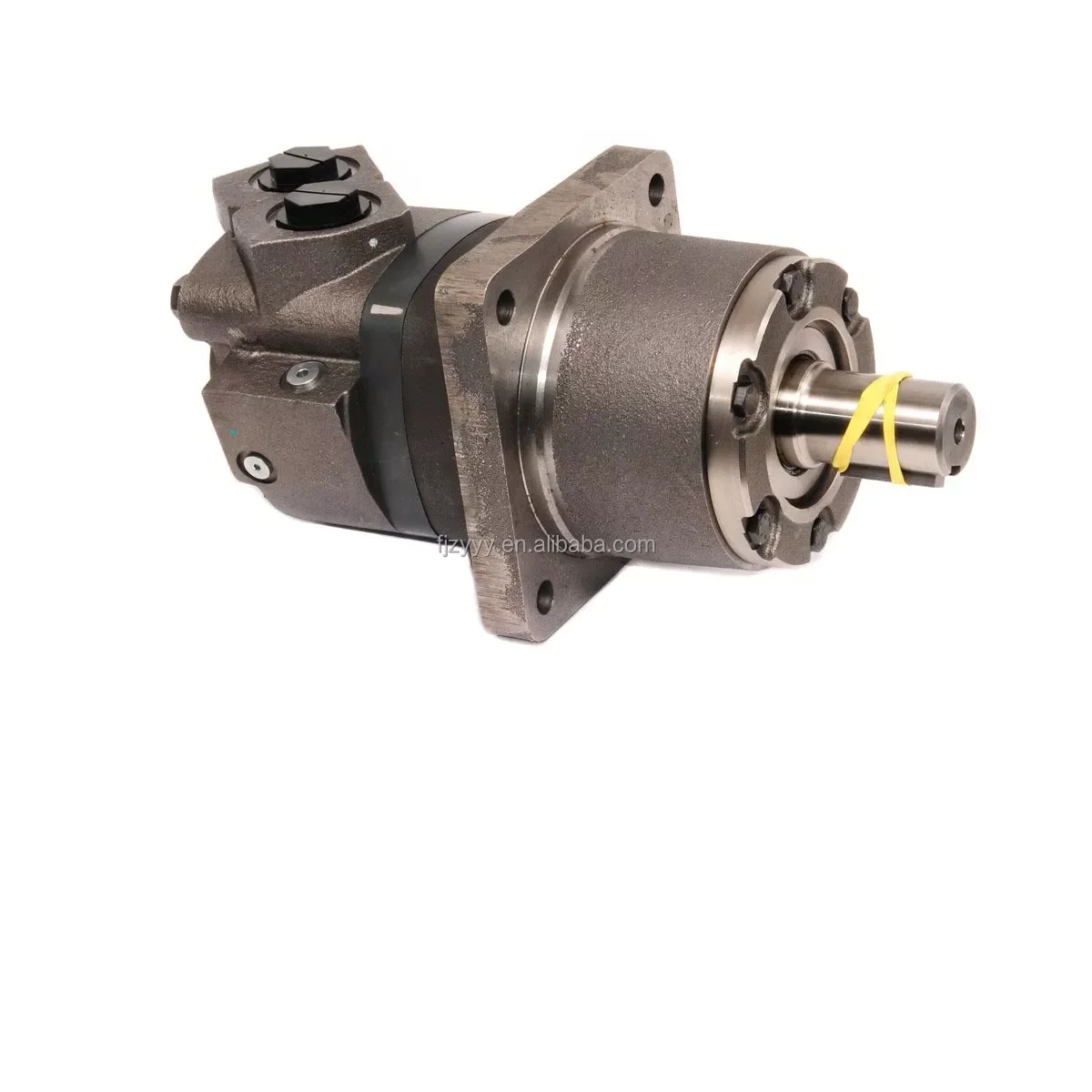

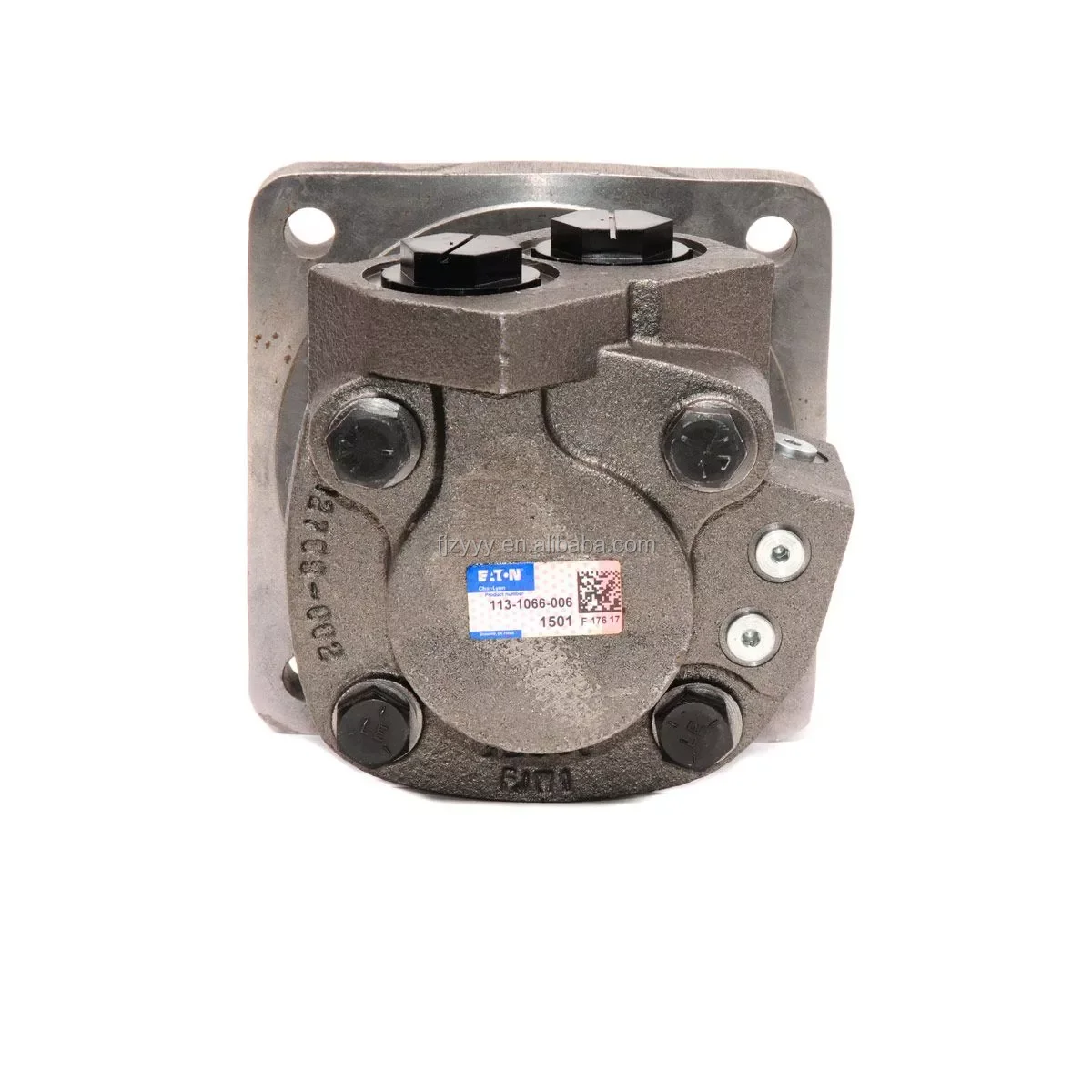

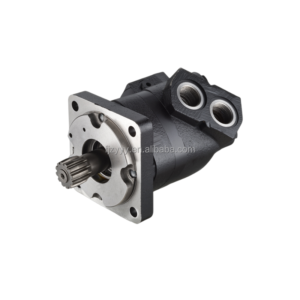

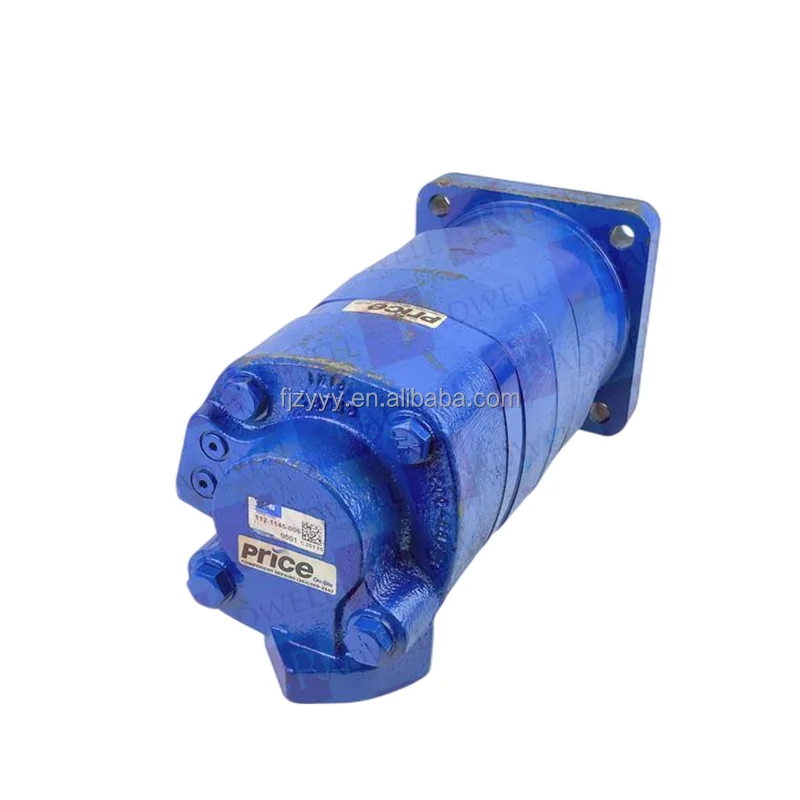

Eaton Char-Lynn 6000 Series (6K) Heavy-Duty LSHT Orbit Motors

Product Overview: The Eaton Char-Lynn 6000 Series (commonly known as the 6K Series) represents the global pinnacle of heavy-duty orbital hydraulic motor technology. This category highlights cornerstone models: 114-1080-006, 114-1047-006 (6K114-1047), 114-1079-006, and 114-1032-006. Utilizing advanced Disc Valve technology, the 6000 Series is engineered to deliver elite performance under continuous high-pressure and extreme shock load conditions. Its patented Geroler® roller set design minimizes internal mechanical friction, ensuring powerful, pulse-free operation even at ultra-low speeds. These motors are the premier power source for heavy-duty propel drives, large construction machinery, industrial winches, forestry harvesters, and large-scale agitation systems.

Key Technical Advantages:

• Elite Disc Valve Precision: The independent valve plate automatically balances clearances under pressure, maintaining peak volumetric efficiency throughout the motor’s entire service life.

• Geroler® Roller Geometry: Internal roller supports minimize startup friction and ensure powerful, smooth torque delivery across the entire operating range.

• Superior Load Resilience: Equipped with oversized tapered roller bearings, the robust housing handles massive radial and axial loads—ideal for direct-drive wheel or heavy gear-driven setups.

• Technical Decoding:

  • 114-1080-006 / 114-1079-006: Industrial standard heavy-duty configurations with high system interchangeability.

  • 114-1047-006 (6K114-1047): Specifically optimized for high-torque demands, providing exceptional breakout force.

  • 114-1032-006: Precision configuration tailored for specific mounting and shaft requirements.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 6000 Series (6K Series).

• Featured Model Matrix: 114-1080-006, 114-1047-006, 114-1079-006, 114-1032-006.

• Core Performance Specs:

  • Displacement Range: 195 cc/rev to 985 cc/rev (11.9 – 60.0 cu in/rev).

  • Rated Pressure: Continuous up to 210 Bar (3000 PSI); Intermittent peaks up to 310 Bar (4500 PSI).

  • Torque Capability: Continuous torque up to 2200 Nm, with peak torque exceeding 3400 Nm.

  • Flow Capacity: Supports continuous flow inputs up to 150 L/min (40 GPM).

  • Mounting Standards: Standard 4-Bolt Square or Wheel flanges with 1-1/2″ or 2″ Keyed or Splined shaft options.
