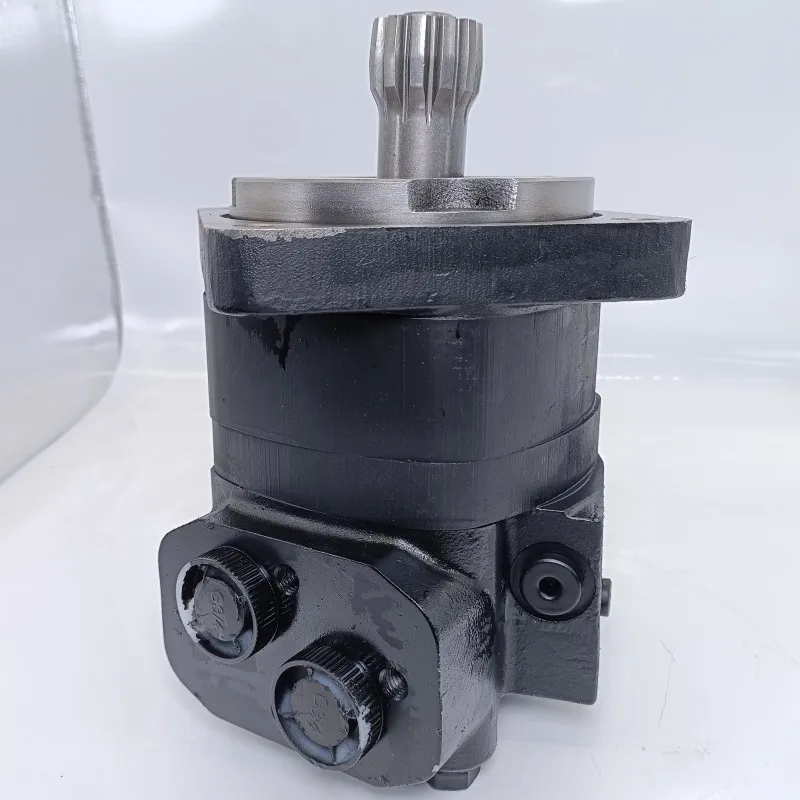

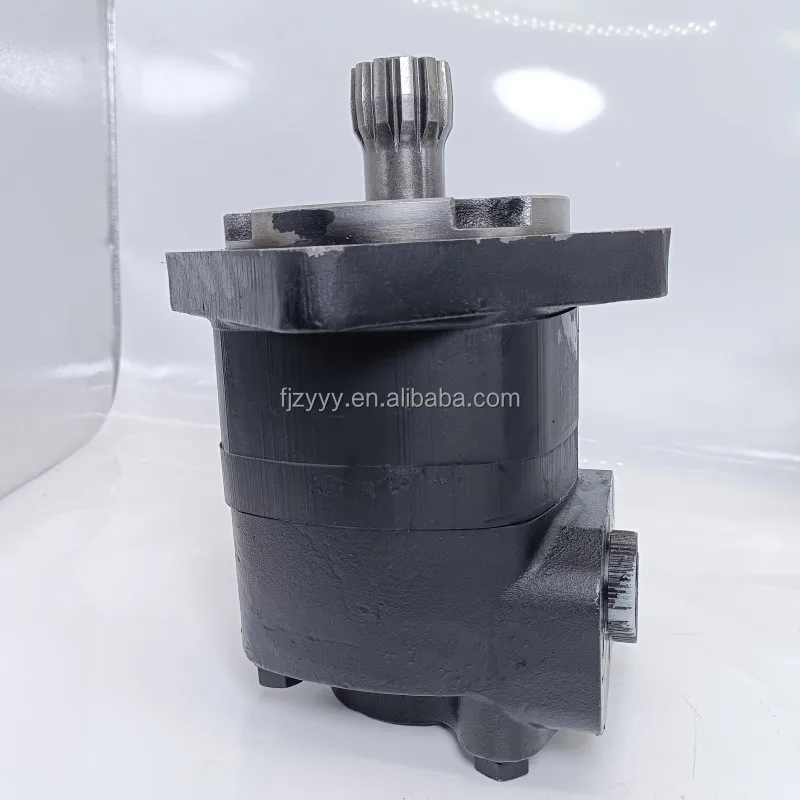

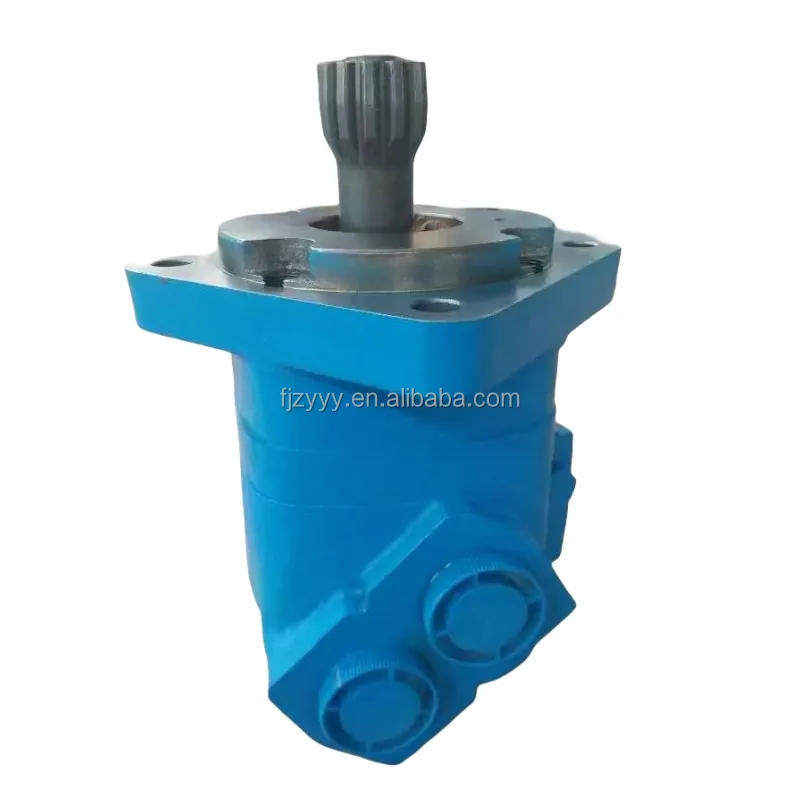

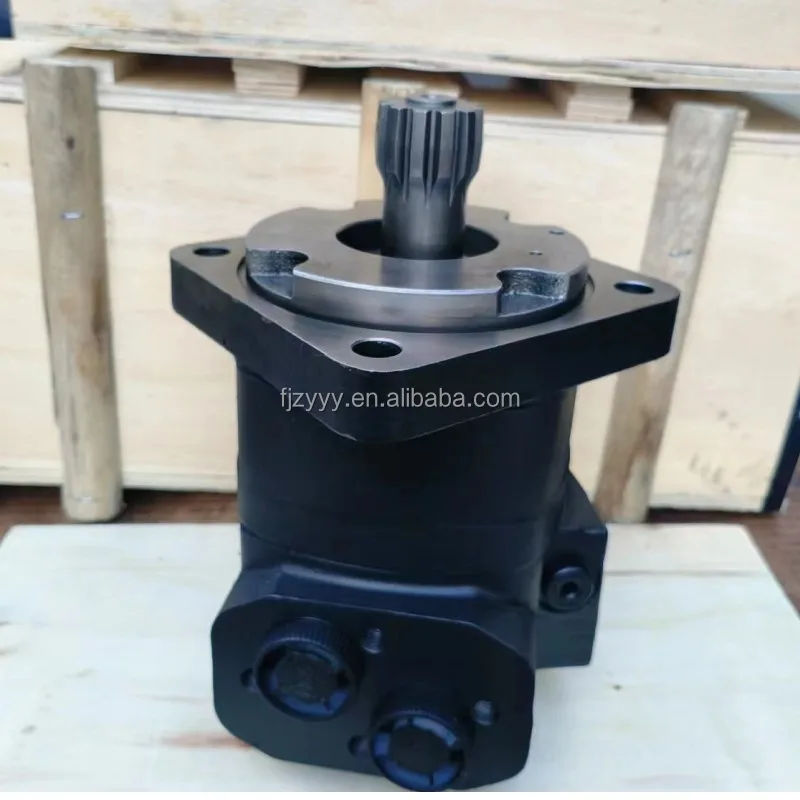

Eaton Char-Lynn 6000 Series (161-) Heavy-Duty LSHT Motors

Product Overview: The Eaton Char-Lynn 6000 Series (161- sequence) represents the absolute pinnacle of heavy-duty orbital hydraulic drive technology. This category features two high-performance core models: 161-0085-005 and 161-0035-005. As flagship Disc Valve motors, the 6000 series utilizes Eaton’s patented Geroler® roller set design, delivering massive continuous torque even at ultra-low speeds. Its rugged cast-iron housing and reinforced bearing system make it the premier choice for track propel drives, heavy-duty winches, forestry machinery, road pavers, and industrial shredders.

Key Technical Advantages:

• Disc Valve Precision: The independent valve plate design automatically compensates for wear, ensuring superior volumetric efficiency and more precise power delivery compared to standard spool valve motors.

• Geroler® Roller Geometry: Incorporates roller contacts in the gear set to drastically reduce internal mechanical friction, ensuring pulse-free operation in Low Speed High Torque (LSHT) conditions and significantly extending service life.

• Elite Load Resilience: Equipped with oversized tapered roller bearings, the motor shaft handles immense radial and axial loads directly—eliminating the need for external bearing supports in most drive configurations.

• Weather-Sealed Integrity: A high-performance sealing system supports high back-pressure operation, protecting the motor against harsh industrial environments, preventing leaks, and blocking out moisture or debris.

• Technical Decoding:

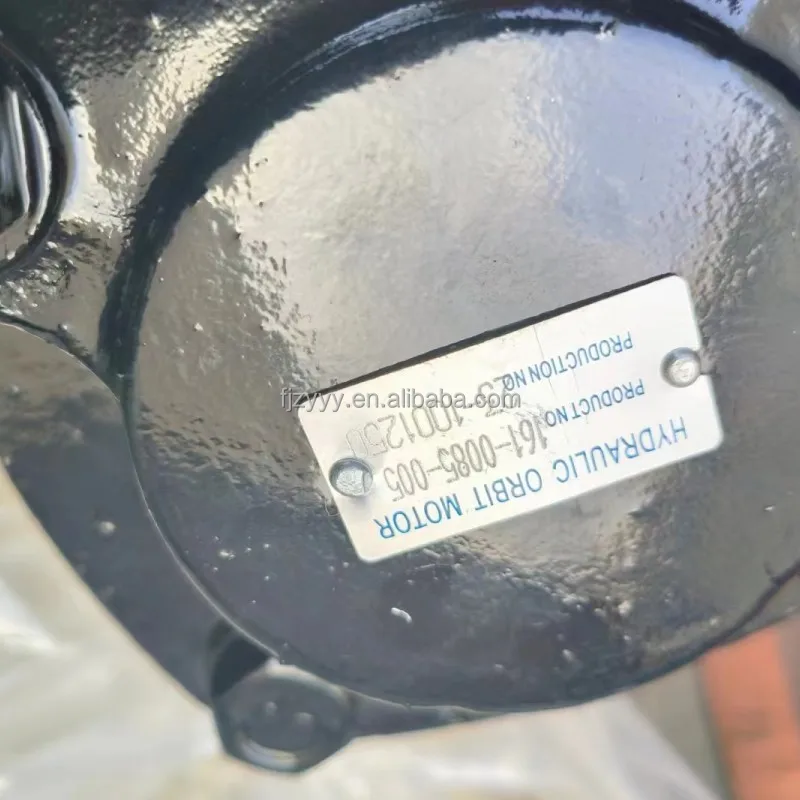

  • 161-0085-005: Optimized for maximum torque density and heavy-load starting.

  • 161-0035-005: A versatile frame balancing rotational speed with heavy-duty power.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 6000 Series (High Torque).

• Featured Models: 161-0085-005, 161-0035-005.

• Core Performance Specs:

  • Rated Pressure: Continuous up to 240 Bar (3500 PSI); intermittent peaks up to 310 Bar (4500 PSI).

  • Torque Capability: Continuous torque outputs ranging from 1000 Nm to over 2500 Nm (displacement dependent).

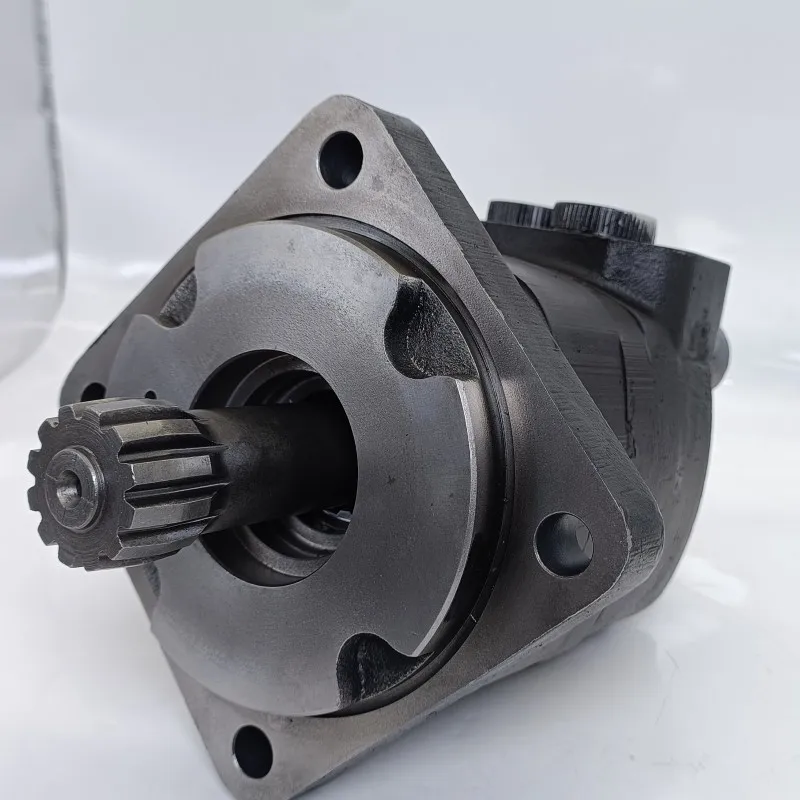

  • Mounting Standards: Standard 4-Bolt flange with various Keyed or Splined shaft options.
