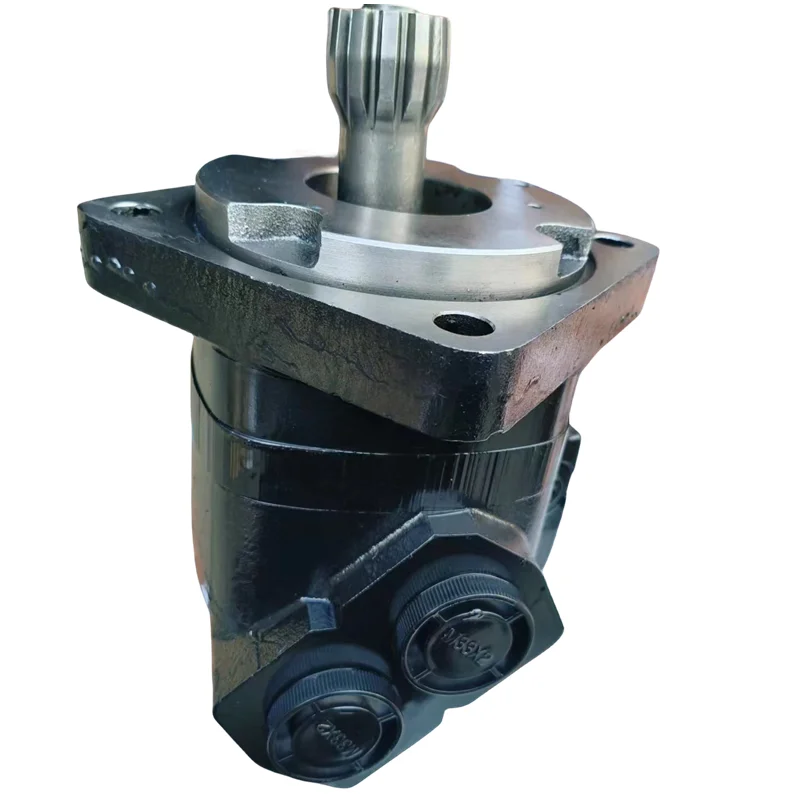

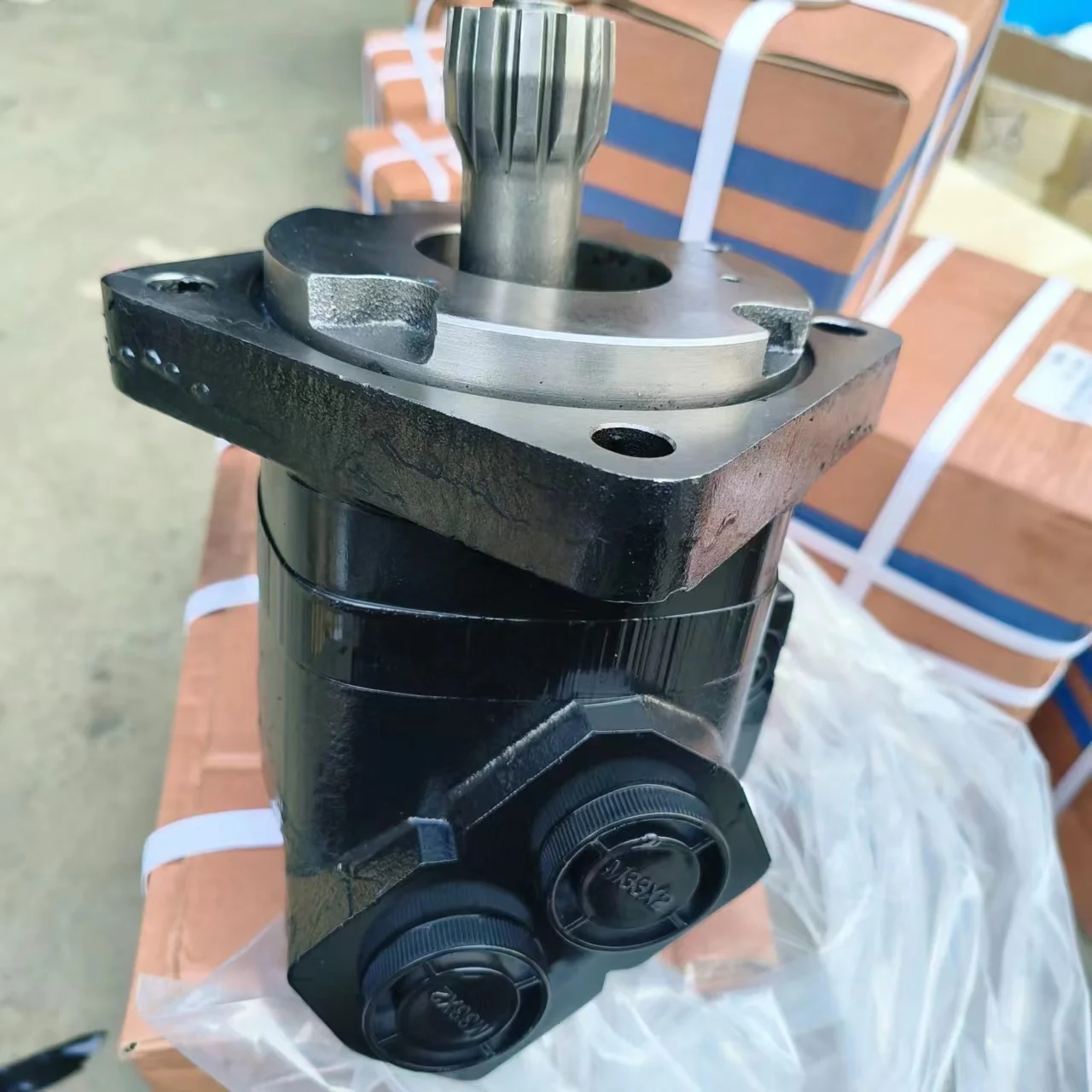

Eaton Char-Lynn 6000 Series (114-) Bearingless Integration Motors

Product Overview: The Eaton Char-Lynn 6000 Series 114- sequence represents the pinnacle of compact, high-torque hydraulic motor design. This category features the high-performance models: 114-1048-005, 114-1079-006, 114-1131-006, 114-1080-006, and 114-1064-005. As a specialized Bearingless configuration, this series eliminates the standard bearing housing, allowing the motor to be integrated directly into planetary gear reducers, wheel hub drives, or mechanical gearboxes. Powered by Disc Valve technology, the 114- series offers massive torque within a highly compressed envelope—perfect for track drive systems, construction propel drives, harvester heads, and heavy-duty marine winches.

Key Technical Advantages:

• Optimized Compact Integration: The bearingless “short motor” design reduces total package length and weight, leveraging the host machine’s bearings to simplify system architecture.

• High-Pressure Disc Valve Precision: The independent valve plate automatically compensates for clearances, ensuring superior volumetric efficiency during high-pressure pulses and frequent reversing cycles.

• Geroler® Roller Technology: Incorporates roller contacts in the star-and-ring set to minimize mechanical friction, delivering pulse-free, ultra-smooth performance in Low Speed High Torque (LSHT) conditions.

• Heavy-Duty Resilience: Despite its compact frame, the 114- series maintains the same elite pressure ratings and torque capabilities as the standard 6000 series.

• Technical Decoding:

  • 114- Series: Identifies 6000 Series frame sizes designed for bearingless integration.

  • 1048 / 1079 / 1131: Relates to displacement specifics (310cc to 985cc) and internal spline configurations for gearbox mating.

Detailed Models & Specifications:

• Core Series: Eaton Char-Lynn 6000 Series (Bearingless).

• Featured Model Matrix: 114-1048-005, 114-1079-006, 114-1131-006, 114-1080-006, 114-1064-005.

• Core Performance Specs:

  • Rated Pressure: Continuous up to 240 Bar (3500 PSI); intermittent peaks up to 310 Bar.

  • Torque Capability: Continuous torque output ranging from 1000 Nm to over 2500 Nm (displacement dependent).

  • Interface Standards: Specialized bearingless flange with internal splined drive linkage.
