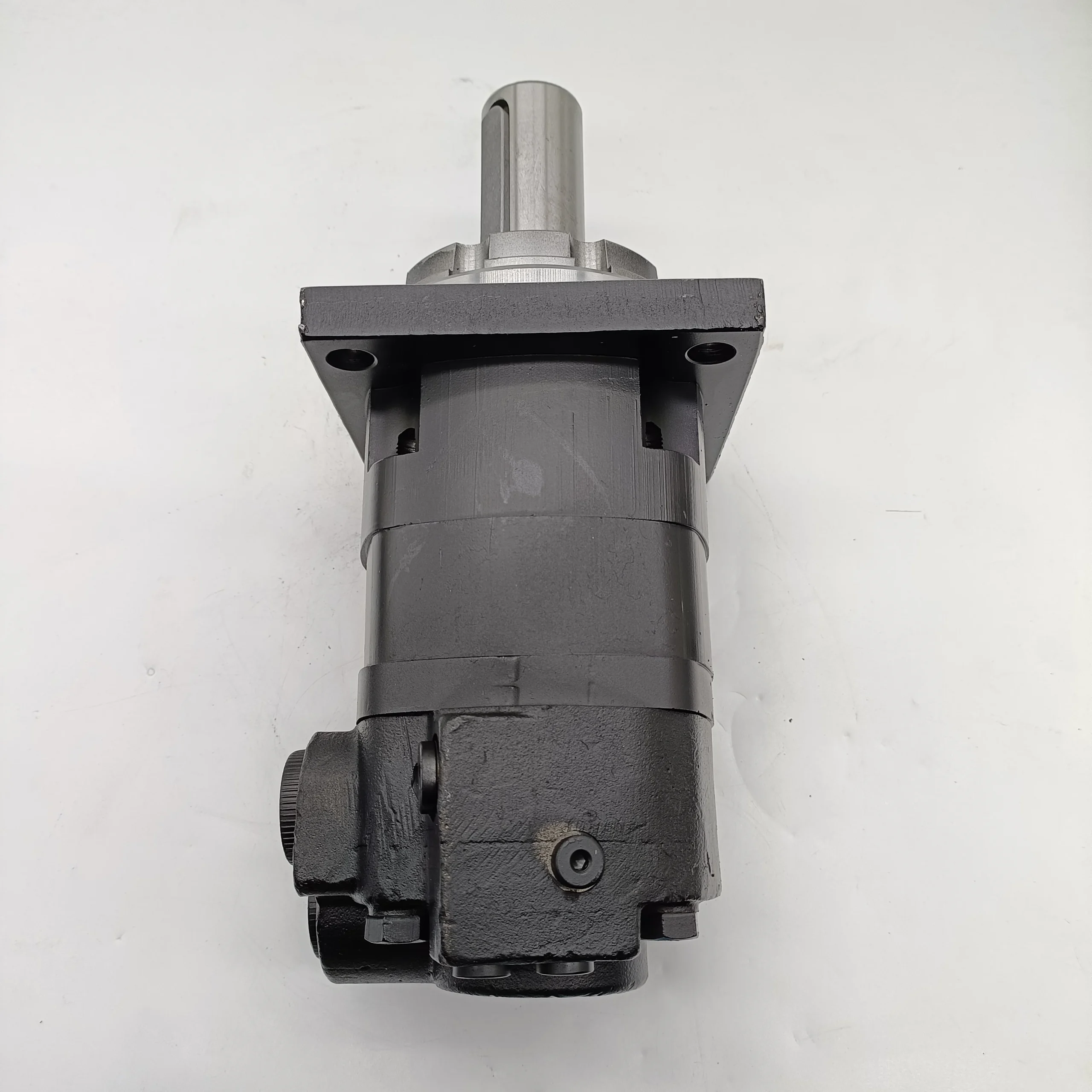

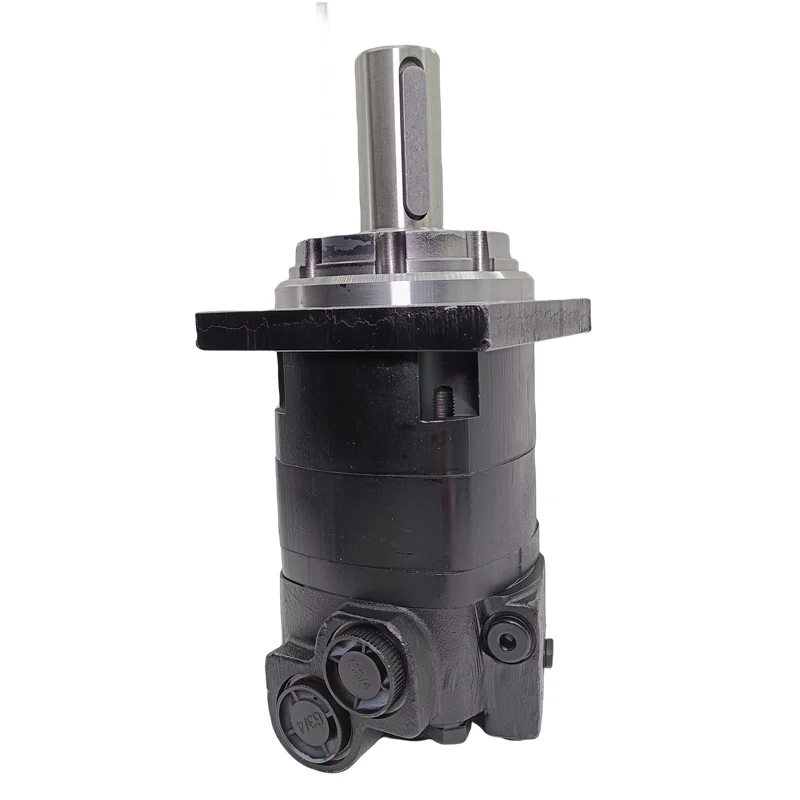

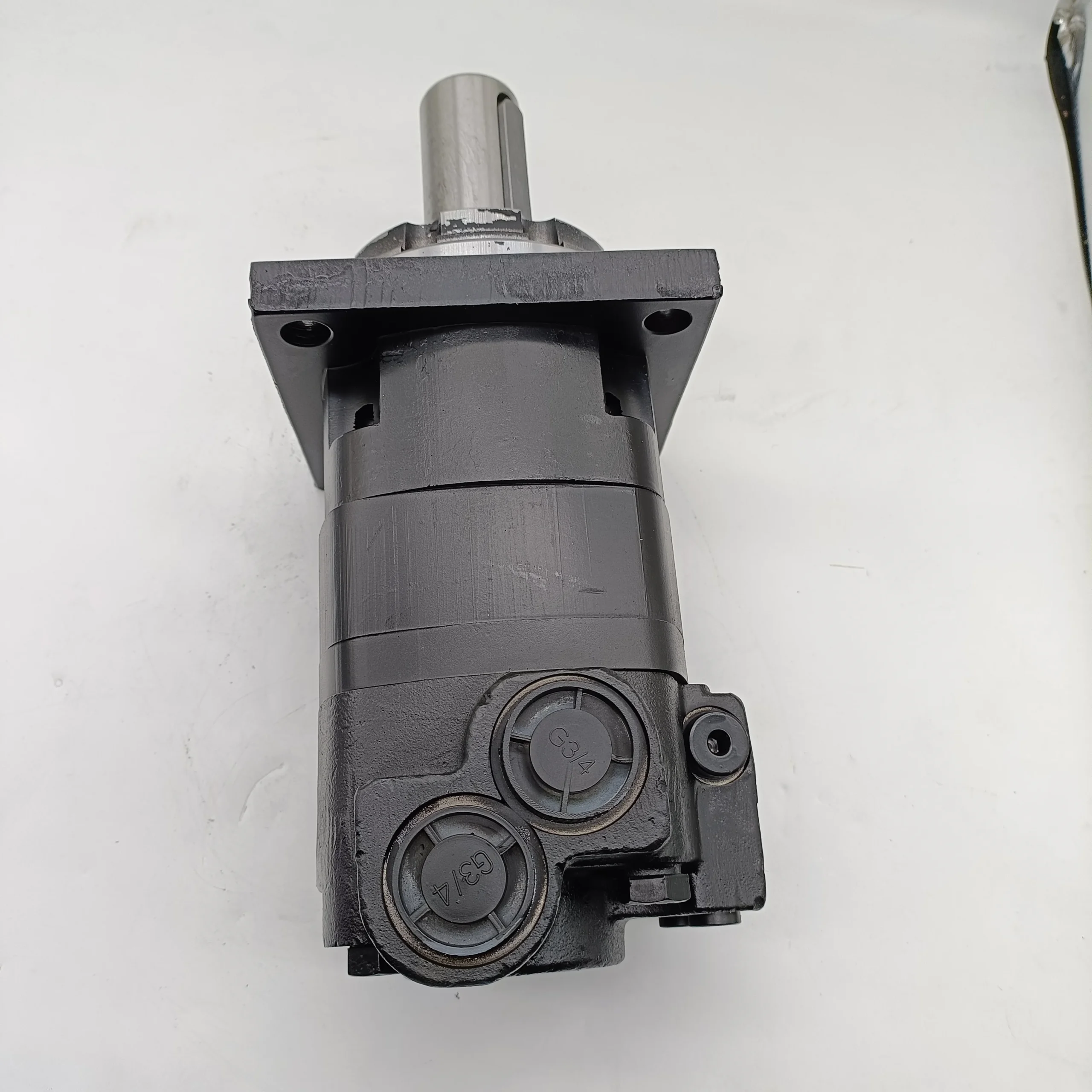

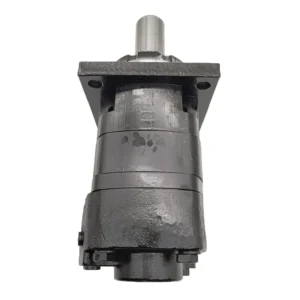

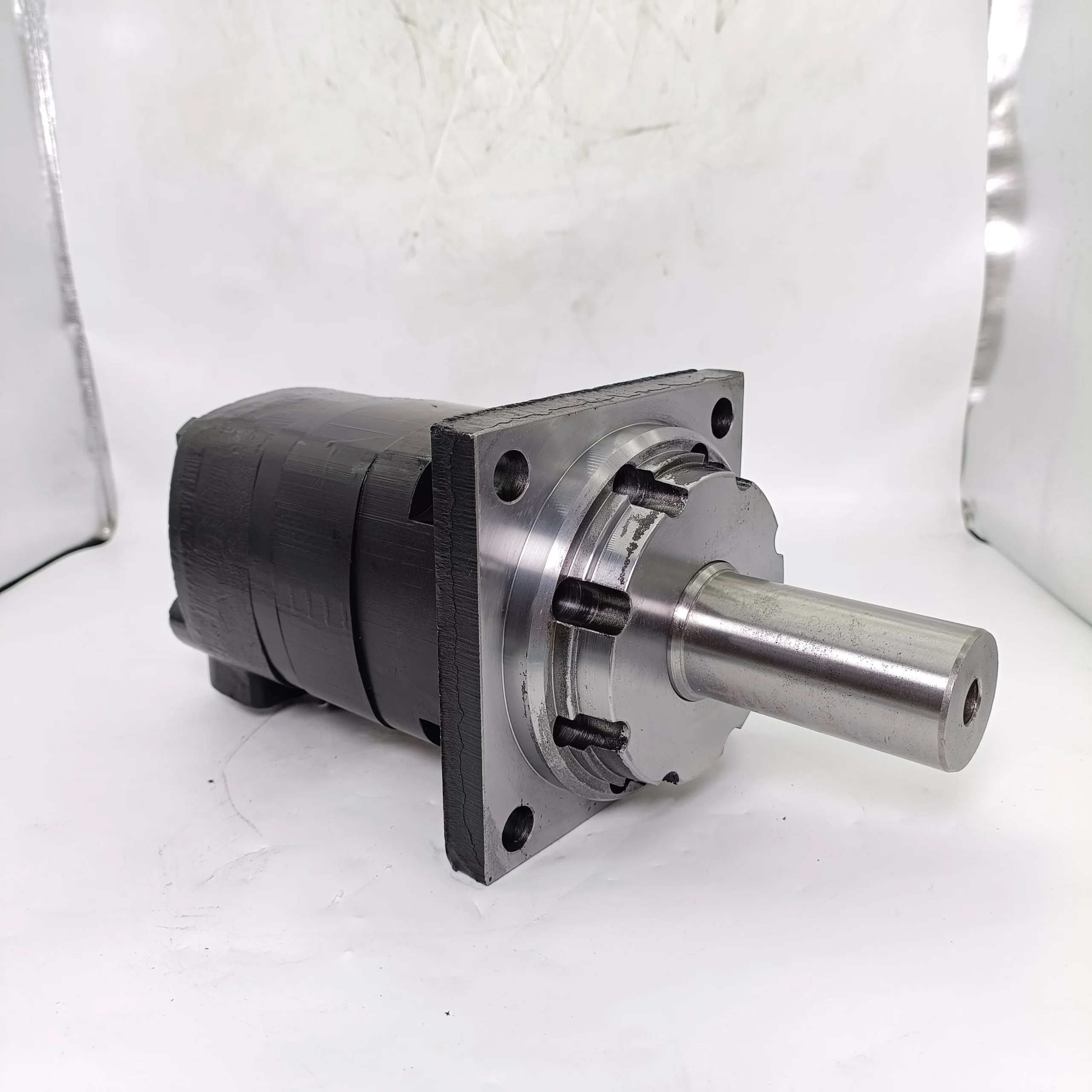

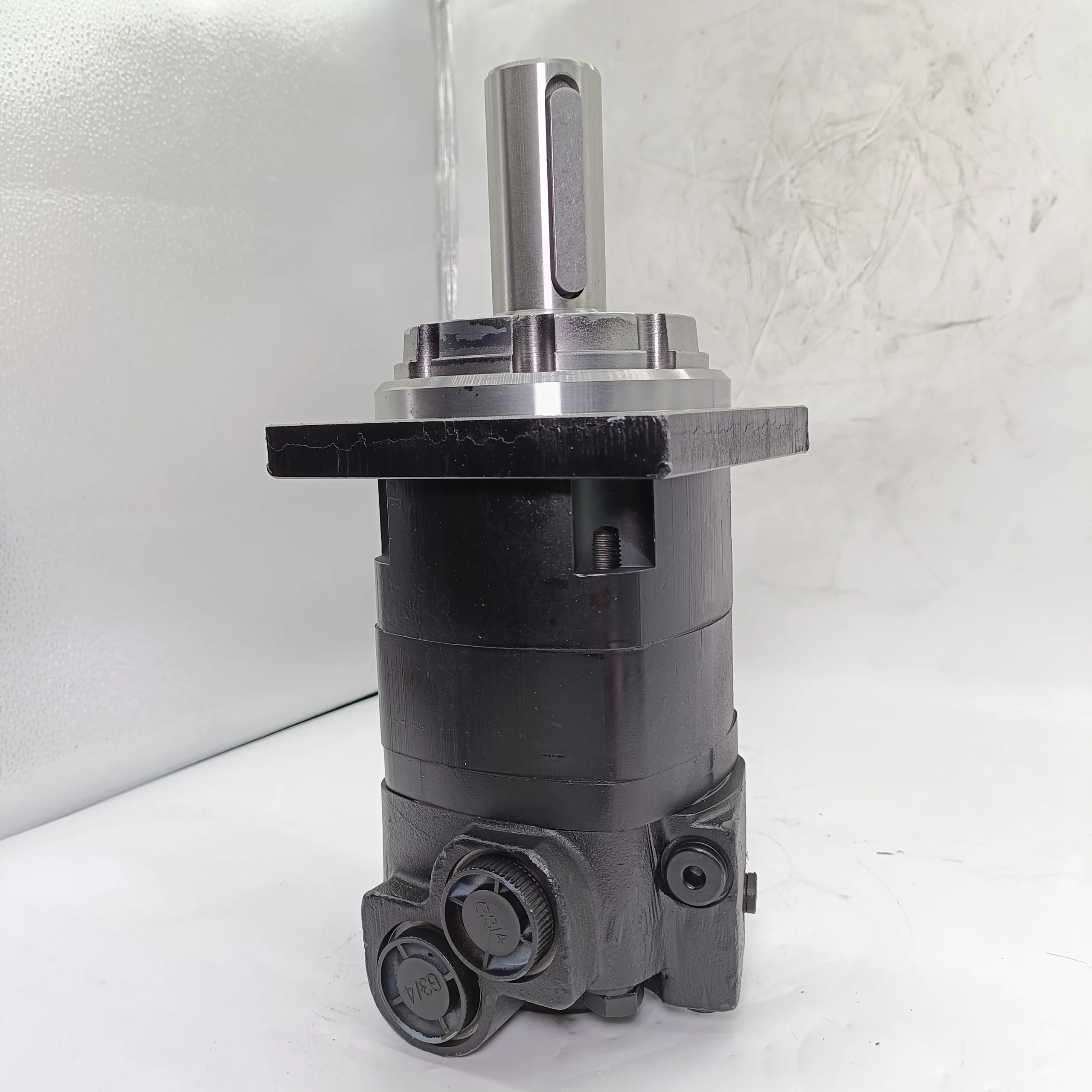

Eaton Char-Lynn 4000 Series (109-) Heavy-Duty Disc Valve Orbit Motors

Product Overview: The Eaton Char-Lynn 4000 Series (109- sequence) is a powerhouse in the heavy-duty orbital hydraulic drive sector. This category features the essential industrial models: 109-1101-006, 109-1319-006, 109-1219-006, 109-1118-006, 109-1120-006, 109-1115-006, and 109-1116-006. Engineered with signature Disc Valve technology and the Geroler® roller set, 4000 series motors deliver massive torque within a robust, compact frame. They are the premier choice for agricultural propel drives, industrial mixers, road paving equipment, forestry machinery, and large winch drives.

Key Technical Advantages:

• Disc Valve Precision: The independent valve plate design automatically compensates for wear, ensuring superior volumetric efficiency and precise power delivery even under extreme pressure cycles.

• Geroler® Roller Geometry: Incorporates precision roller contacts in the gear set to minimize startup friction, providing pulse-free, ultra-smooth performance in Low Speed High Torque (LSHT) conditions.

• Elite Bearing Load Resilience: Equipped with oversized tapered roller bearings, the motor shaft handles immense radial and axial loads directly—simplifying machine design by removing the need for external bearing supports.

• High-Pressure Seal Integrity: A specialized sealing system handles significant back-pressure, ensuring leak-free performance in harsh environments, including heavy dust, moisture, and extreme temperatures.

• Technical Spec Decoding:

  • 109-1101 / 1115 / 1118: Relates to displacement specifics (160cc to 625cc frames) and mounting configurations.

  • Suffix -006: Denotes the standard industrial configuration with an enhanced sealing system.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 4000 Series (High Torque Motor).

• Featured Model Matrix: 109-1101-006, 109-1319-006, 109-1219-006, 109-1118-006, 109-1120-006, 109-1115-006, 109-1116-006.

• Core Performance Specs:

  • Rated Pressure: Continuous up to 200-240 Bar (3000-3500 PSI).

  • Torque Capability: Continuous torque output ranging from 600 Nm up to over 1300 Nm (displacement dependent).

  • Mounting Standards: Compliant with SAE B or 4-Bolt flange specifications with Keyed or Splined shaft options.
