Eaton Char-Lynn 2K Motor | 2K-195-604-1265 | Disc Valve Hydraulic Orbit Motor

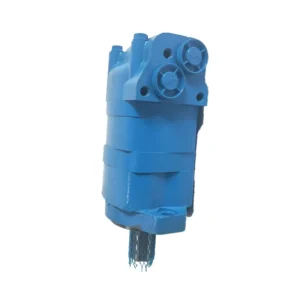

Eaton Char-Lynn 2K-195-604-1265 High Torque Orbit Hydraulic Motor

Product Overview: The Eaton Char-Lynn 2000 (2K) Series orbital motor is synonymous with high-performance and reliable hydraulic drive. This category highlights the specific part number 2K-195-604-1265. As a Low Speed High Torque (LSHT) motor featuring Disc Valve technology, it is engineered to excel in severe, continuous duty cycles. Utilizing the patented Geroler® roller set design, this motor delivers smooth and massive power output even during startup and ultra-low speed “creeping” tasks. It is the premier choice for combine harvester drives, large conveyor systems, municipal sweeper brushes, injection molding machinery, and heavy-duty winch systems.

Key Technical Advantages:

• Disc Valve Precision: The independent valve plate automatically compensates for wear, significantly reducing internal leakage compared to spool valve designs and ensuring superior volumetric efficiency under high-pressure conditions.

• Geroler® Roller Geometry: Incorporates roller contacts in the internal star-and-ring set to minimize startup friction, effectively eliminating “cogging” or vibration at low RPMs.

• Superior Radial Load Capacity: Equipped with heavy-duty tapered roller bearings, the motor handles massive radial forces from sprockets, gears, or wheels directly—eliminating the need for external bearing supports.

• Part Number Decoding (604-1265): Represents specific mounting flange specs (e.g., 2-Bolt/4-Bolt SAE), shaft types (Keyed/Splined), and port configurations for seamless system integration.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 2000 (2K) Series.

• Specific Model Code: 2K-195-604-1265.

• Core Performance Specs:

  • Displacement: 195 cc/rev (11.9 cu in/rev).

  • Max Pressure: Continuous up to 200 Bar (3000 PSI); Intermittent peaks up to 240 Bar (3500 PSI).

  • Max Torque: Continuous torque output approximately 600 Nm to 700 Nm (displacement and pressure dependent).

  • Mounting Standard: Fully compliant with standard SAE mounting and shaft interfaces.
