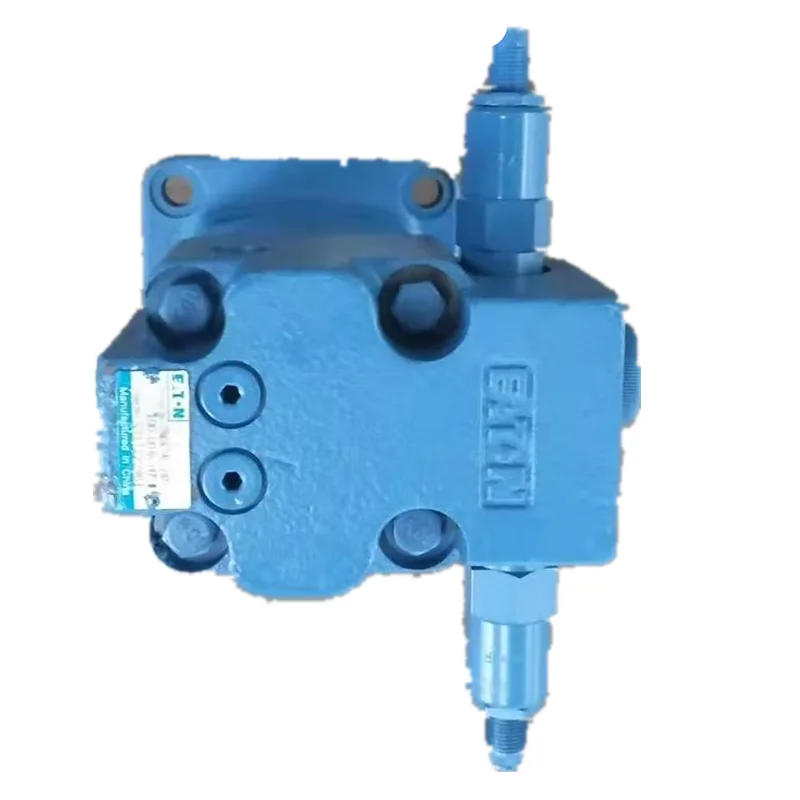

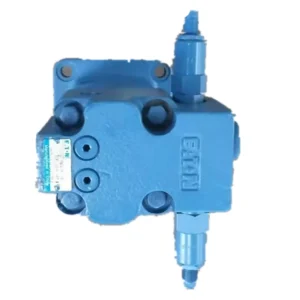

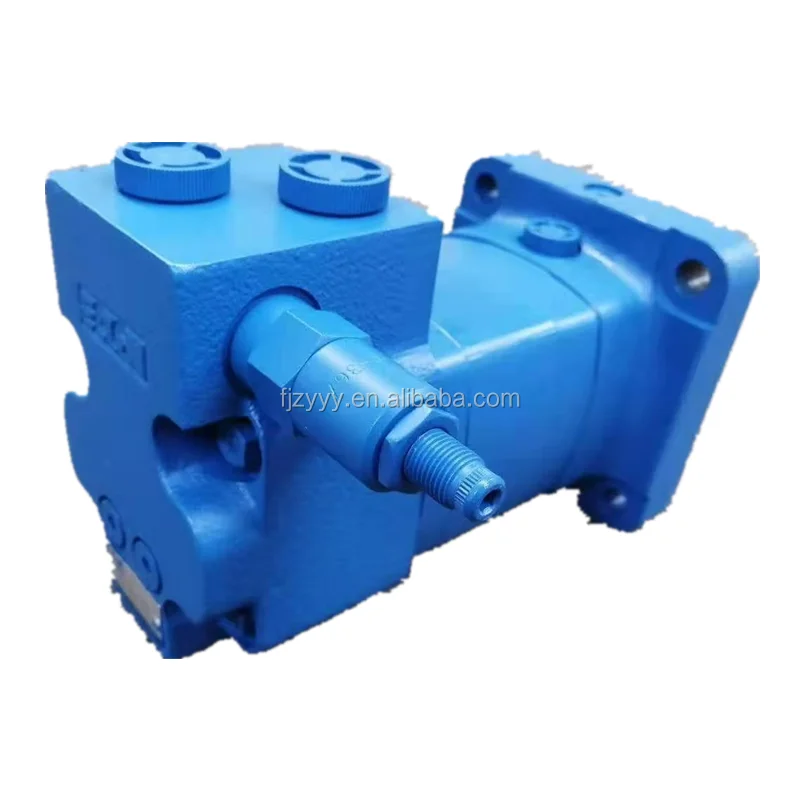

Eaton Char-Lynn 2000 Series SW2.5K-245 Orbital Hydraulic Motors

Product Overview: The Eaton Char-Lynn 2000 Series (including model SW2.5K-245 / 691-0076-006) is the global performance benchmark for industrial-grade orbital motors. Engineered with advanced Disc Valve technology, this series is designed for medium-to-heavy duty applications. Featuring the signature Geroler® roller set design, these motors minimize friction to deliver smooth, consistent torque output even at low speeds. It is the premier power source for agricultural harvesters, material handling conveyors, industrial sweepers, injection molding machinery, and municipal utility equipment.

Key Technical Advantages:

• Disc Valve Precision: The dedicated valve plate compensates for wear and minimizes internal leakage, ensuring high volumetric efficiency throughout the motor’s service life.

• Geroler® Roller Stator: Roller contacts significantly enhance mechanical startup efficiency and ensure pulse-free operation during Low Speed High Torque (LSHT) conditions.

• Superior Radial Load Capacity: The reinforced bearing architecture allows the shaft to handle significant side loads directly, simplifying drive system designs.

• All-Weather Reliability: Equipped with high-pressure shaft seals, these motors ensure leak-free operation and an extended service life under harsh outdoor or high-intensity continuous duty cycles.

• Technical Spec Decoding:

  • 691-0076-006: Precise part number representing specific mounting (e.g., 2-Bolt/4-Bolt SAE), shaft types (Keyed/Splined), and port configurations.

  • SW2.5K-245: Denotes the 2.5K frame size with a 245cc displacement per revolution.

Detailed Models & Specifications:

• Core Series: Eaton Char-Lynn 2000 Series (Standard & SW Series).

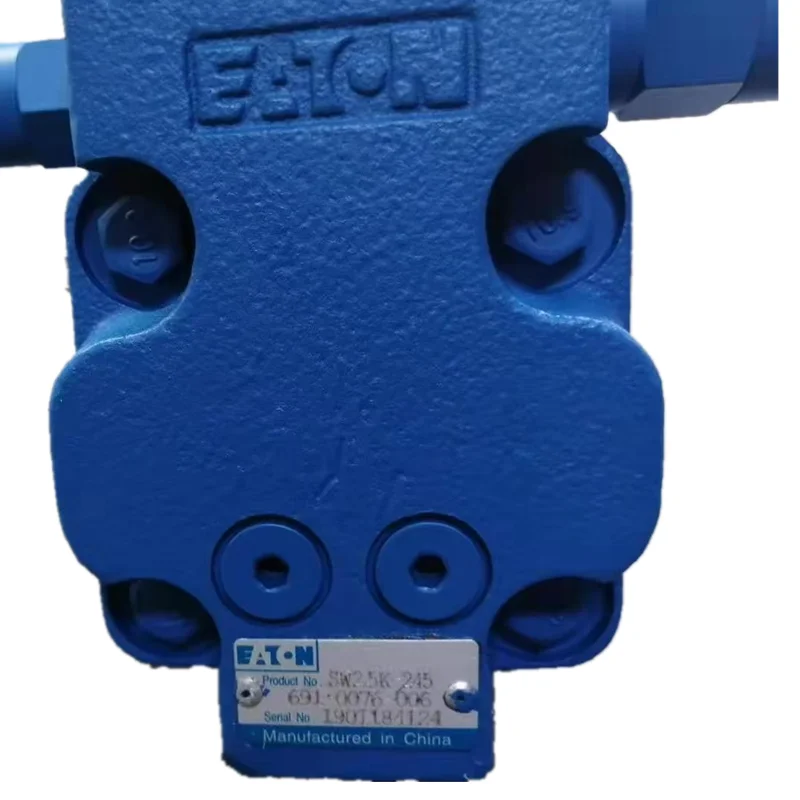

• Featured Model: SW2.5K-245 / 691-0076-006.

• Core Performance Specs:

  • Displacement: 245 cc/rev (15.0 cu in/rev).

  • Rated Pressure: Continuous up to 200 Bar (3000 PSI); Intermittent peaks up to 240 Bar.

  • Max Torque: Continuous torque output approximately 700-850 Nm (system pressure dependent).

  • Mounting Standard: Fully compliant with global standard interfaces for rapid replacement and maintenance.
