Eaton Char-Lynn 2000 Series Motor | 104-1436-006, 104-1212-006 | Orbit Hydraulic Motor

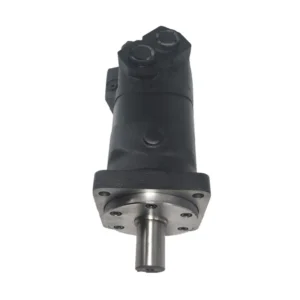

Eaton Char-Lynn 2000 Series High-Torque Orbit Hydraulic Motors

Product Overview: The Eaton Char-Lynn 2000 Series (104 series prefix) is the global industry standard for hydraulic drives, renowned for its exceptional durability and high power density. Utilizing advanced Disc Valve technology, these motors operate more efficiently at higher pressures and torques compared to traditional shaft-valve designs. This selection features core high-performance part numbers: 104-1436-006 (Enhanced configuration) and 104-1212-006 (Standard heavy-duty spec). Capable of delivering smooth power at continuous pressures up to 200 Bar, the 2000 series is the ideal drive heart for agricultural machinery, forestry equipment, industrial conveyors, and construction vehicles.

Key Technical Advantages:

• Advanced Disc Valve Engineering: The distribution valve rotates independently and synchronously with the shaft, drastically reducing internal leakage and ensuring consistent volumetric efficiency throughout the motor’s life.

• Superior Side-Load Capacity: Equipped with heavy-duty roller bearings, allowing the motor to support significant radial loads directly at the output shaft without external bearing support.

• Full-Spectrum Starting Torque: The optimized Geroler stator set guarantees high torque from zero RPM, eliminating lag when starting under heavy loads.

• 104 Series Modular Configuration: The -006 suffix denotes specific flange and shaft combinations (such as standard 4-bolt mounts or 1-1/4 inch keyed/splined shafts), ensuring seamless replacement for OEM equipment.

• Target Applications: Rotary drill rigs, harvester header drives, street sweeper brushes, injection molding drives, and heavy-duty winch systems.

Detailed Models & Parameters:

• Core Series: Eaton Char-Lynn 2000 Series (104 Series Code).

• Core Part Numbers: 104-1436-006, 104-1212-006.

• Technical Specs Decoding:

  • 104-1436-006: 4-bolt mounting flange, specialized shaft end for maximum torque transmission.

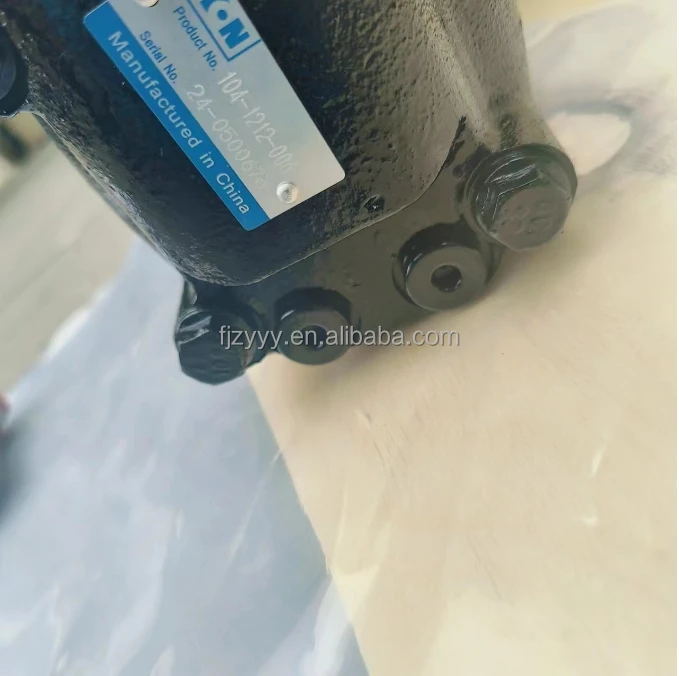

  • 104-1212-006: 2000 series standard displacement spec, compatible with heavy industrial couplings.

• Pressure Specs: Rated for 200 Bar (3000 PSI) continuous, with peak pressure capabilities up to 300 Bar (4500 PSI).

• Displacement Range: Offering a broad spectrum from 80 cm³/rev to 490 cm³/rev.
