Eaton Char-Lynn 2000 Series Motor | 104-1534-006, 104-1529-006, 104-1218-006 | High Torque Hydraulic Motor

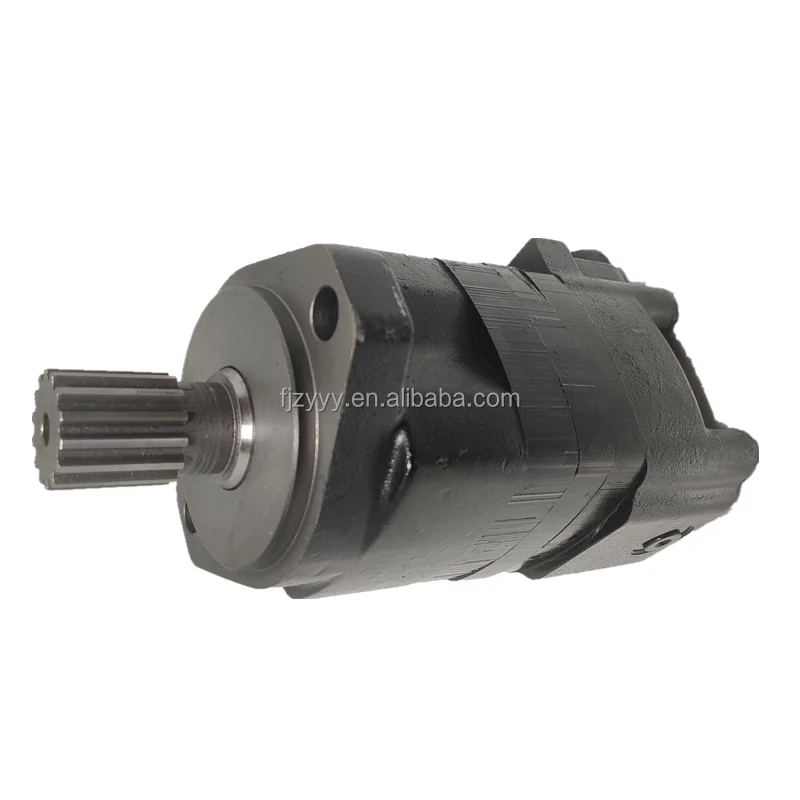

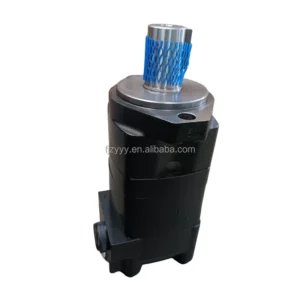

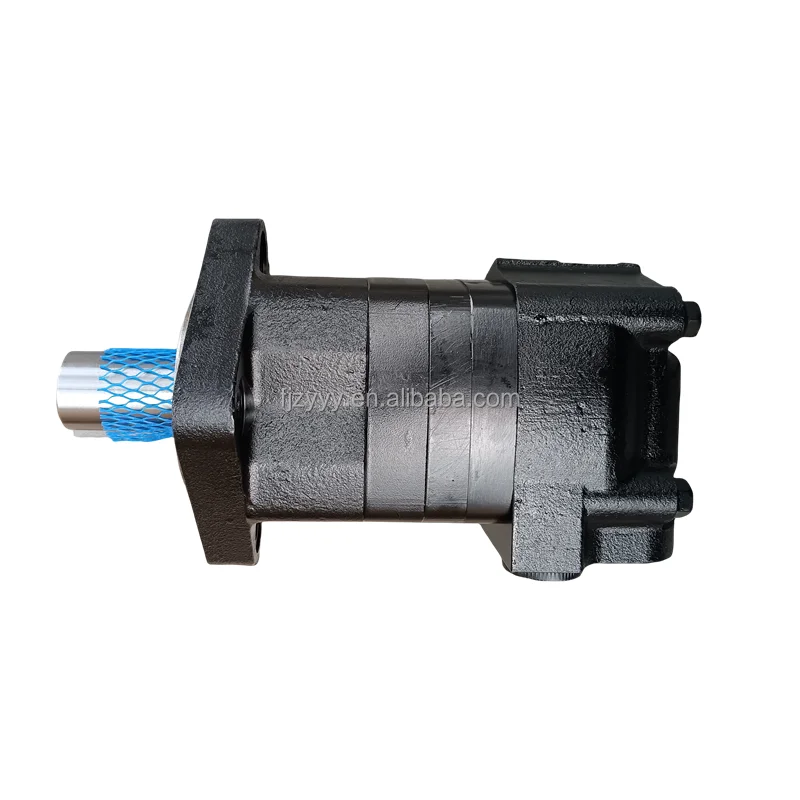

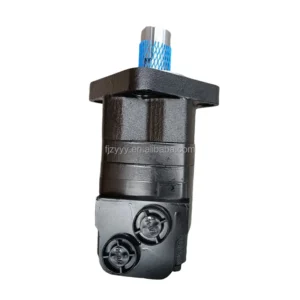

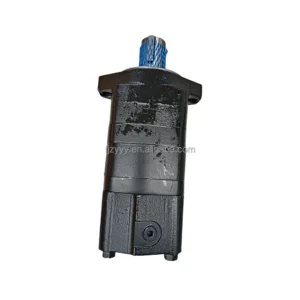

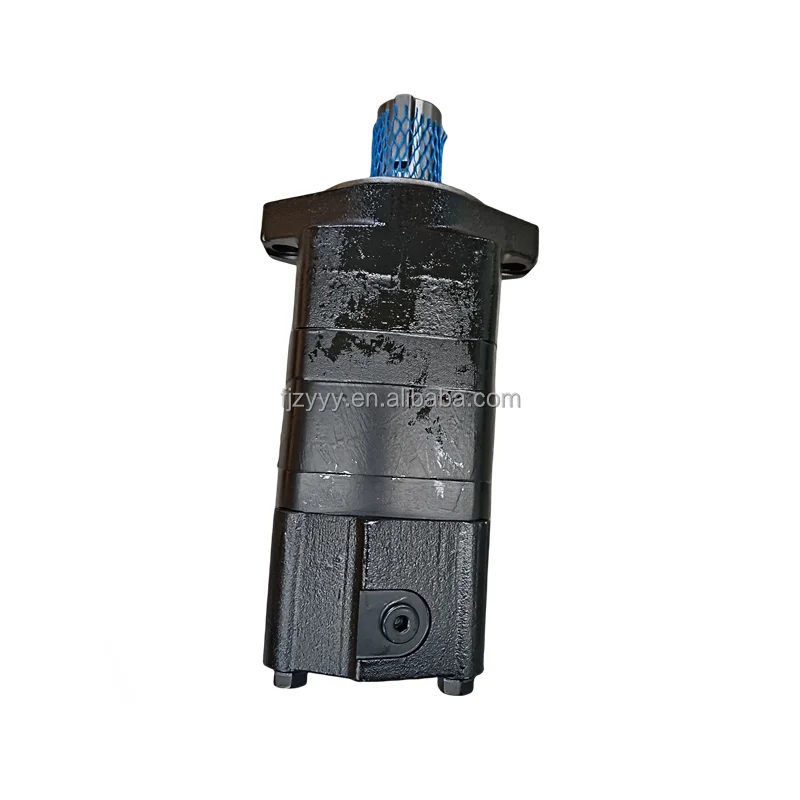

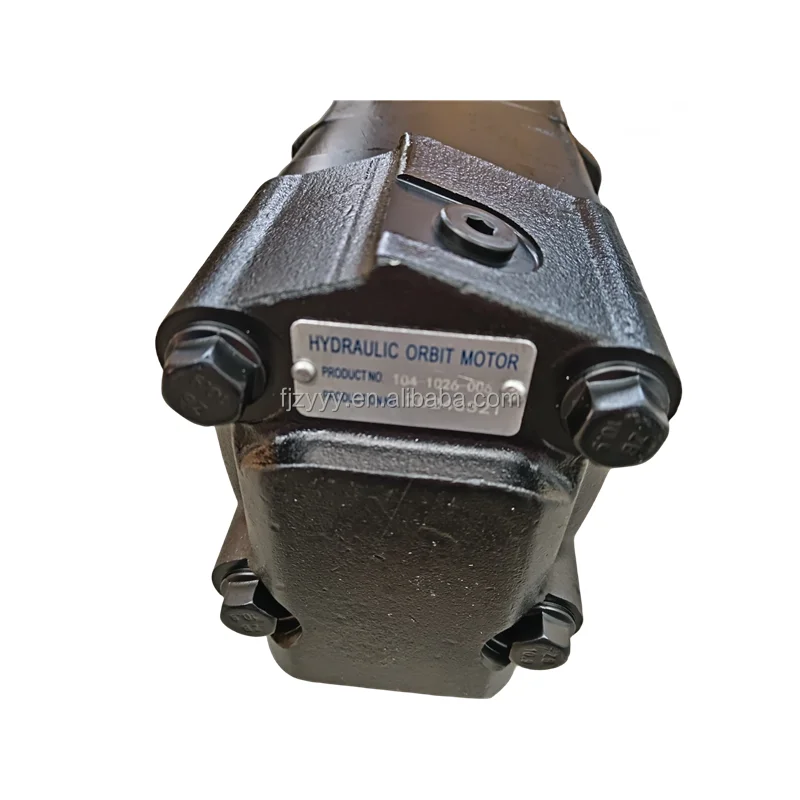

Eaton Char-Lynn 2000 Series Heavy-Duty LSHT Hydraulic Motors

Product Overview: The Eaton Char-Lynn 2000 Series stands as the performance benchmark for industrial-grade gerotor hydraulic motors. Utilizing advanced Geroler® technology, this series is specifically engineered for applications requiring extreme starting torque and continuous heavy-duty output. Featured part numbers including 104-1534-006, 104-1529-006, 104-1218-006, and 104-3628-006 leverage a disc valve architecture to deliver superior volumetric efficiency at medium-to-high pressures. These motors are widely utilized in combine harvesters, conveyors, injection molders, and street sweeper auxiliary drives, serving as the premier replacement for traditional low-efficiency drives.

Key Technical Advantages:

• Superior LSHT Performance: Delivers industry-leading low-speed stability, ensuring smooth and consistent torque output even at minimal RPMs without “cogging.”

• High Load Capacity: Equipped with oversized tapered roller bearings to handle massive radial and axial loads, allowing direct mounting of wheels or sprockets onto the output shaft.

• Geroler® Roller Technology: Unlike standard gerotor motors, the roller architecture significantly reduces internal friction, enhancing mechanical efficiency and drastically extending service life.

• High-Pressure Shaft Seals: Advanced sealing systems withstand high back-pressures, allowing stable operation without the need for an external case drain in most applications.

• Versatile Mounting Options: Strictly adheres to SAE standard 2-hole/4-hole flanges and diverse splined shaft specifications, ensuring rapid adaptation to OEM equipment.

Detailed Models & Parameters:

• Core Series: Eaton Char-Lynn 2000 Series (Disc Valve).

• Part Number Keywords: 104-3628-006, 104-1534-006, 104-1529-006, 104-1218-006.

• Displacements: From 80cc to 490 cm³/rev (depending on specific model code).

• Pressure Ratings: Rated at 200-225 Bar continuous; Peak capability up to 310 Bar (4500 PSI).

• Torque Output: Continuous torque ratings up to 900 Nm and above.

• Target Applications: Agricultural harvesters, forestry machinery, industrial conveyors, winches, and augers.
