Eaton Char-Lynn 2000 Series Motor | 104-1218-006 104-1608-006 104-1062-006 | Disc Valve Orbit Motor

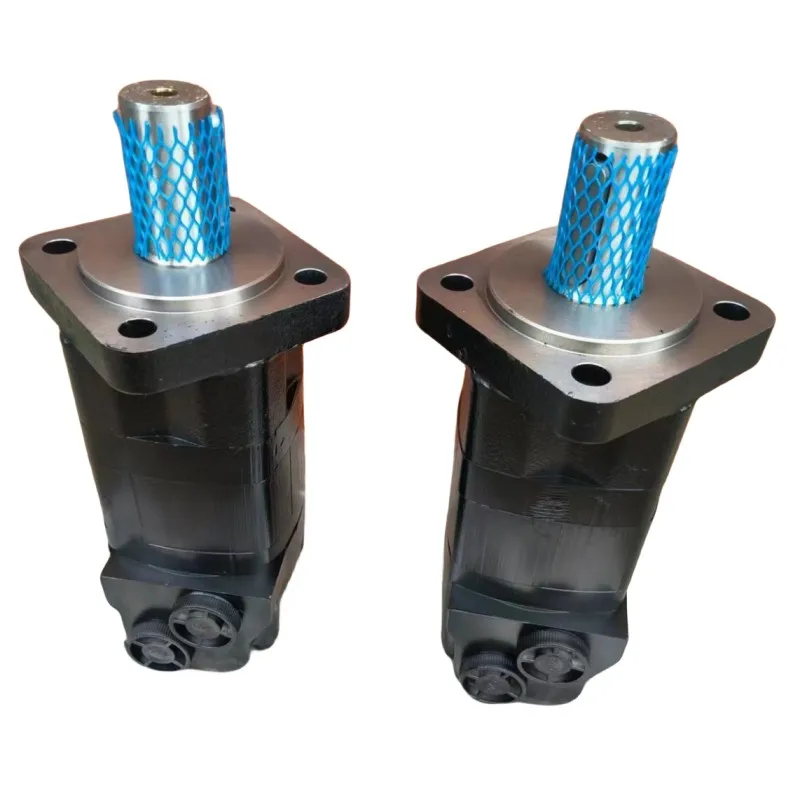

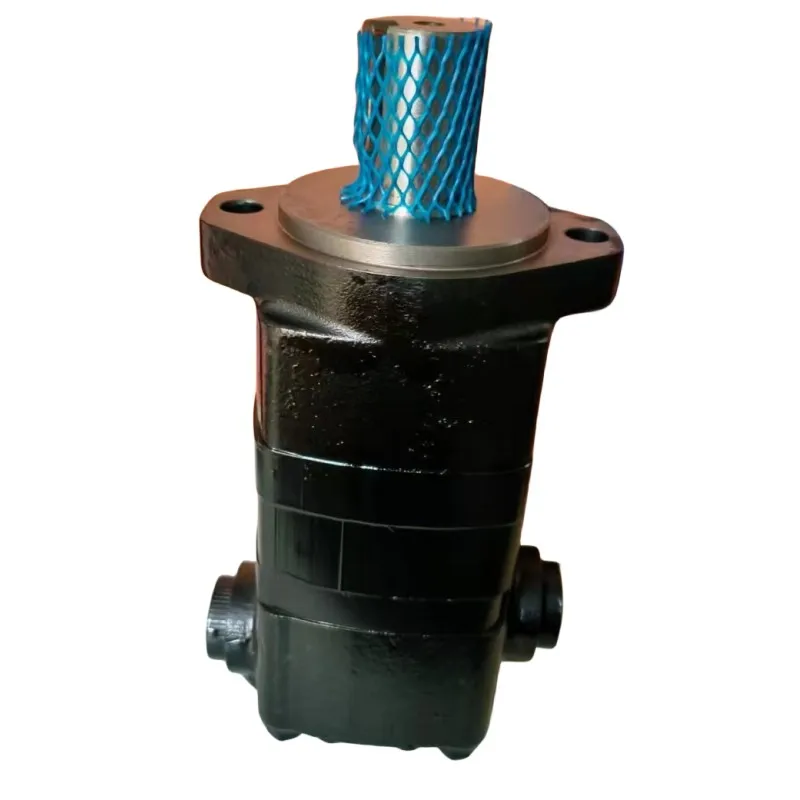

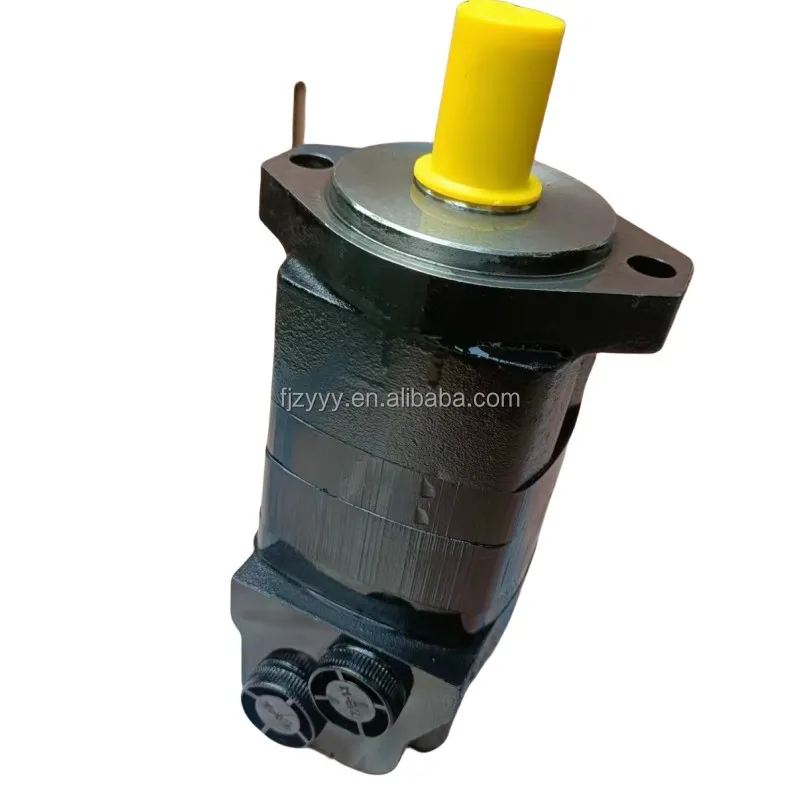

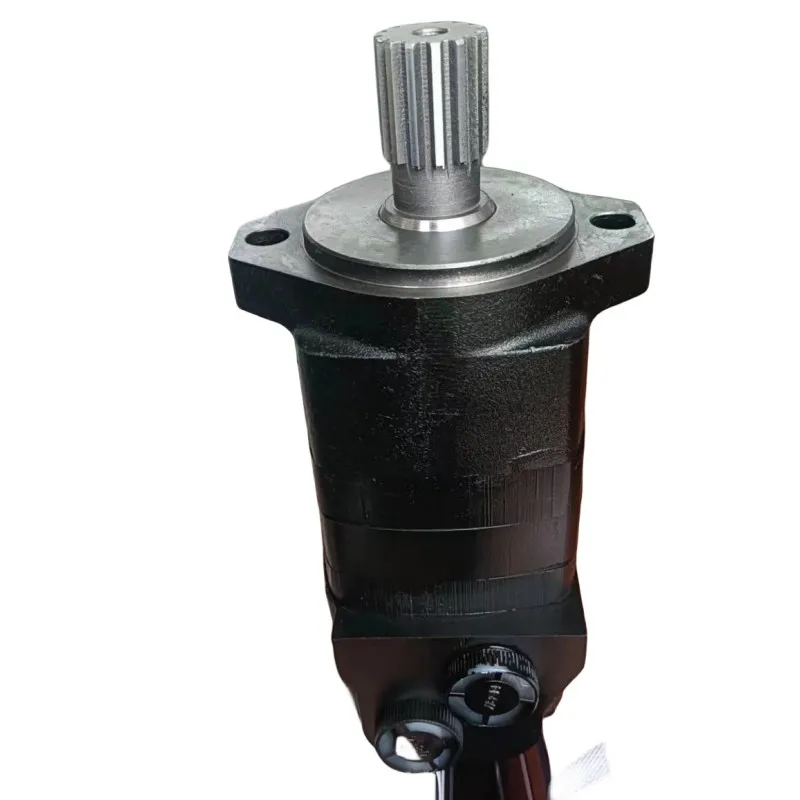

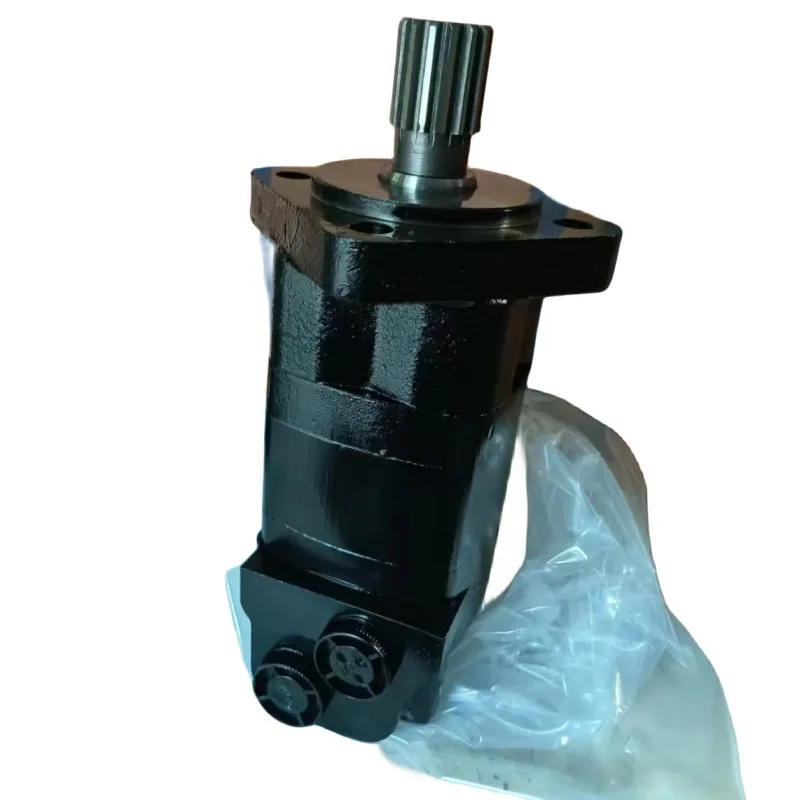

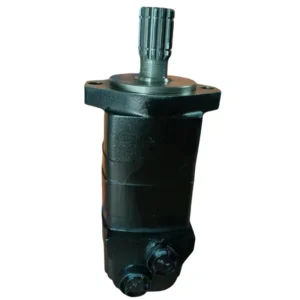

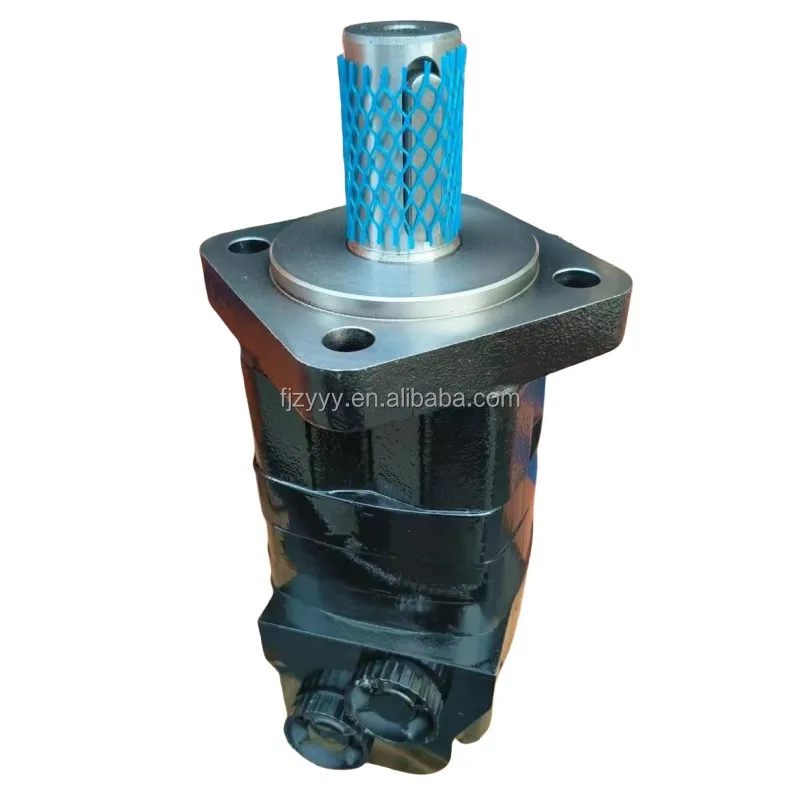

Eaton Char-Lynn 2000 Series (104-) High Torque Orbital Hydraulic Motors

Product Overview: The Eaton Char-Lynn 2000 Series (104- sequence) stands as the global benchmark for industrial-grade Low Speed High Torque (LSHT) orbital drives. This category features the essential models: 104-1218-006, 104-1608-006, and 104-1062-006. Engineered with advanced Disc Valve technology and the signature Geroler® roller set, these motors are built to withstand high-pressure spikes and massive torque demands. Their superior bearing capacity makes them the premier choice for harvesters, heavy-duty winches, industrial drives, municipal sweepers, and diverse construction machinery.

Key Technical Advantages:

• Disc Valve Precision: The independent valve plate design automatically compensates for wear, ensuring superior volumetric efficiency even under ultra-low speeds and high-pressure conditions.

• Geroler® Roller Technology: Incorporates roller contacts in the star-and-ring set to minimize startup friction, providing pulse-free operation in LSHT tasks.

• Superior Radial Load Resilience: Equipped with oversized tapered roller bearings, the shaft handles heavy side loads directly—simplifying machine design by removing the need for external bearing supports.

• Seamless Drop-in Compatibility: Fully compliant with original SAE mounting standards, ensuring 100% compatibility with original Eaton Char-Lynn systems for rapid maintenance and performance upgrades.

• Technical Spec Decoding:

  • 104- Series: Identifies the classic Eaton 2000 Series disc valve architecture.

  • 1218 / 1608 / 1062: Relates to displacement specifics (100cc to 500cc class), mounting flanges, and shaft configurations.

Detailed Models & Specifications:

• Core Series: Eaton Char-Lynn 2000 Series (Disc Valve Motor).

• Featured Model Matrix:

  • 104-1218-006 / 104-1608-006: Core industrial frames offering a perfect balance of speed and power.

  • 104-1062-006: Reinforced torque variant for more demanding lifting or driving tasks.

• Core Performance Specs:

  • Rated Pressure: Continuous up to 200 Bar (3000 PSI); intermittent peaks up to 310 Bar.

  • Torque Capability: Peak torque outputs ranging from 450 Nm to over 900 Nm (displacement dependent).

  • Mounting Standards: Fully compliant with SAE 2-Bolt / 4-Bolt specifications.
