Eaton Char-Lynn 2000 Series (104-) Heavy-Duty Disc Valve Orbit Motors

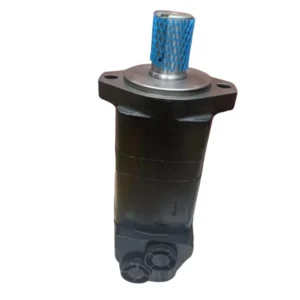

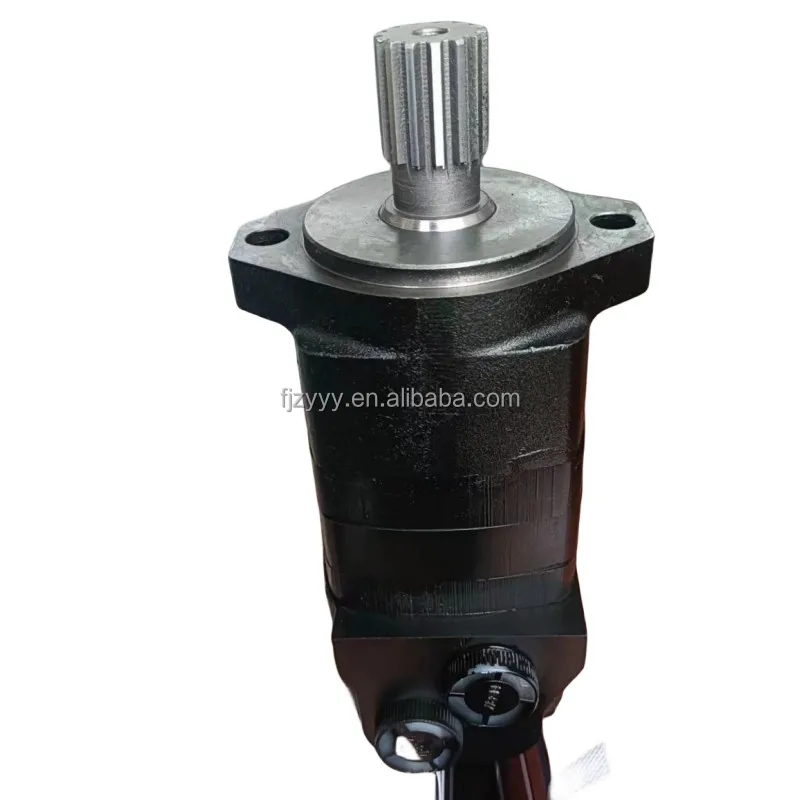

Product Overview: The Eaton Char-Lynn 2000 Series (104- sequence) is a world-renowned standard for industrial-grade Low Speed High Torque (LSHT) orbital drives. This category highlights three essential high-performance models: 104-1017-006, 104-3115-006, and 104-1007-006. Engineered with signature Disc Valve technology and the Geroler® roller set, these motors are purpose-built to handle high-pressure spikes and continuous heavy-duty cycles. They are the premier choice for harvester drives, injection molding screws, heavy-duty winches, road construction machinery, and industrial conveyor systems.

Key Technical Advantages:

• Disc Valve Precision: The independent valve plate design automatically compensates for clearances under pressure, ensuring superior volumetric efficiency and stable power output even at ultra-low speeds.

• Geroler® Roller Geometry: Incorporates precision rollers in the star-and-ring set to minimize startup friction, eliminating pulse or “crawling” in LSHT conditions and significantly extending service life.

• Heavy-Duty Bearing System: Equipped with oversized tapered roller bearings, the motor shaft handles immense radial loads directly—simplifying machine design by removing the need for external bearing supports.

• Seamless Drop-in Compatibility: The 104- sequence strictly adheres to SAE mounting standards, providing a high-reliability replacement for original Eaton, Danfoss, or Parker heavy-duty motors.

Detailed Models & Specifications:

• Core Series: Eaton Char-Lynn 2000 Series (Disc Valve Motor).

• Featured Models: 104-1017-006, 104-3115-006, 104-1007-006.

• Core Performance Specs:

  • Continuous Pressure: Up to 200 Bar (3000 PSI).

  • Peak Pressure: Capable of handling spikes up to 310 Bar (4500 PSI).

  • Torque Capability: Continuous torque outputs ranging from 450 Nm up to over 900 Nm (displacement dependent).

  • Mounting Standards: Compliant with standard SAE A 2-Bolt or 4-Bolt flange specifications.
