Eaton Char-Lynn 2000 Series Motor | 2-200AA2C2-E 2-200AA2C-E 2-200AA2B-E

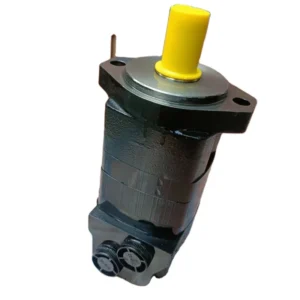

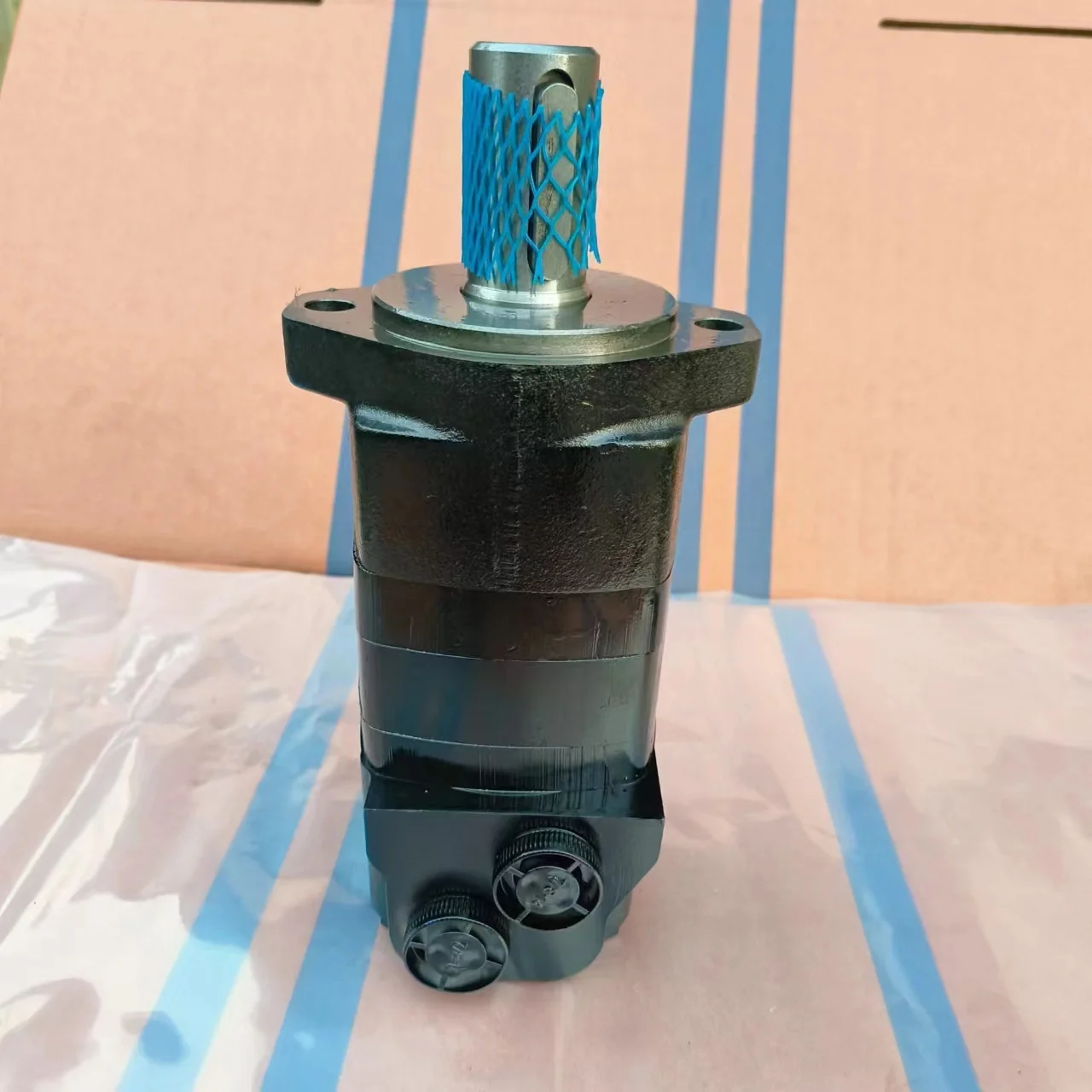

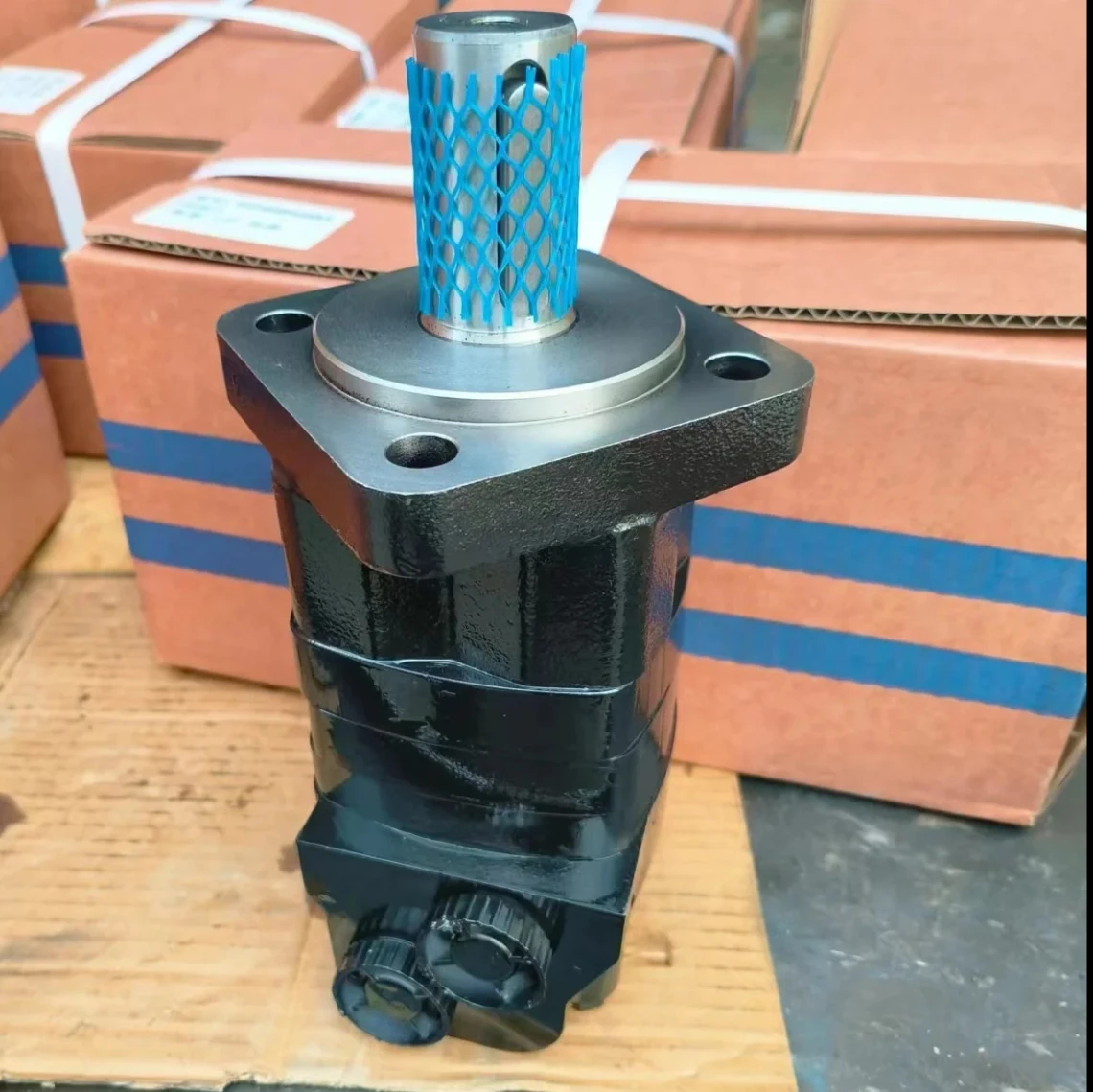

Eaton Char-Lynn 2000 Series (2 Series) 2-200 Heavy-Duty Disc Valve Motors

Product Overview: The Eaton Char-Lynn 2000 Series (commonly known as the 2 Series) is a world-renowned benchmark for heavy-duty orbital hydraulic technology. This category highlights the flagship 200cc 2-200 configurations: 2-200AA2B-E, 2-200AA2C-E, 2-200AA2C2-E, and 2-200AA2-E. As a premium Disc Valve motor, the 2-200 is engineered for peak volumetric efficiency under continuous high-pressure conditions. Its patented Geroler® roller set technology ensures low startup friction and delivers unparalleled power stability in Low Speed High Torque (LSHT) applications. These motors are the premier choice for harvester drives, construction equipment, heavy-duty winches, sweepers, and injection molding machinery.

Key Technical Advantages:

• Disc Valve Precision: The independent valve plate automatically balances and compensates for wear-induced clearances, providing superior volumetric efficiency compared to spool valve motors.

• Geroler® Roller Geometry: Precision-engineered rollers minimize internal friction, ensuring smooth, pulse-free operation at minimal speeds.

• Elite Load Resilience: Featuring reinforced tapered roller bearings, the 2 Series handles immense radial and axial loads directly, making it ideal for direct-drive wheel or heavy chain-driven applications.

• Technical Decoding:

  • 2-200AA2C2-E / 2-200AA2C-E: Heavy-duty models with advanced sealing configurations for enhanced protection in harsh environments.

  • 2-200AA2B-E / 2-200AA2-E: Classic configurations offering various shaft options (Keyed or Splined) for universal mechanical compatibility.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 2000 (2) Series.

• Featured Model Matrix: 2-200, 2-200AA2B-E, 2-200AA2C-E, 2-200AA2C2-E, 2-200AA2-E.

• Core Performance Specs:

  • Displacement: 204 cc/rev (12.5 cu in/rev).

  • Rated Pressure: Continuous up to 200 Bar (2900 PSI); Intermittent peaks up to 275 Bar (4000 PSI).

  • Torque Capability: Continuous torque ranging from 550-610 Nm, with peaks exceeding 800 Nm.

  • Mounting Standards: Standard 2-Bolt SAE A flange with Keyed or Splined shaft options.
