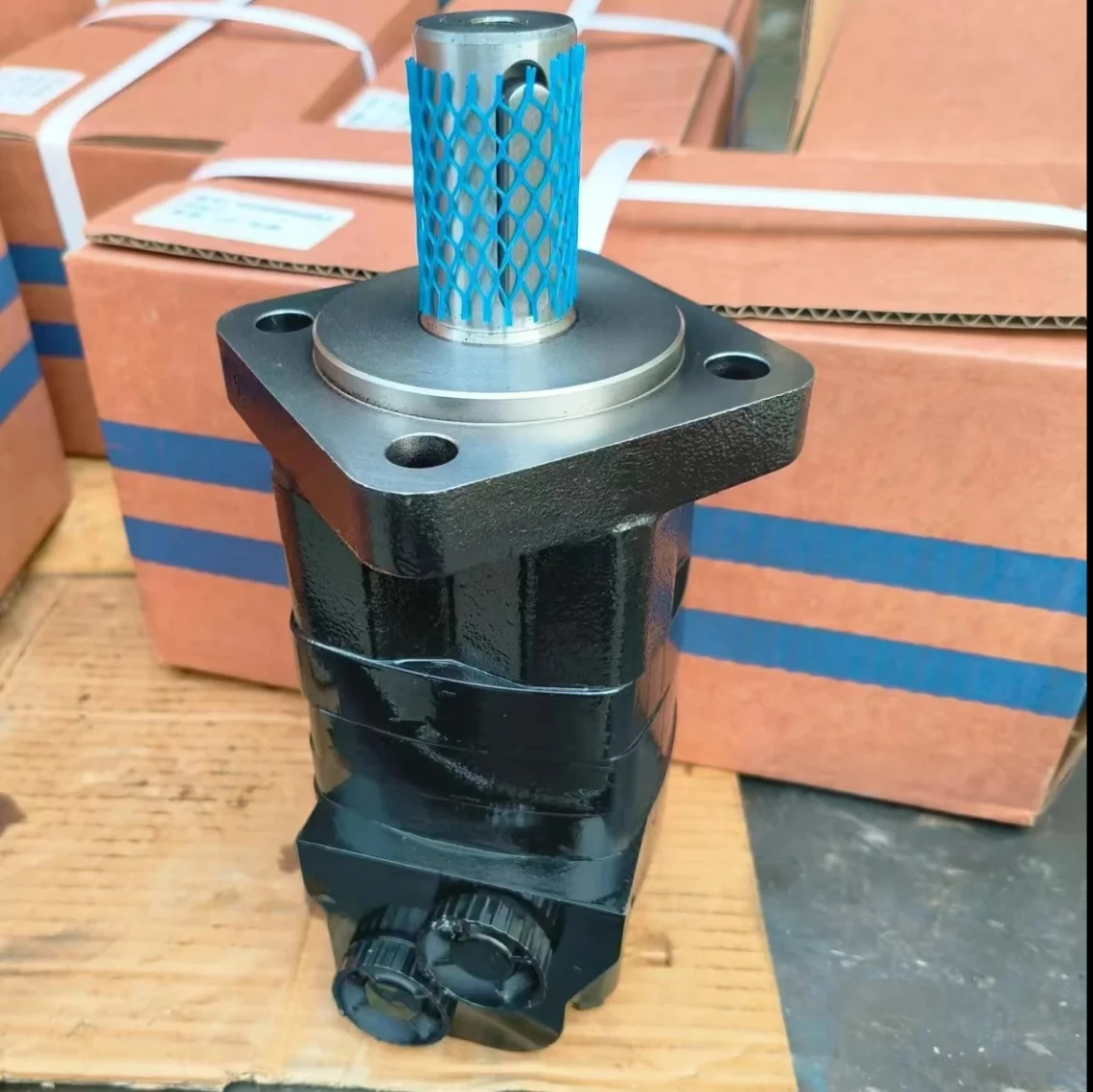

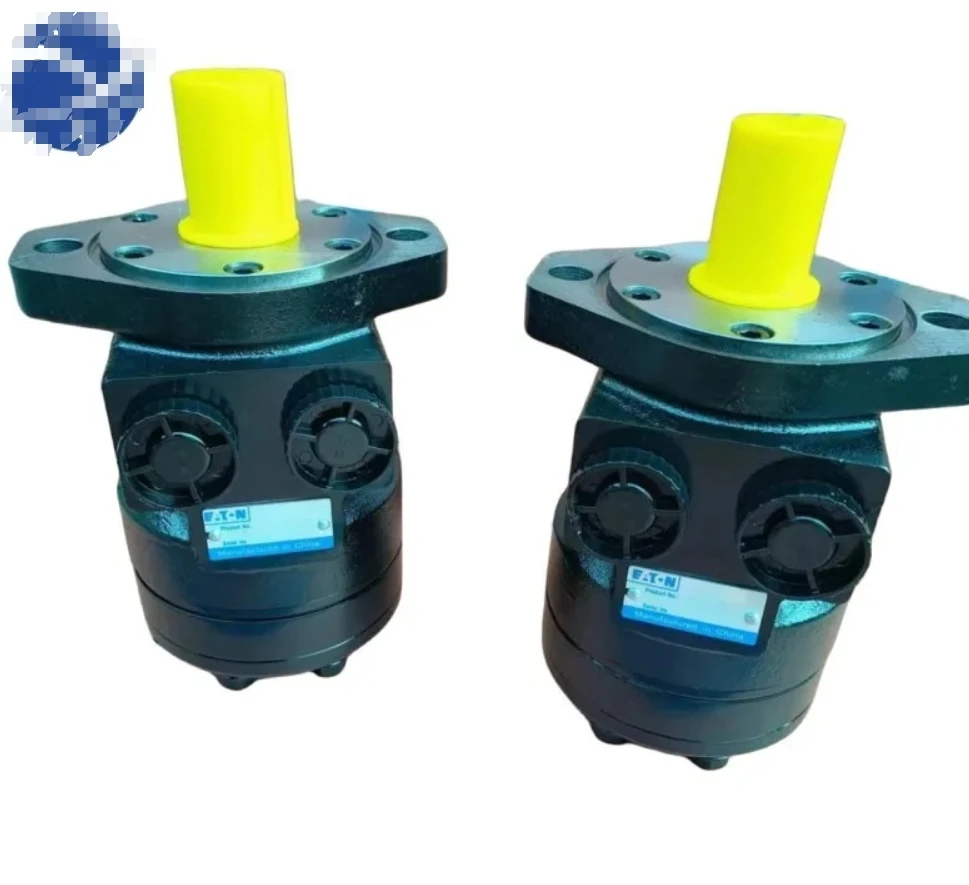

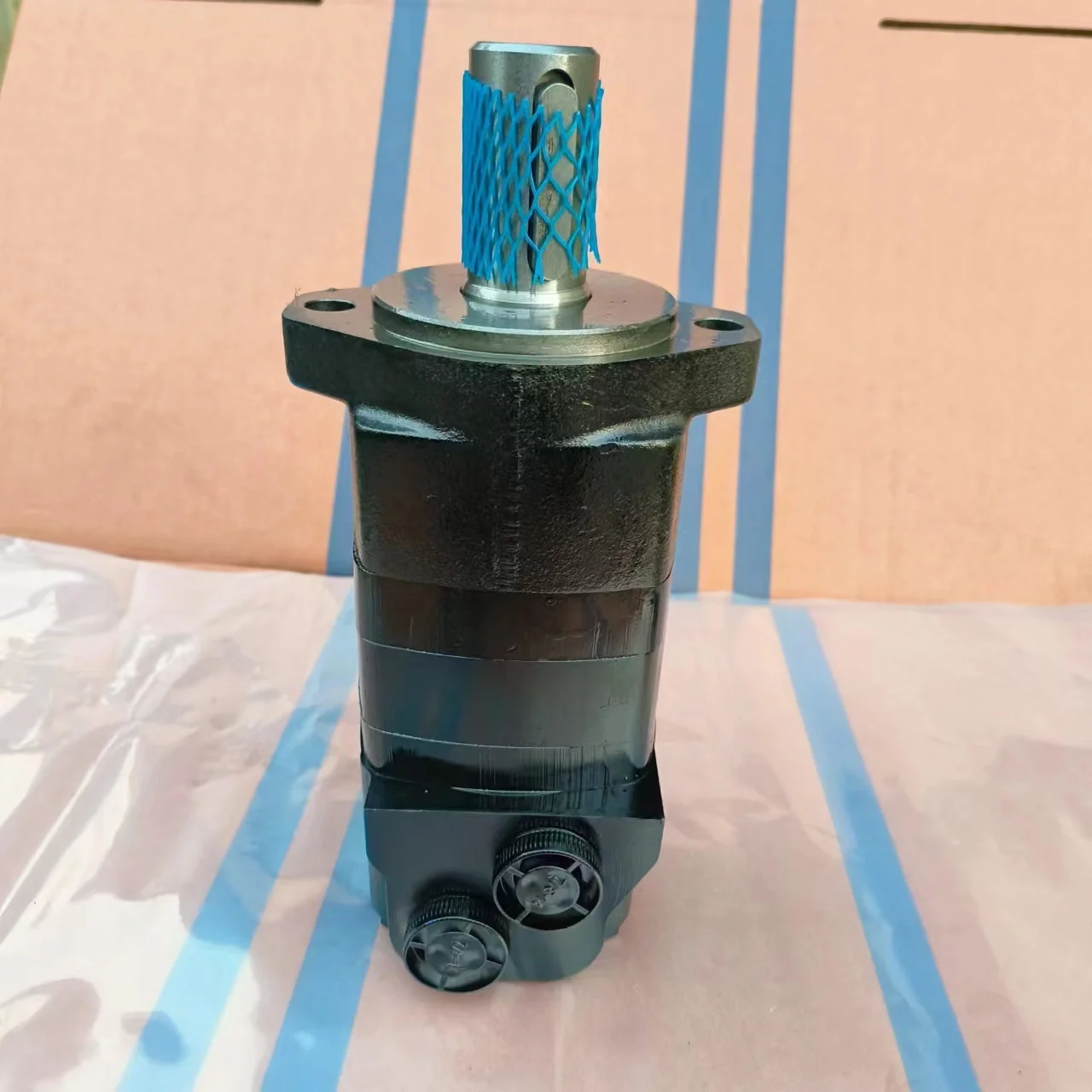

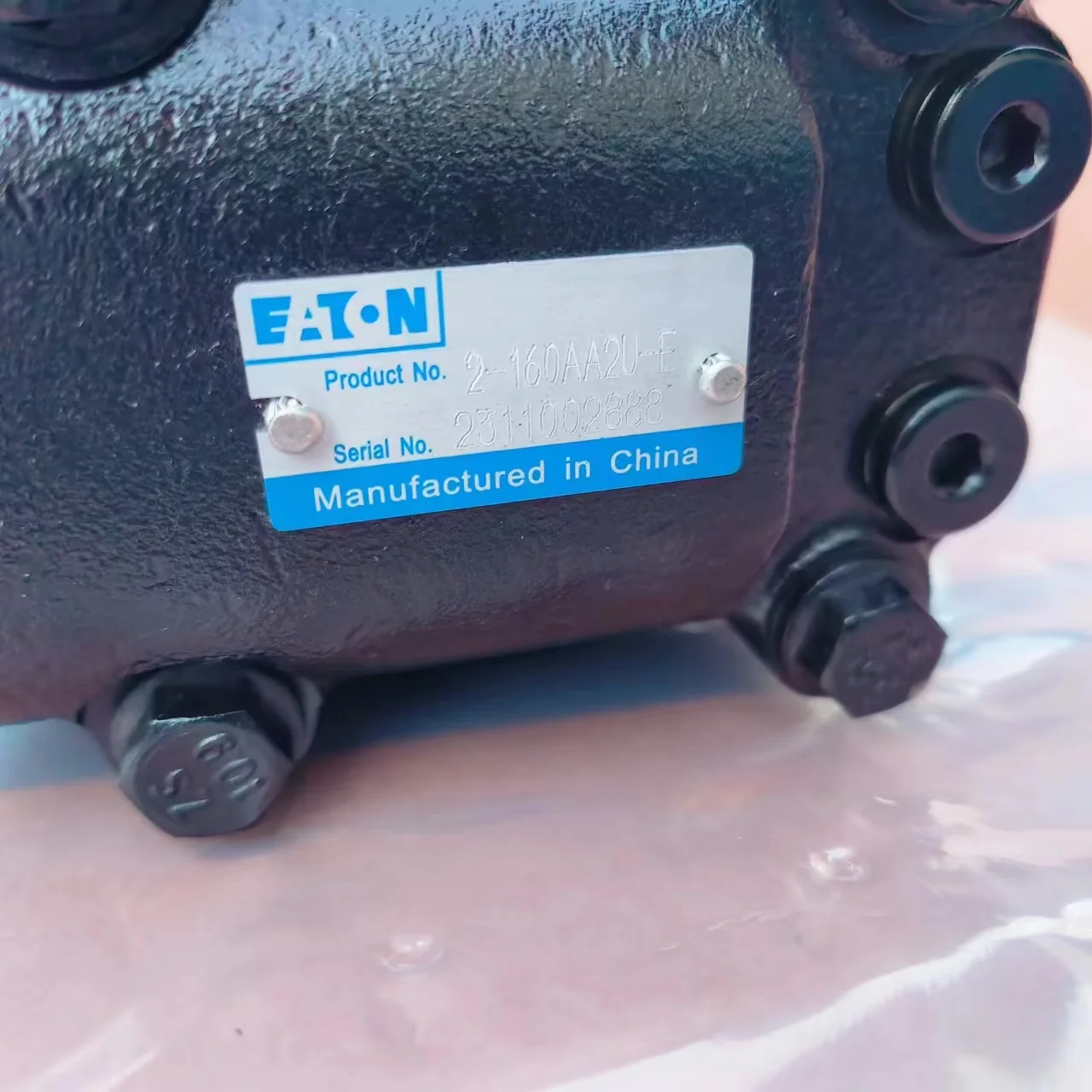

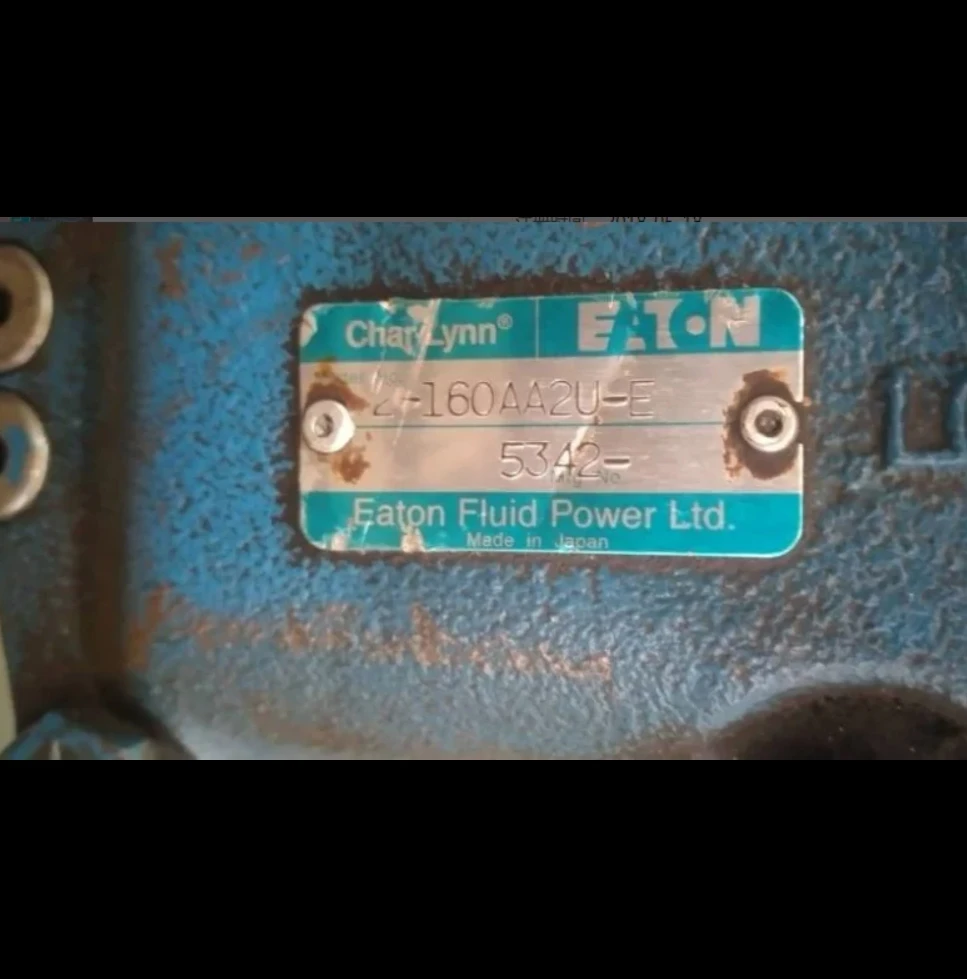

Eaton Char-Lynn 2000 Series (2 Series) 2-100 High-Efficiency Disc Valve Motors

Product Overview: The Eaton Char-Lynn 2000 Series (commonly known as the 2 Series) is an industry-standard for heavy-duty orbital hydraulic drive technology. This category highlights the 100cc displacement 2-100 configurations: 2-100AA2S-E, 2-100AA2C2-E, 2-100AA2C-E, and 2-100AA2D-E. As a premium Disc Valve motor, the 2-100 is engineered for exceptional volumetric efficiency under high-pressure conditions. Its patented Geroler® roller set design ensures low startup pressure and smooth power delivery in Low Speed High Torque (LSHT) applications. These motors are the premier choice for material handling equipment, small harvester drives, injection molding adjustments, sweeper brush drives, and medium-duty winches.

Key Technical Advantages:

• Disc Valve Compensation: The independent valve plate automatically balances and compensates for wear, maintaining peak efficiency throughout the motor’s service life.

• Geroler® Roller Geometry: Precision-engineered rollers minimize internal friction, providing agile response and pulse-free operation during starts and stops.

• High-Pressure Shaft Seal: Specifically designed for high back-pressure environments, ensuring elite sealing reliability in complex hydraulic circuits.

• Heavy-Duty Bearing System: Equipped with oversized tapered roller bearings to handle significant radial and axial loads, supporting both direct and chain-driven setups.

• Technical Decoding:

  • 2-100AA2C2-E / 2-100AA2C-E: Industrial general-purpose models with specific sealing grades and standard SAE A flanges.

  • 2-100AA2S-E / 2-100AA2D-E: Denotes specific output shaft types (e.g., Splined or Keyed) and porting configurations.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 2000 (2) Series.

• Featured Model Matrix: 2-100, 2-100AA2S-E, 2-100AA2C2-E, 2-100AA2C-E, 2-100AA2D-E.

• Core Performance Specs:

  • Displacement: 100 cc/rev (6.2 cu in/rev).

  • Rated Pressure: Continuous up to 200 Bar (2900 PSI); Intermittent peaks up to 275 Bar (4000 PSI).

  • Torque Capability: Continuous torque output of approx. 280-320 Nm, with peaks exceeding 400 Nm.

  • Max Speed: Continuous speeds up to 600-750 RPM.

  • Mounting Standards: Standard 2-Bolt SAE A flange.
