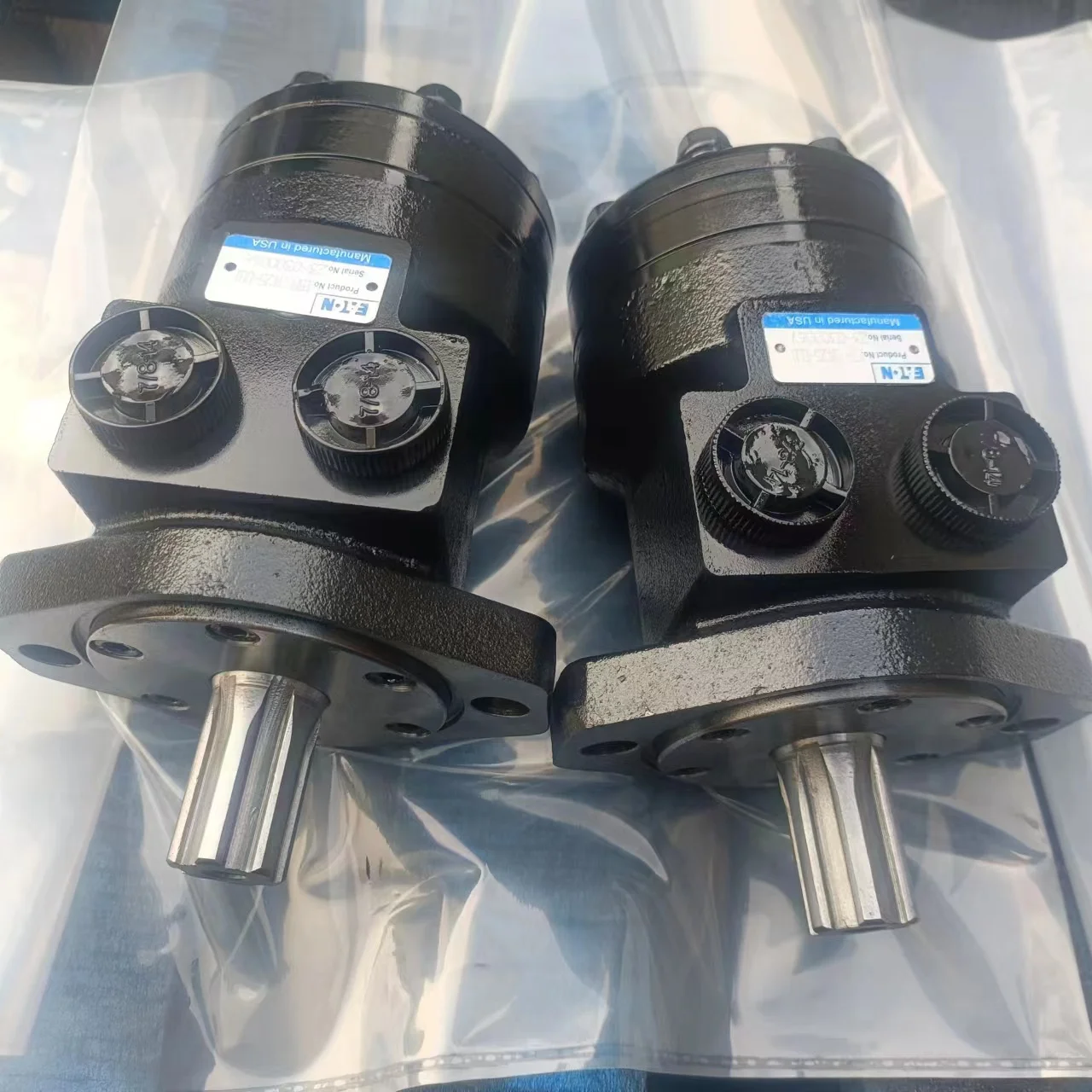

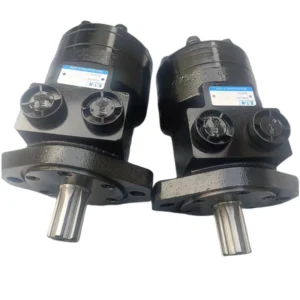

Eaton Char-Lynn 158 Series Motor | 158-3425-001 158-3284-001 | 101 Series LSHT
| Model Number | 158-3425-001, 158-3284-001 |
|---|
Product Description
Eaton Char-Lynn 158 Series LSHT Hydraulic Motors
Product Overview: The Eaton Char-Lynn 158 Series (built on the legacy of the 101 Series) is a global benchmark for industrial-grade LSHT (Low Speed High Torque) performance. Renowned for its compact envelope and exceptional radial/axial load capacity, the 158 series is engineered for durability in the most punishing environments. This category focuses on precision part numbers: 158-3425-001 and 158-3284-001.
The 158 series incorporates Eaton’s patented Geroler technology, which minimizes internal friction to ensure smooth, consistent torque delivery even at ultra-low speeds. These motors are the premier choice for compact propulsion drives, agricultural mowers, injection mold adjustments, and material handling conveyors.
Key Technical Advantages:
Geroler Gear Set: Delivers significantly higher mechanical efficiency and a longer service life compared to standard gerotors, especially during continuous high-pressure cycles.
Optimized Spool Valve Design: The advanced spool valve architecture allows for a lightweight, compact footprint, ideal for space-constrained mechanical integrations.
High-Pressure Sealing: Features premium shaft seals designed to handle back-pressure spikes, reducing maintenance intervals and downtime.
Precise OEM Interchangeability:

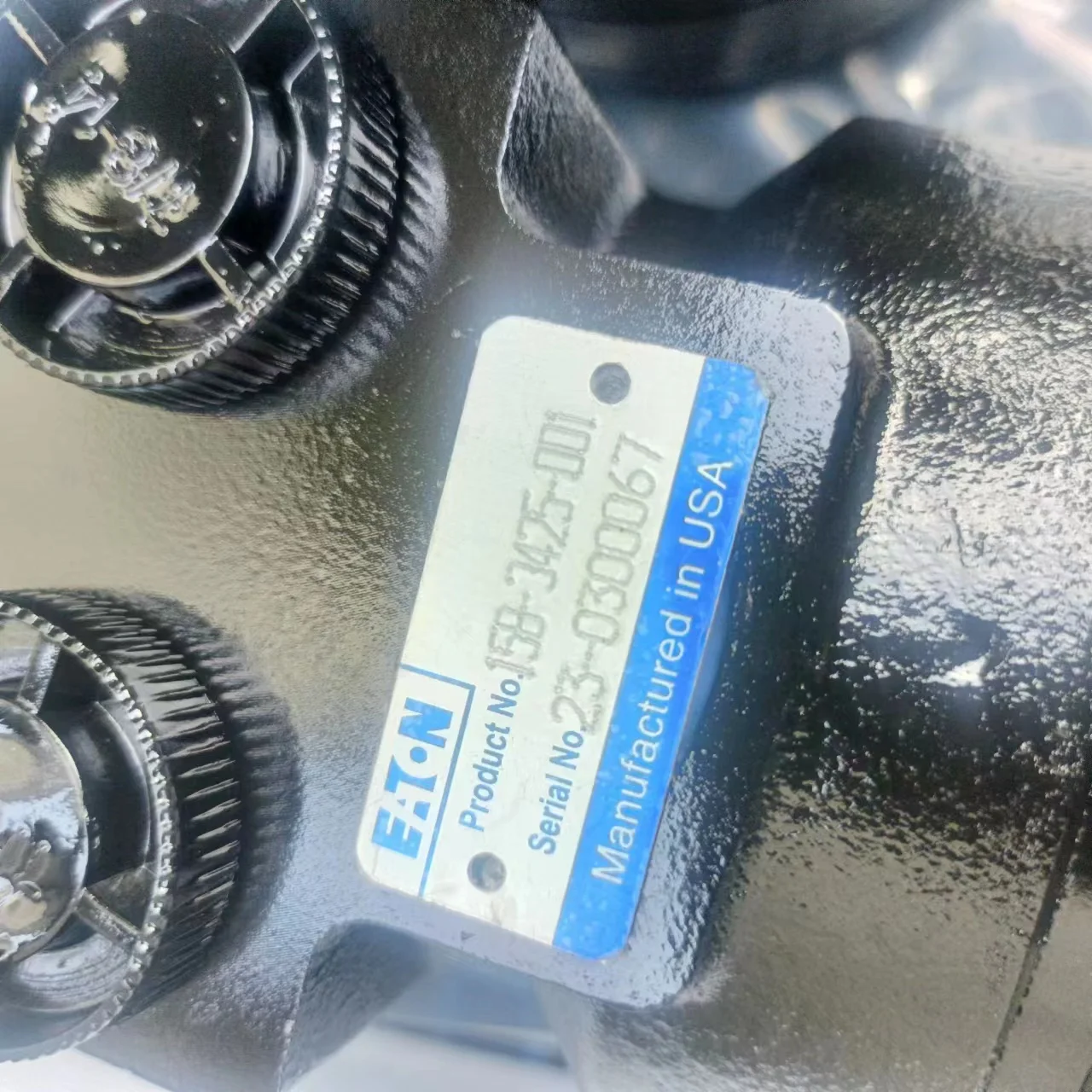

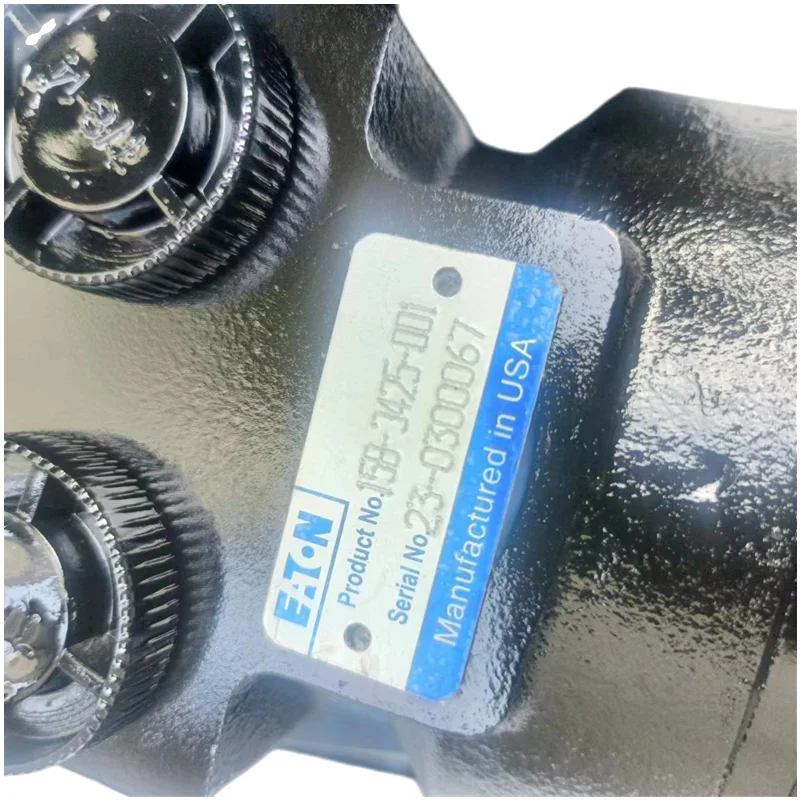

158-3425-001: Standard LSHT configuration for guaranteed 1:1 fit-and-function replacement of original Eaton units.
158-3284-001: Industrial-grade part number optimized for specific torque-to-speed ratios.
Detailed Specifications & Parameters:
Core Series: Eaton Char-Lynn 158 Series (101 Series compatible).
Featured Model Matrix: 158-3425-001, 158-3284-001, 158-3425, 158-3284.
Core Performance Specs:
Displacement Range: Full spectrum from compact to mid-range displacements.
Rated Pressure: Continuous up to 165 Bar (2400 PSI); Intermittent peaks reaching 200 Bar (3000 PSI).
Torque Capability: Continuous torque output exceeding 500 Nm (displacement dependent).
Mounting Standards: SAE A 2-Bolt and 4-Bolt Square flanges; Shaft options include Keyed, Splined, and specialized interfaces.
