Eaton Char-Lynn 109 Series Motor | 109-1575-006 109-1689-006 109-1264-006

Eaton Char-Lynn 109 Series General Purpose Orbit Motors

Product Overview: The Eaton Char-Lynn 109 Series is a cornerstone of industrial orbital hydraulic motor technology. This page showcases core industrial part numbers: 109-1575-006, 109-1689-006, 109-1264-006, 109-1544-006, and 109-1294-006. Utilizing classic Spool Valve logic and high-precision Gerotor gear sets, the 109 Series is renowned for its compact frame and exceptional cost-effectiveness. It is the premier power source for light conveyors, agricultural harvester attachments, woodworking machinery, food packaging lines, and various small-scale industrial drives.

Key Technical Advantages:

• Global Interchangeability: The 109 Series adheres to international standard interfaces, offering 100% physical interchangeability with comparable models from Danfoss, Parker, and White.

• Efficient Spool Valve Design: Precision-machined spool valves ensure exact fluid distribution across varying pressures, providing high startup torque and smooth operation.

• Compact Power Density: Delivers robust Low Speed High Torque (LSHT) output within a minimal physical footprint, optimizing host machine layout.

• Rugged Environment Adaptability: The robust cast-iron housing and high-quality shaft seals withstand harsh industrial environments and support continuous medium-pressure operation.

• Technical Decoding:

  • 109-1575 / 109-1689: Denotes specific displacement spans and flange/shaft configurations within the series.

  • Suffix -006: Represents specific seal kit standards or design iteration levels.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 109 Series (H/S Category).

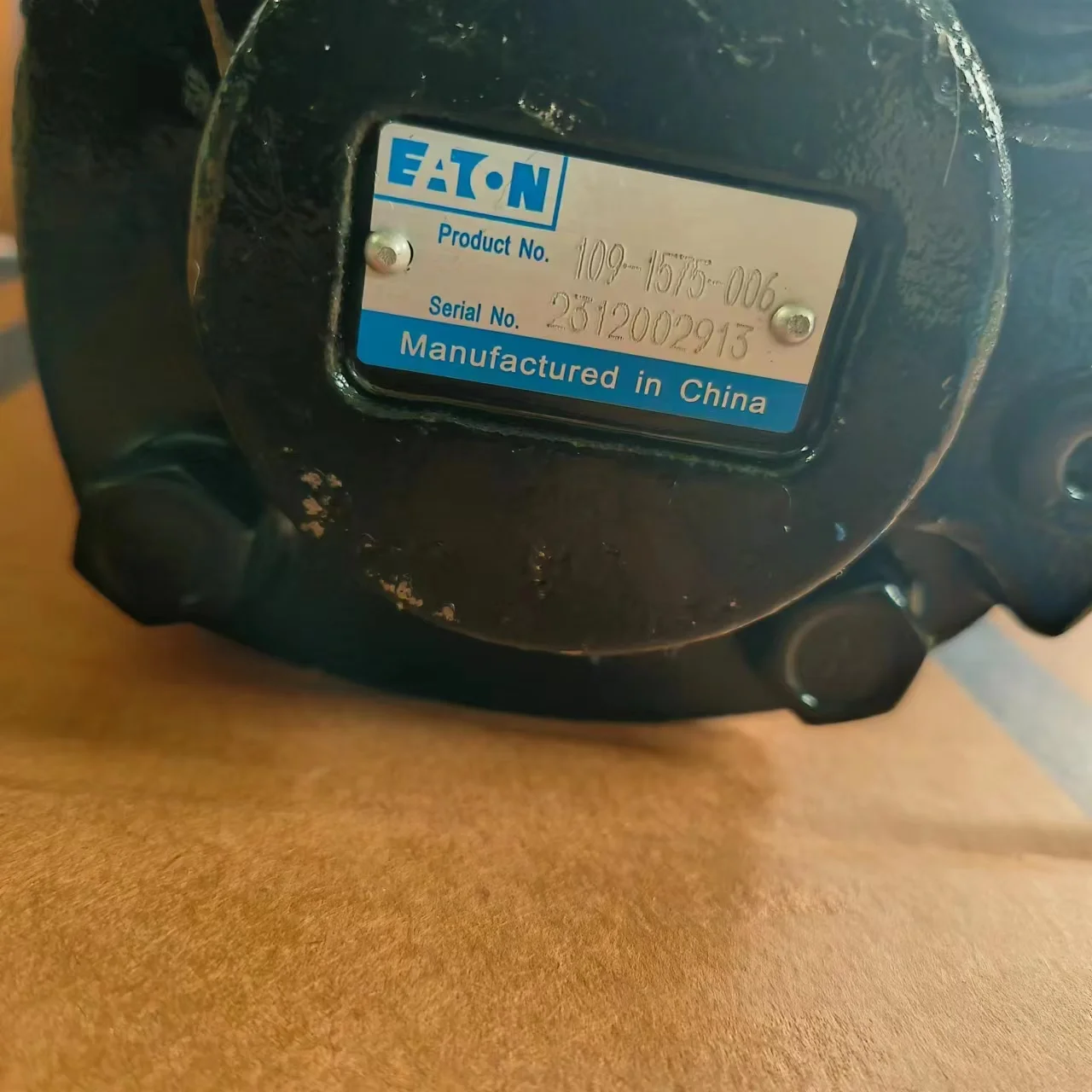

• Featured Model Identifiers: 109-1575-006, 109-1689-006, 109-1264-006, 109-1544-006, 109-1294-006.

• Core Performance Specs:

  • Displacement Range: Approx. 50cc to 400cc (model dependent).

  • Rated Pressure: Continuous up to 125 Bar (1800 PSI); intermittent peaks up to 165 Bar.

  • Torque Capability: Continuous torque ranging from 100 Nm to over 400 Nm.

  • Max Speed: Up to 800+ RPM depending on flow and load.

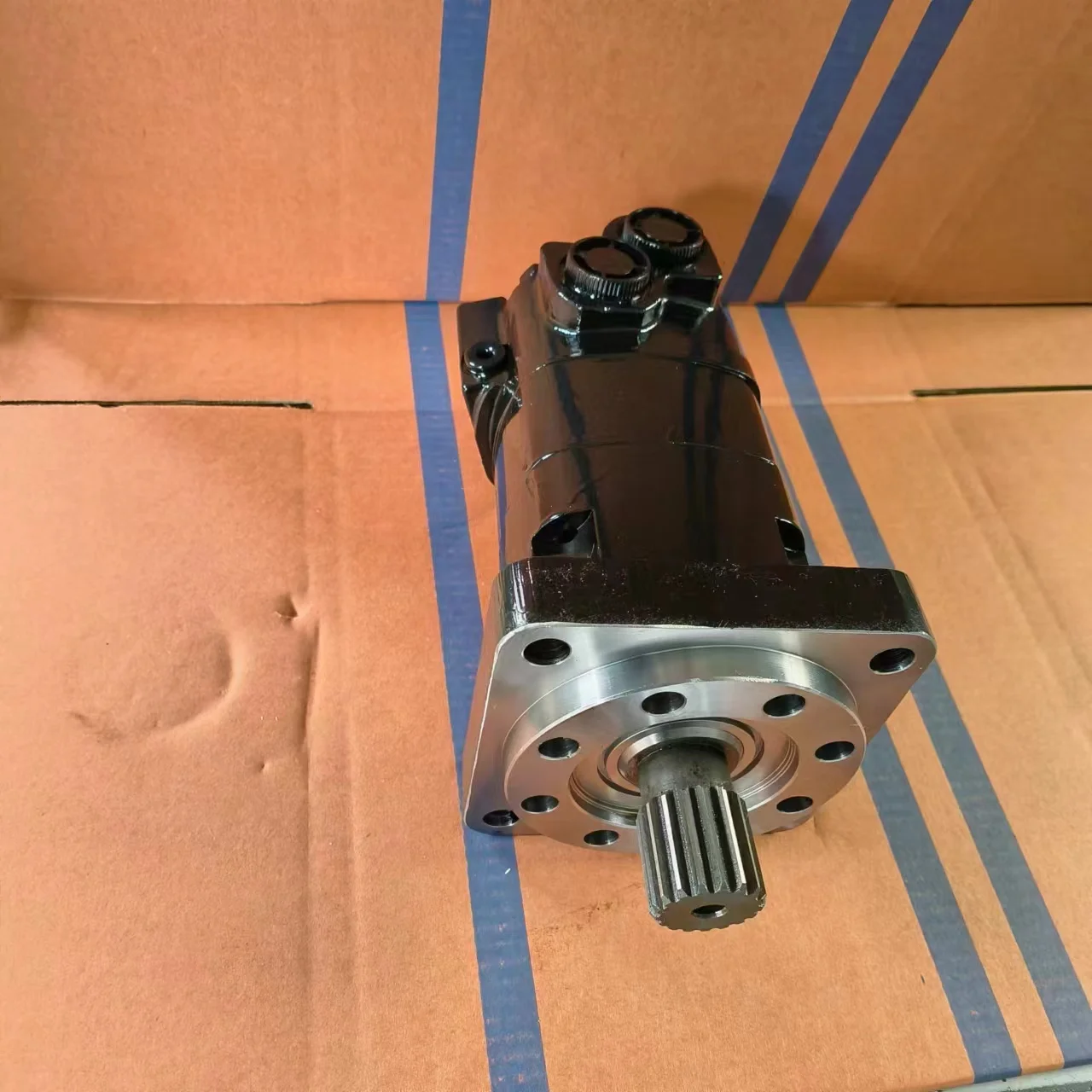

  • Mounting Standards: Standard SAE A 2-Bolt or 4-Bolt flanges with Keyed or Splined shaft options.
