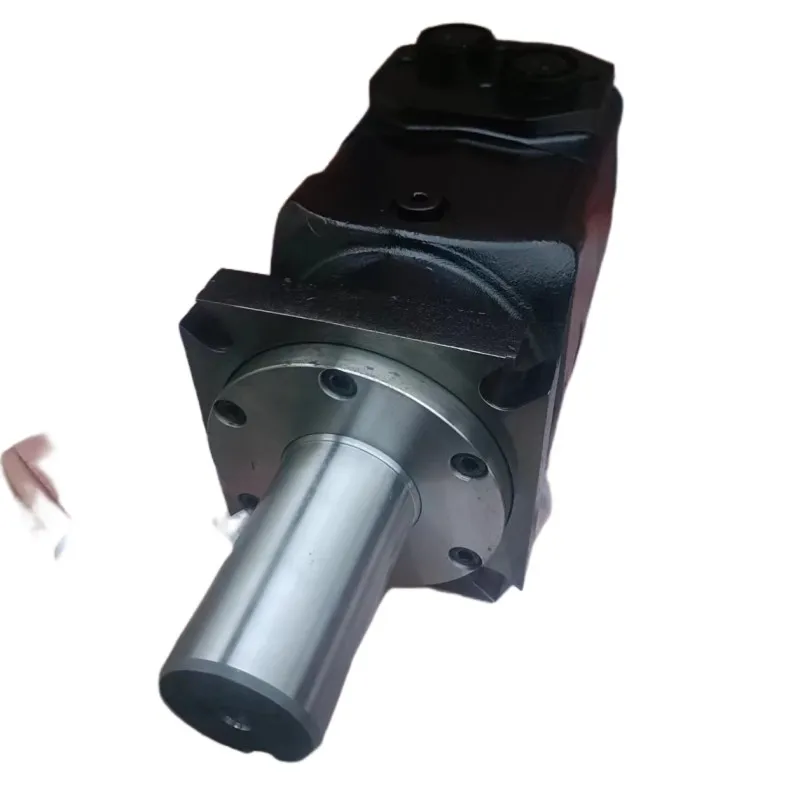

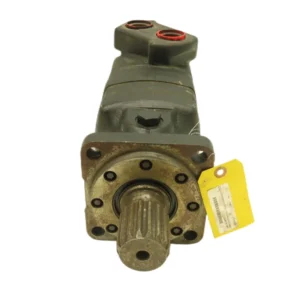

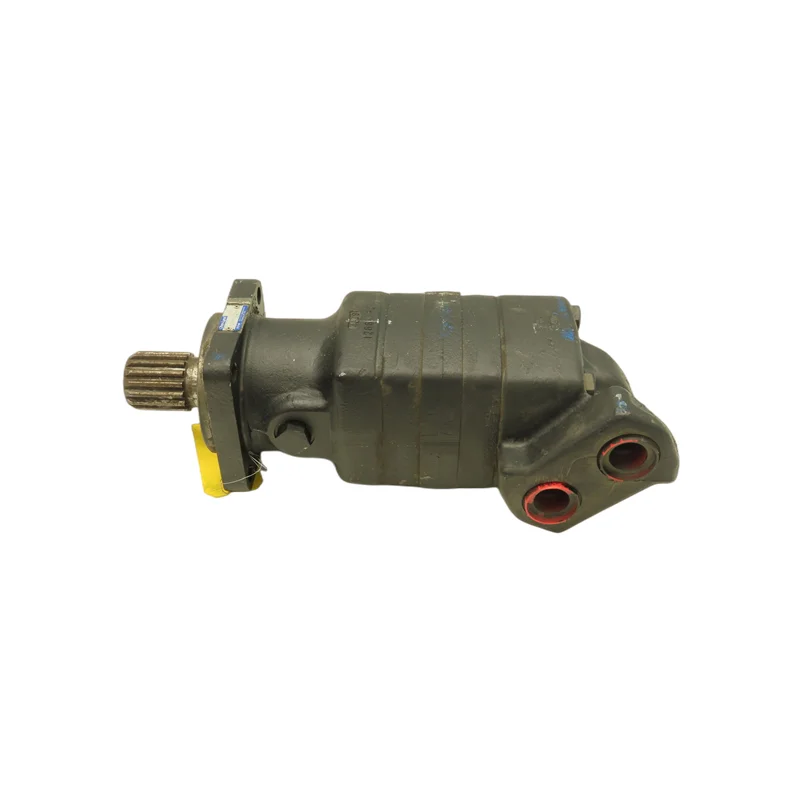

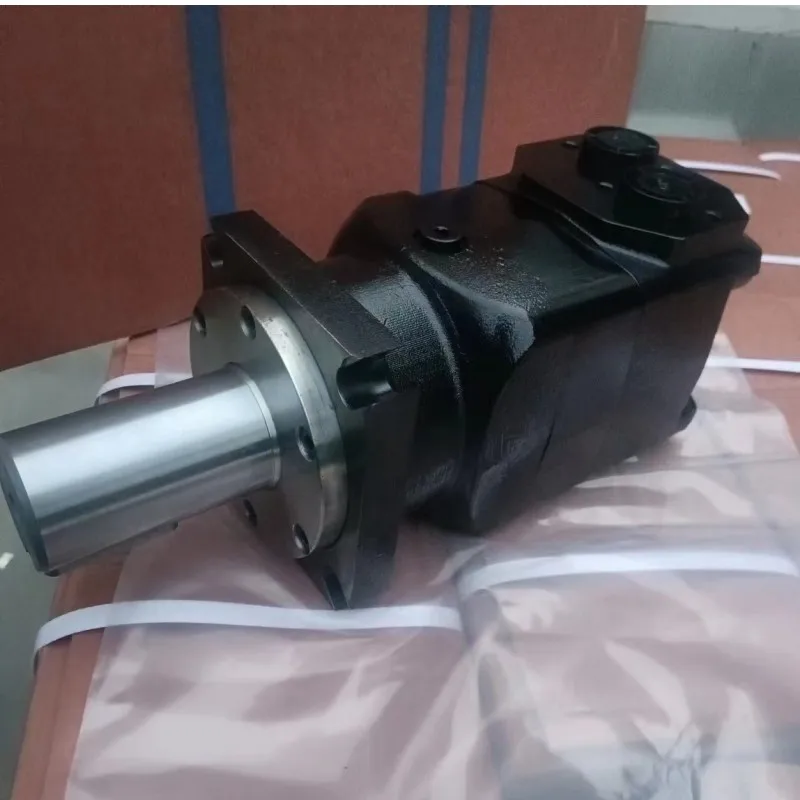

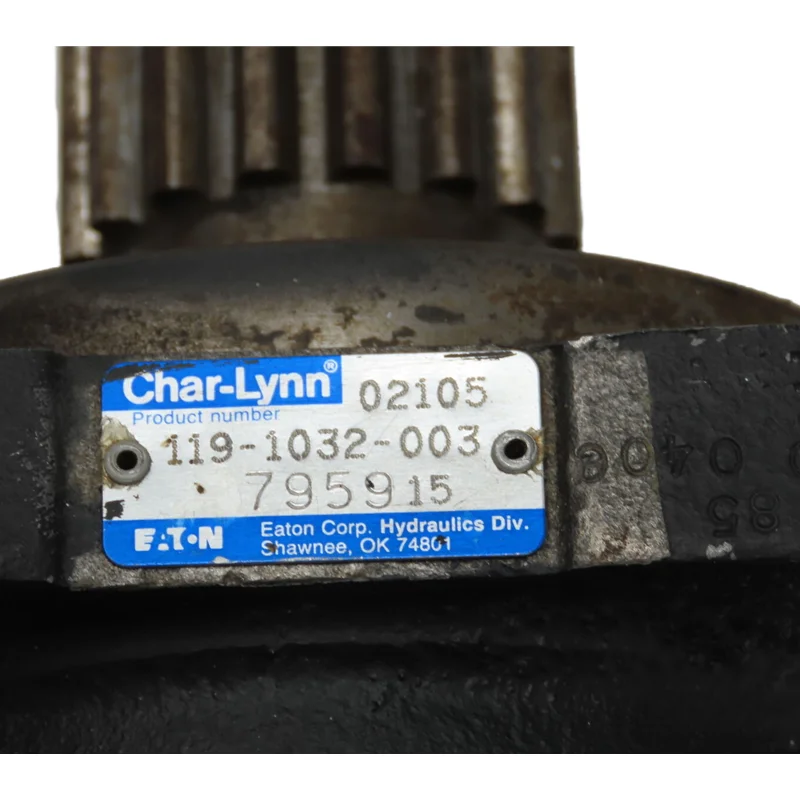

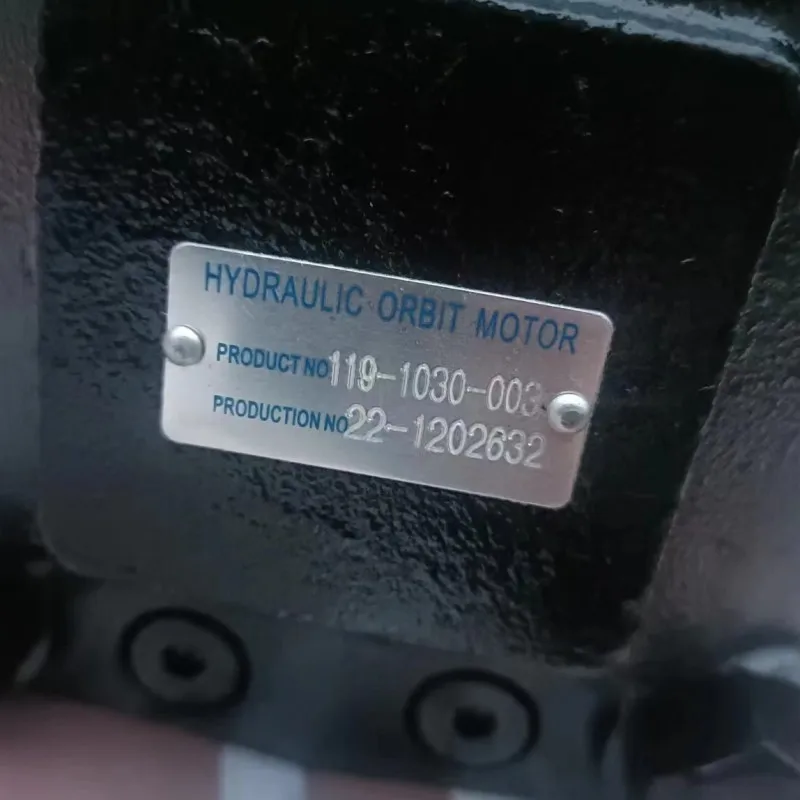

Eaton Char-Lynn 10000 Series (10 Series) Ultra Heavy-Duty Orbit Motors

Product Overview: The Eaton Char-Lynn 10000 Series is the powerhouse of the orbital motor world, designed for applications requiring extreme torque and elite reliability. This category features the flagship models: 119-2046-001, 119-2003-001, and 119-2015-001. Engineered with advanced Disc Valve technology, the 10000 Series handles continuous high-pressure and massive flow rates with ease. With its patented Geroler® roller set design, these motors deliver unmatched stability and power in Low Speed High Torque (LSHT) operations. They are the premier choice for construction equipment wheel drives, heavy-duty winches, mining machinery, forestry harvesters, and tunneling equipment.

Key Technical Advantages:

• Peak Torque Performance: Capable of generating continuous torque exceeding 3000 Nm, the 10000 Series meets the most grueling heavy-duty traction and drive requirements.

• High-Pressure Disc Valve Precision: The independent valve plate automatically balances clearances under pressure, ensuring elite volumetric efficiency even during extreme pressure cycles.

• Superior Load Resilience: Featuring oversized tapered roller bearings, the housing handles massive radial and axial loads directly—ideal for direct-drive giant wheel hubs.

• Patented Geroler® Geometry: The roller-supported internal design minimizes friction and ensures smooth, pulse-free operation at ultra-low speeds.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 10000 Series (10 Series).

• Featured Model Matrix: 119-2046-001, 119-2003-001, 119-2015-001.

• Core Performance Specs:

  • Displacement Range: 345 cc/rev to 940 cc/rev (21.0 – 57.4 cu in/rev).

  • Rated Pressure: Continuous up to 200-240 Bar (2900-3500 PSI); Intermittent peaks up to 310 Bar (4500 PSI).

  • Torque Capability: Continuous torque exceeds 2700-3000 Nm, with peak torque surpassing 3700 Nm.

  • Max Flow Rate: Supports massive flow inputs up to 265 L/min (70 GPM).

  • Mounting Standards: Standard 4-Bolt SAE CC or Wheel Mount flanges with large-diameter Keyed or Splined shaft options.
