Eaton Char-Lynn 10,000 Series Extreme-Duty LSHT Orbit Motors

Product Overview: The Eaton Char-Lynn 10,000 Series represents the pinnacle of orbital drive technology. As the largest and most powerful series in the brand’s portfolio, it is engineered to handle the most severe industrial and mobile machinery tasks. This category features precision models: 119-2016-001, 119-1030-002, and 119-1032-003. Utilizing advanced Disc Valve technology and a reinforced Geroler® architecture, the 10,000 Series delivers unparalleled Low Speed High Torque (LSHT) performance under extreme pressures. It is the ultimate power source for large forestry equipment, heavy construction drives, marine deck machinery, excavator swing drives, and mining equipment.

Key Technical Advantages:

• Ultimate Torque Density: Delivers astonishing power output within a robust frame, capable of driving exceptionally heavy loads with a single unit.

• Disc Valve Precision: Features a dedicated valve system that maximizes volumetric efficiency, ensuring smooth and pulse-free operation at ultra-low speeds.

• Roller-Contact Geroler®: Incorporates rollers to minimize internal friction, extending motor life and significantly enhancing resilience against extreme pressure pulses.

• Massive Load Support: Equipped with oversized heavy-duty roller bearings, the 10,000 series handles immense axial and radial loads—allowing for direct wheel hub mounting or heavy sprocket drives.

• Technical Spec Decoding:

  • 119- Series: Identifies the 10,000 Series standard and customized mounting sequences.

  • 1030 / 2016 / 1032: Relates to displacement selection, flange specifications, and shaft details.

Detailed Models & Specifications:

• Core Series: Eaton Char-Lynn 10,000 Series (Extreme Duty Motor).

• Featured Model Matrix:

  • 119-2016-001: The flagship model for extreme pressure and torque requirements.

  • 119-1030-002: Versatile extreme-duty specification with proven field reliability.

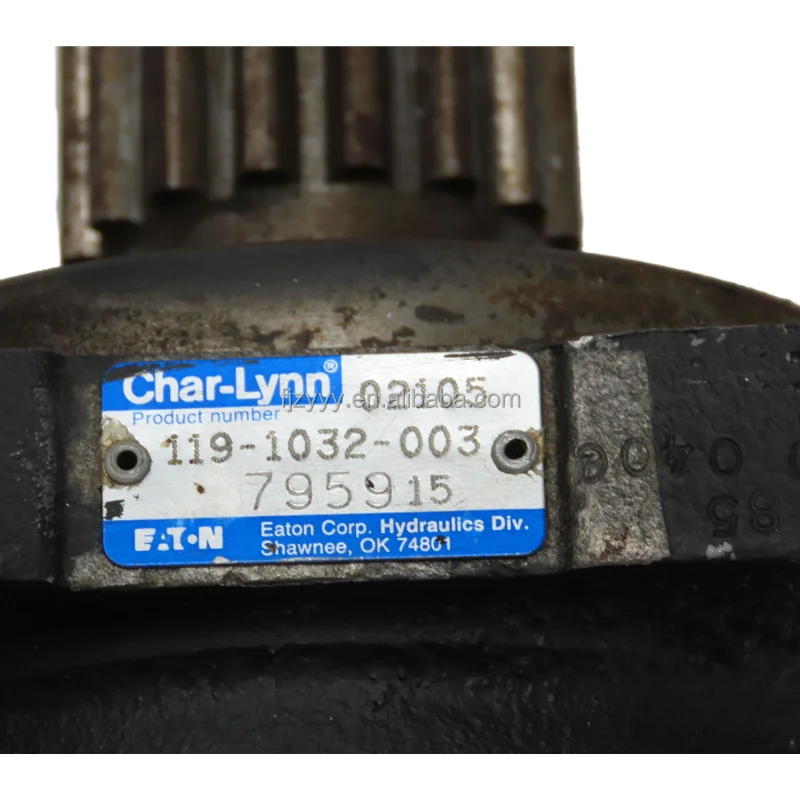

  • 119-1032-003: Specialized variant with custom shaft configuration for industrial interfaces.

• Core Performance Specs:

  • Max Pressure: Continuous up to 275 Bar (4000 PSI); intermittent peaks exceeding 310 Bar.

  • Torque Capability: Continuous torque outputs ranging from 2500 Nm up to 4000+ Nm.

  • Displacement Range: Massive displacement selection from 665cc up to 1215cc.
