Eaton Char-Lynn 10000 Series Motor | 119-1029-003 119-1033-003 119-1107-003

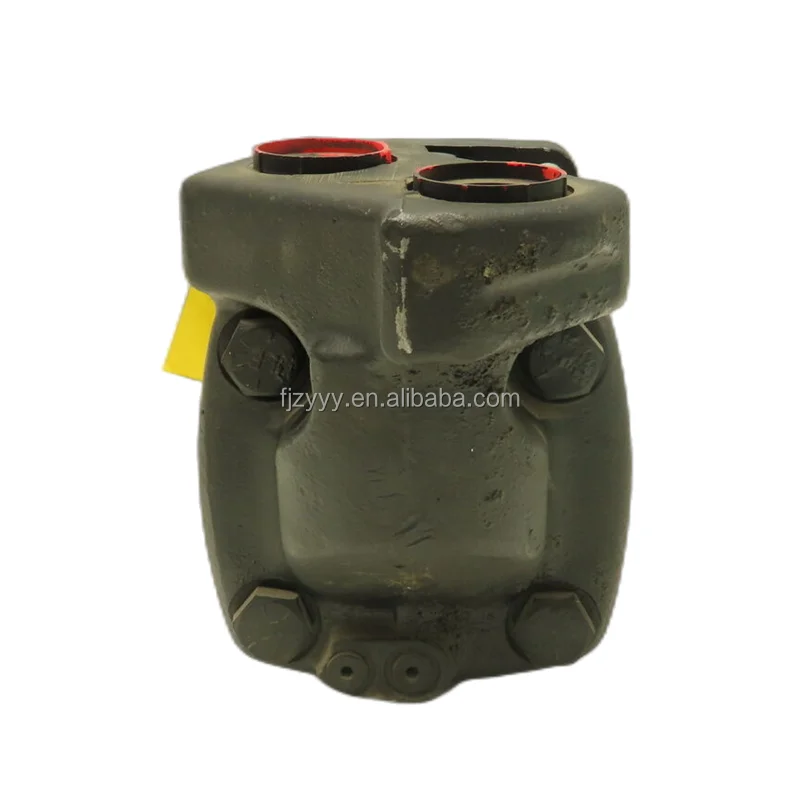

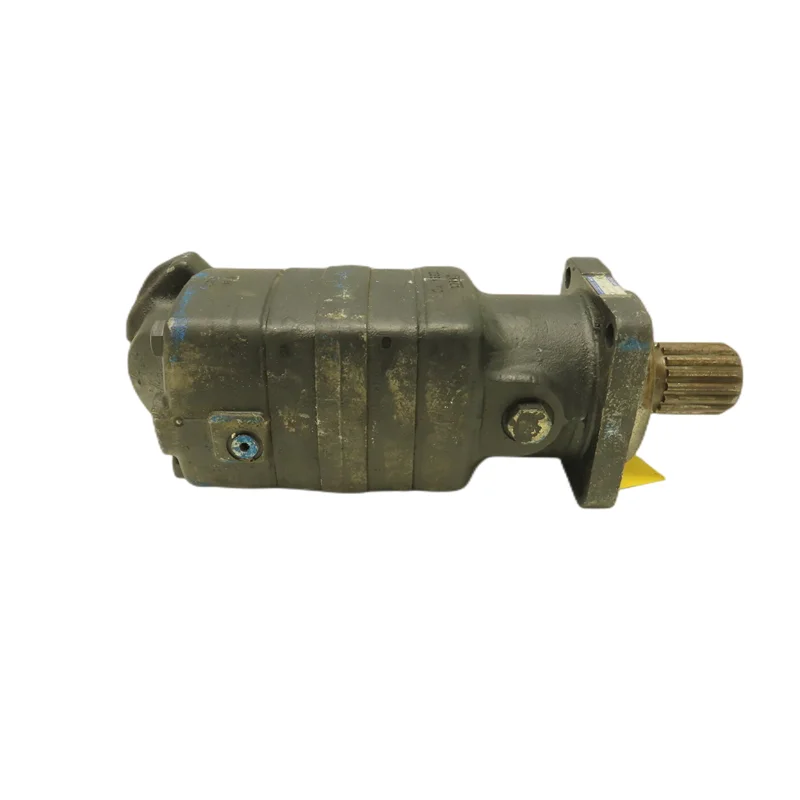

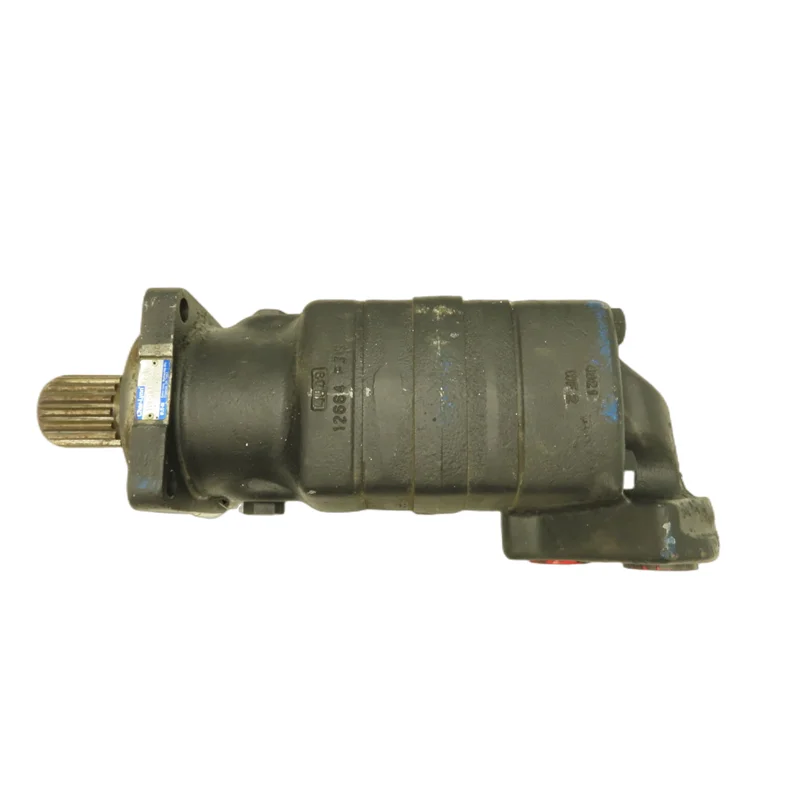

Eaton Char-Lynn 10000 Series (10 Series) Ultra Heavy-Duty Orbit Motors

Product Overview: The Eaton Char-Lynn 10000 Series is one of the most powerful and largest displacement orbital motors available in the global hydraulic market. This category features the cornerstone models: 119-1029-003, 119-1033-003, and 119-1107-003. Utilizing cutting-edge Disc Valve technology, the 10000 Series is engineered to withstand extreme flow rates (up to 265 L/min) and continuous high-pressure environments. Its patented Geroler® roller set internal structure delivers staggering Low Speed High Torque (LSHT) performance, serving as the ultimate power source for heavy mining equipment, TBM drives, specialized marine winches, large forestry harvesters, and massive construction propel drives.

Key Technical Advantages:

• Extreme Torque Delivery: Built to push physical limits, a single 10000 Series motor can generate continuous torque exceeding 3000 Nm, meeting the most demanding heavy-duty traction requirements.

• High-Pressure Disc Valve Precision: The independent valve plate automatically balances clearances under pressure, ensuring peak volumetric efficiency even during frequent directional reversals and extreme pressure cycles.

• Elite Radial Load Resilience: The housing features oversized tapered roller bearings, allowing the output shaft to handle massive shock loads and radial forces directly—ideal for direct-drive giant wheel hubs.

• Patented Geroler® Geometry: The roller-supported design minimizes friction and significantly enhances operational stability at ultra-low speeds.

Detailed Specifications & Parameters:

• Core Series: Eaton Char-Lynn 10000 Series (10 Series).

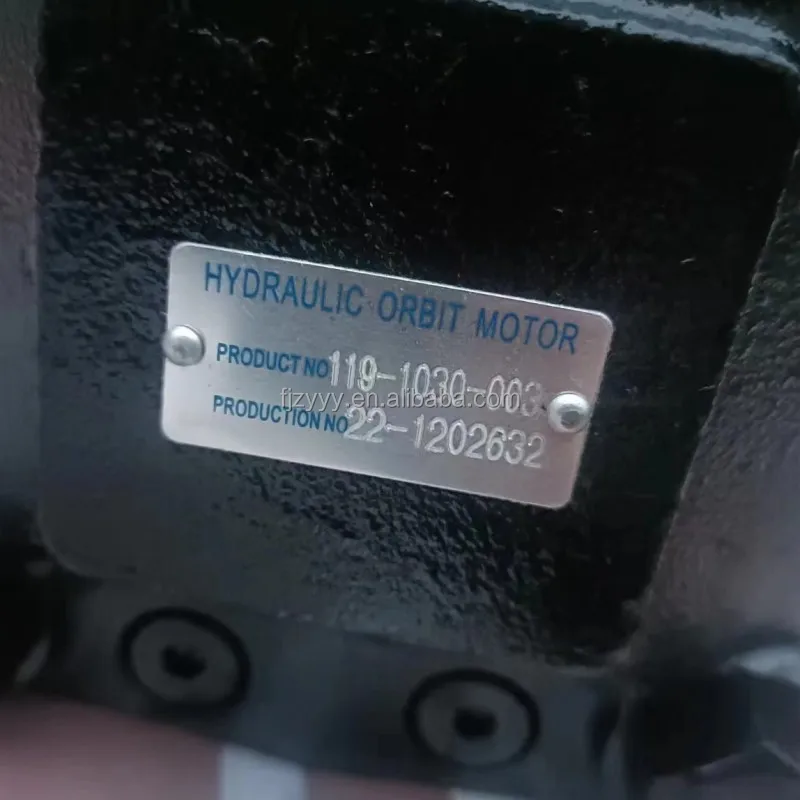

• Featured Model Matrix: 119-1029-003, 119-1033-003, 119-1107-003.

• Core Performance Specs:

  • Displacement Range: 345 cc/rev to 940 cc/rev (21.0 – 57.4 cu in/rev).

  • Rated Pressure: Continuous up to 200-240 Bar (2900-3500 PSI); Intermittent peaks up to 275-310 Bar.

  • Torque Capability: Continuous torque exceeds 2700-3000 Nm, with peak torque surpassing 3700 Nm.

  • Flow Rate: Handles massive flow inputs up to 265 L/min (70 GPM).

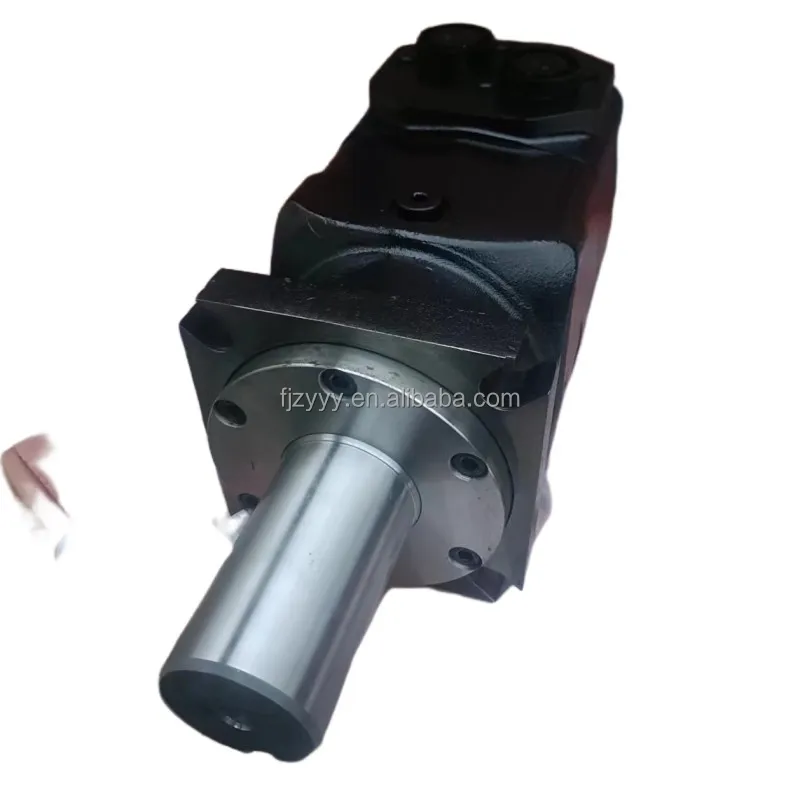

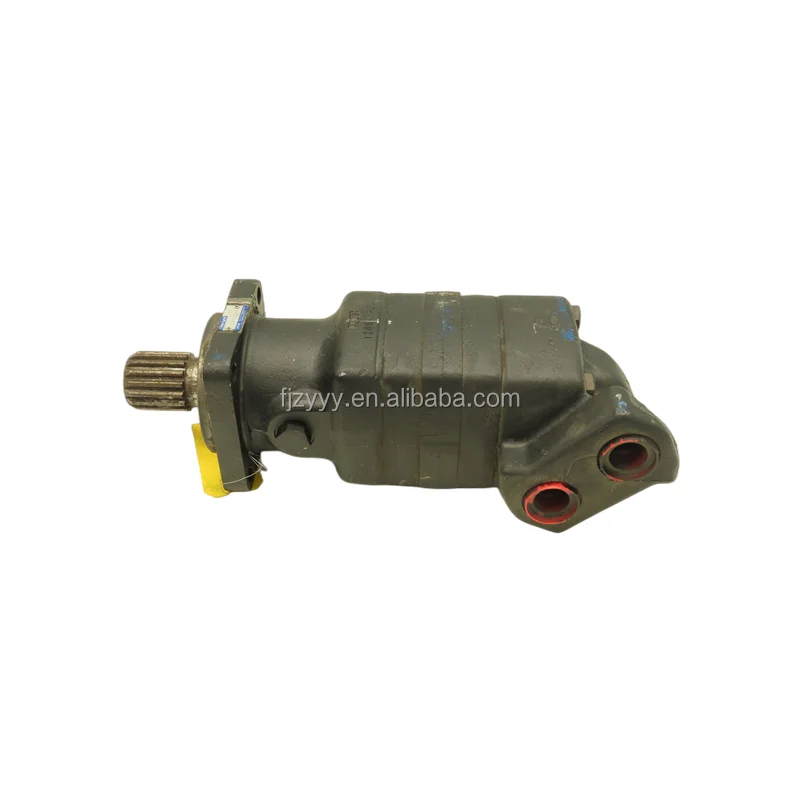

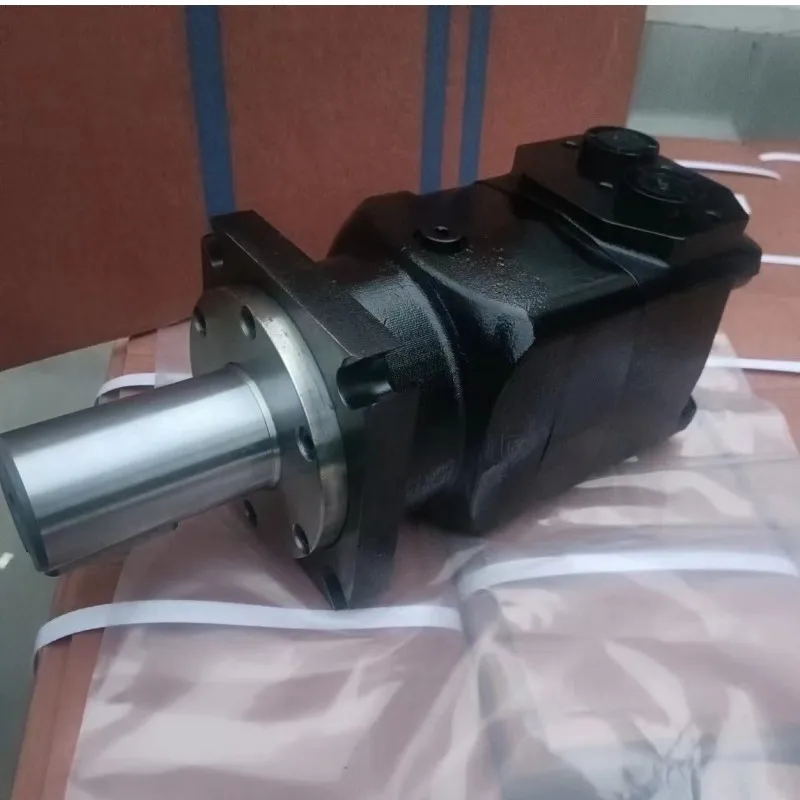

  • Mounting Standards: Standard 4-Bolt SAE CC or oversized Square flanges with large-diameter Keyed, Splined, or Tapered shaft options.
