DVQ20 Series High-Performance Variable Displacement Vane Pumps

Product Overview: The DVQ20 Series variable displacement vane pumps are the premier choice for achieving “High Precision Pressure Control” and “Significant Energy Savings” in industrial hydraulic stations. Featuring a high-sensitivity pressure compensation mechanism, these pumps automatically adjust output displacement based on load demand. Once the preset pressure is reached, the pump de-strokes to a minimum flow state. This range highlights core specifications including DVQ20-17-F-RAB-02, DVQ20-28-F-RAB, and DVQ20-14-F-RAB-02. Utilizing unique silencing grooves and side-plate pressure compensation technology, the DVQ20 series maintains exceptionally low noise and minimal oil temperature rise during prolonged pressure-holding phases.

Key Technical Advantages:

• Automatic Pressure Compensation: The variable design ensures the pump only delivers the required flow. During pressure-holding, the pump automatically reduces eccentricity, eliminating overflow heat and saving 30% – 50% energy compared to fixed systems.

• Ultimate Silent Performance: Precision-ground vanes and cam ring profiles combined with optimized suction port geometry ensure minimal mechanical noise across all pressure ranges.

• Rapid Dynamic Response: The sensitive variable mechanism reacts instantaneously to actuator movements (e.g., hydraulic cylinders or clamps), ensuring consistent processing stability for CNC equipment.

• Compact & Easy Integration: Standard F (Flange Mounting) design provides a space-saving footprint, ideal for integration within tight CNC machine hydraulic tank enclosures.

• Target Applications: CNC lathe clamping systems, precision grinding machines, automated production lines, shoe-making machinery, and energy-saving hydraulic power units.

Detailed Models & Parameters:

• Core Series: DVQ20 Series Variable Displacement Vane Pump.

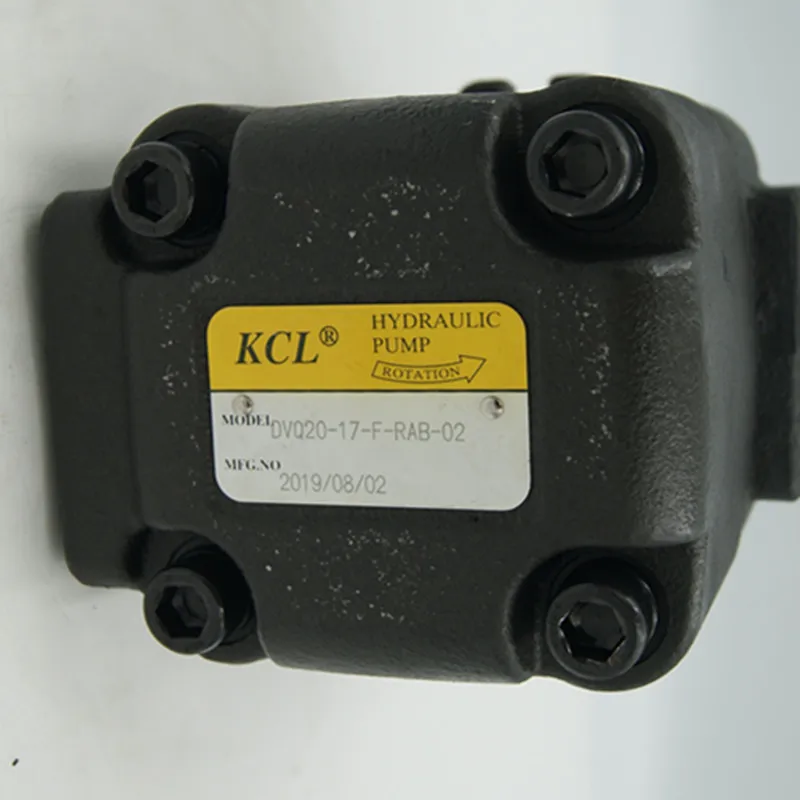

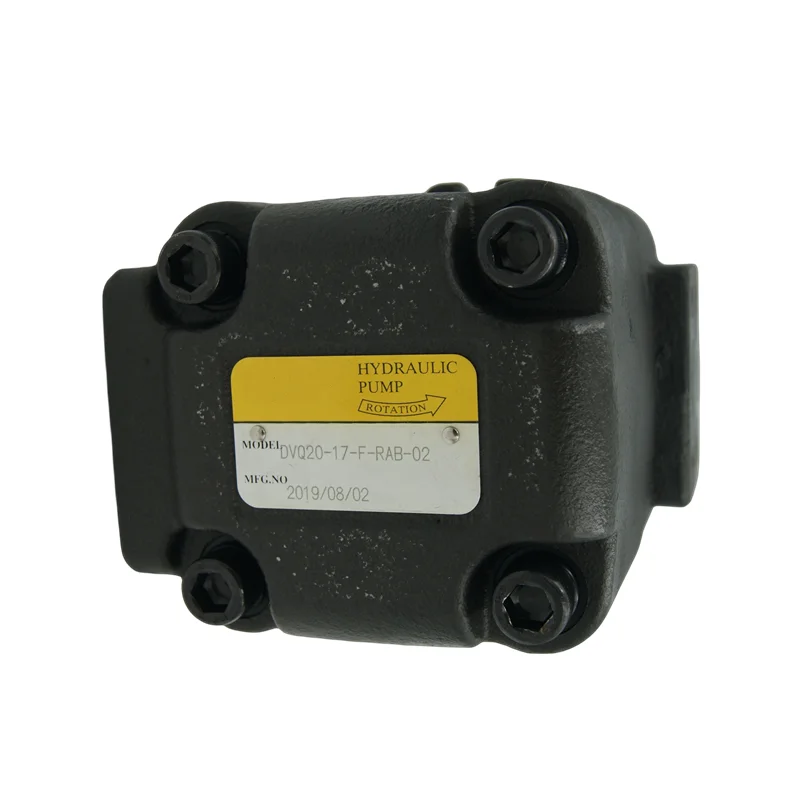

• Model Keywords: DVQ20-17-F-RAB-02, DVQ20-28-F-RAB, DVQ20-14-F-RAB-02.

• Flow Rates (L/min): Key specifications including 14 L/min, 17 L/min, and 28 L/min (at 1800 rpm).

• Pressure Ratings: Rated adjustment pressure ranges up to 7 MPa (70 Bar).

• Technical Specs: F (Flange Mounting); RAB (Specific pressure/flow regulator protocol); 02 (Design sequence code).
