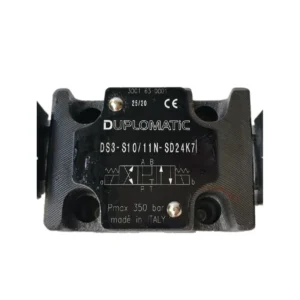

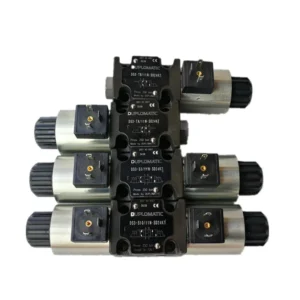

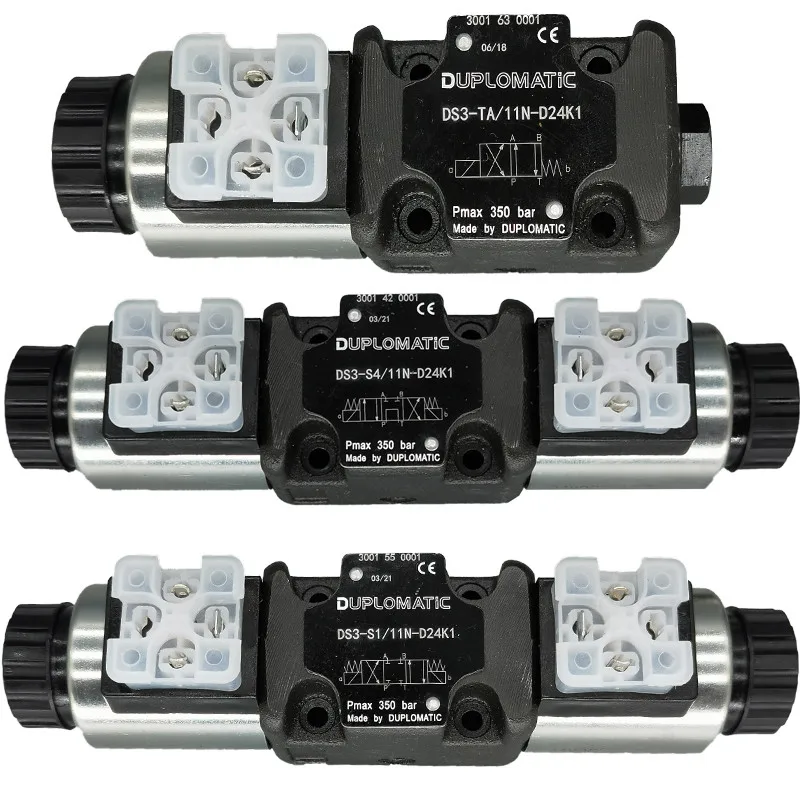

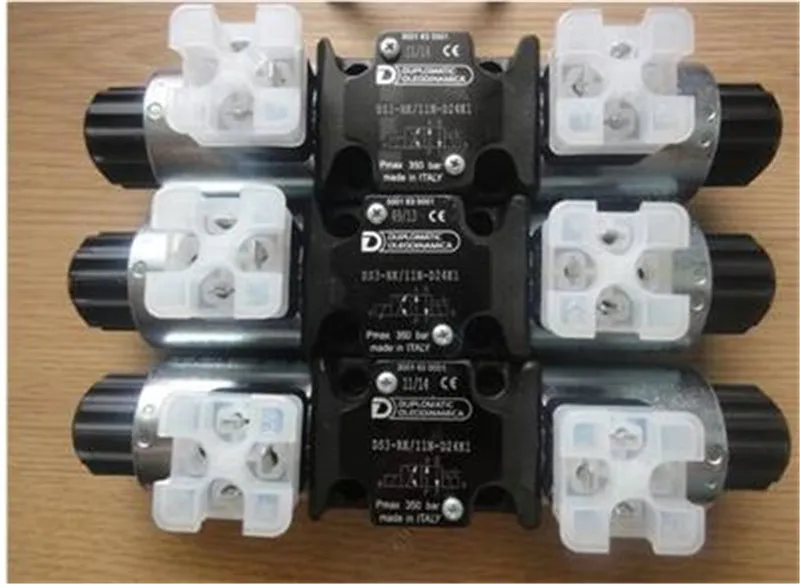

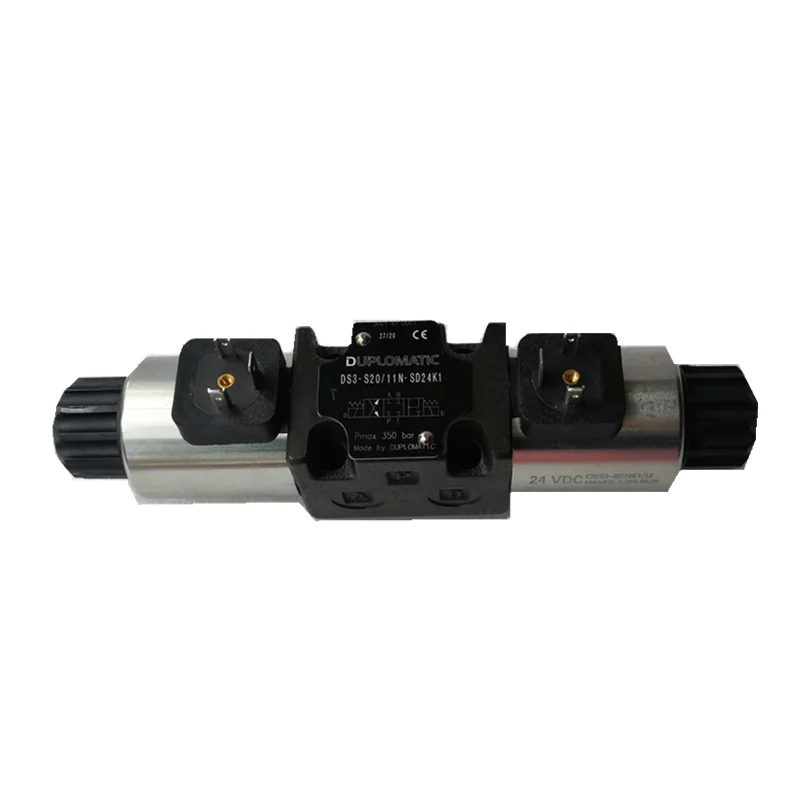

Duplomatic Type DS5 Valve | DS5-S2 DS5-S23 | NG10 Solenoid Valve | DC24V
| Model Number | DS3, DS5, DS5-S2/12N-SD24K1, DS5-S23/14N-D24K1 |
|---|
Product Description
Duplomatic Type DS5 Series Solenoid Directional Control Valves
Product Overview: The DS5 Series is a solenoid-operated, direct-acting directional spool valve engineered for high-performance industrial hydraulic systems. Fully compliant with ISO 4401-05 (NG10 / CETOP 05) mounting standards, the DS5 series offers exceptional pressure integrity and high flow capacity. Its precision-cast internal flow paths are optimized to minimize pressure drop while maintaining accurate control.
This category features essential industrial configurations: the 2-position spring-offset DS5-S2 and the specialized spool logic of the DS5-S23. Equipped with heavy-duty D24 (DC24V) wet-pin solenoids and standard K1 (DIN 43650) connectors, these valves are the premier choice for injection molding machines, metal shearing equipment, hydraulic manifolds, and automated production lines.
Key Technical Advantages:
High Flow & Pressure Performance: Rated for operating pressures up to 320 Bar (4,600 PSI), delivering superior dynamic power limits for its size.
Wet-Pin Solenoid Design: The armature operates fully immersed in oil for excellent heat dissipation and cushioned switching, significantly extending the service life of both coils and spools.
Robust Electrical Integration: Features standard K1 electrical connectors with an IP65 protection rating, ensuring reliable operation in humid and dusty environments.
Precision Switching: Hardened and precision-ground spools guarantee high switching repeatability and minimal internal leakage.
Detailed Specifications & Parameters:
Core Series: Duplomatic Type DS5 Solenoid Directional Valve.
Featured Model Matrix: DS5-S2/12N-SD24K1, DS5-S23/14N-D24K1, DS5-S2, DS5-S23.
Core Performance Specs:
Nominal Size: Size 05 / NG10 / CETOP 05.
Max Operating Pressure: Rated up to 320 Bar (32 MPa).
Max Flow Capacity: Up to 120 – 150 L/min (depending on spool type).
Voltage Specs: D24 / SD24 (DC 24V).
Mounting Pattern: Complies with ISO 4401-05-04-0-05.
