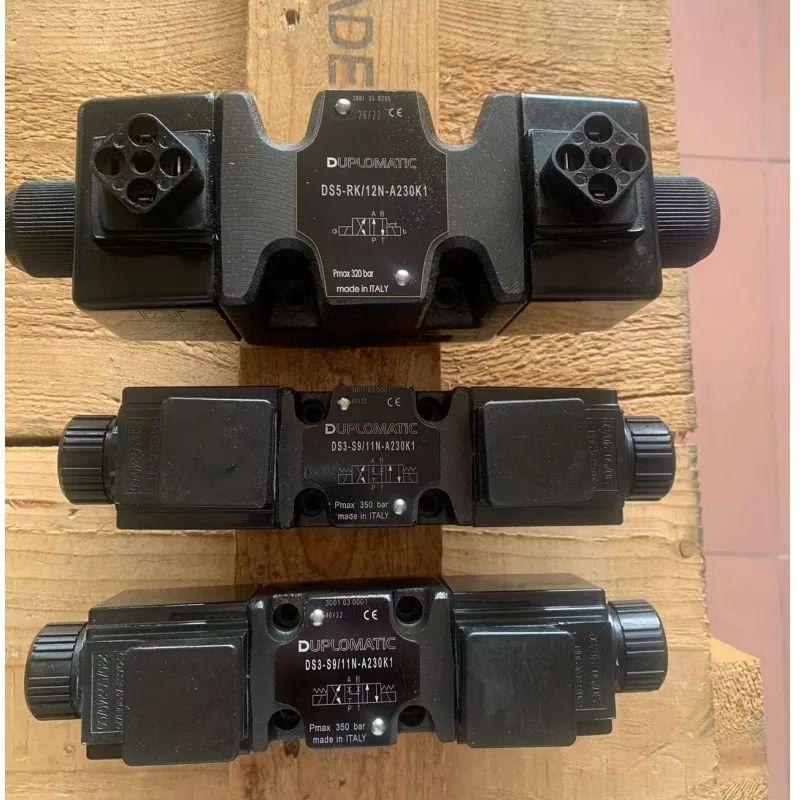

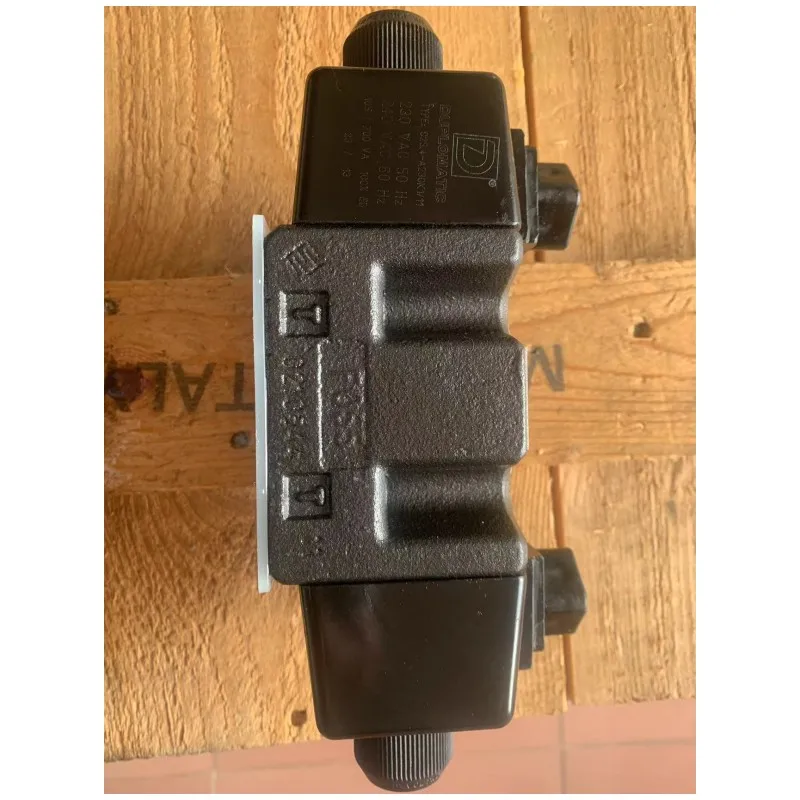

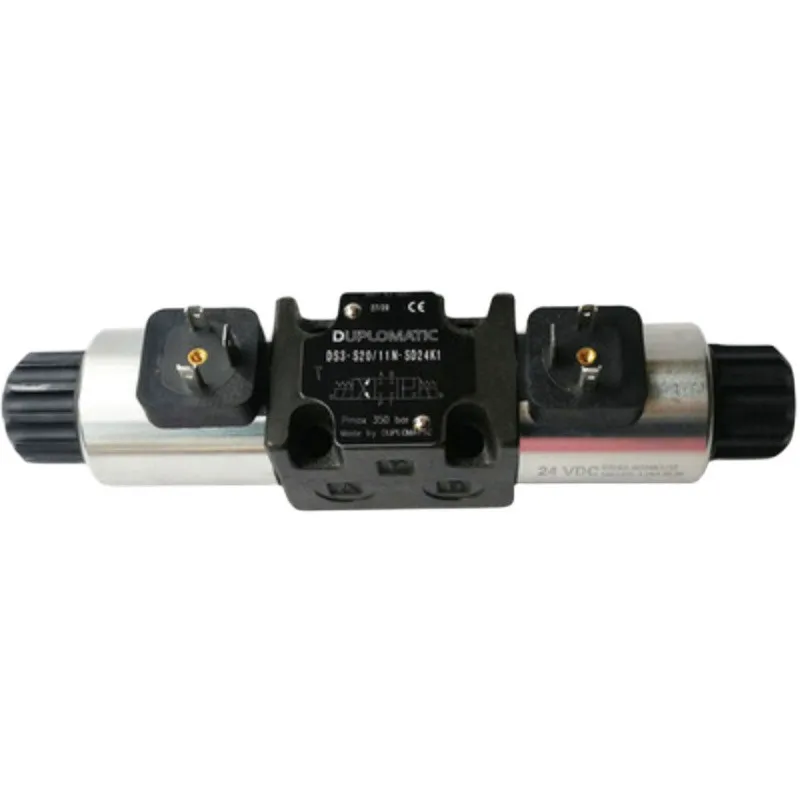

Duplomatic Type DS3 Solenoid Valve | DS3-TA | DS3-RK | DS3-S1 | 24V DC 230V AC | Hydraulic Valve

Model Number

DS3, DS3-TA11N-A230K1, DS3-RK/11N-D24K1, DS3-S1/11 N-D00

Inquiry

Product Description

DS3 Series Industrial Solenoid Directional Valves

Product Overview: The DS3 series is a high-performance, direct-operated solenoid valve widely used in diverse hydraulic systems. It features a three-chamber body design with optimized large internal galleries to minimize pressure drop. Equipped with high-power wet-pin solenoids, the armature operates in oil, ensuring superior heat dissipation and long-lasting durability against shock. Whether you need the RK (Mechanical Detent) for position-holding or the standard spring-return TA or S1, the DS3 delivers ultra-reliable directional control under operating pressures up to 350 bar.

Featured models include: DS3-TA11N-A230K1 (230V AC), DS3-RK/11N-D24K1 (24V DC), and DS3-S1/11N-D00.

Key Technical Advantages:

  • High Pressure & Flow: Despite its compact size, the P/A/B ports withstand up to 350 bar, with flow rates reaching 100 L/min (depending on spool type).

  • Wet-Pin Solenoid Architecture: The oil-immersed armature eliminates leakage risks at dynamic seals and provides excellent damping during switching.

  • Versatile Electrical Connections: Includes K1 (Standard Connector) and D00 (Without Coil) configurations, compatible with various global voltage standards.

  • Mechanical Detent Option (RK): Ensures the spool remains in the last operated position even after a power loss, enhancing system safety for specific logic requirements.

Detailed Specifications & Parameters:

  • Featured Model Matrix:

    • DS3-TA11N-A230K1: Size 06, 2-position TA spool, 230V AC supply (A230), with K1 connector.

    • DS3-RK/11N-D24K1: Size 06, RK function with mechanical detent, 24V DC supply (D24).

    • DS3-S1/11N-D00: Size 06, 3-position S1 spool (Closed Center), D00 for special config or without coil.

  • Core Technical Specs:

    • Mounting Interface: ISO 4401-03 (CETOP 3 / NG6).

    • Max Operating Pressure: 350 bar (5000 PSI).

    • Max T-Port Back Pressure: 210 bar (DC) / 160 bar (AC).

    • Voltage Ratings: 24V DC / 230V AC (240V Compatible).

    • Ingress Protection: IP65 rated.
