Duplomatic Type DS3 Valve | DS3-RSA1 DS3-RK DS3-TA | NG6 Solenoid Valve | D24K1
| Model Number | DS3-RK/11N-D24K1 |
|---|
Product Description

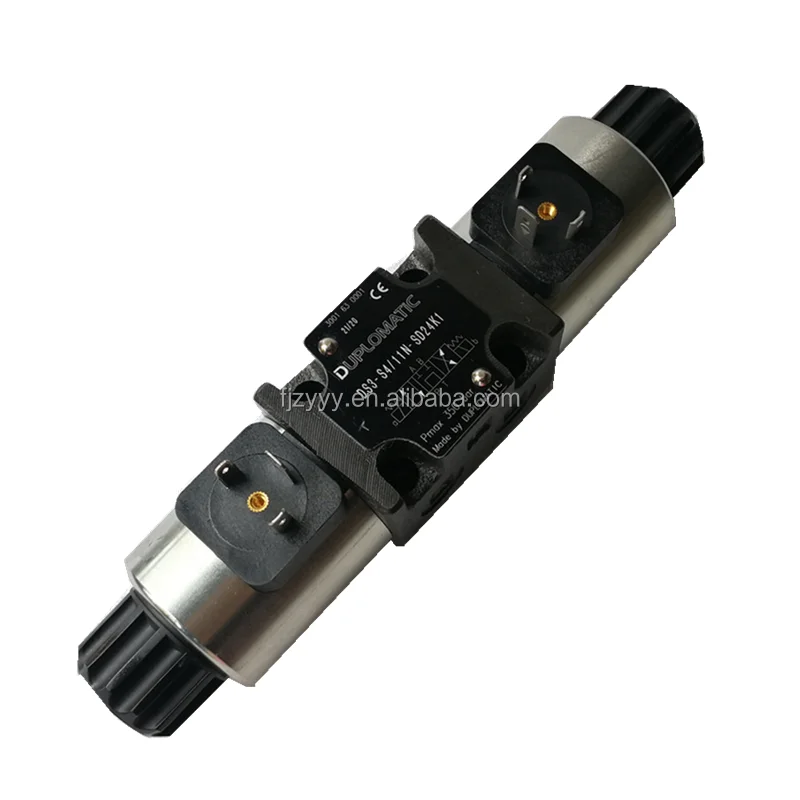

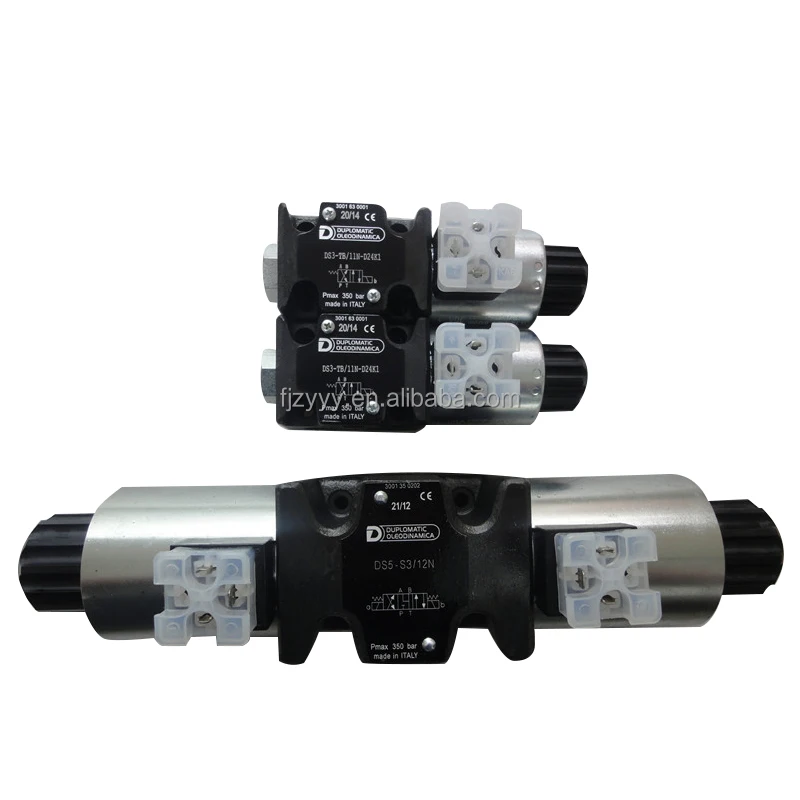

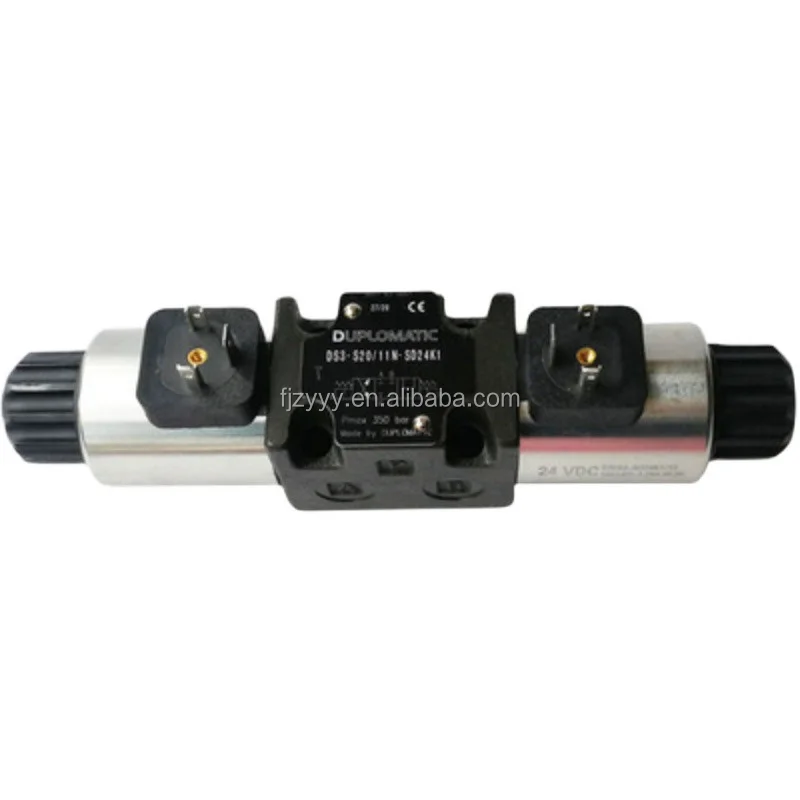

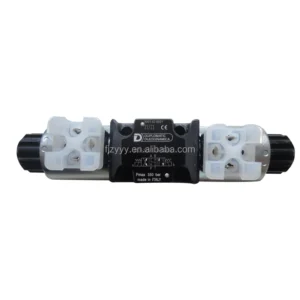

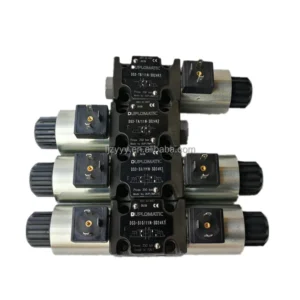

Duplomatic Type DS3 Series High-Performance Solenoid Directional Control Valves
Product Overview: The DS3 Series is a direct-operated solenoid directional valve range featuring the global standard Size 03 (NG6 / CETOP 03) footprint. As a cornerstone of the 11N design sequence, these valves are engineered to handle high pressures, high flow rates, and high-frequency switching cycles. The compact casting design effectively minimizes pressure drops within internal galleries, boosting overall hydraulic system efficiency.

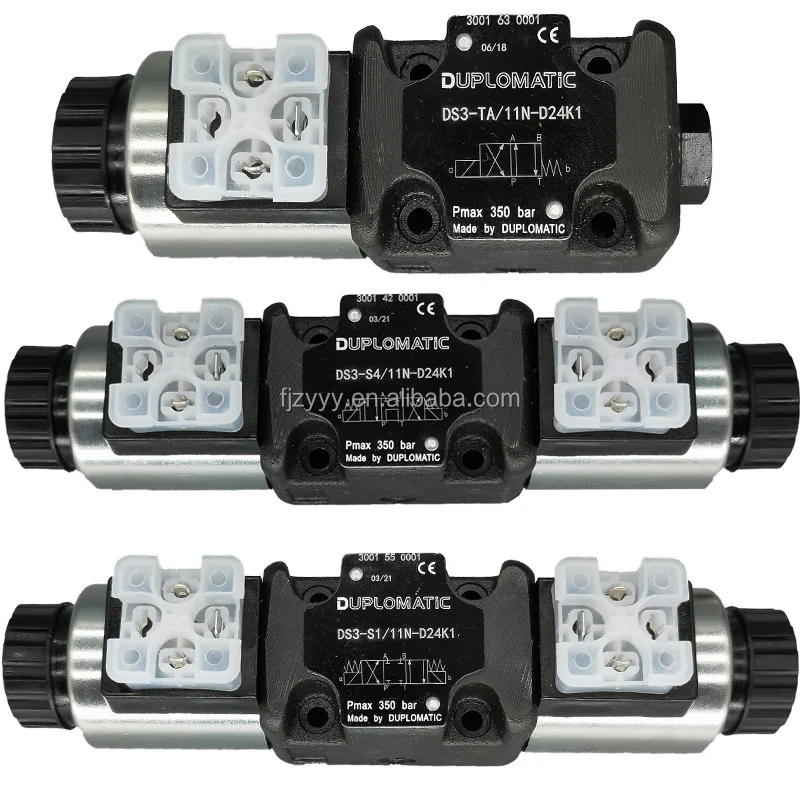

This category highlights primary configurations: the manual override equipped DS3-RSA1, the detented logic DS3-RK, the 2-position/3-way DS3-TA, and the high-performance coil component C22S3-D24K1/11. All models are optimized for D24 (24V DC) power, making them the premier choice for machine tools, injection molding machinery, hydraulic power units (HPUs), and automated industrial equipment.
Key Technical Advantages:
Optimized Fluid Dynamics: Internal galleries are precision-engineered to ensure low pressure drop even at maximum flow capacity, effectively reducing heat generation in the system.
Wet-Pin Solenoid Engineering: Armatures operate fully immersed in hydraulic oil for superior self-lubrication, damping, and heat dissipation, resulting in smooth actuation and an extended mechanical service life.
High-Reliability Coils: Equipped with premium D24K1 series coils, designed for continuous duty cycles with excellent resistance to environmental dust and oil contamination.
Global Standard Compatibility: Strictly adheres to ISO 4401 mounting standards, ensuring 100% compatibility and seamless replacement of leading hydraulic brands worldwide.
Detailed Specifications & Parameters:
Core Series: Duplomatic Type DS3 Series.
Featured Model Matrix: DS3-RSA1/11N-D24K, DS3-RK/11N-D24K1, DS3-TA/11N-D24K, C22S3-D24K1/11.
Core Performance Specs:
Nominal Size: Size 03 (NG6 / CETOP 03).
Max Operating Pressure: Rated up to 350 Bar (5,000 PSI).
Max Flow Capacity: Up to 80 L/min (21 GPM).
Voltage Specs: D24 (24V DC Supply).
Design Sequence: 11N Series.
Electrical Interface: K1 / K (Standard DIN connector).
