Duplomatic DS3 & DS5 Solenoid Valve | DS5-S1-12N | DS3-S1/11N | DS5-RK | AC230V Directional Valve

Model Number

DS3, DS5, DS3-S9/11N-A230K1/CM, DS5-RK/12N-A230K1

Inquiry

Product Description

Duplomatic DS3 & DS5 Series High-Performance Directional Valves

Product Overview: The Duplomatic DS3 (NG6) and DS5 (NG10) series represent the benchmark for directional control in industrial hydraulic systems. Built to ISO 4401 mounting standards, these valves deliver exceptional switching reliability and low pressure drop characteristics. From the standard S1 spool functions to the specialized RK models featuring mechanical detents or specific positioning, the DS3 and DS5 series provide precise control at pressures up to 350 bar. Equipped with high-performance wet-pin solenoids and supporting A230 (AC 230V) supply, they are the ideal choice for high-stability system designs.

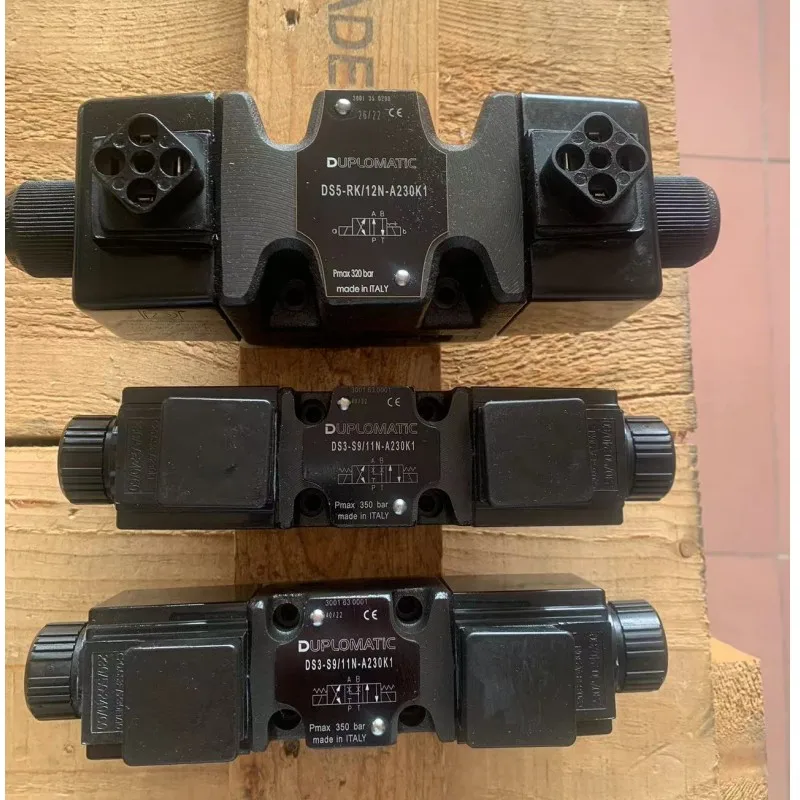

Featured models include: DS5-RK/12N-A230K1, DS5-S1-12N-A230K1, and DS3-S1/11N-A230K1.

Key Technical Advantages:

  • Enhanced Flow Path Design: Optimized internal casting allows for lower pressure drops at equivalent flow rates, significantly reducing system heat generation.

  • Robust Electromagnetic Drive: The A230 AC solenoids provide high shifting force, ensuring reliable actuation even in low temperatures or high-viscosity oil conditions.

  • Versatile Functionality: The S1 Spool provides standard closed-center control, while the RK configuration is engineered for specific mechanical detent or positioning logic requirements.

  • Rugged Industrial Protection: Standard K1 connectors (DIN 43650) provide IP65 protection, capable of withstanding harsh industrial environments.

Detailed Specifications & Parameters:

  • Featured Model Matrix:

    • DS3-S1/11N-A230K1: Size 6 (NG6), 3-pos 4-way, S1 spool, series 11, AC 230V supply.

    • DS5-S1-12N-A230K1: Size 10 (NG10), 3-pos 4-way, S1 spool, series 12, AC 230V supply.

    • DS5-RK/12N-A230K1: Size 10 (NG10) with specialized RK functionality for advanced logic requirements.

  • Core Technical Specs:

    • Max Operating Pressure: Up to 350 bar (DS3) / 320 bar (DS5).

    • Max Flow Rate: Up to 100 L/min (DS3) / 150 L/min (DS5).

    • Voltage Rating: A230K1 (AC 230V, 50/60 Hz).

    • Mounting Interface: CETOP 03 (DS3) / CETOP 05 (DS5).
