DPN Digital Code Rotary Switch | DPN01-010N20R | DPN02-020J20R | CNC Panel Switch
| Model Number | DPN01/DPN02/DPN03 |
|---|
Product Description
DPN Series Digital Code Rotary Switches for CNC Control Panels
Product Overview: The DPN Series is a range of high-performance digital code rotary switches designed specifically for industrial control panels, CNC machine tools (e.g., override and feedrate selection), and automated equipment. Featuring an advanced metal-brush contact structure, these switches output precise Digital Codes such as Binary or Gray Code. The ultra-slim, compact design not only saves valuable installation space but also provides superior shock and dust resistance. The DPN01 and DPN02 specifications are the preferred choice for machine operator panels and manual pulse generators (MPG) due to their crisp detent feel and extended electrical life.
Featured models on this page include the standard 10-position DPN01-010N20R-01N and the enhanced 20-position DPN02-020J20R-02J.
Key Technical Advantages:
Precise Digital Output: Provides stable digital logic codes (GFED CBA), directly compatible with PLCs, CNC controllers, and various MCU inputs.
Crisp Tactile Feedback: The precision detent mechanism ensures a clear click and proper torque for every step, preventing accidental switching.
Ultra-Slim Profile: Minimal back-panel depth makes it ideal for modern, low-profile control panels and handheld devices.
High-Reliability Contacts: Contact surfaces are treated with specialized plating to ensure low contact resistance and strong anti-oxidation, maintaining signal integrity over millions of rotations.
Detailed Specifications & Parameters:
Featured Model Matrix:

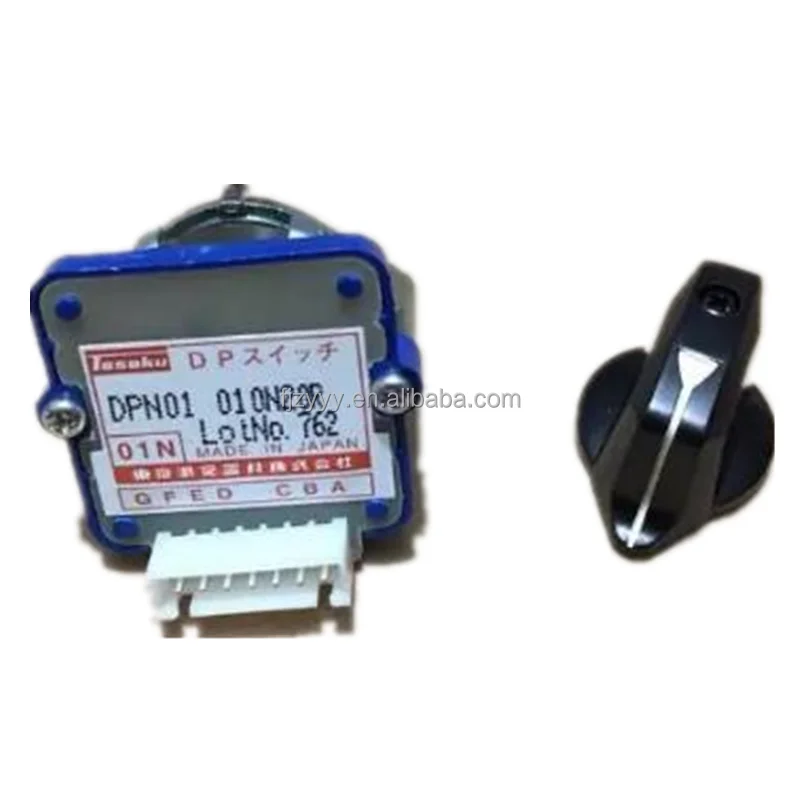

DPN01-010N20R-01N (10 Positions, Standard Output Configuration)

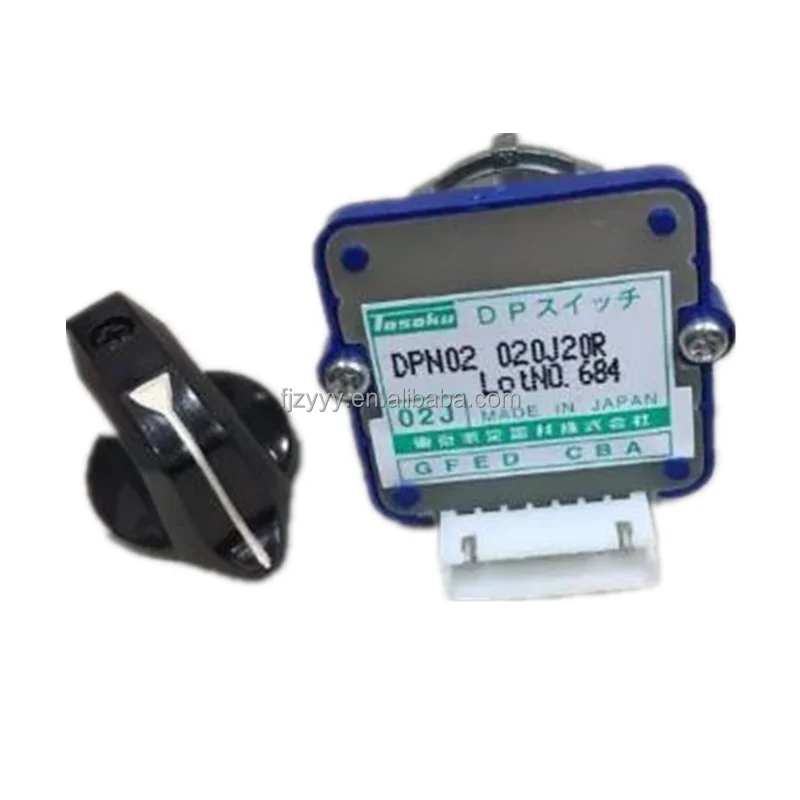

DPN02-020J20R-02J (20 Positions, Enhanced Digital Coding)
Core Technical Specs:
Output Codes: Binary, Gray Code, and Complementary Code (Defined via GFED CBA pins).
Step Angle: Available in 15°, 22.5°, or 30° increments.
Electrical Rating: DC 5V – 24V / 20mA (Signal loading).
Protection: Industrial-grade oil and dust resistance.
Mechanical Life: Rated for over 50,000 operational cycles.
