DFA/DFB-02 Series Solenoid Directional Control Valves (NG6)

Product Overview: The DFA and DFB-02 Series are among the most versatile high-performance solenoid directional valves in the industrial hydraulic market. Featuring a standard Size 02 (NG6 / CETOP 3) mounting interface, the core strength of this series lies in its 35C (350 Bar) high-pressure rating and a vast array of spool configurations. The DFA Series typically features AC-driven solenoids, while the DFB Series incorporates wet-pin solenoid structures for superior heat dissipation and low-noise operation. Whether used for logic control in automated lines or as a pilot stage for larger valves, this series ensures exceptional switching reliability.

Featured models include the Three-position closed-center 3C2, the H-type 3C4, and various voltage options including AC110V and DC12V.

Key Technical Advantages:

• High Pressure & Flow Capacity: Rated for operating pressures up to 350 Bar (5000 PSI), with flow passages designed to minimize system pressure drop.

• Diverse Spool Functions: Available in 3C2 (Closed center), 3C3 (Open center), 3C4 (H-type), 3C6, and more to fit any actuator logic.

• Low Power Consumption: Optimized solenoid coils provide rapid response times and low temperature rise, supporting high-frequency 24/7 operation.

• Universal Compatibility: Standard ISO 4401 interface allows for seamless interchangeability with NG6 valves from brands like Yuken and Rexroth.

Detailed Specifications & Parameters:

• Core Series: DFA/DFB-02 (Size 02) Directional Control Series.

• Featured Model Matrix:

  • DFA-02-3C2-DC12V-35 (3-position, closed center, 12V DC control)

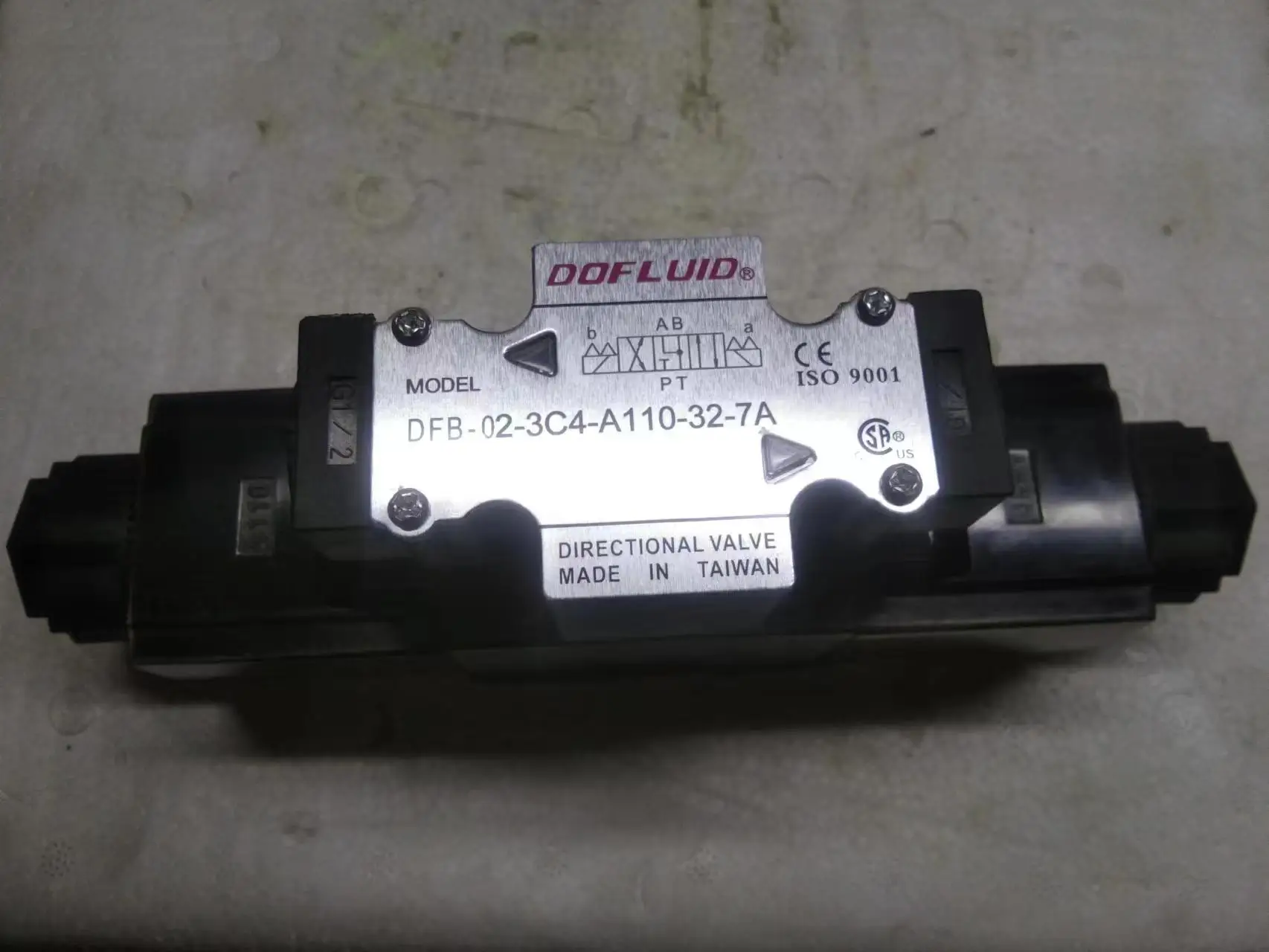

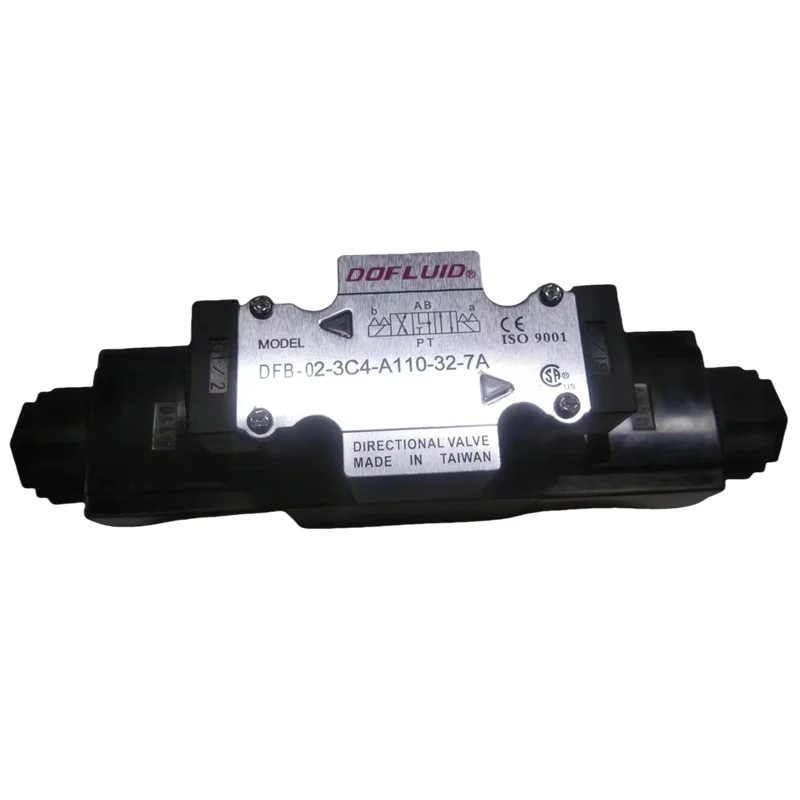

  • DFB-02-3C4-AC110-35C (3-position, H-type center, 110V AC control)

  • DFA/DFB-02-3C6 / 3C3 / 3C9 (Various mid-position configurations)

• Core Performance Specs:

  • Nominal Size: NG6 (Size 02 / CETOP 03).

  • Max Operating Pressure: 350 Bar (35C Design Sequence).

  • Rated Flow: Max flow capacity approx. 60-80 L/min (depending on pressure drop).

  • Voltage Options: AC110V, AC220V, DC12V, DC24V.
