Denison Type T6EMY Vane Pump | T6EMY-R62, T6EMY-R72, T6EMY-R85 | 28MPa

Denison Type T6EMY Series High-Pressure & High-Flow Vane Pumps

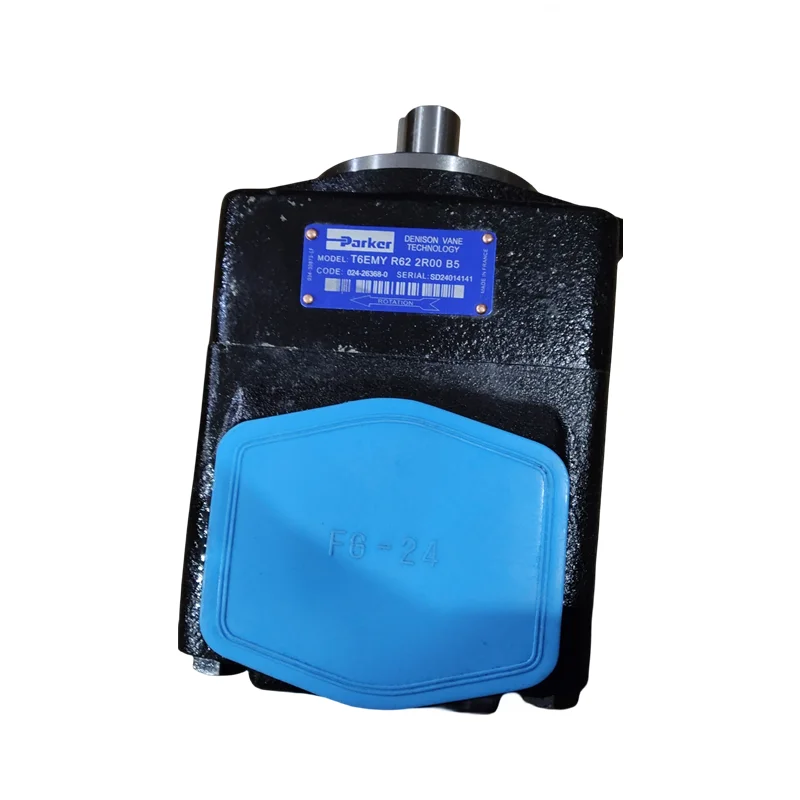

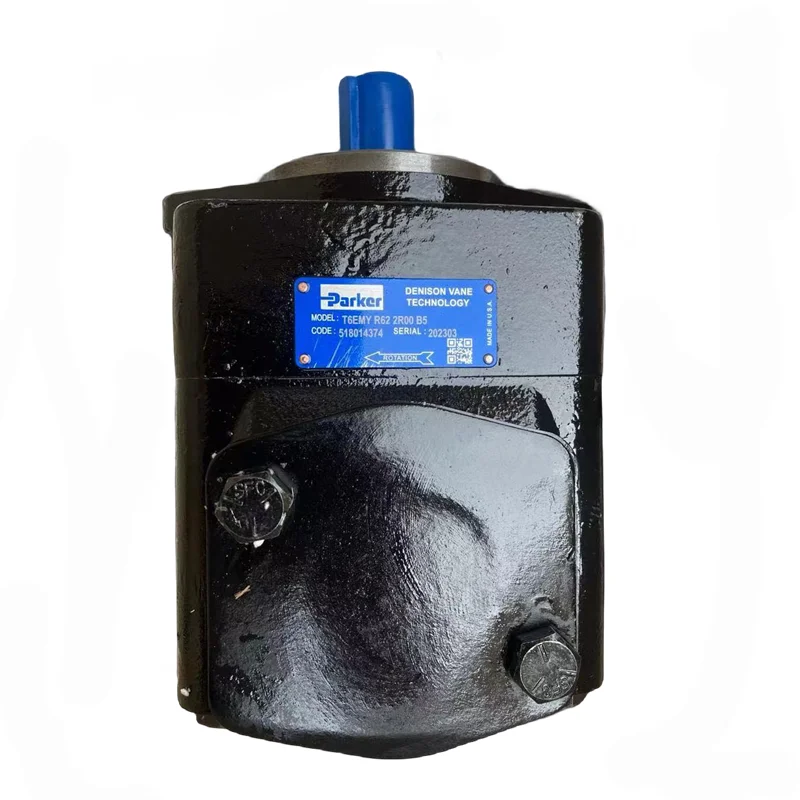

Product Overview: The T6EMY Series is the ultimate solution for heavy-duty, high-flow hydraulic applications. As the reinforced frame size within the T6 lineage, the T6EMY is specifically engineered for systems requiring immense power output from a single unit. This selection highlights premium models: T6EMY-R62-2R00B5, T6EMY-R72-2R00B5, T6EMY-R85-1R00-B1, and T6EMY-050-3L01-B1. Powered by Denison’s patented Double-lip Vane technology, the T6EMY series maintains peak volumetric efficiency and ultra-low noise levels even at extreme pressures up to 24.0 – 28.0 MPa (4000 PSI), setting the benchmark for industrial power worldwide.

Key Technical Advantages:

• Extra-Large Displacement Range: Covering from 139.0 cm³/rev (045) up to a massive 213.0 cm³/rev (R72/R85), satisfying high-speed requirements for large hydraulic actuators.

• Double-lip Vane Durability: The patented dual-contact structure minimizes stator wear and provides superior fatigue resistance under high-pressure cycles.

• Low Noise & Anti-Cavitation Design: Optimized internal flow suppress pulsations and ensures full power output even at low suction pressures, improving the overall operating environment.

• Rapid “Drop-in” Cartridge Maintenance: The modular internal core allows for on-site replacement without disconnecting heavy housings or primary plumbing, drastically cutting downtime.

• Target Applications: Offshore drilling rigs, large injection molding centers, scrap metal balers, marine winches, and Tunnel Boring Machines (TBM).

Detailed Models & Parameters:

• Core Series: Denison Type T6EMY Series (High-Flow Vane Pump).

• Model Keywords: T6EMY-R62, T6EMY-R72, T6EMY-R85, T6EMY-050.

• Displacement Rating Examples (cm³/rev):

  • 050: 158.0 cm³/rev

  • R62: 190.0 cm³/rev

  • R72/R85: 213.0 cm³/rev

• Technical Specs Decoding:

  • 1R / 2R / 3L: Specific shaft configurations (e.g., reinforced keyed or splined) and rotation (R-Clockwise, L-Counter-clockwise).

  • 00 / 01: Porting orientation identifiers.

  • B1 / B5: Specific seal configurations and design sequence numbers.

• Max Pressure Rating: Rated continuous pressure up to 24.0 – 28.0 MPa (240 – 280 Bar).
