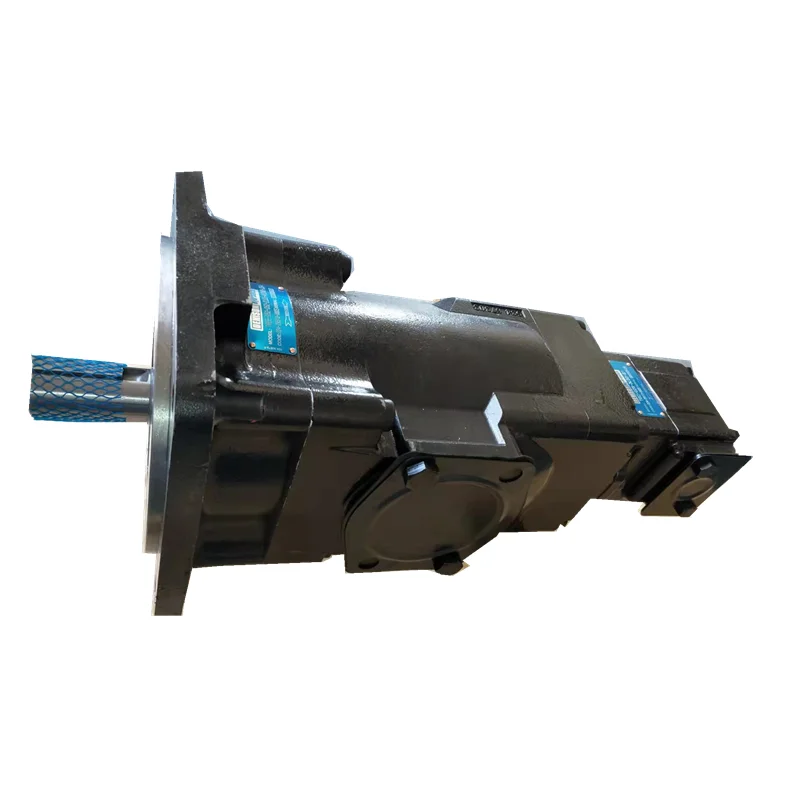

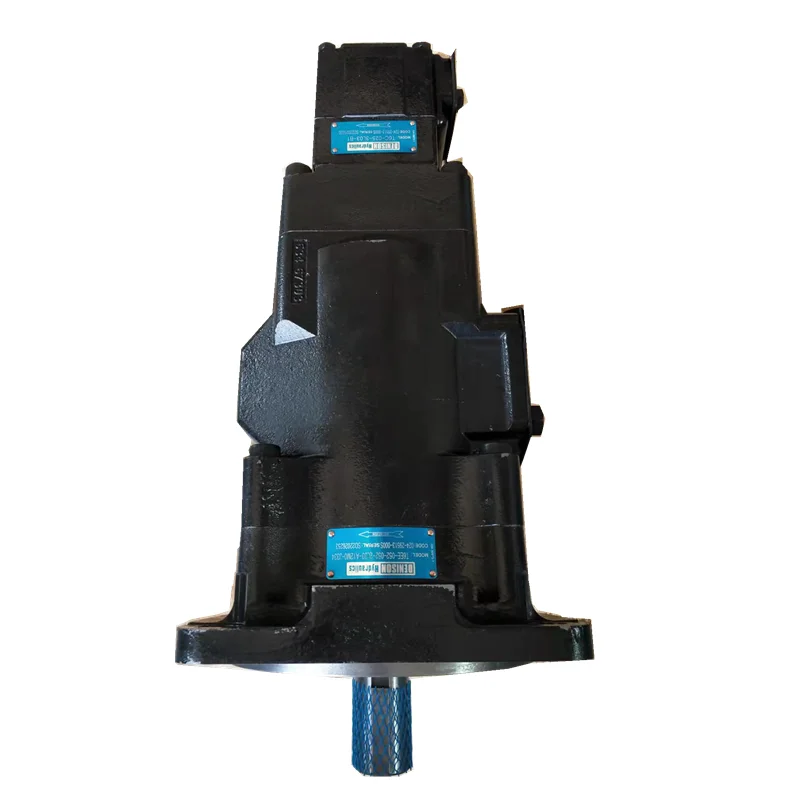

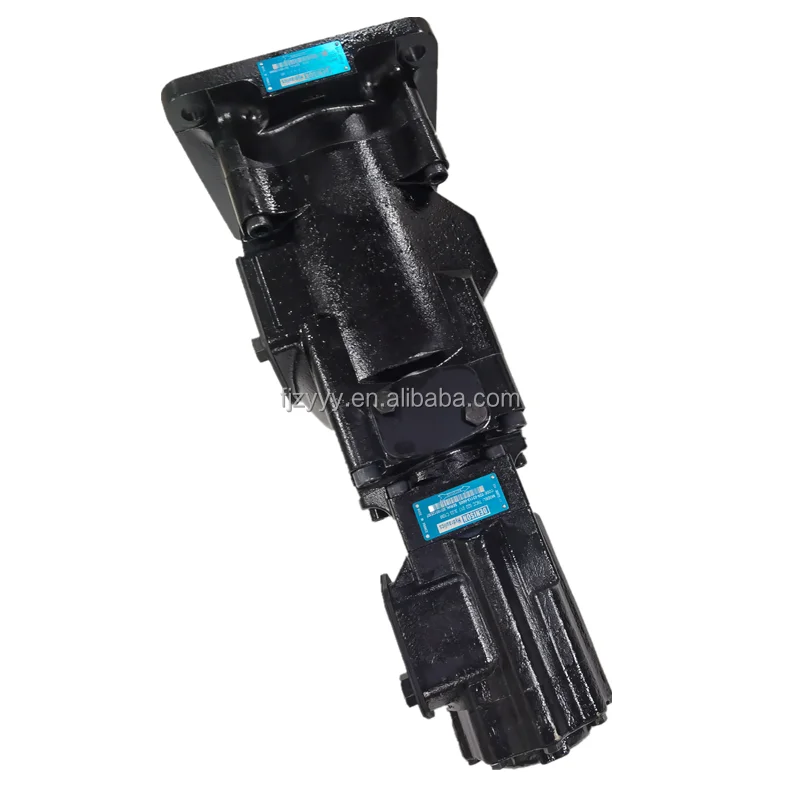

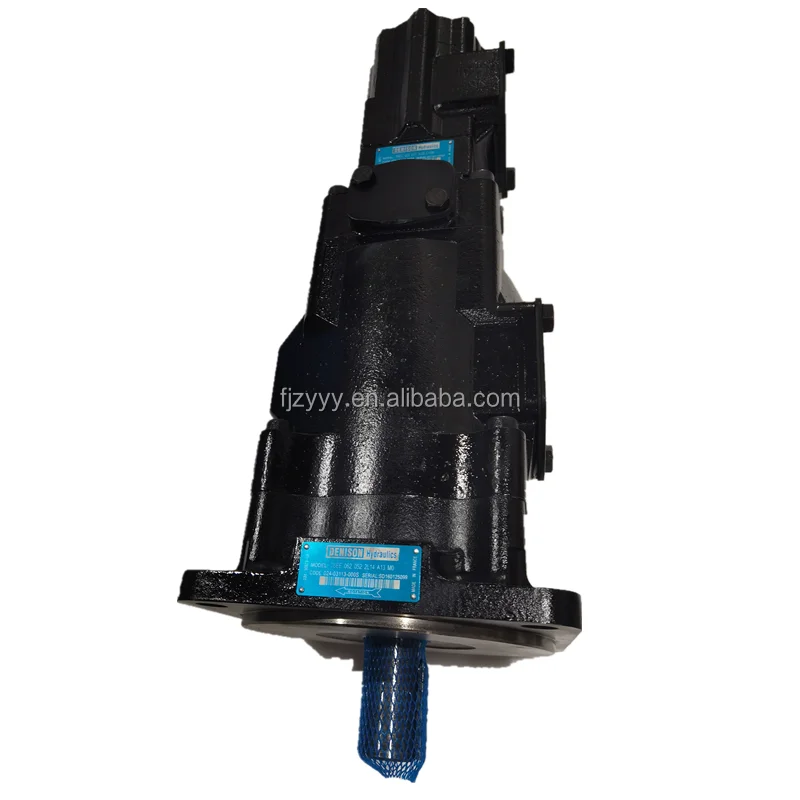

Denison Type T6EE Series Extra High-Flow Triple & Double Vane Pumps

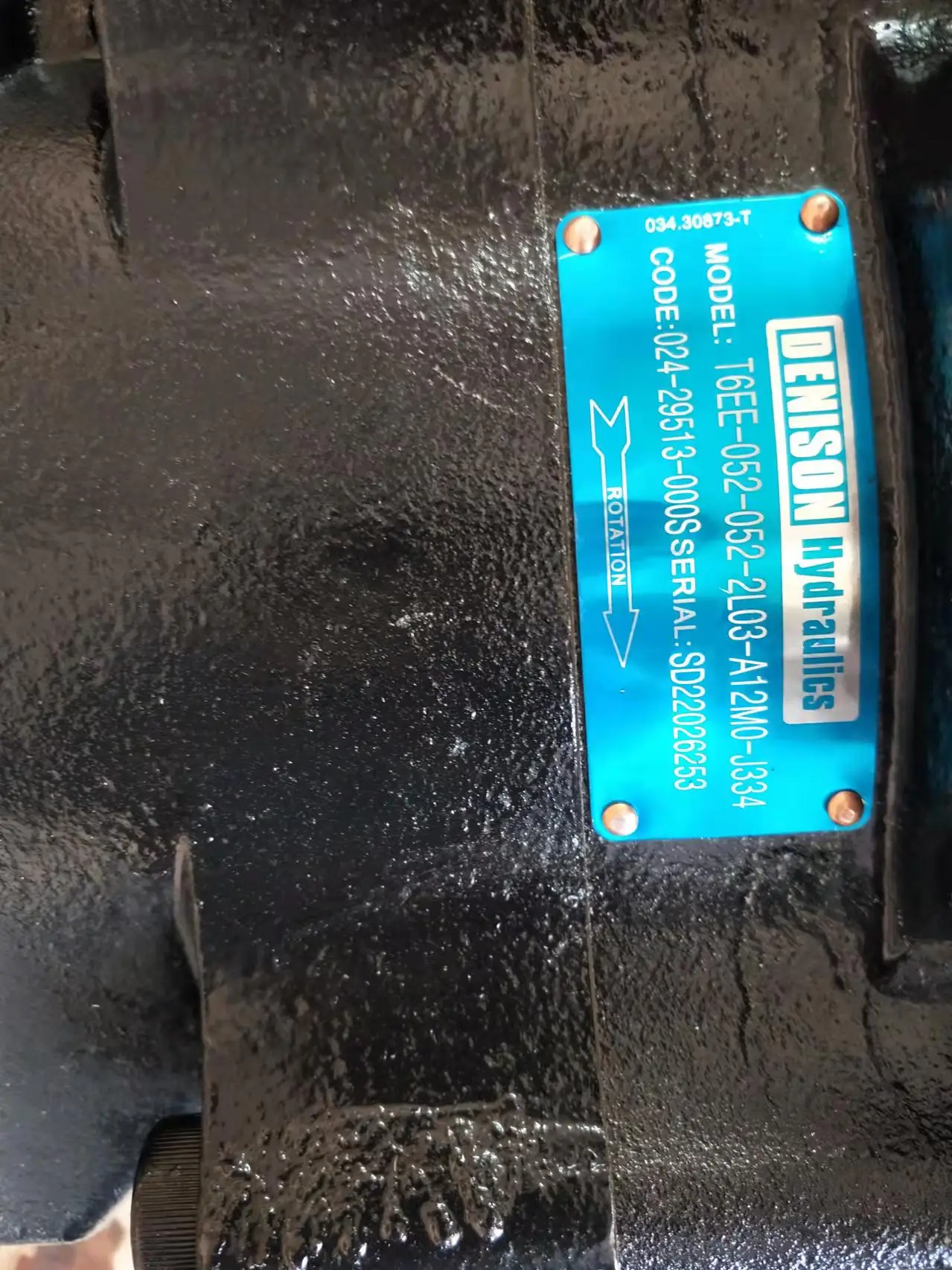

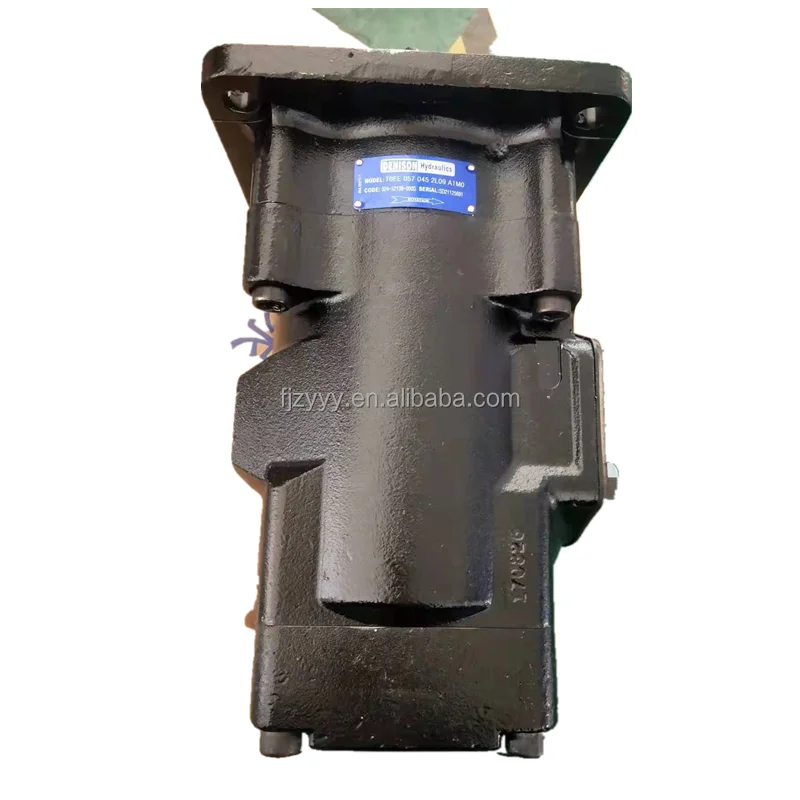

Product Overview: The T6EE Series and its extended combinations (such as T6EE+T6C) represent the pinnacle of vane pump power, engineered specifically for heavy-duty machinery requiring massive total flow or multiple independent circuit supplies. As a double high-flow unit (E+E frame), it delivers immense displacement from a single drive shaft. This range features complex configurations: T6EE-052-052-2L03-A12M0-J334+T6C-025-3L03-B1 (Triple pump setup), T6EE-045-057-2L09-A1-M0, and T6EE-062-062-2R01-A10M0. Powered by patented Double-lip Vane technology, the T6EE series maintains maximum durability at pressures up to 24.0 – 28.0 MPa (4000 PSI), making it the definitive choice for brick presses, recycling shears, and oil rig systems.

Key Technical Advantages:

• Extra-Large Displacement & Triple Expansion: Supports E+E double frame sizes and can be extended with a T6C rear unit to form a triple pump system, meeting the most demanding flow distribution requirements.

• Extreme Wear Resistance (Double-lip): The patented design minimizes contact load on the stator surface, ensuring superior fatigue resistance even under high-pressure 4000 PSI cycles.

• “Drop-in” Cartridge Maintenance: All internal cartridges are modular. When maintaining a triple pump system on-site, specific cartridges can be swapped rapidly without dismantling the entire drivetrain.

• Low Noise & High Contamination Tolerance: Optimized flow channels suppress operational decibels and provide high tolerance to particles common in heavy industrial hydraulic fluids.

• Target Applications: 1000-ton brick presses, scrap metal balers, large-scale mobile equipment, marine winches, and oil drilling platforms.

Detailed Models & Parameters:

• Core Series: Denison Type T6EE, T6EE+T6C Series (Double/Triple Vane Pump).

• Model Keywords: T6EE-052-052, T6EE-045-057, T6EE-062-062, T6C-025.

• Displacement Ratings (cm³/rev):

  • Primary End (P1 – E Series): 139.0 (045), 158.0 (052), 190.0 (062).

  • Secondary End (P2 – E Series): 158.0 (052), 172.0 (057), 190.0 (062).

  • Triple Extension (P3 – C Series): 79.3 (025).

• Technical Specs Decoding:

  • 2L03 / 2R01: Specific drive shaft types (splined/keyed) and rotation (L-Counter-Clockwise, R-Clockwise).

  • A12M0 / A10M0: Seal materials (Viton/Buna-N) and port flange orientations.

  • J334: Specific design sequence identifier.

• Max Operating Pressure: Rated continuous pressure up to 24.0 – 28.0 MPa (240 – 280 Bar).
