Denison Type T6ED Series Double Vane Pump | T6ED-057, T6ED-062 | High Pressure

Denison Type T6ED Series High-Performance High-Pressure Double Vane Pumps

Product Overview: The T6ED Series represents the definitive power core for heavy-duty hydraulic systems. As an advanced cartridge-based double fixed displacement pump consisting of T6E and T6D modules, it enables a single drive shaft to reliably power two independent hydraulic circuits. This range features core specifications including T6ED-057-042-1R00B1J224, T6ED-062-028-1R00B1, and the left-hand rotation model T6ED-062-042-1L00B1J224T. Utilizing unique Floating Side Plate technology, the T6ED series maintains exceptional volumetric efficiency even under peak pressures up to 30 MPa—making it the premier “heart” for large-scale machinery.

Key Technical Advantages:

• Patented Floating Side Plate Technology: Features automatic axial clearance compensation. Even at extreme pressures, volumetric efficiency remains above 94%, effectively reducing system heat loss.

• Dual-Circuit Independent Supply: The T6ED integrates a high-capacity E-series cartridge with a medium-capacity D-series cartridge. The large pump provides main system power, while the small pump supplies auxiliary flow, significantly optimizing footprint.

• Rapid Maintenance with Cartridge Kits: The internal components feature a “drop-in” modular design. During maintenance, performance can be restored in minutes by swapping the cartridge without disconnecting complex plumbing, drastically reducing downtime.

• Ultimate Silent & Low Pulsation: Precision-ground vane components smooth out output pressure pulsations, maintaining decibel levels significantly lower than conventional high-pressure pumps.

• Target Applications: Plastic injection molding machines, aluminum extrusion presses, heavy-duty bending machines, refuse compactors, marine steering systems, and large-scale industrial presses.

Detailed Models & Parameters:

• Core Series: Denison Type T6ED Series (Double Fixed Displacement).

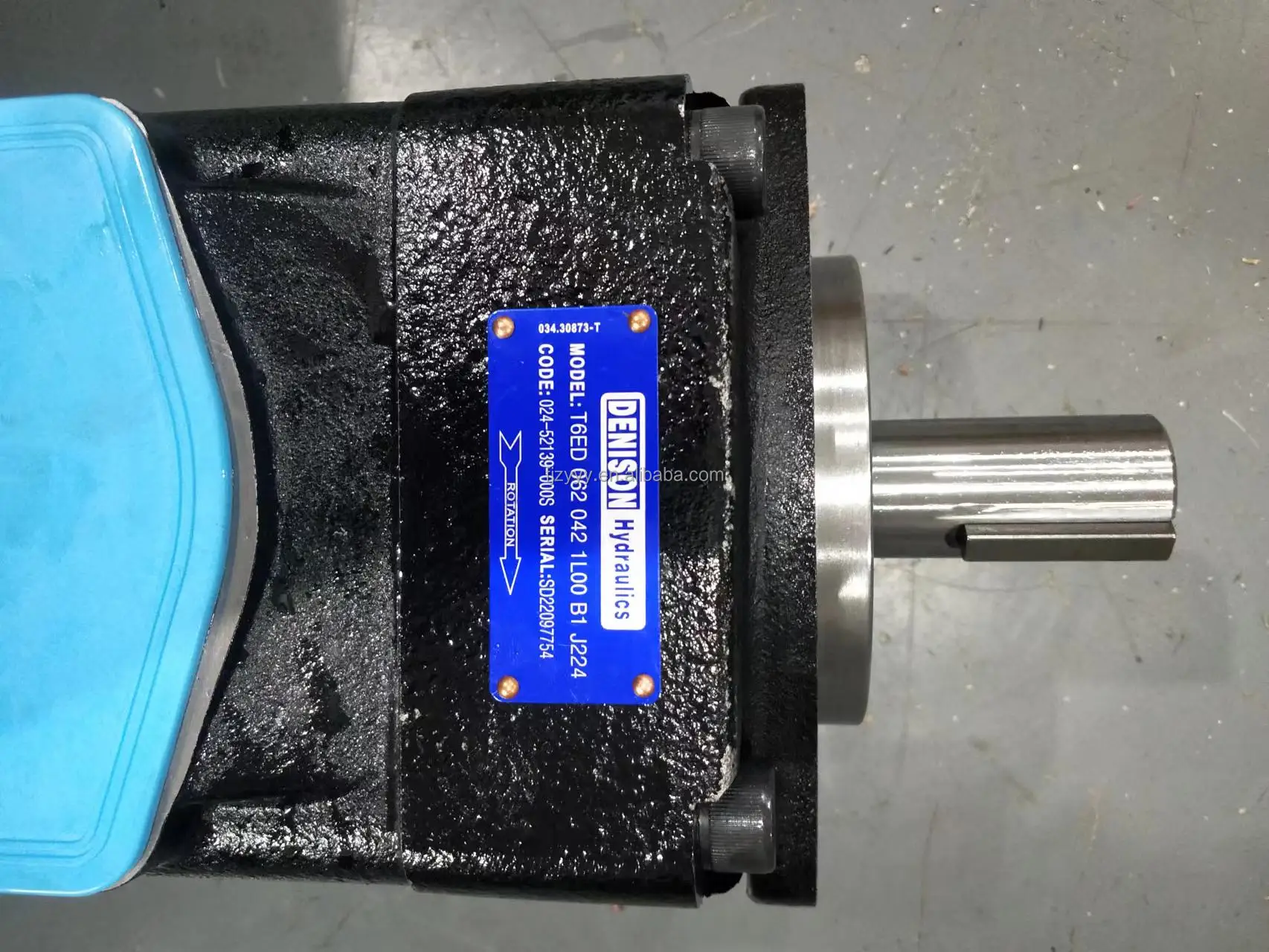

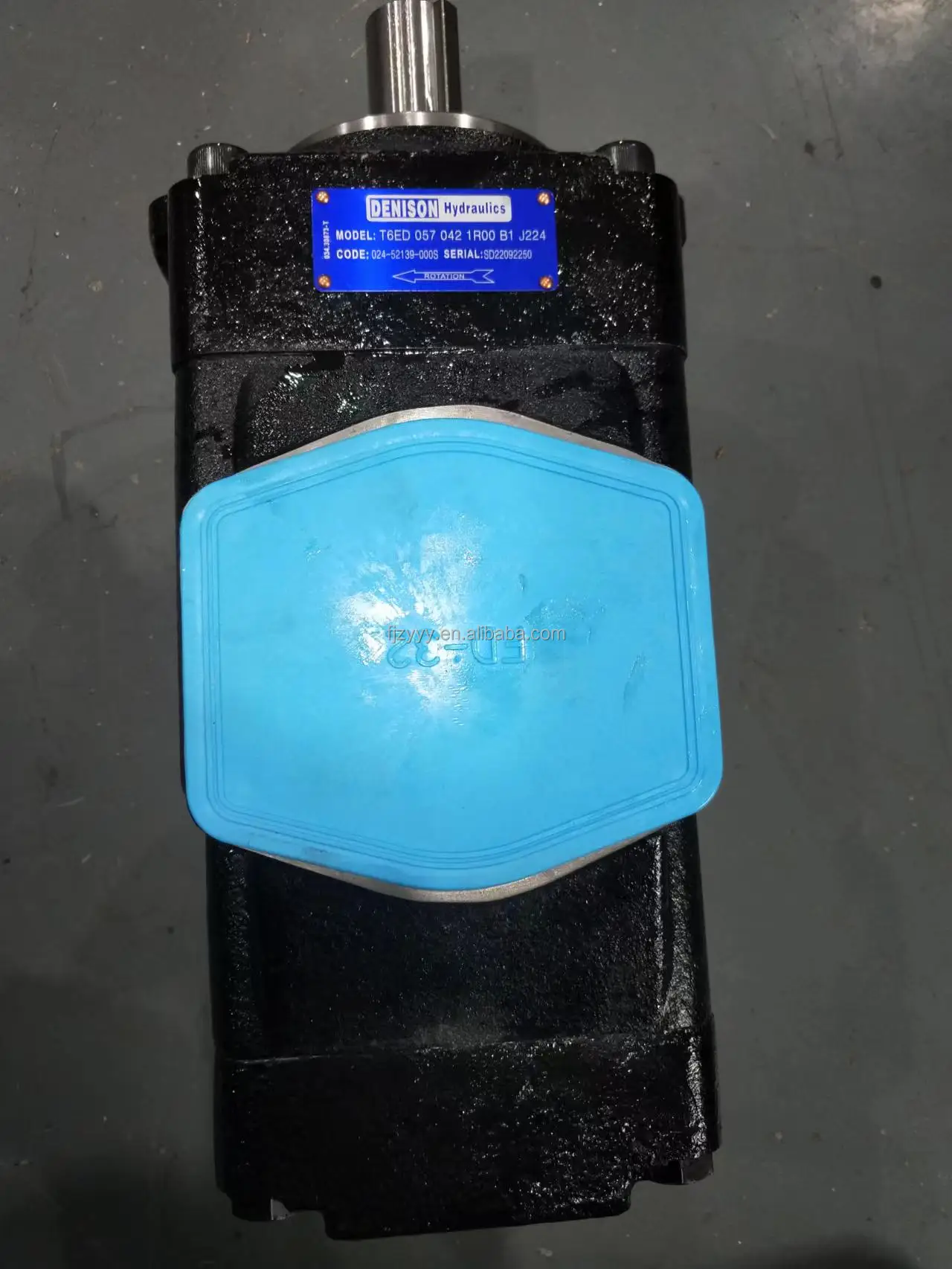

• Model Keywords: T6ED-057-042-1R00B1J224, T6ED-062-028-1R00B1, T6ED-062-042-1L00B1J224T.

• Cartridge Displacement Combinations (GPM): Features key specs such as 057 (Shaft end/Large), 062 (Shaft end/Large), and 028, 042 (Cover end/Small).

• Technical Specs: 1 (Shaft identifier); R / L (Right-hand/Left-hand rotation); 00 (Port orientation layout code); B1 (Design sequence code); J224 / T (Specific cartridge/seal version identifiers).

• Pressure Ratings: Rated continuous working pressures up to 24 – 30 MPa (240 – 300 Bar).
