Denison Type T6ED Double Vane Pump | T6ED-057-042, T6ED-062-042, T6ED-072

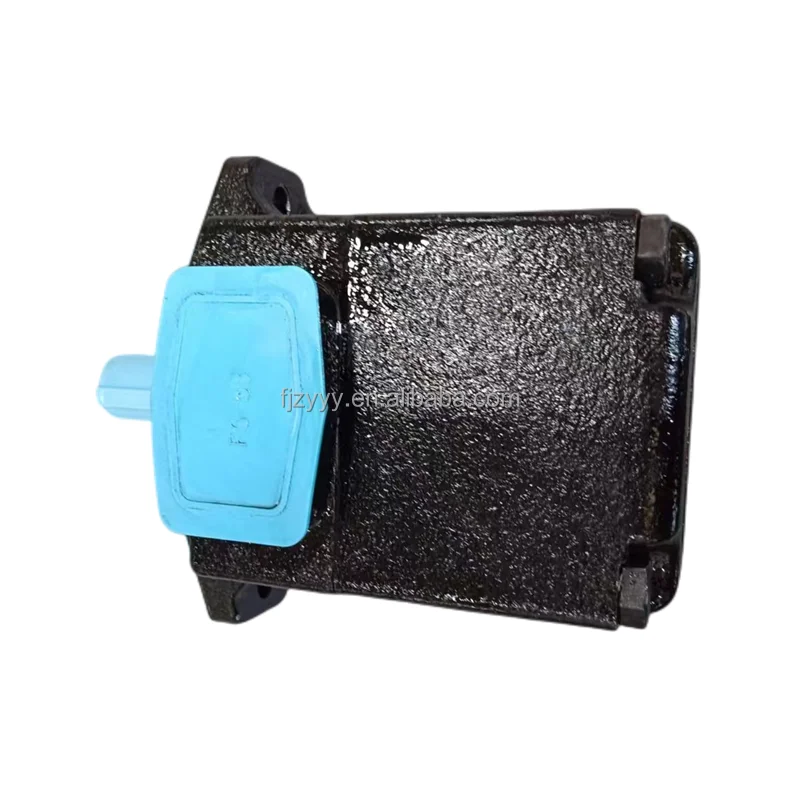

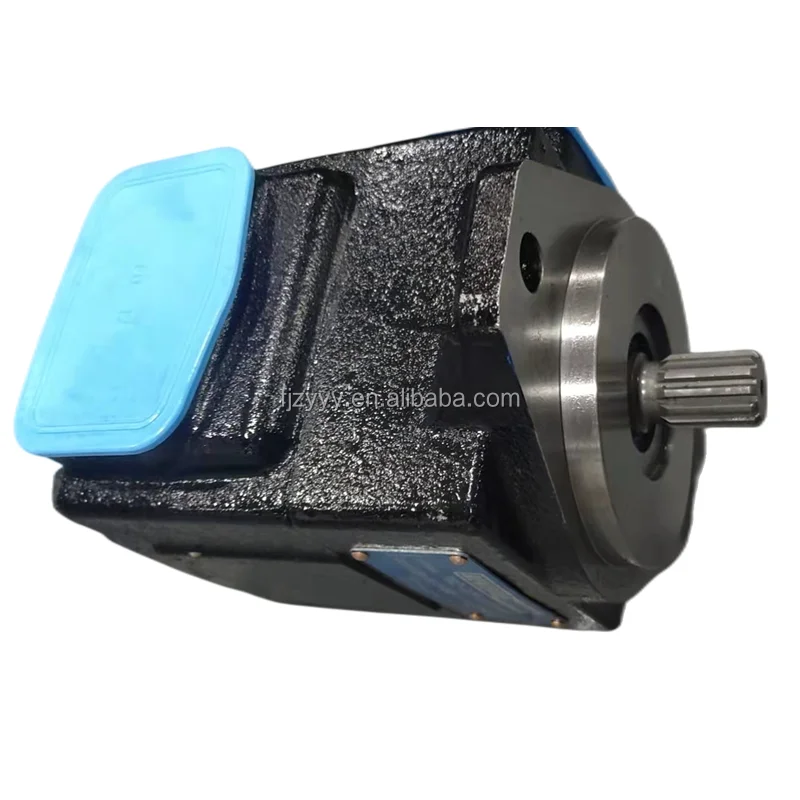

Denison Type T6ED Series High-Pressure Industrial Double Vane Pumps

Product Overview: The T6ED Series double fixed displacement vane pump is the flagship power solution for heavy industrial hydraulics. Combining the T6E (high-flow end) and T6D (medium-flow end) cartridges on a single drive shaft, this series provides independent dual-circuit supply—ideal for complex circuits requiring high-low flow splitting or combined high-flow output. This range features premium specifications: T6ED-057-042-1R00-B1-J224, T6ED-062-042-1L00-B1-J224, and T6ED-072-B50-1R02-B1. Powered by patented Double-lip Vane technology, the T6ED series maintains ultra-quiet operation and superior volumetric efficiency even at continuous pressures up to 24.0 MPa.

Key Technical Advantages:

• Superior High-Pressure Durability: The double-lip vane design reduces contact stress on the stator cam ring, ensuring thousands of hours of stable service life at 240 Bar full load.

• Rapid Cartridge Maintenance: Both E and D-end cartridges are independent “drop-in” modules. Restore factory-level performance on-site without disconnecting heavy plumbing.

• Ultimate Silent Performance: Optimized internal flow channels significantly suppress flow pulsations, maintaining decibel levels far lower than gear pumps of comparable power.

• High Contamination Resistance: The rugged cast iron housing and hardened internal components provide excellent tolerance to fine particles in industrial hydraulic fluids.

• Target Applications: Heavy-duty brick presses, scrap metal shears, large-scale injection machines, press brakes, and various industrial Hydraulic Power Units (HPU).

Detailed Models & Parameters:

• Core Series: Denison Type T6, T7, T6ED Series (Double Vane Pump).

• Model Keywords: T6ED-057-042-1R00-B1-J224, T6ED-062-042-1L00-B1-J224, T6ED-072-B50-1R02-B1.

• Displacement Ratings (cm³/rev):

  • Shaft End (Pump 1 – E Series): 172.0 (057), 190.0 (062), 213.0 (072).

  • Cover End (Pump 2 – D Series): 132.0 (042), 158.0 (B50).

• Technical Specs Decoding:

  • 1R / 1L: Rotation (R-Clockwise, L-Counter-Clockwise).

  • 00 / 02: Shaft type (Standard straight keyed or splined).

  • B1: Port flange connection standard.

  • J224: Specific design sequence or seal configuration.

• Max Operating Pressure: Rated continuous pressure up to 24.0 MPa (240 Bar / 3500 PSI).
