Denison Type T6DC T6CC Double Vane Pump | T6DC-038-022, T6CC014 | High Pressure
| Model Number | T6C 031 1R02B, T6CC 014 014 5R00 C110, T6C, T6DC |
|---|
Product Description

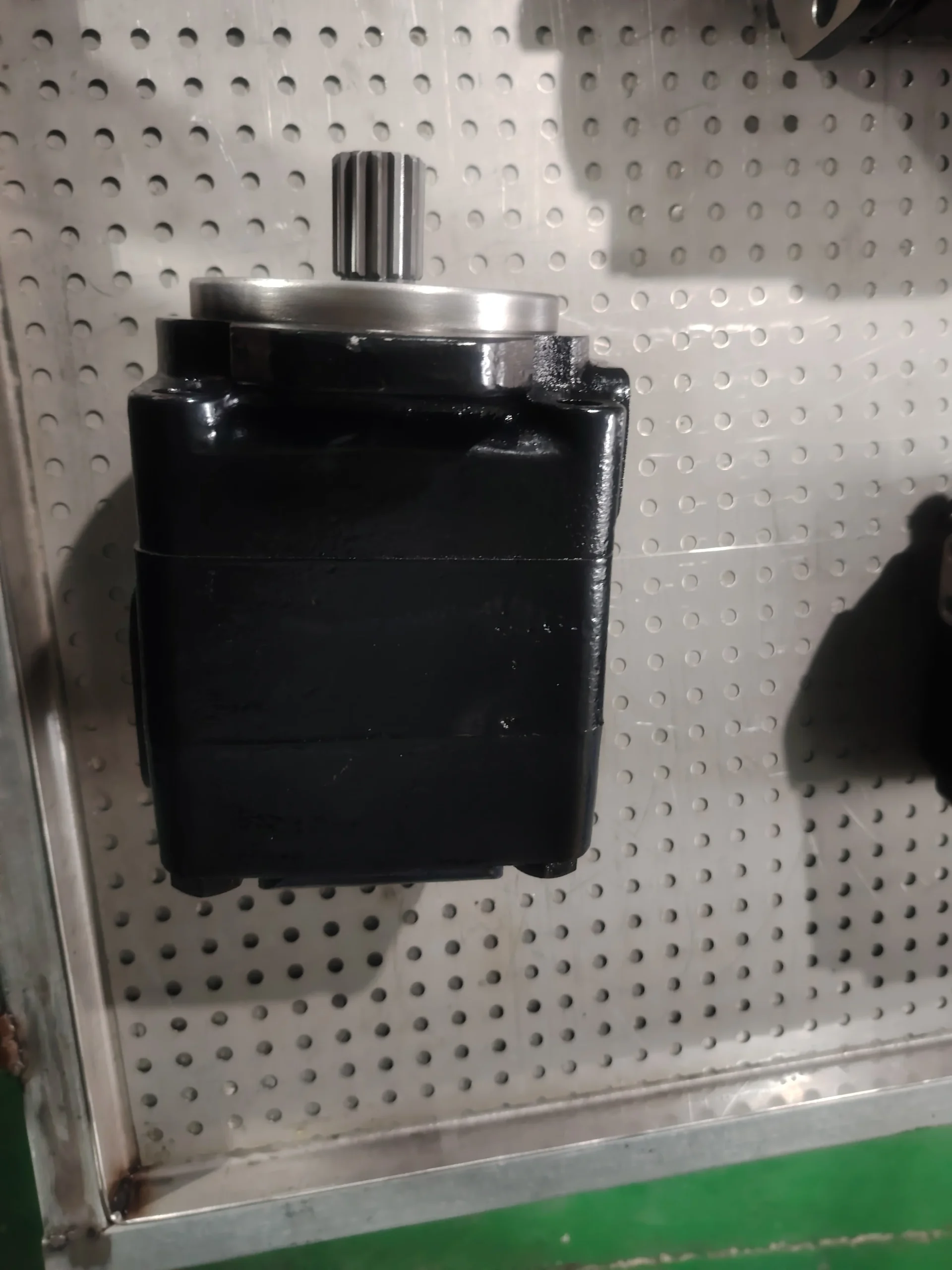

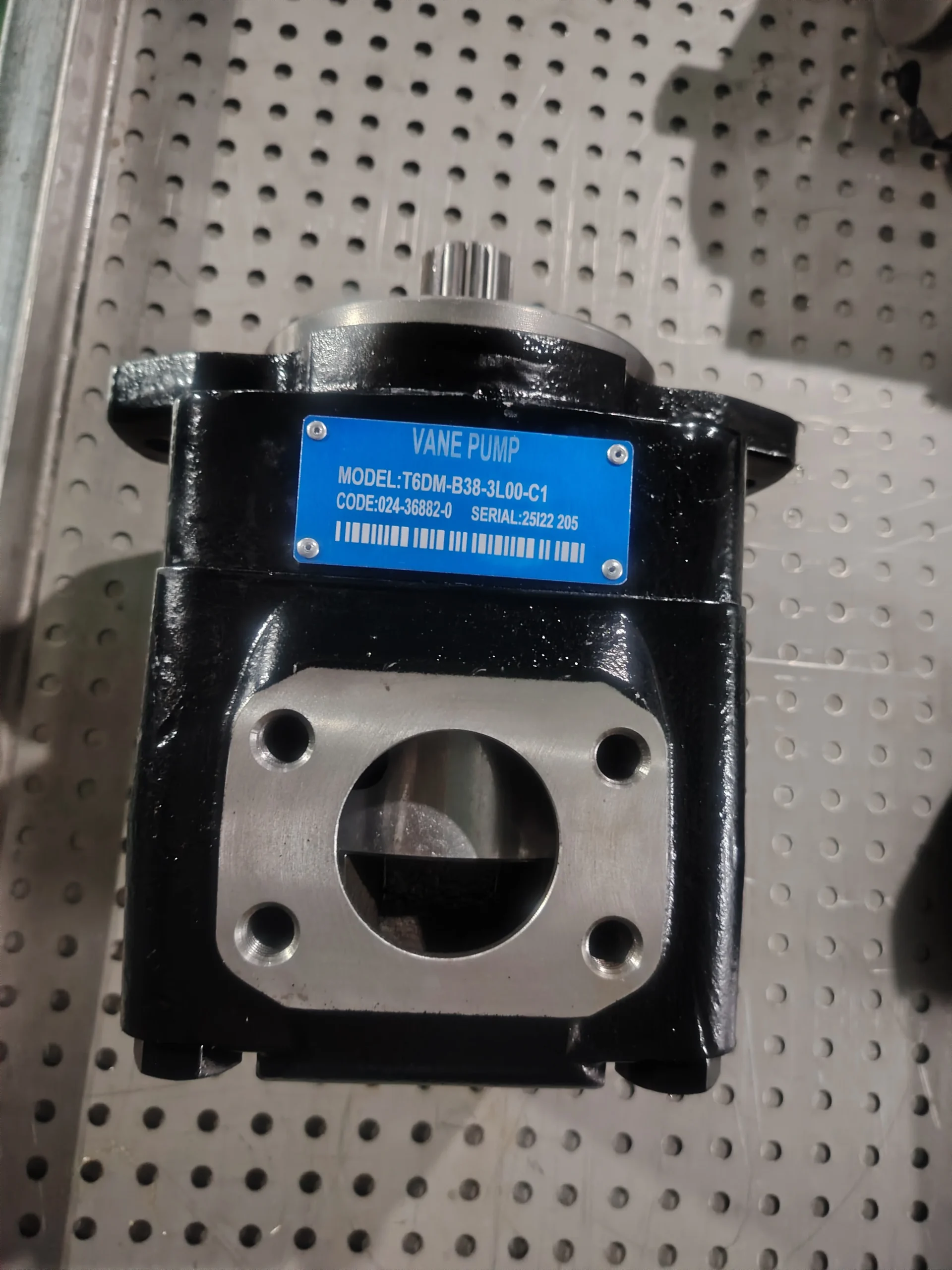

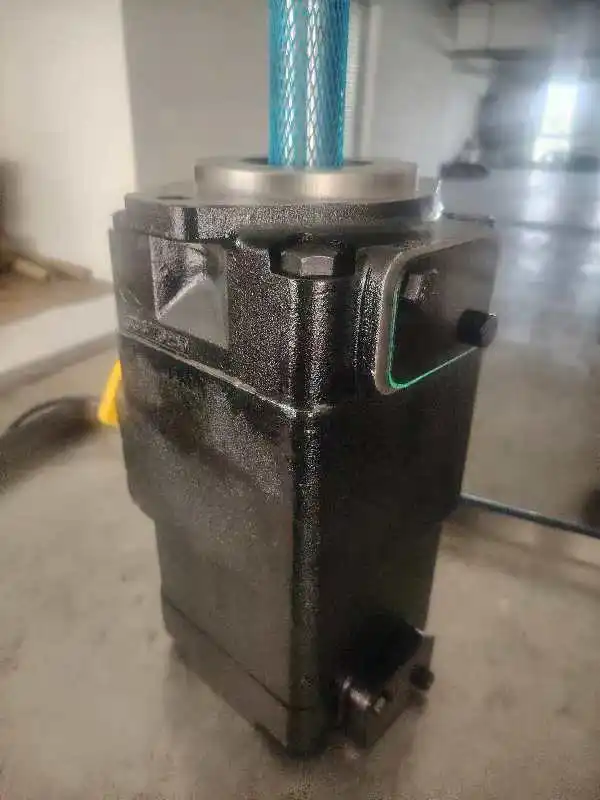

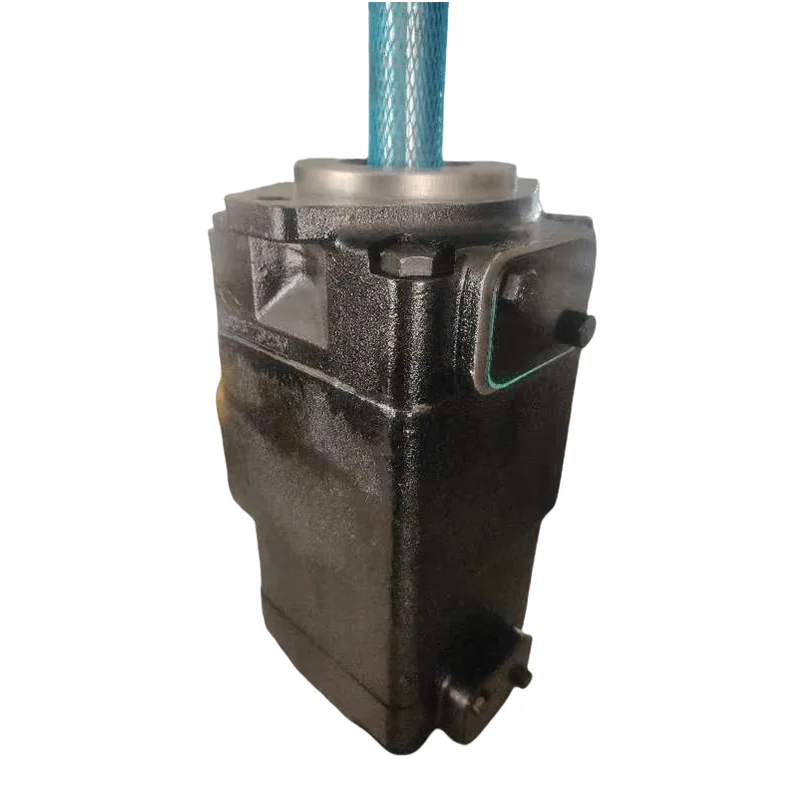

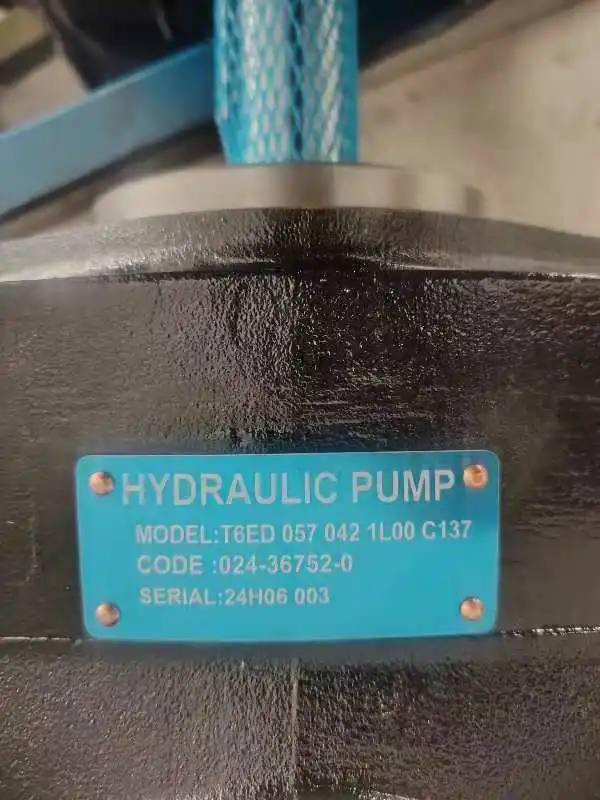

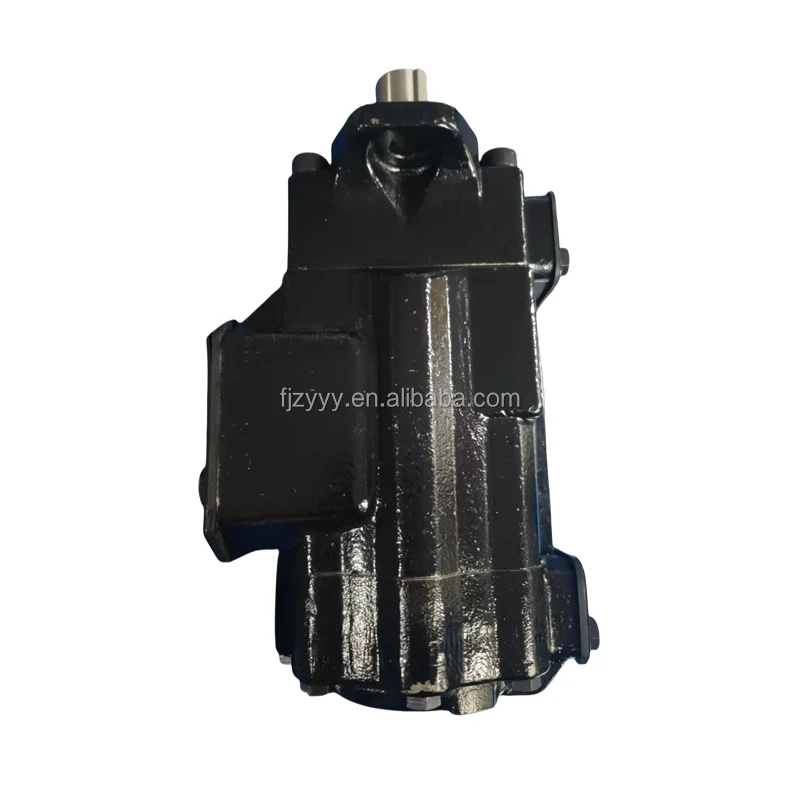

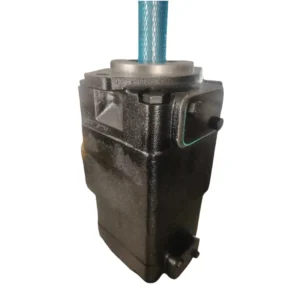

Denison Type T6DC & T6CC Series High-Pressure Double Vane Pumps
Product Overview: The T6DC and T6CC Series are the heavy-duty benchmarks for Denison-type high-pressure vane pumps, specifically engineered for the modern industry’s demand for “High Operating Pressure, Ultra-Low Noise, and Extended Service Life.” This range highlights core configurations including T6DC-038-017-1R-03, T6DC-038-022-1R00-B100, and the compact double-pump model T6CC014-014-5R00-C110. Utilizing unique Double Vane (Intra-Vane) technology, these pumps maintain exceptional volumetric efficiency at peak pressures up to 31 MPa—making them the definitive power core for injection molding machines, mobile drilling rigs, and heavy construction equipment.
Key Technical Advantages:
Heavy-Duty Double Vane Structure: The pressure-balanced design significantly reduces friction between the vanes and the cam ring, ensuring an extended service life even under continuous 24-31 MPa high-pressure conditions.
Peak Silent & Low Pulsation Performance: Optimized vane geometry provides an extremely smooth flow output, drastically reducing hydraulic vibration and noise, ideal for indoor factory environments.
Superior Contamination Resistance: Compared to piston pumps, the T6DC series offers higher tolerance for micro-particles in hydraulic fluid, effectively reducing downtime caused by oil degradation.
Flexible Double/Triple Configurations: Supports dozens of displacement combinations (e.g., 038 + 022), driving two independent cartridges on a single shaft for synchronized high-low pressure operations while saving installation space.
Target Applications: Plastic injection molding machines, die-casting equipment, truck-mounted cranes, mining rigs, and various energy-saving industrial power units.
Detailed Models & Parameters:
Core Series: Denison Type T6DC & T6CC Series (Double Pumps).
Model Keywords: T6DC, T6C, T6CC, T6DC-038-017-1R-03, T6CC014-014-5R00-C110, T6DC-038-022-1R00-B100.
Cartridge Displacement Codes: 014, 017, 022, 031, 038 (Precision displacement for each pump stage).
Pressure Ratings: Rated working pressures up to 24-31 MPa (240-310 Bar).
Technical Specs: 1R (Right-hand rotation/Specific shaft); 5R (Spline shaft); B100/C110 (Seal and design sequence codes).
