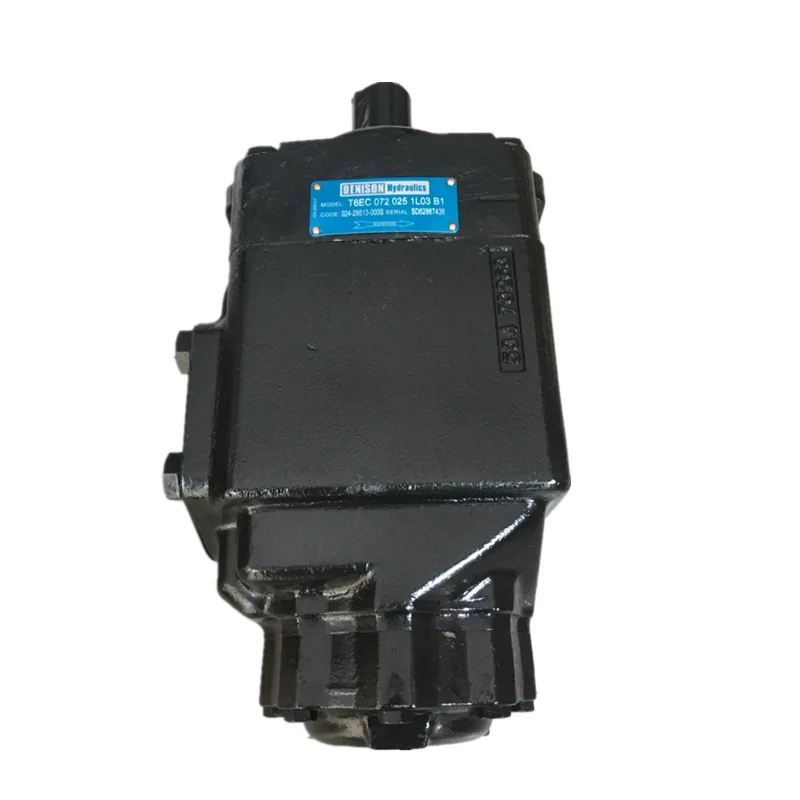

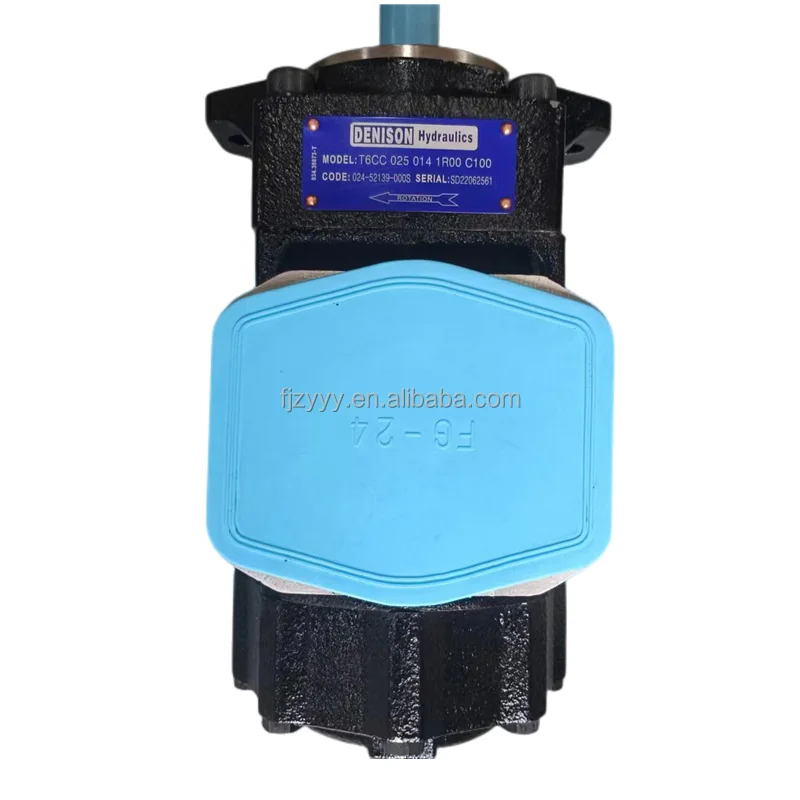

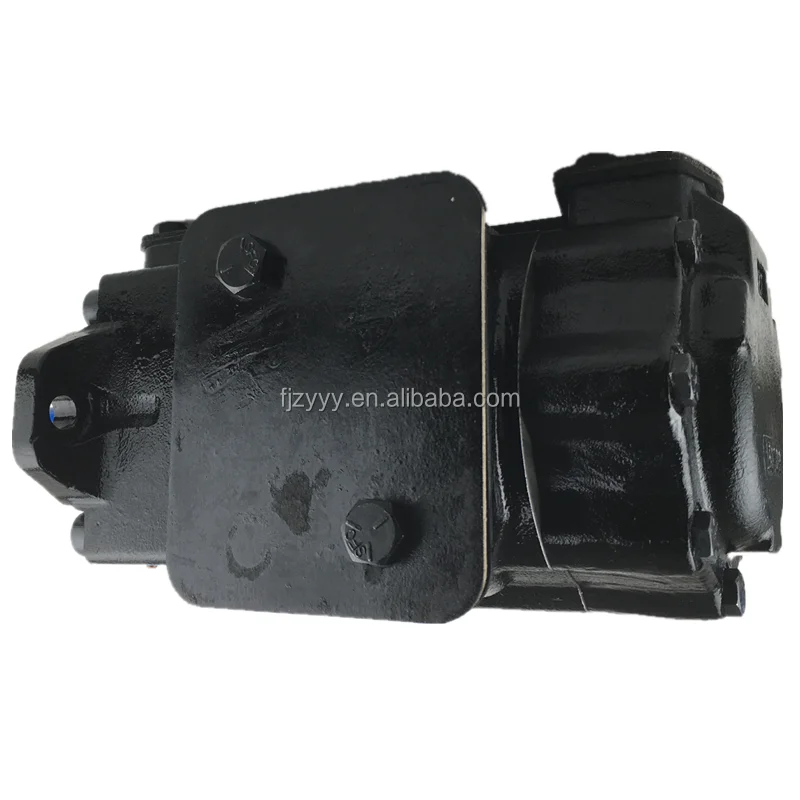

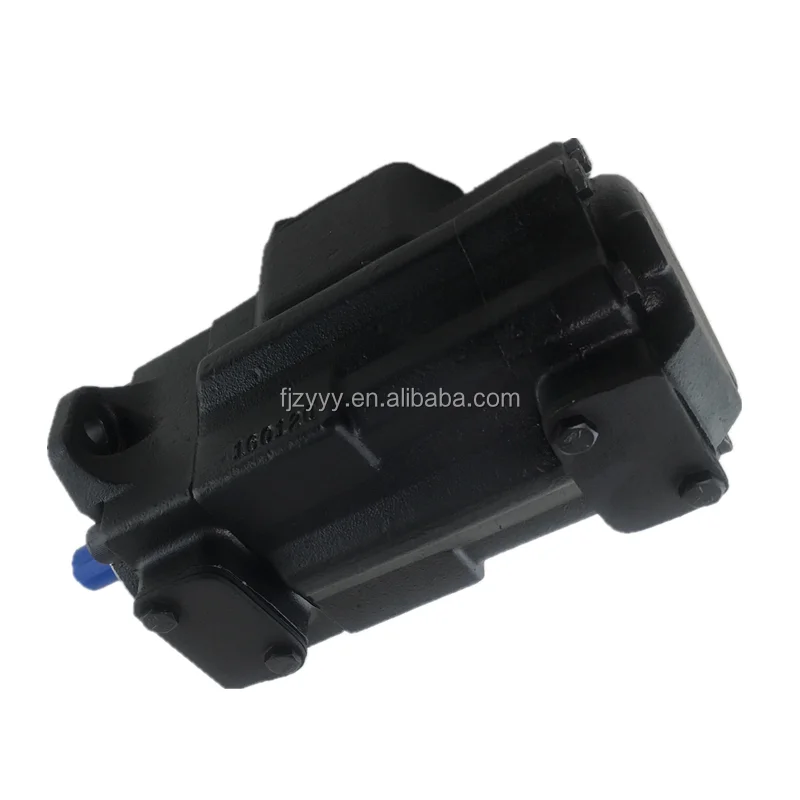

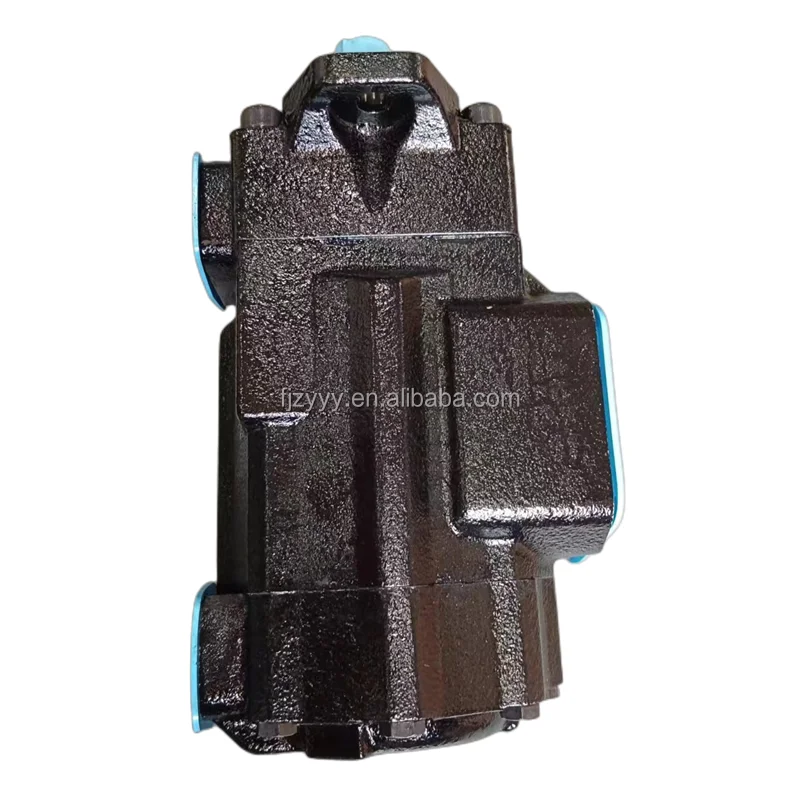

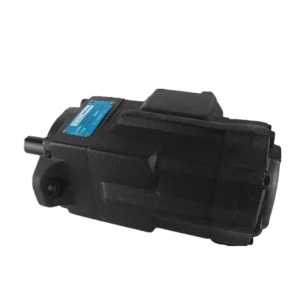

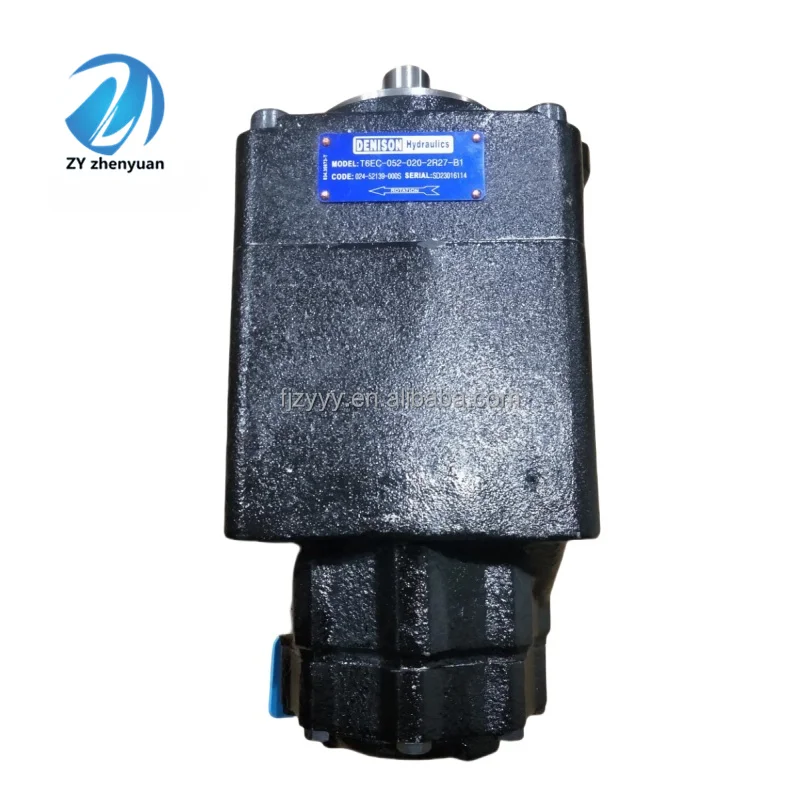

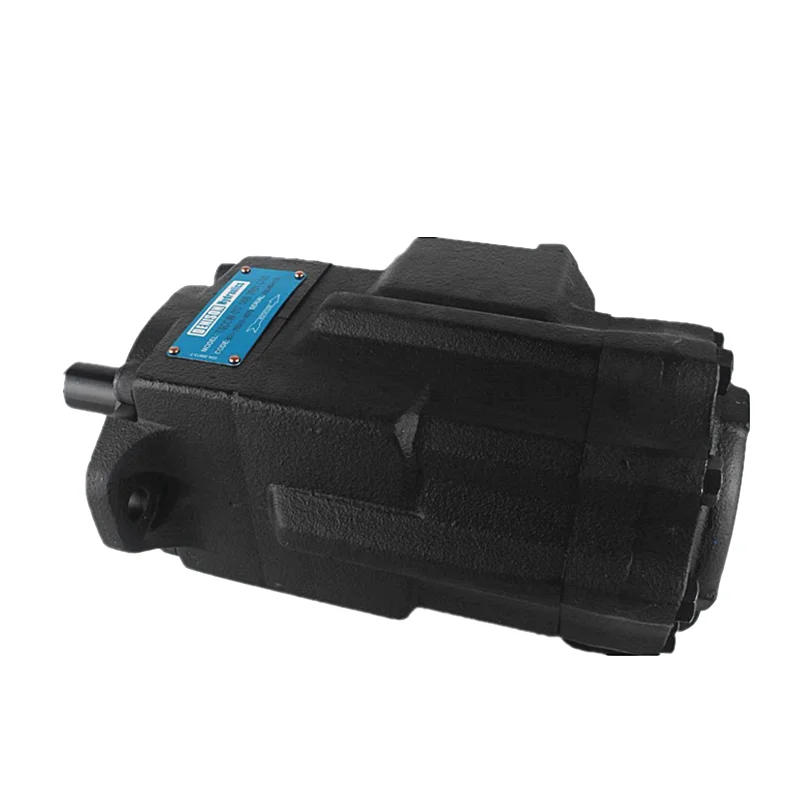

Denison Type T6 & T7 Series High-Pressure Double Vane Pumps

Product Overview: The Denison T6 and T7 Series double fixed displacement vane pumps are the gold standard for heavy-duty industrial and mobile hydraulic power. Engineered with a modular Cartridge design, this series integrates two independently operating displacement cartridges onto a single drive shaft, facilitating precise dual-circuit supply. This page features top-performing specifications including T6CC-010-008-1L01-C100, T6EC-052-025-1R02-B1, and the high-flow T6EC-066-017-1L0. Utilizing unique Double-lip Vane technology, the T6/T7 series maintains an exceptionally long service life and quiet operation at pressures up to 24 MPa (with some models reaching 32 MPa), making it the definitive choice for severe load conditions.

Key Technical Advantages:

• Extreme Pressure Durability: The double-lip vane design effectively distributes contact loads, allowing for continuous operating pressures significantly higher than standard pumps with superior shock resistance.

• High Volumetric Efficiency & Energy Saving: Precision-engineered stator geometry ensures minimal internal leakage across the entire speed range, reducing system heat and power consumption.

• Rapid Cartridge Replacement: The “Drop-in” modular cartridge allows for on-site core replacement. Restore factory performance in minutes without disconnecting heavy plumbing, drastically cutting downtime.

• Superior Noise Suppression & Contamination Resistance: The robust cast iron housing and optimized flow channels maintain low decibel levels and offer high tolerance to fine particles in hydraulic fluids.

• Target Applications: Heavy die-casting machines, industrial shears, truck-mounted cranes, marine hydraulics, and oil drilling equipment.

Detailed Models & Parameters:

• Core Series: Denison Type T6C, T6D, T7C, T7D, T7E, T6CC, T6EC Series.

• Model Keywords: T6EC-052-025-1R02-B1, T6CC-010-008-1L01-C100, T6EC-066-017-1L0.

• Displacement Ratings (cm³/rev): * Shaft End (Pump 1): Featuring high-flow sizes such as 052 and 066.

  • Cover End (Pump 2): Featuring precision flow sizes such as 008, 010, 017, and 025.

• Technical Specs Decoding:

  • 1R02 / 1L01: Shaft types and rotation (R-Clockwise, L-Counter-Clockwise).

  • B1 / C100: Porting flange standards and design identifiers.

• Max Pressure Ratings: Rated continuous pressure up to 24.0 MPa (240 Bar), with T7 series capable of reaching 32.0 MPa.
