Denison Type T6 Series Vane Pump | T6C, T6CM, T6EE | High Pressure
| Model Number | T7EEC, T7BS, T7ES, T7BB, T7BBS, T6CMB103R01C1, T6CB252R00B1, T6C 017 2R01 B1, T6CM R17 3R00C1 |
|---|
Product Description

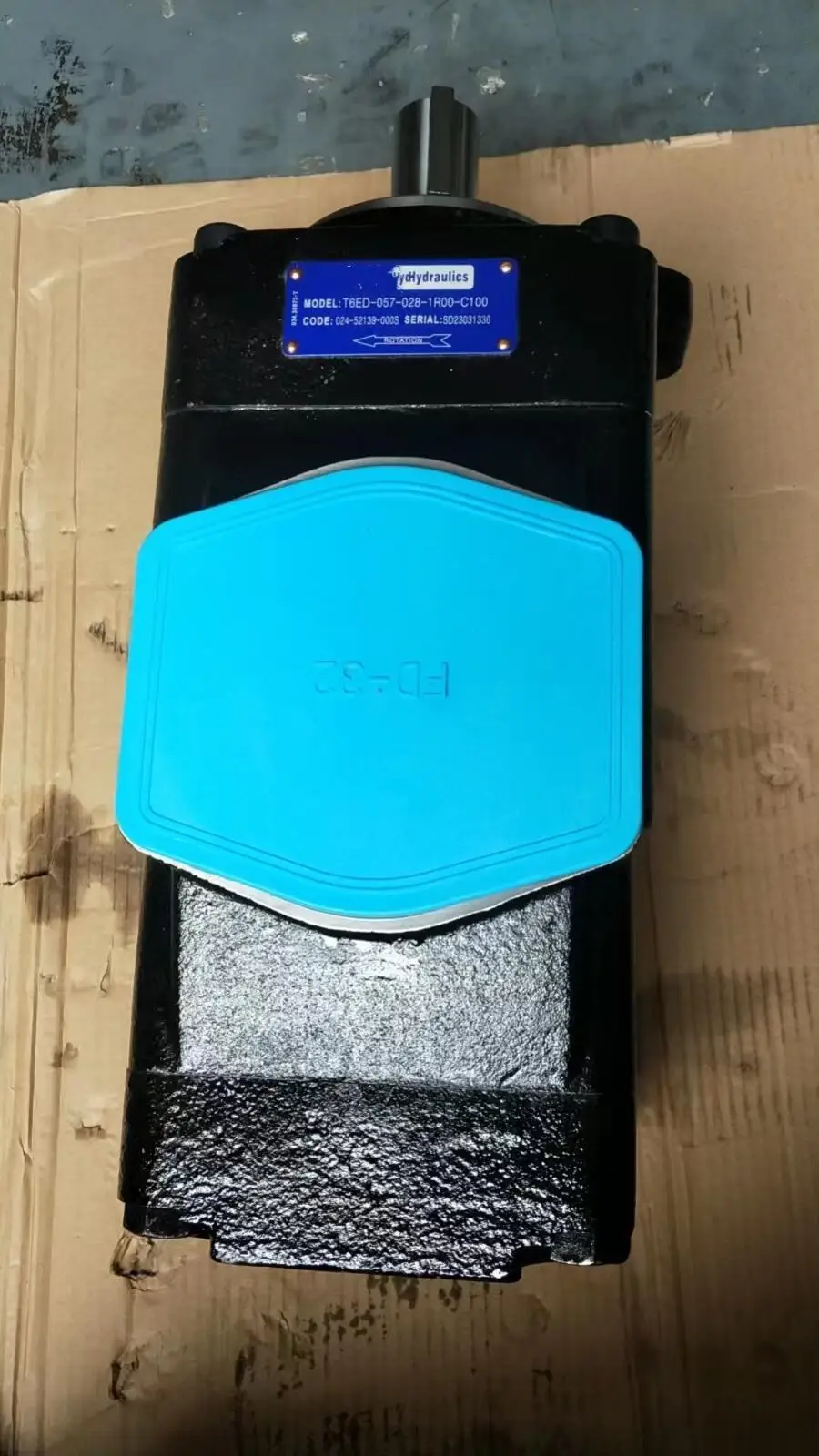

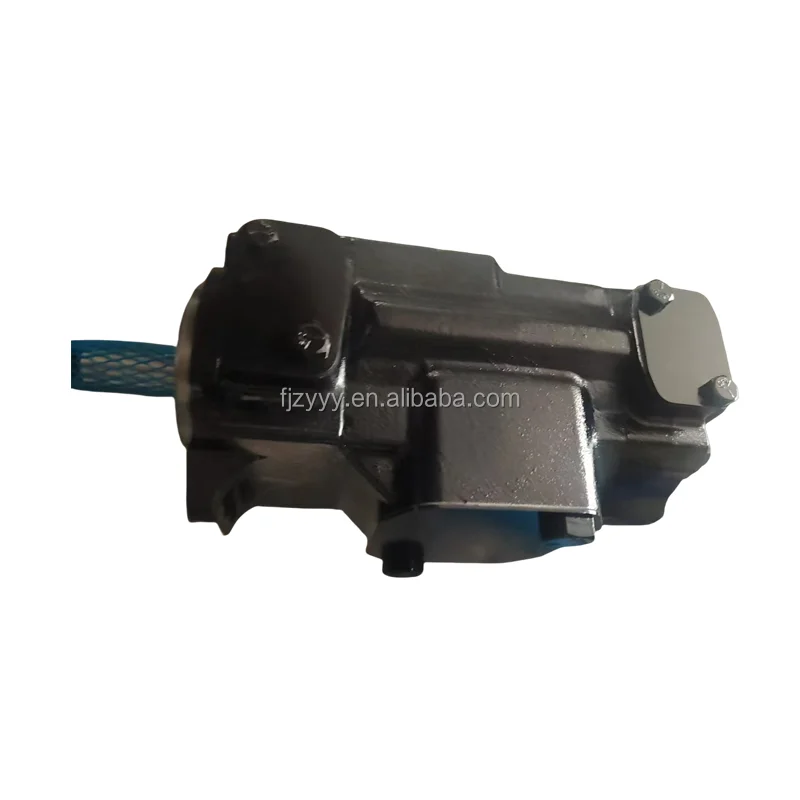

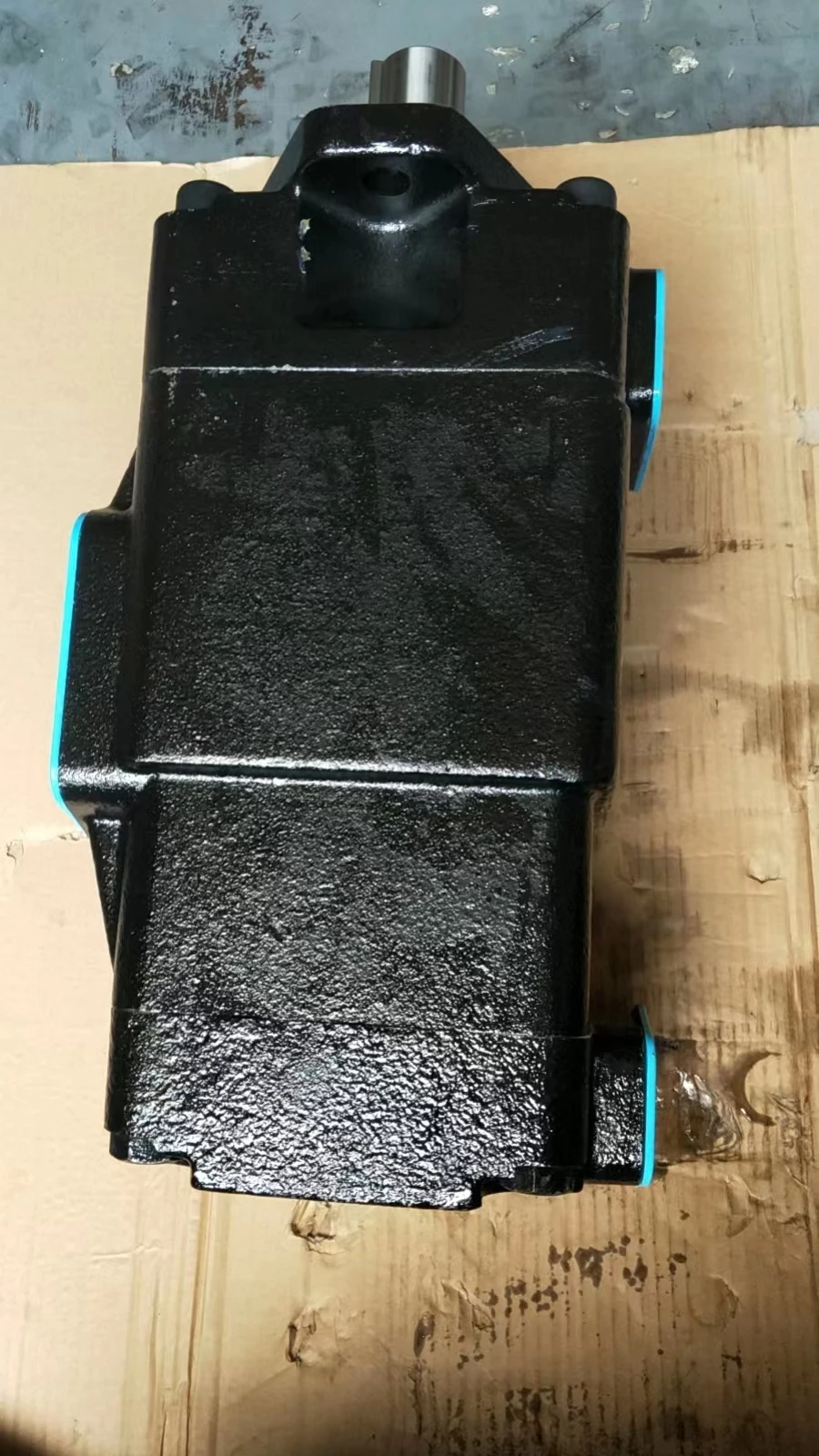

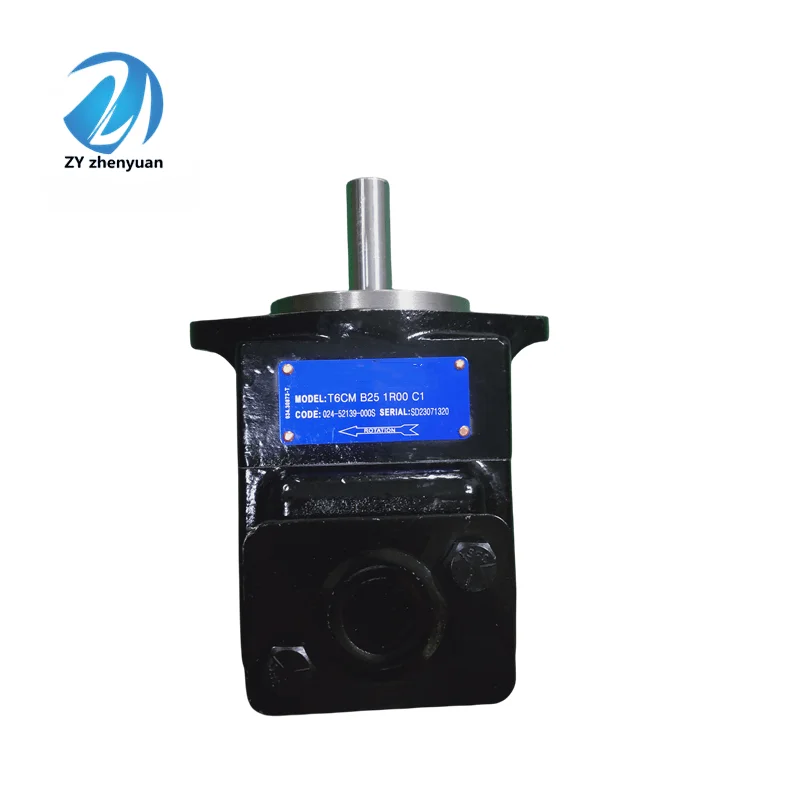

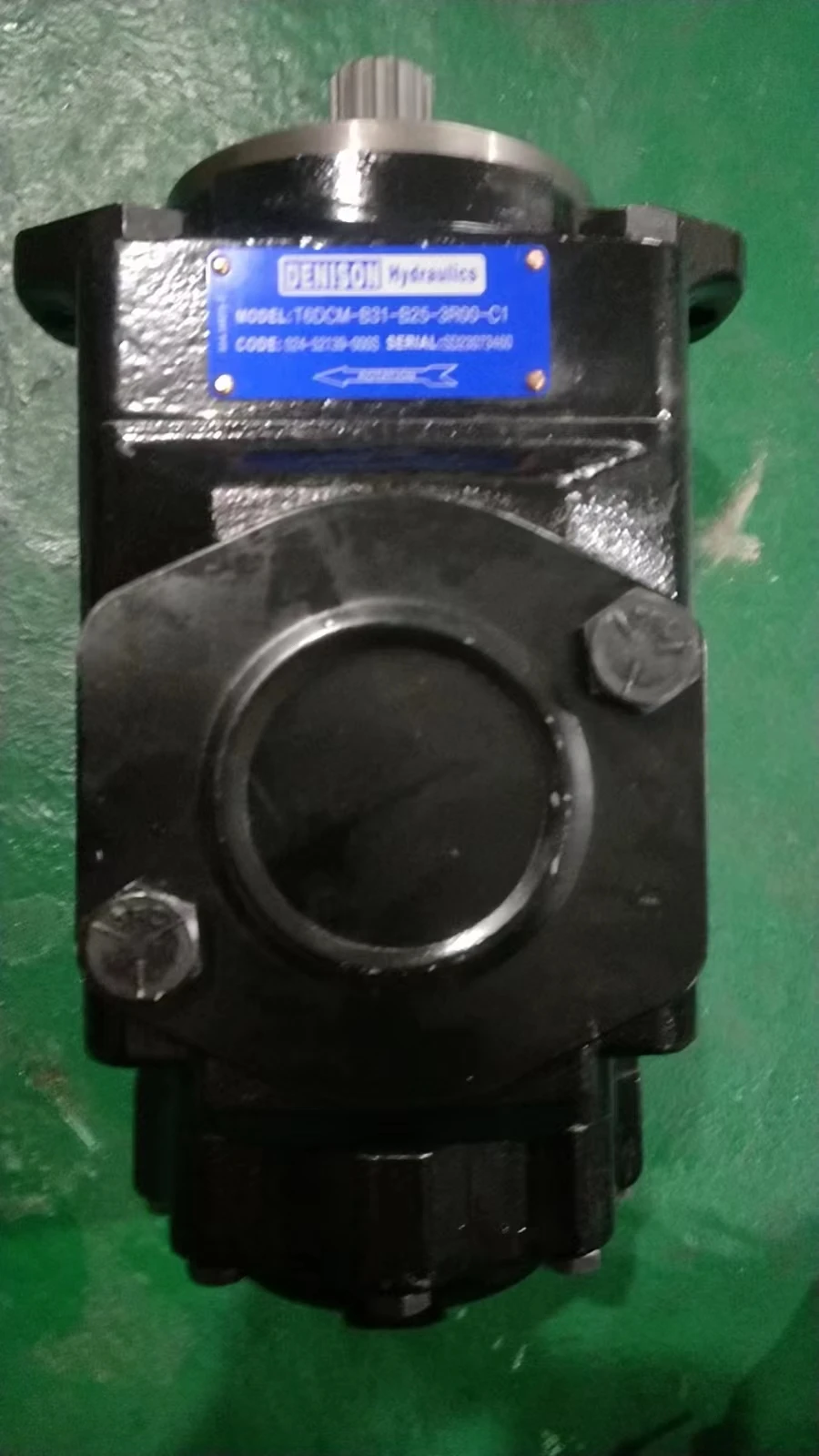

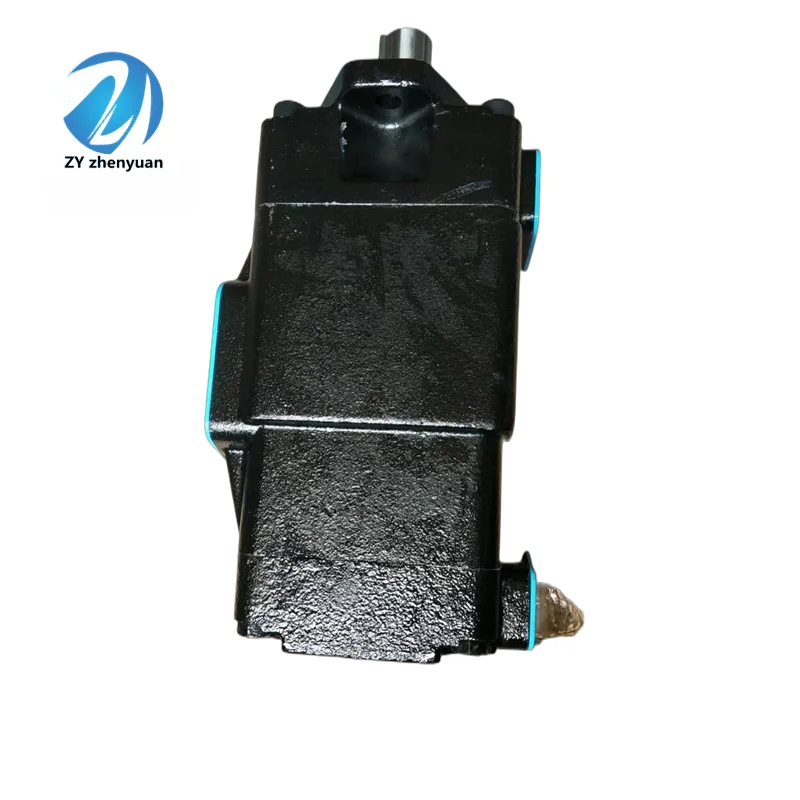

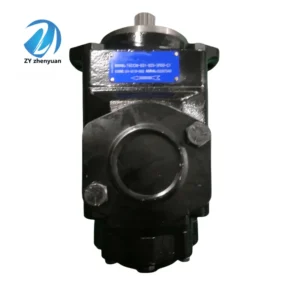

Denison Type T6 Series High-Performance High-Pressure Vane Pumps
Product Overview: The T6 Series high-pressure vane pump is the performance benchmark for global heavy-duty hydraulic systems. Featuring an advanced cartridge-based fixed displacement design, the range spans from single pumps (e.g., T6C, T6CM) to ultra-high flow double pumps (e.g., T6EE). This featured list includes high-spec models such as T6CMB103R01C1, T6CB252R00B1, T6C0172R01B1, T6CMR173R00C1, and the heavy-duty double specification T6EE0620522L14. Utilizing unique Floating Side Plate technology, the T6 series maintains exceptional volumetric efficiency even under continuous pressures up to 30 MPa.
Key Technical Advantages:
Patented Floating Side Plate Technology: Features automatic axial clearance compensation. Even at extreme pressures, volumetric efficiency remains above 94%, effectively reducing system heat loss.
Superior Contamination Resistance: The unique vane-to-cam ring contact design provides high tolerance for micro-particles in hydraulic oil, making it ideal for harsh mobile and industrial environments.
Ultimate Silent & Low Pulsation: Precision-ground vane components smooth out output pressure pulsations, maintaining decibel levels significantly lower than competing high-pressure pumps.
Modular Cartridge Maintenance: The “drop-in” cartridge design allows for rapid maintenance. Performance can be restored in minutes by swapping the internal kit without disconnecting main plumbing, drastically reducing downtime.
Target Applications: Plastic injection molding machines, large-scale bending machines, marine steering systems, truck cranes, and heavy-duty scrap balers.
Detailed Models & Parameters:
Core Series: Denison Type T6C, T6CM & T6EE Series (Single & Double Displacement).
Model Keywords: T6CMB103R01C1, T6CB252R00B1, T6C0172R01B1, T6CMR173R00C1, T6EE0620522L14.
Displacement Codes: Including key specifications such as B10, B25, 017, 062, and 052 (Varying flow rates).
Technical Specs: 1/2/3 (Shaft protocol codes); R / L (Right-hand/Left-hand rotation); 01 / 00 (Port orientation layout codes); B1 / C1 (Design sequence/Seal type identifiers).
Pressure Ratings: Rated continuous working pressures up to 24 – 30 MPa (240 – 300 Bar).
