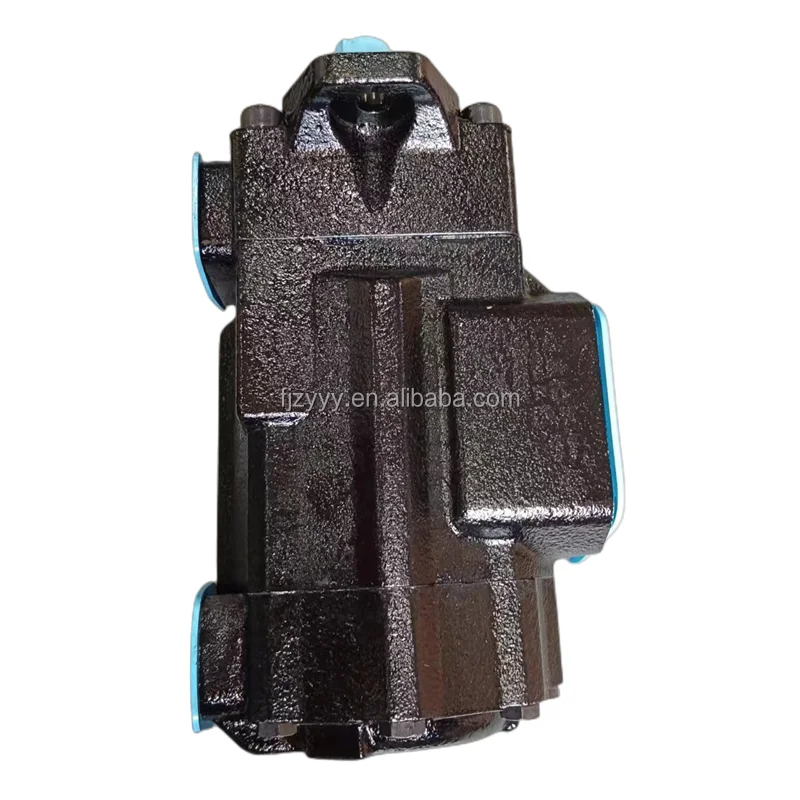

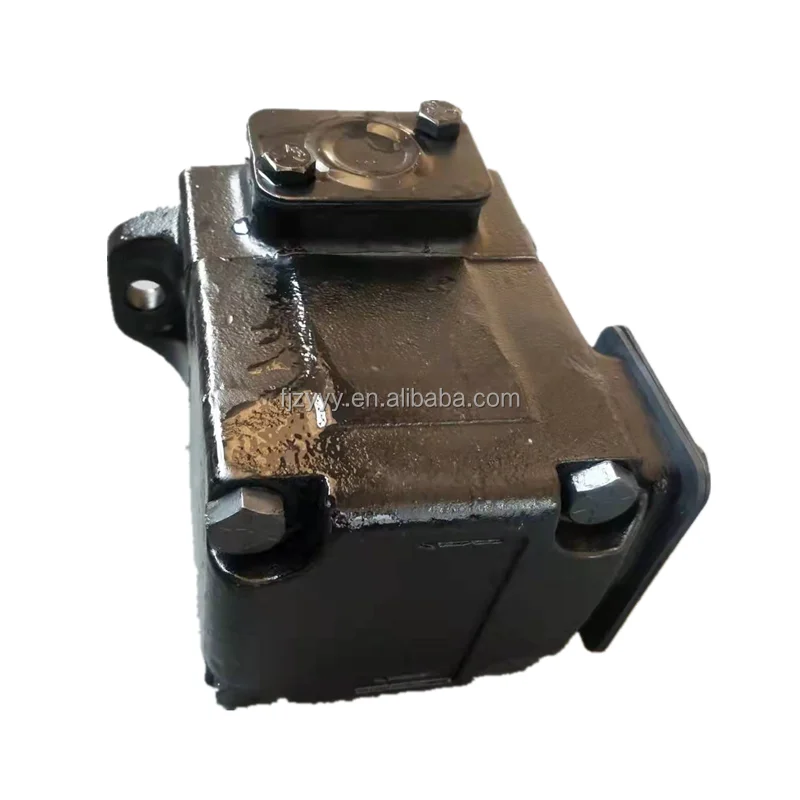

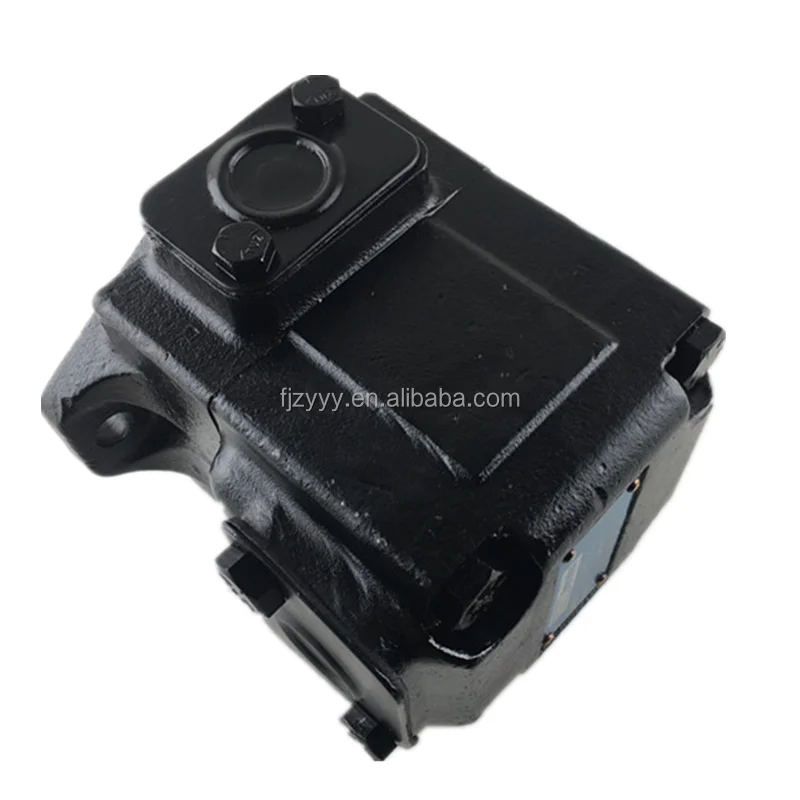

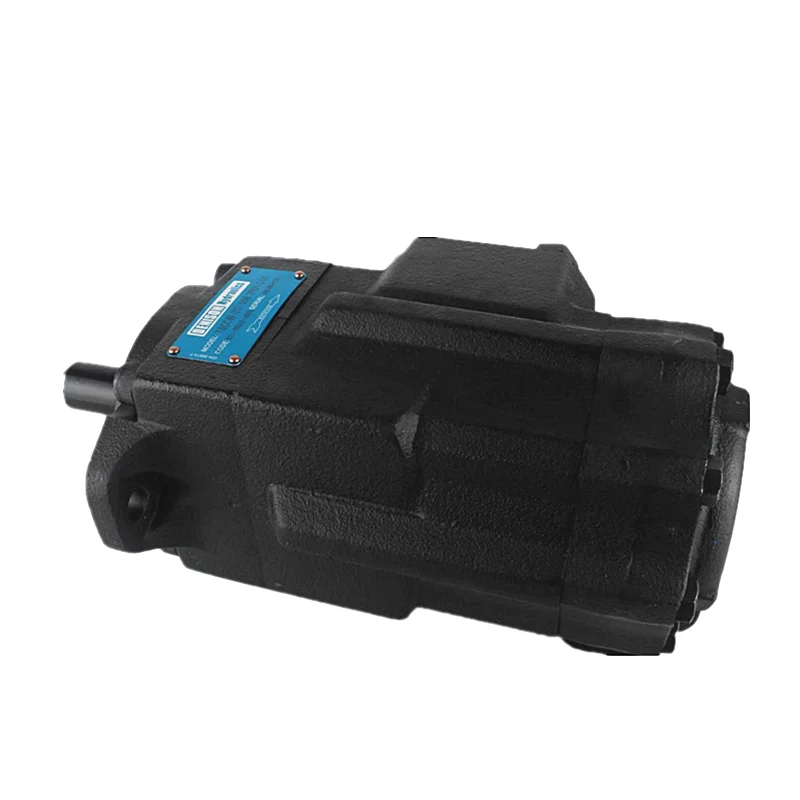

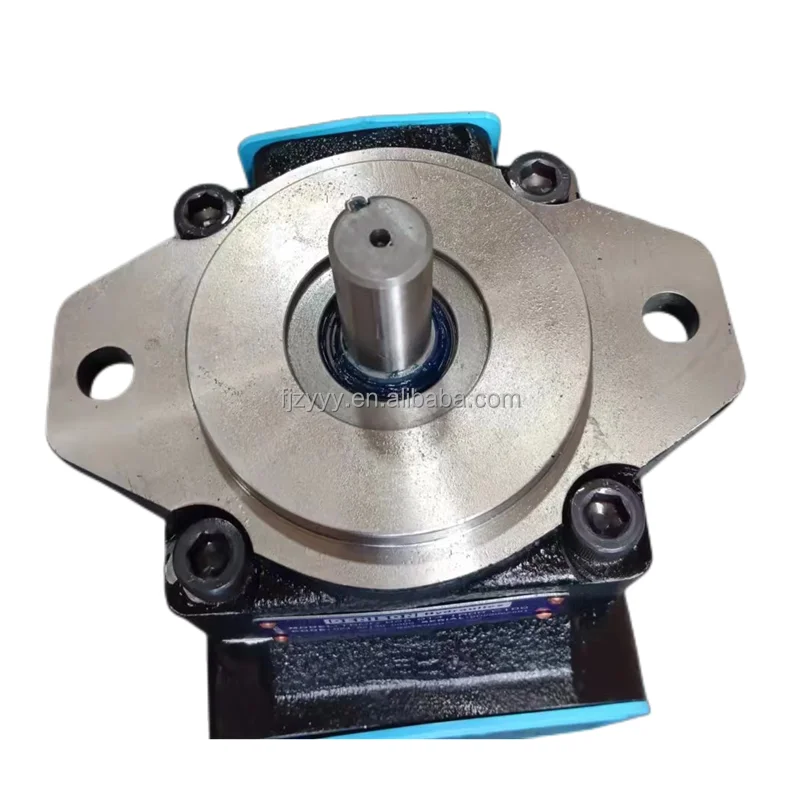

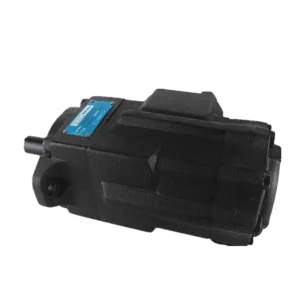

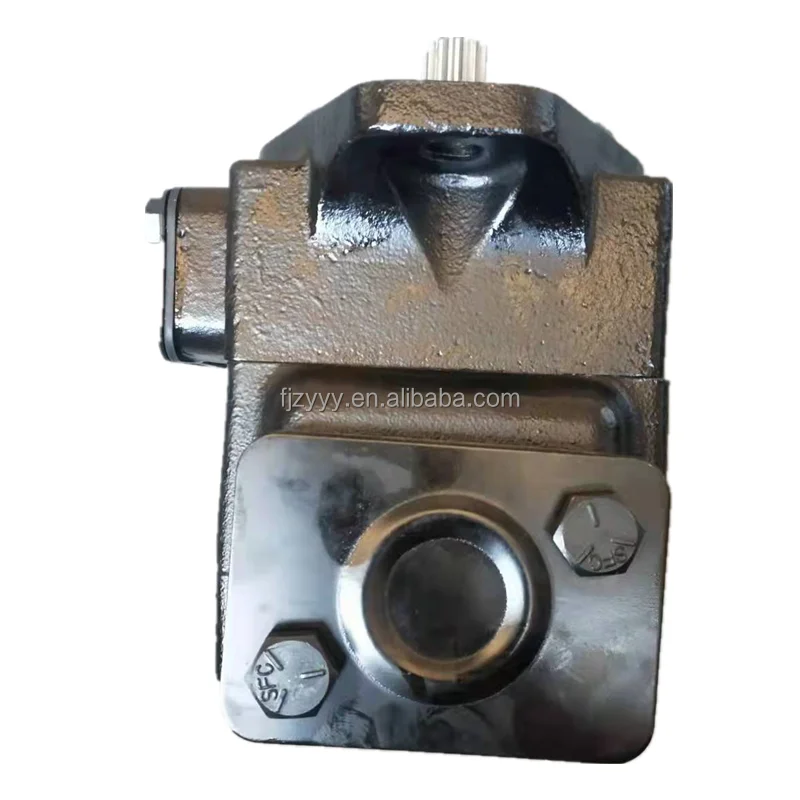

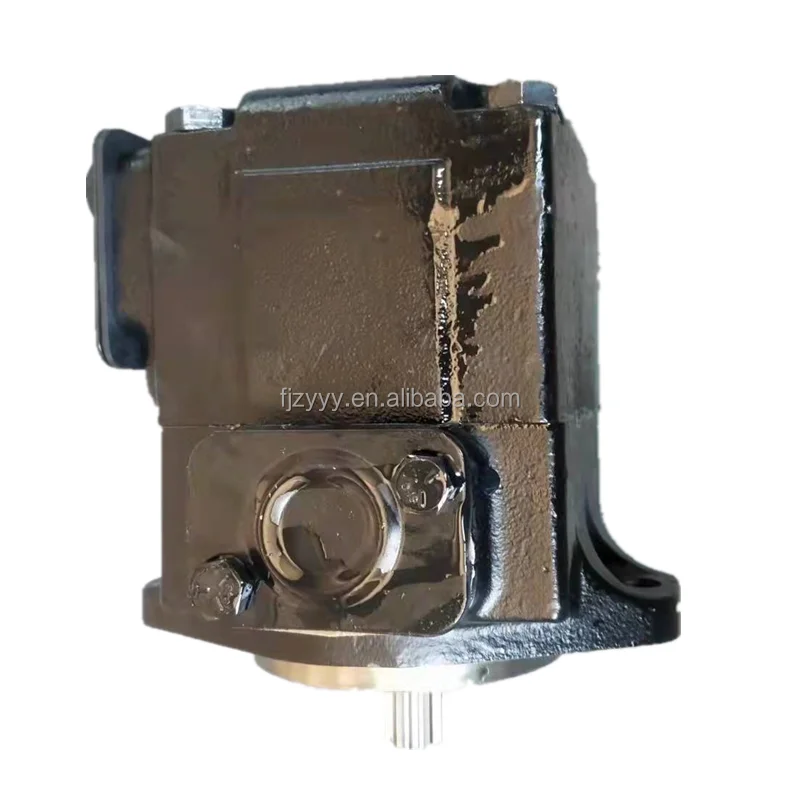

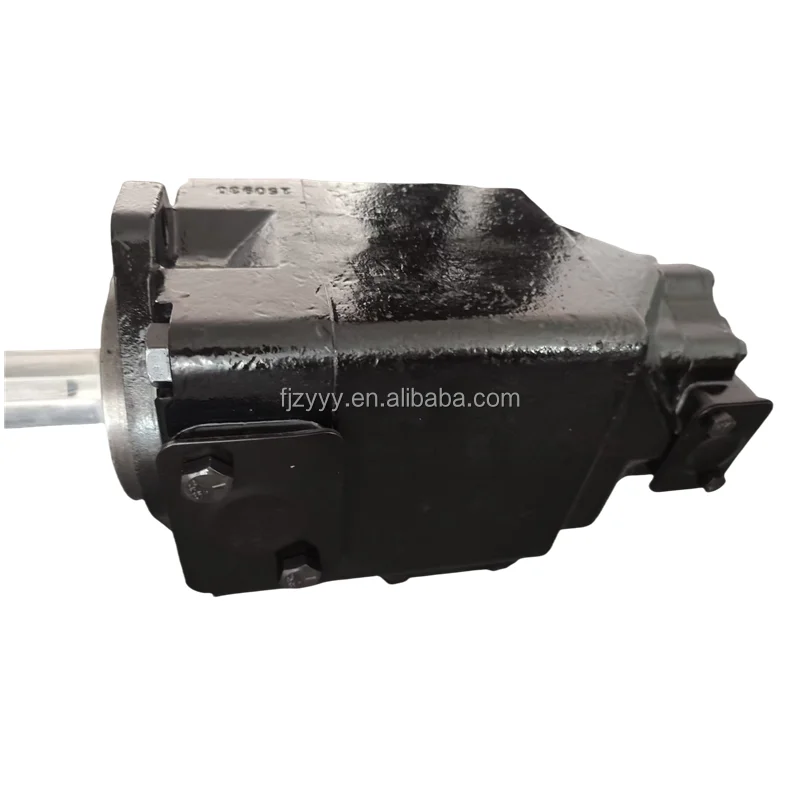

Denison Type T6 Series High-Performance High-Pressure Double Vane Pumps

Product Overview: The T6 Series double vane pump is the globally recognized “High-Pressure Efficiency Benchmark” for heavy-duty industrial hydraulic systems. As a precision double fixed displacement pump, it enables a single drive shaft to power two independent hydraulic circuits. This range features core specifications including T6CM-B22-1R00-C1, T6DM-B42-3R00-C1, T6C-B25-1R00-B1, and the fully configured model T6CC-031-010-1R00-C110. Utilizing unique Floating Side Plate technology, the T6 series maintains exceptional volumetric efficiency even at pressures up to 28 MPa—making it the ideal power core for large-scale molding machinery and port equipment.

Key Technical Advantages:

• Floating Side Plate Compensation: Features automatic clearance compensation to minimize internal leakage. Even under extreme high-pressure, volumetric efficiency remains above 94%, significantly reducing system heat generation.

• Superior High-Pressure Performance: Rated for continuous working pressures up to 24 – 28 MPa. It delivers higher power output than conventional vane pumps of the same size, often serving as a low-noise alternative to piston pumps.

• Low Noise & Low Pulsation: The optimized 12-vane rotor design provides highly smooth flow output, effectively lowering system vibration levels and meeting modern green workshop standards.

• Contamination Resistance & Durability: The double-lip vane design offers superior tolerance to small particles in hydraulic oil, ensuring long-term stable performance in harsh industrial environments.

• Target Applications: Plastic injection molding machines, aluminum extrusion presses, heavy-duty shears, marine steering power units, and various large-scale hydraulic presses.

Detailed Models & Parameters:

• Core Series: Denison Type T6 Series (Double Fixed Displacement).

• Model Keywords: T6CM-B22-1R00-C1, T6DM-B42-3R00-C1, T6C-B25-1R00-B1, T6CC-031-010-1R00-C110.

• Displacement Codes (GPM/cc): Covering core specifications such as 031, 010 (Shaft/Cover end displacement designators); B22, B42, B25 flow ratios.

• Technical Specs: 1R00 / 3R00 (Shaft protocol and rotation codes); C1 / B1 / C110 (Port orientation layout identifiers).

• Pressure Ratings: Rated continuous working pressures up to 24 – 28 MPa (240 – 280 Bar).
