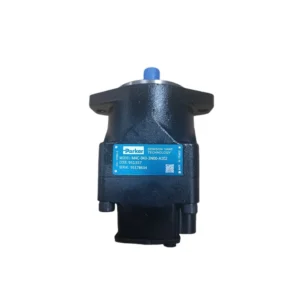

Parker Denison M4D Series High-Pressure Balanced Vane Motors

Product Overview: The Parker Denison M4D Series is the premier choice for high-performance hydraulic drive systems, renowned for its exceptional durability and power density. As a definitive balanced vane motor, the M4D series is engineered specifically for industrial and mobile machinery requiring high starting torque and smooth rotational speeds. This selection features three core configurations: M4D-062-3N00-B102, M4D-102-3N00-B102, and the high-capacity M4D-113-3N00-B102. Utilizing unique double-vane technology, the M4D series is widely utilized in winch drives, injection molding auxiliary systems, agricultural machinery, and material handling equipment.

Key Technical Advantages:

• Fully Balanced Architecture: The internal rotor is hydraulically balanced to minimize bearing loads, significantly extending service life under continuous high-pressure conditions.

• Elite Starting Torque Efficiency: Optimized vane geometry ensures superior mechanical efficiency at start-up, minimizing power loss.

• Broad Speed Range: Supports smooth transitions from ultra-low to high speeds with minimal noise levels, meeting stringent industrial and environmental standards.

• Bi-Displacement Options: The M4D series allows for displacement shifting via external pilot control, allowing machines to optimize torque and speed based on load.

• Bi-Directional Capability: Specifically optimized for reversible operation with rapid response and minimal hydraulic shock.

• Target Applications: Marine winches, plastics machinery, die-casting machines, conveyor drives, and specialized mobile propulsion.

Detailed Models & Parameters:

• Core Series: Parker Denison M4D Series (High Pressure Vane Type).

• Model Keywords: M4D-062, M4D-102, M4D-113, 3N00, B102.

• Technical Specs Decoding:

  • M4D-062: 62.1 ml/rev displacement, optimized for high-speed, medium-torque applications.

  • M4D-102: 102.0 ml/rev displacement, the most versatile frame size for industrial use.

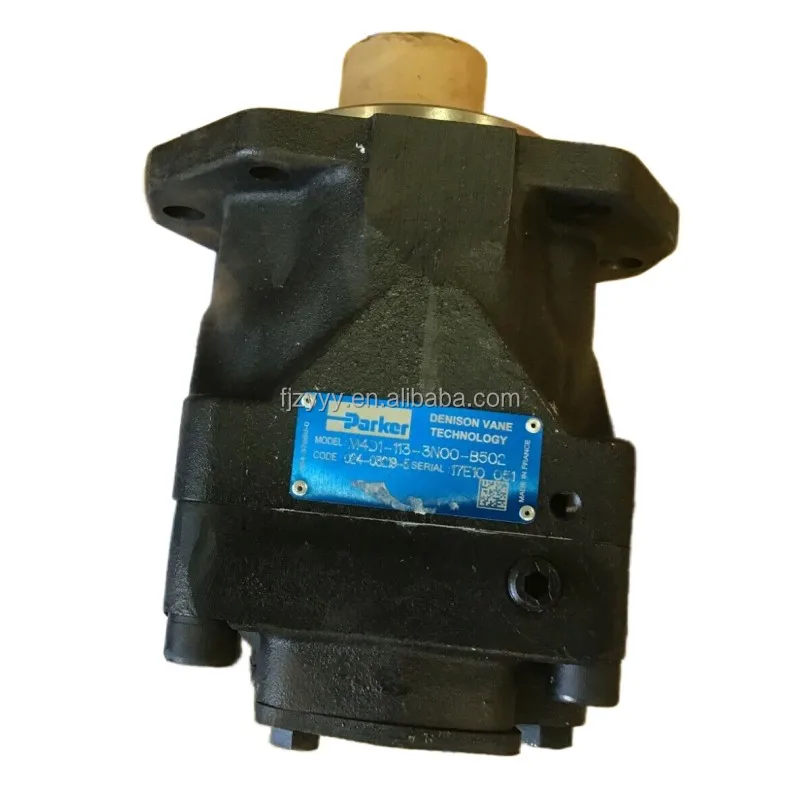

  • M4D-113: 113.5 ml/rev large displacement, providing enhanced power output.

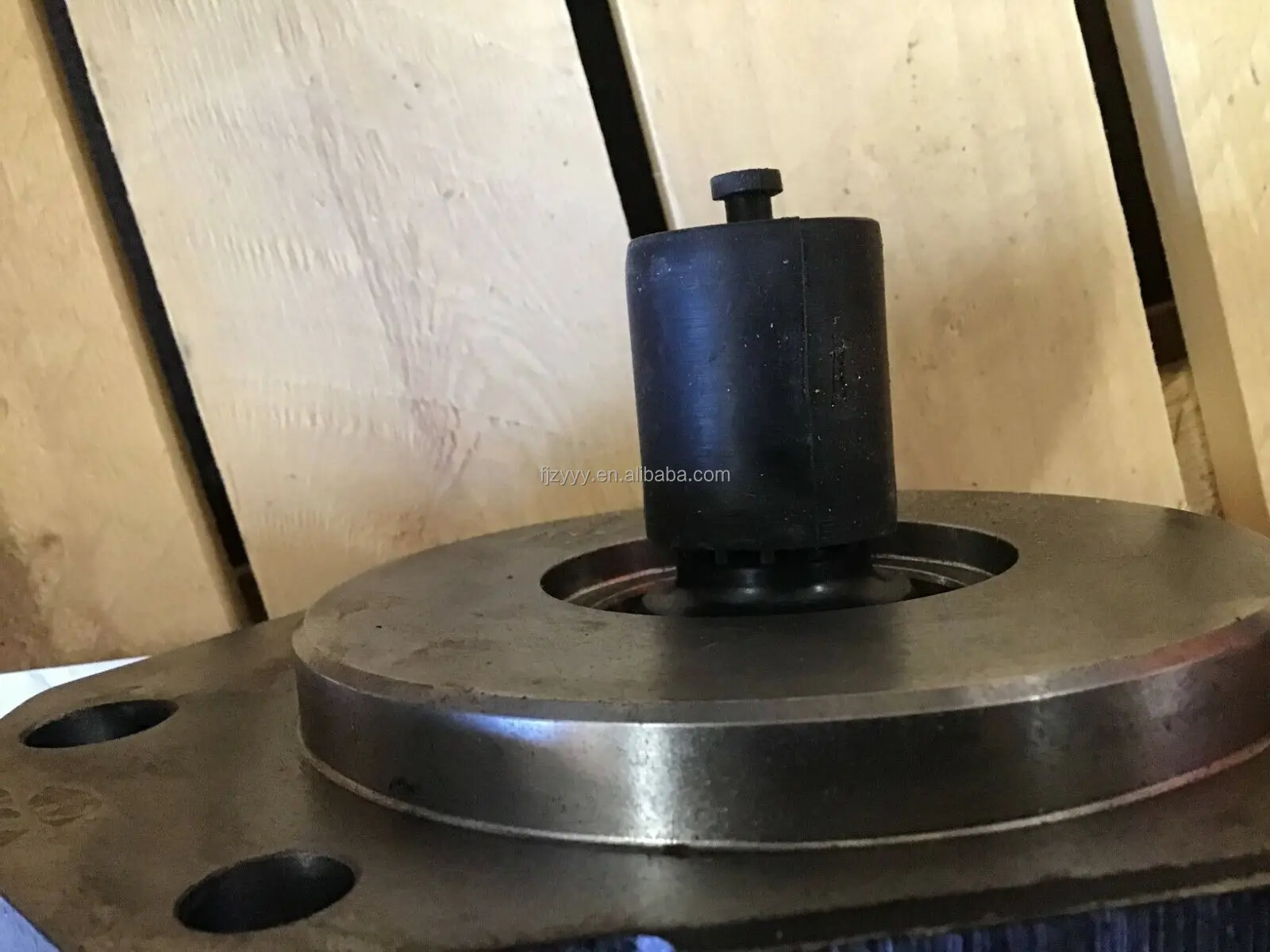

  • 3N00-B102: Refers to standard shaft ends, sealing standards, and rear cover porting configurations.

• Pressure Specs: Rated operating pressure up to 230 Bar (3300 PSI).
