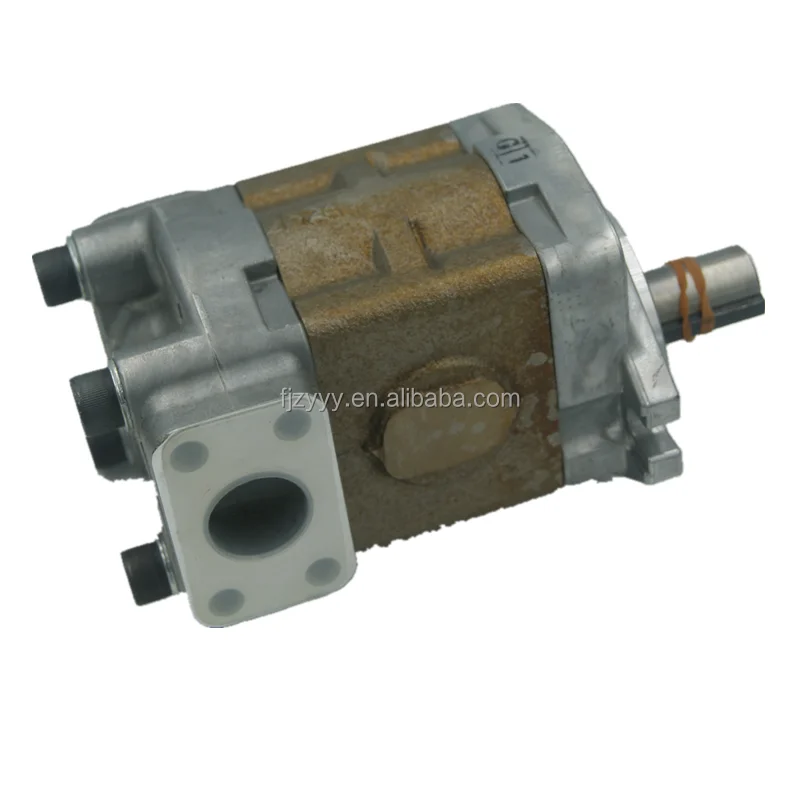

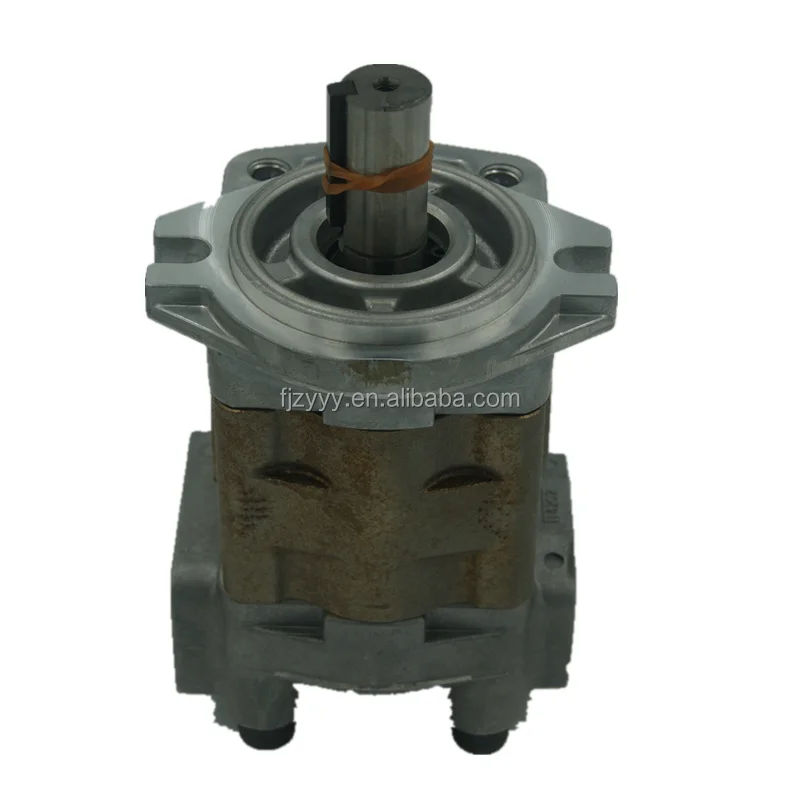

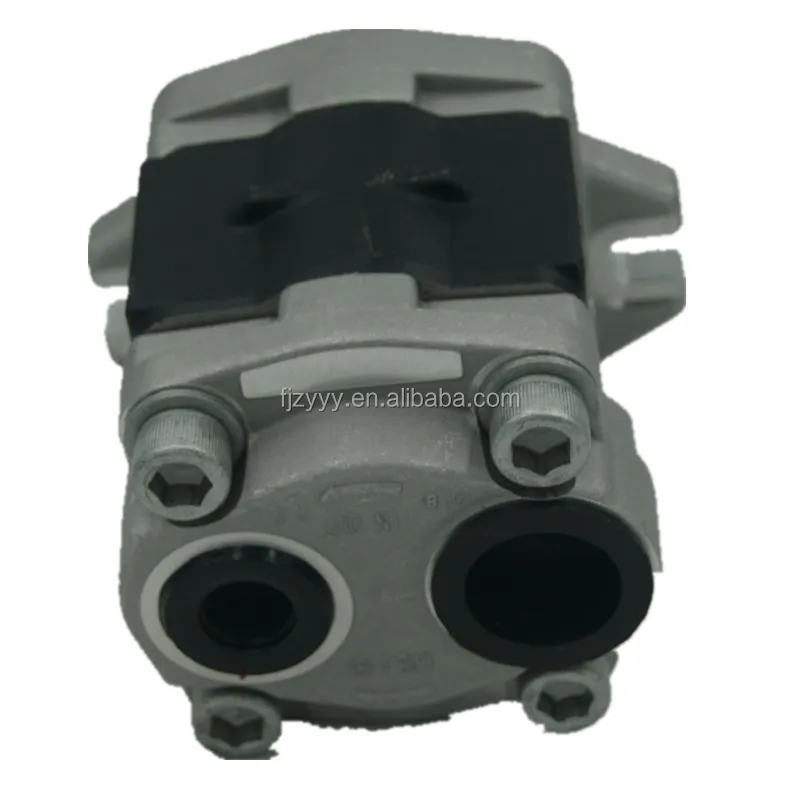

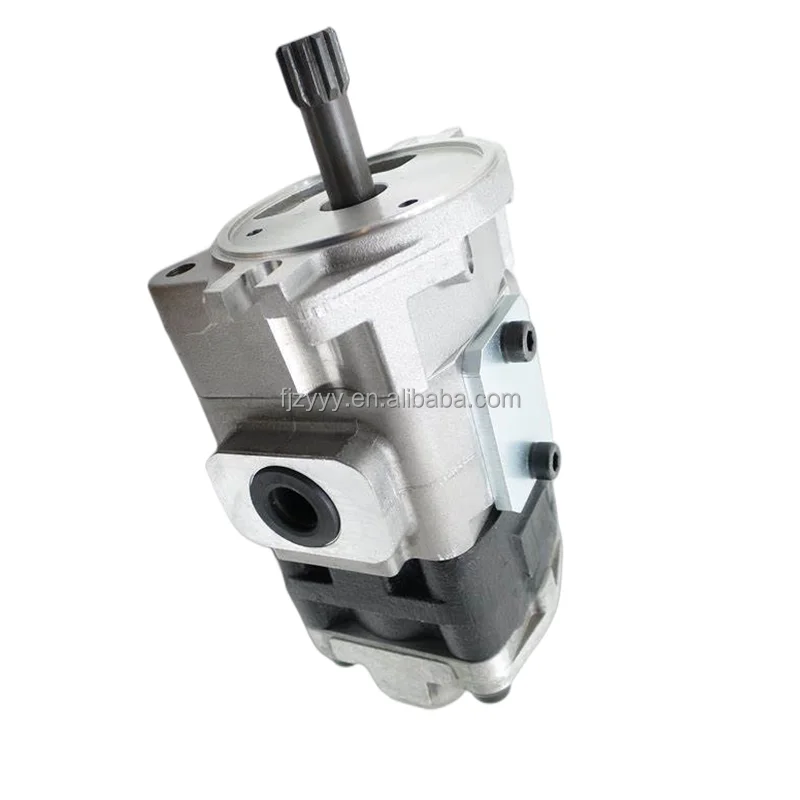

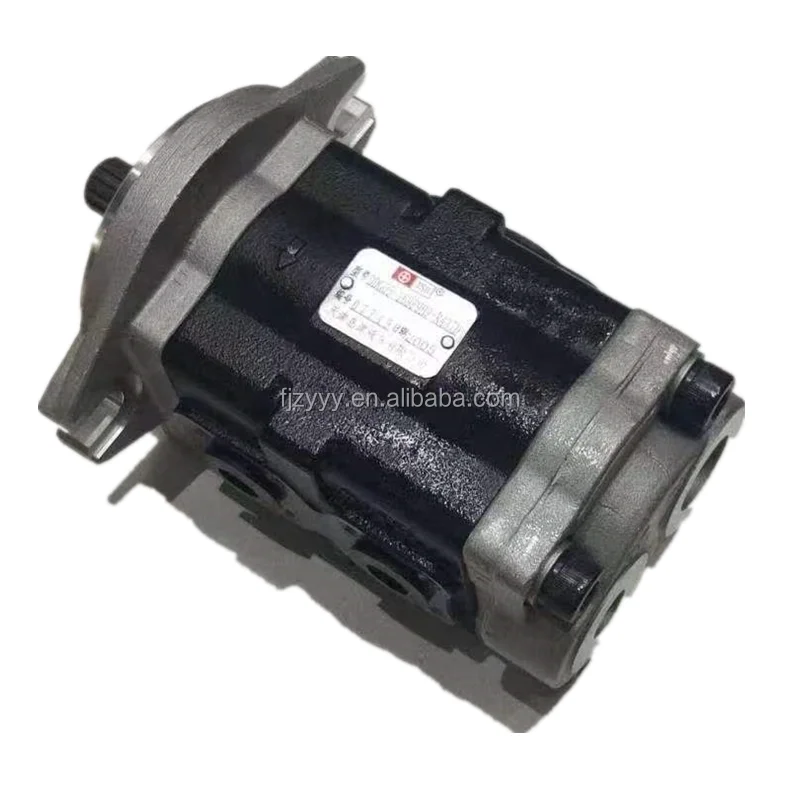

DDG05 Series Hydraulic Gear Pump | DDG05-19.6, DDG05-13, DDG05-9.5 | High-Pressure Aluminum Pump
| Model Number | DDG05-196F9H9-R437D |
|---|
Product Description
DDG05 Series High-Performance High-Pressure Hydraulic Gear Pumps
Product Overview: The DDG05 Series is a globally recognized power source in mobile hydraulics, renowned for its exceptional efficiency and reliability. As a high-performance external gear pump, the DDG05 series features a high-tensile extruded aluminum alloy body specifically engineered for the rigorous high-pressure demands (Rated up to 20-25 MPa) of construction and agricultural machinery. This featured range highlights the core configuration DDG05-19.6F9H9-R437D and covers a full displacement spectrum from 4ml to 16ml. Equipped with pressure-balanced technology, these pumps deliver exceptional volumetric efficiency even under fluctuating loads.
Key Technical Advantages:
Three-Piece High-Strength Design: Featuring a sectional modular structure, the pump body is crafted from high-tensile extruded aluminum with precision cast covers to handle continuous high-pressure cycles without deformation.
100% Direct OEM Replacement: Manufactured strictly to the installation standards of major construction equipment. Codes like F9H9 or F2H1 define precise mounting flanges, shaft ends, and porting protocols for seamless integration.
Superior Volumetric Efficiency: Equipped with automated axial gap compensation side plates, maintaining efficiency above 93% throughout its service life, effectively minimizing internal leakage and oil overheating.
Quiet Operation: Optimized gear profiles combined with heavy-duty self-lubricating bearings significantly reduce mechanical vibration and hydraulic noise during high-speed operation.
Target Applications: Main pumps for 1-3.5T forklifts, harvester hydraulic circuits, material handling equipment, and auxiliary power for hydraulic cranes.
Detailed Models & Parameters:
Core Series: DDG05 High Pressure Series.
Model Keywords: DDG05-4, 4.5, 5, 5.5, 6.5, 9, 9.5, 13, 14, 16 (Displacement specs).
Full Configurations: DDG05-19.6F9H9-R437D, DDG05-F2H1-L, DDG05-F2H1-R.
Displacements (ml/rev): Covering precise specs from 4.0 ml/rev up to 19.6 ml/rev.
Pressure Ratings: Rated at 20-21 MPa (210 Bar/3000 PSI); Peak pressure up to 25 MPa (3625 PSI).
Rotation Options: Available in R (Clockwise/CW) and L (Counter-Clockwise/CCW).
