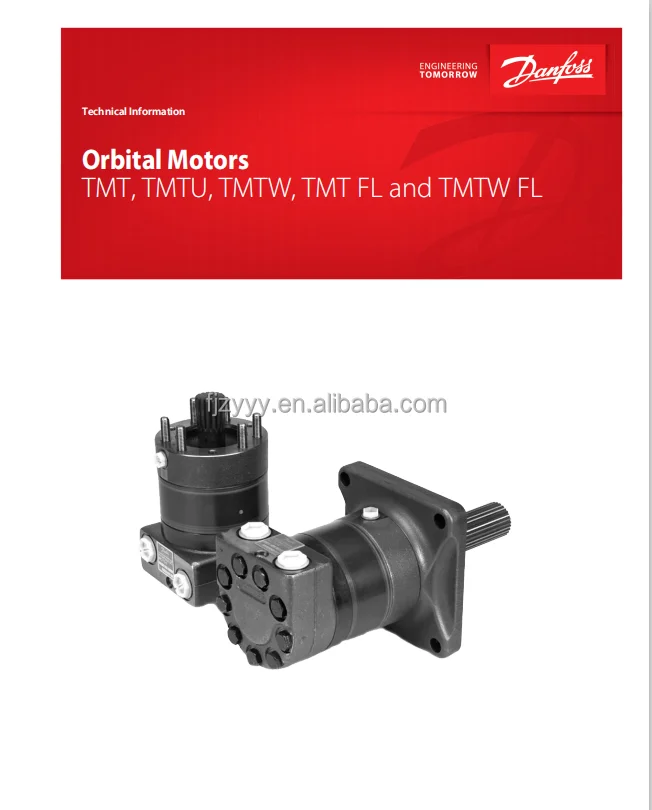

Danfoss TMT, TMTU & TMTW Series Heavy-Duty Orbital Hydraulic Motors

Product Overview: The Danfoss TMT Series sets the premium benchmark for performance in the orbital motor industry. This category encompasses the standard TMT, the compact TMTU, and the wheel-mount optimized TMTW. We feature the full displacement matrix: TMT-250/315/400/470/500/630, alongside precision specific models like the TMT470 FLV (Part No: 11009374 / N13731401). Utilizing advanced Disc Valve technology and reinforced bearing architectures, TMT motors deliver stable, massive torque even under extreme radial loads. They are the premier choice for large harvesters, heavy-duty material handling machinery, drilling rigs, and construction vehicle drives.

Key Technical Advantages:

• Superior Load Capacity: Engineered for severe duty applications, maintaining exceptional mechanical efficiency even under intense pressure spikes.

• Disc Valve Technology: The optimized disc valve design minimizes internal leakage, providing extremely precise and smooth torque delivery, especially at low speeds.

• Wheel Mount Versatility (TMTW): The wheel version moves the flange forward, allowing the motor to be integrated directly into wheel hubs, optimizing overall machine architecture.

• Full Displacement Range: Offers a wide selection from 250cc to 630cc, perfectly matching various load-power requirements.

• Technical Spec Decoding:

  • TMT / TMTU / TMTW: Frame architecture identifiers (Standard, Short, Wheel).

  • 250 – 630: Displacement codes (cc/rev).

  • FLV / 11009374: Relates to flange specifications, shaft types, and specific valve integration setups.

Detailed Models & Specifications:

• Core Series: Danfoss TMT Series (Heavy Duty Orbital Motor).

• Full Displacement Matrix:

  • TMT 250 / 315 / 400: Mid-to-high displacement balanced specs.

  • TMT 470 / 500 / 630: High-torque, severe duty specifications.

• Featured Model Matrix:

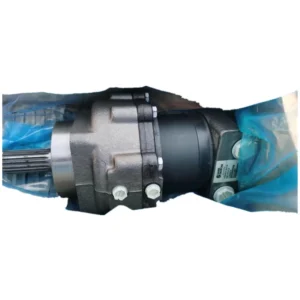

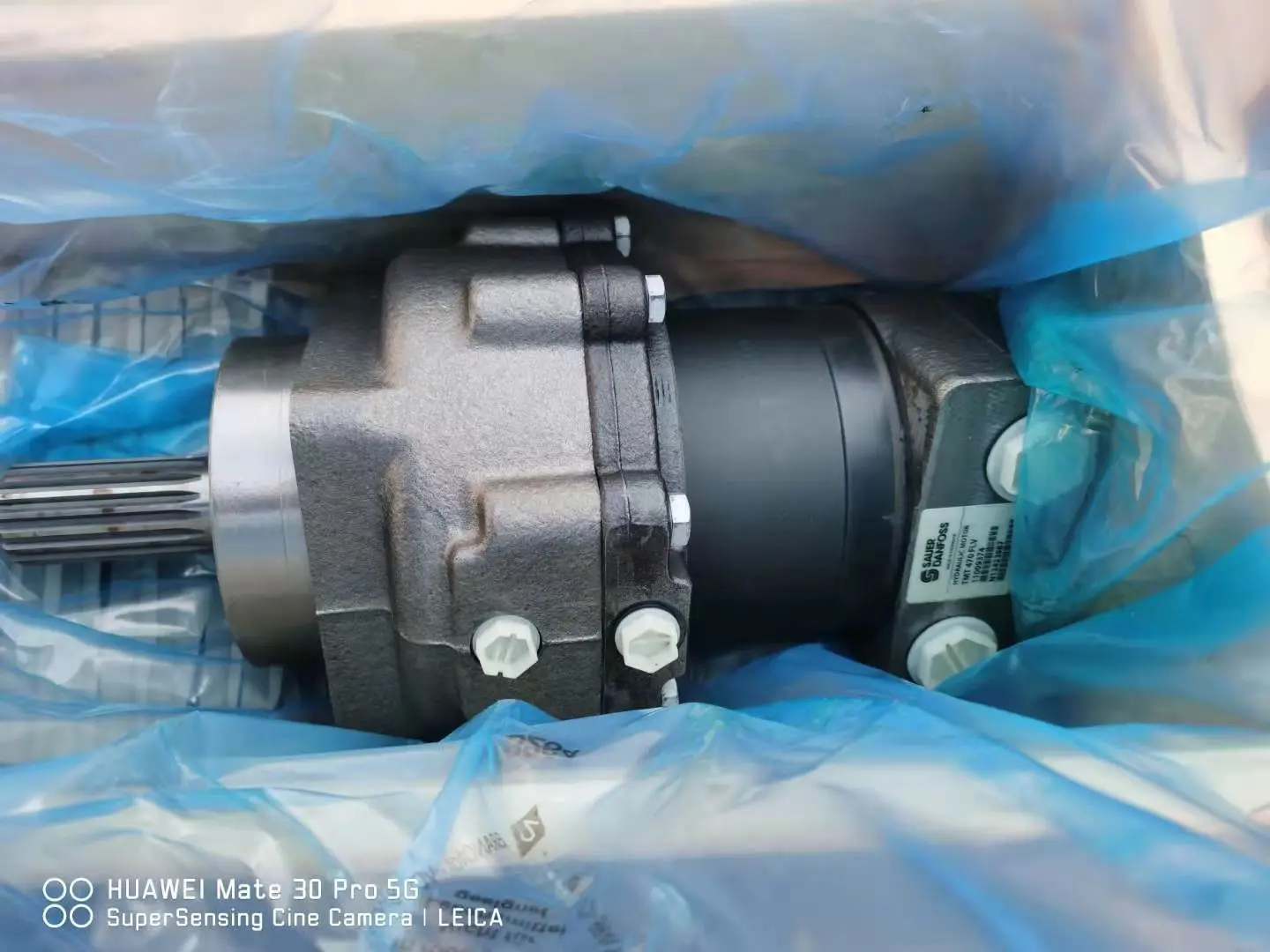

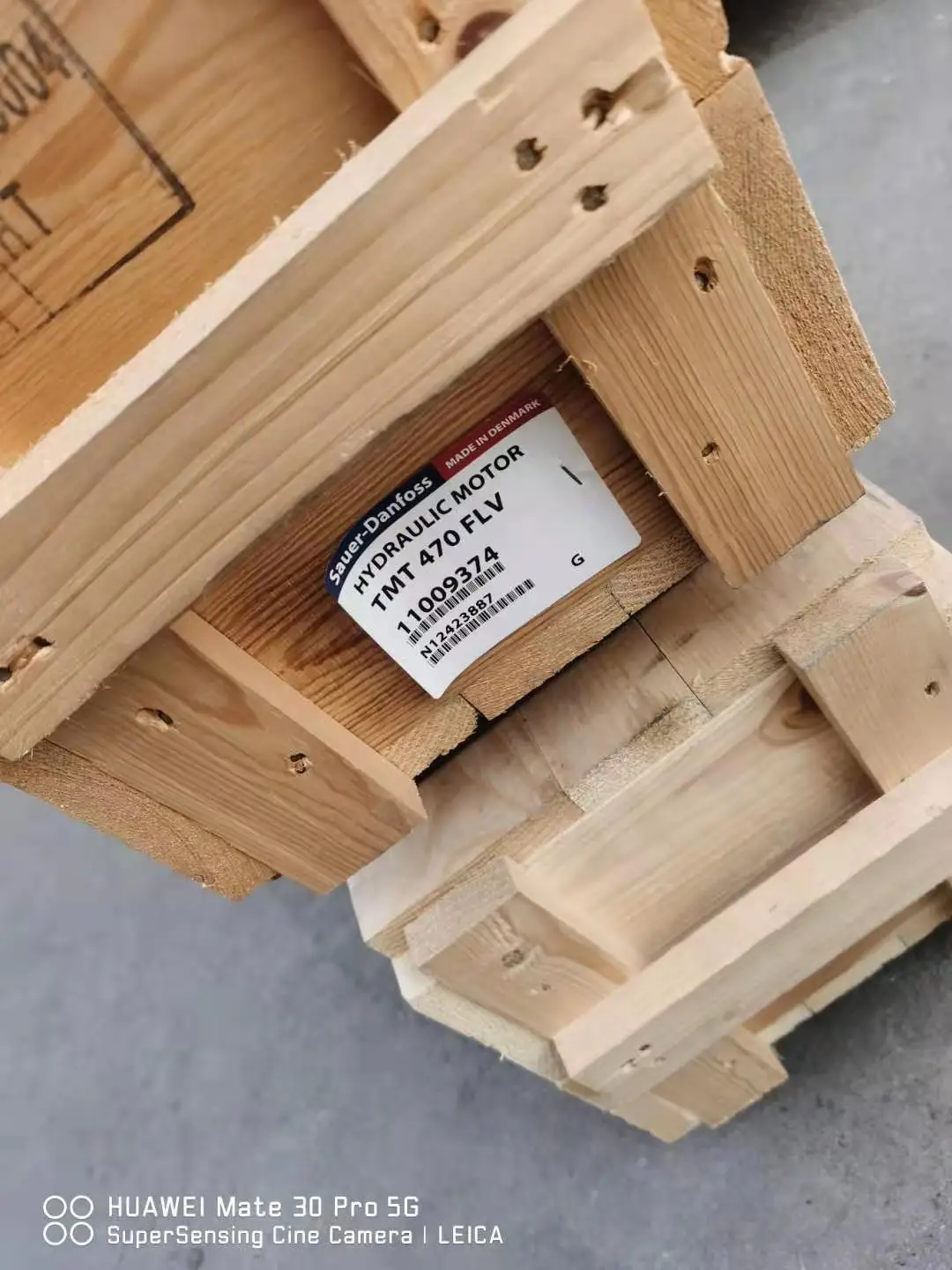

  • TMT470 FLV (11009374 / N13731401): Specialized high-performance version commonly utilized in industrial and mobile applications.

• Core Performance Specs:

  • Maximum Pressure: Continuous up to 250 Bar, with intermittent peaks at 475 Bar (model dependent).

  • Peak Torque: Capable of delivering over 2000 Nm of torque.

  • Flow Rate: Supports high-flow inputs for maximum power density.
