Danfoss TMT Series Extreme Heavy-Duty Orbital Motors

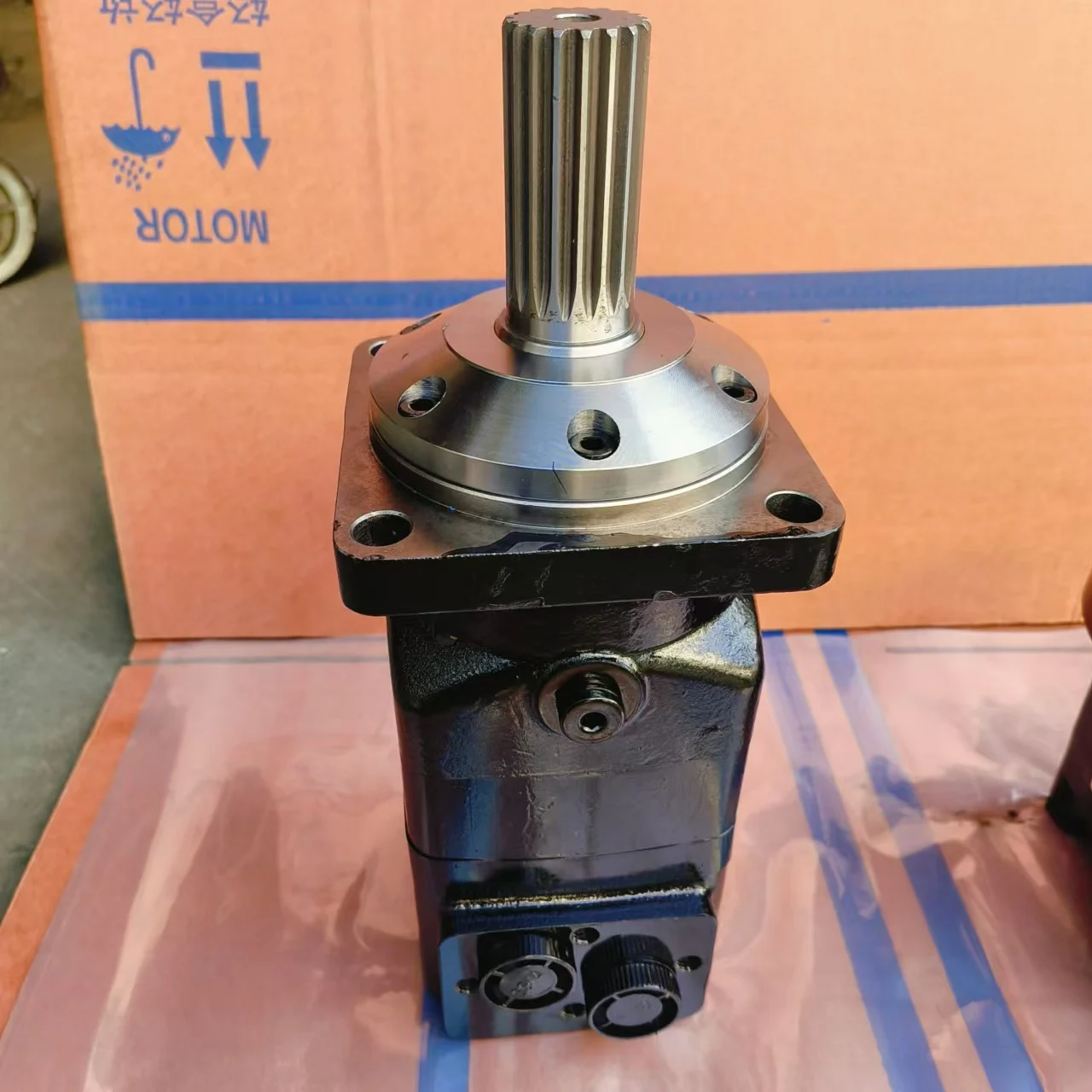

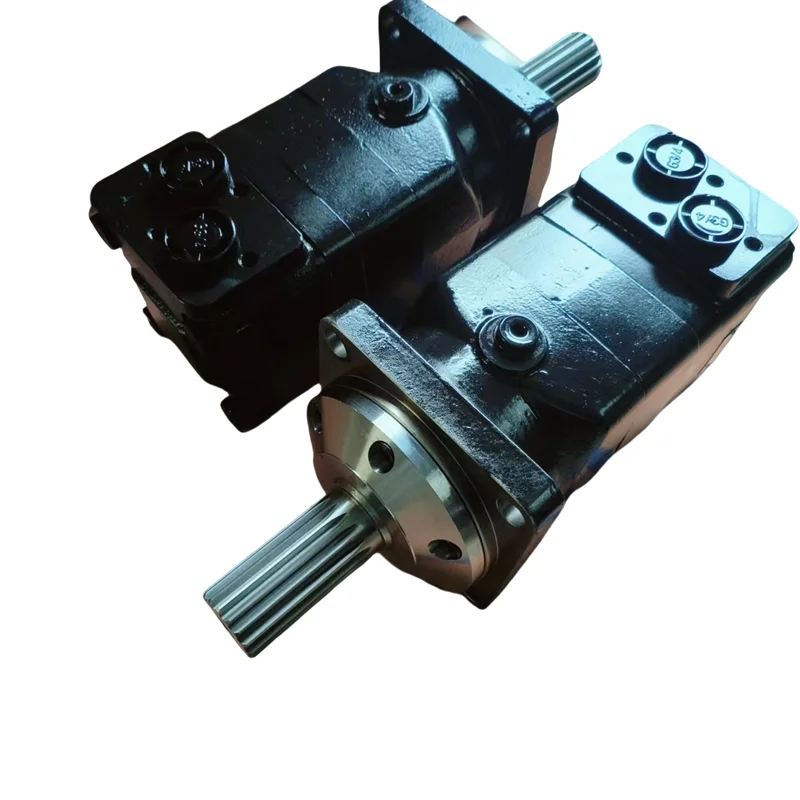

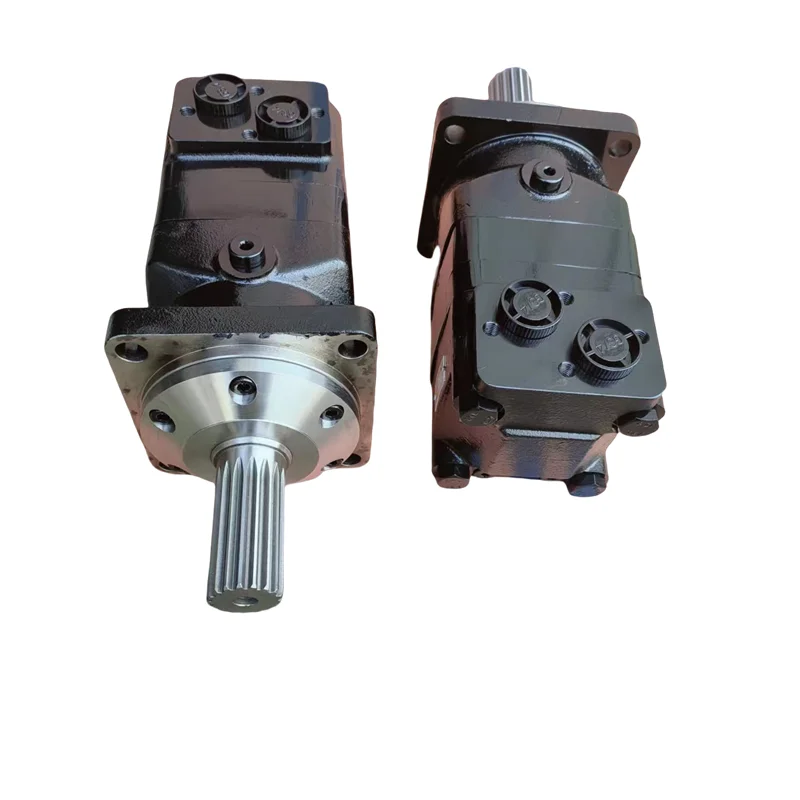

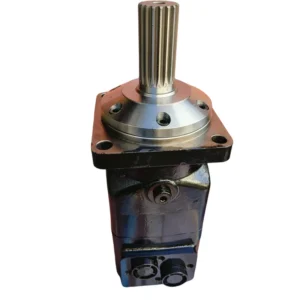

Product Overview: The Danfoss TMT Series represents the pinnacle of orbital drive technology. Engineered specifically for extreme pressures and the most grueling environments, the TMT series is unrivaled in the mobile machinery propel drive sector. This category focuses on the full range: TMT250, TMT315, TMT400, TMT470, TMT500, and TMT630, with a specialized focus on model TMT470FLV (Part No: 11026042).

Utilizing a disc valve design and oversized tapered roller bearings, the TMT series is built to sustain massive radial loads directly. It is the premier power choice for track-driven vehicles, large construction machinery, heavy-duty winches, forestry harvesters, and mining equipment.

Key Technical Advantages:

• Elite Radial Load Capacity: Optimized bearing architecture handles extreme side-loading—ideal for direct wheel or gear drives.

• High-Pressure Reliability: Specifically designed for high-pressure closed or open-circuit systems, maintaining elite volumetric efficiency under load.

• FLV Configuration Decoding: TMT470FLV (11026042) features specific flange and porting dimensions for a guaranteed 100% fit-and-function OEM replacement.

• Smooth Low-Speed Torque: Advanced gerotors ensure consistent, pulse-free torque delivery even at ultra-low speeds, eliminating “creep” during precision tasks.

Detailed Specifications & Parameters:

• Core Series: Danfoss TMT Series (Extreme Heavy Duty)

• Featured Model Matrix: TMT250, TMT315, TMT400, TMT470, TMT500, TMT630, 11026042, TMT470FLV

• Core Performance Specs:

  • Displacement Range: 250 cc/rev up to 630 cc/rev.

  • Rated Pressure: Continuous up to 250 Bar; Intermittent peaks exceeding 350 Bar.

  • Torque Capability: Continuous torque spanning from 900 Nm to 2000 Nm, with peaks exceeding 2400 Nm.

  • Flow Capacity: Supports continuous flow inputs of 150 – 200 L/min.

  • Mounting Standards: 4-Bolt Square and Wheel Mount flanges; Shaft options include Keyed, Splined, or Tapered designs.
