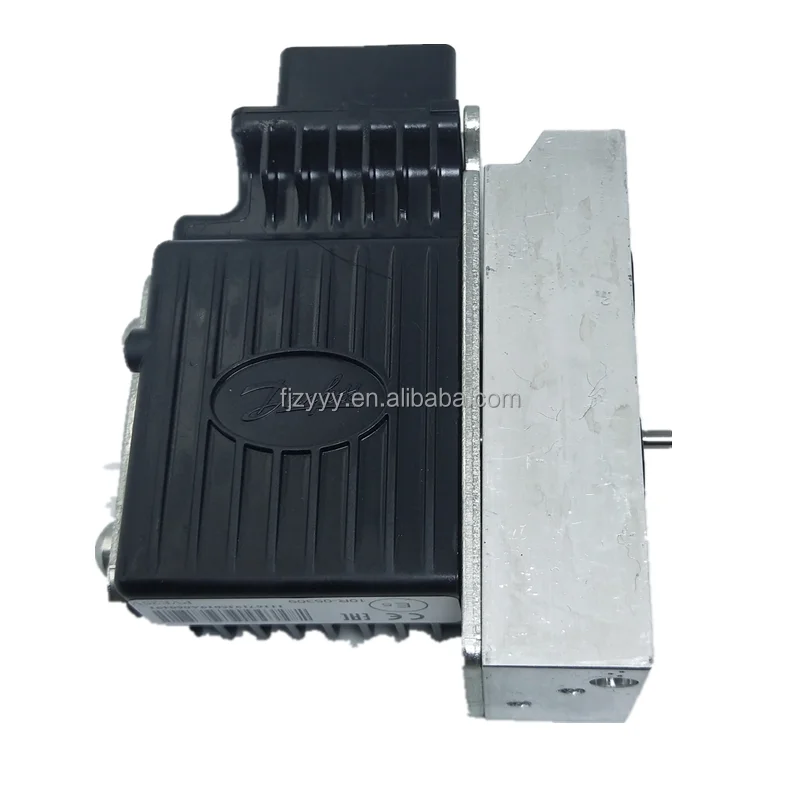

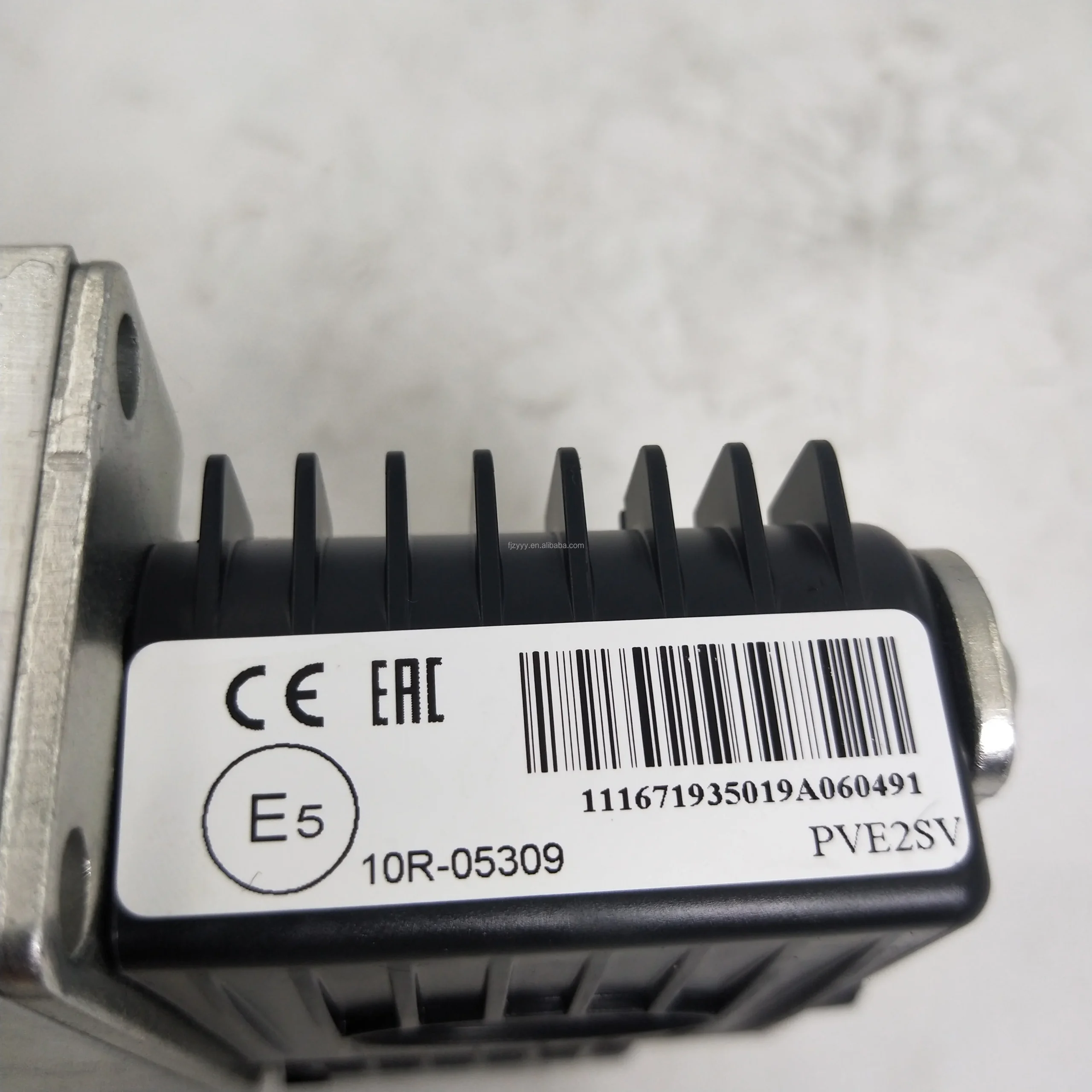

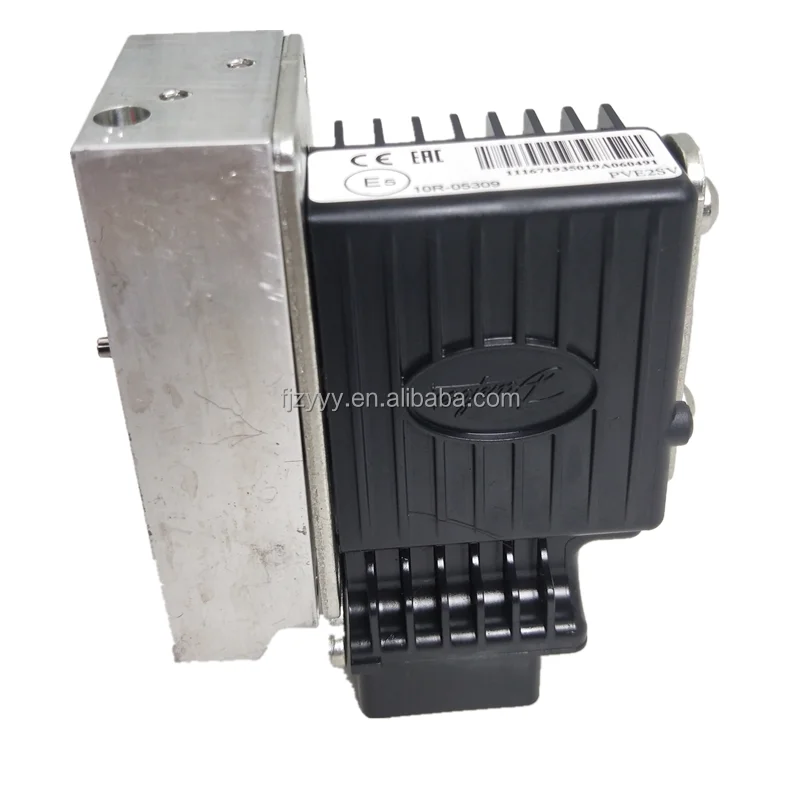

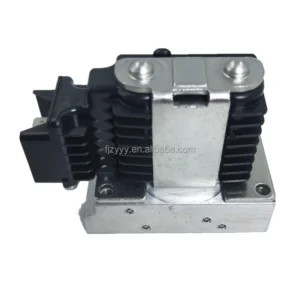

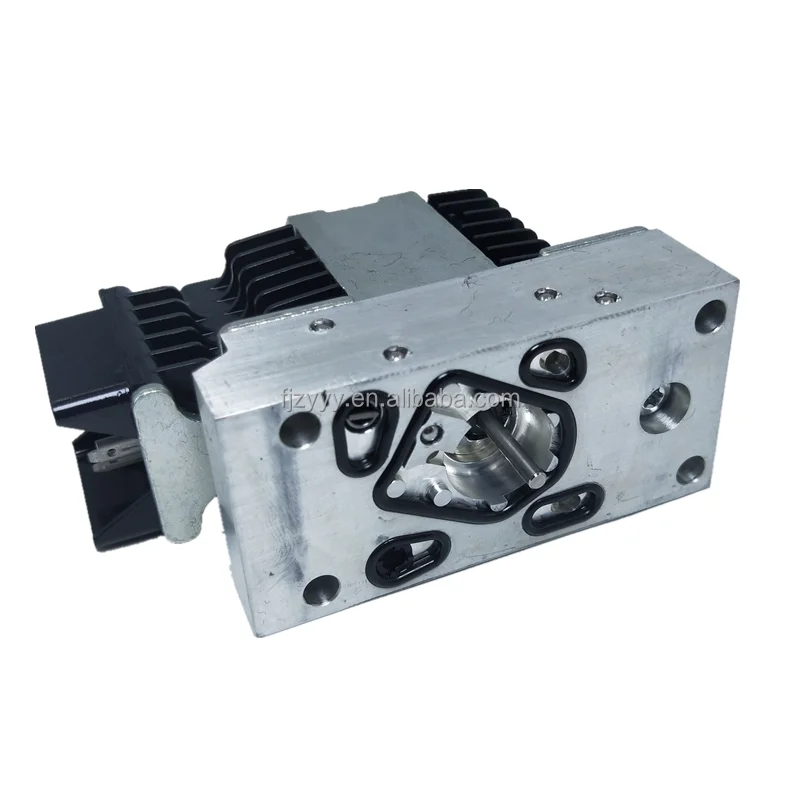

Danfoss PVE Actuator for PVG 32 | 157B4032 | 157B4033 | 157B4034 | 157B4128 | PVG32 Solenoid Control Module

Danfoss PVE Electronic Control Modules for PVG 32 Valves

Product Overview: The Danfoss PVE series of electronic actuators serves as the digital brain of the PVG 32 proportional valve system. These modules (including PVEA, PVEH, and PVEM) convert electrical commands from joysticks or controllers into precise spool displacement, enabling fine-tuned speed and direction control for machinery such as cranes, excavators, and aerial platforms. Featuring an integrated LVDT position transducer, the PVE module provides real-time closed-loop feedback, automatically compensating for pressure fluctuations and viscosity changes to ensure ultimate operational stability and smoothness.

Featured Part Numbers: 157B4032 (PVEH), 157B4033 (PVEA), 157B4034 (PVEM), 157B4036, and 157B4128.

Key Technical Advantages:

• Precision Closed-Loop Feedback: The integrated sensor monitors spool stroke in real-time with ultra-low hysteresis, ensuring high synchronicity between joystick input and actuator movement.

• Active Safety Diagnostics: Features advanced logic to monitor spool jams, signal loss, or power supply errors, indicated via on-board LED status lights.

• Rugged Environmental Durability: Rated IP66 or higher, these modules operate reliably from -40°C to +90°C and are built to withstand the heavy vibrations of construction sites.

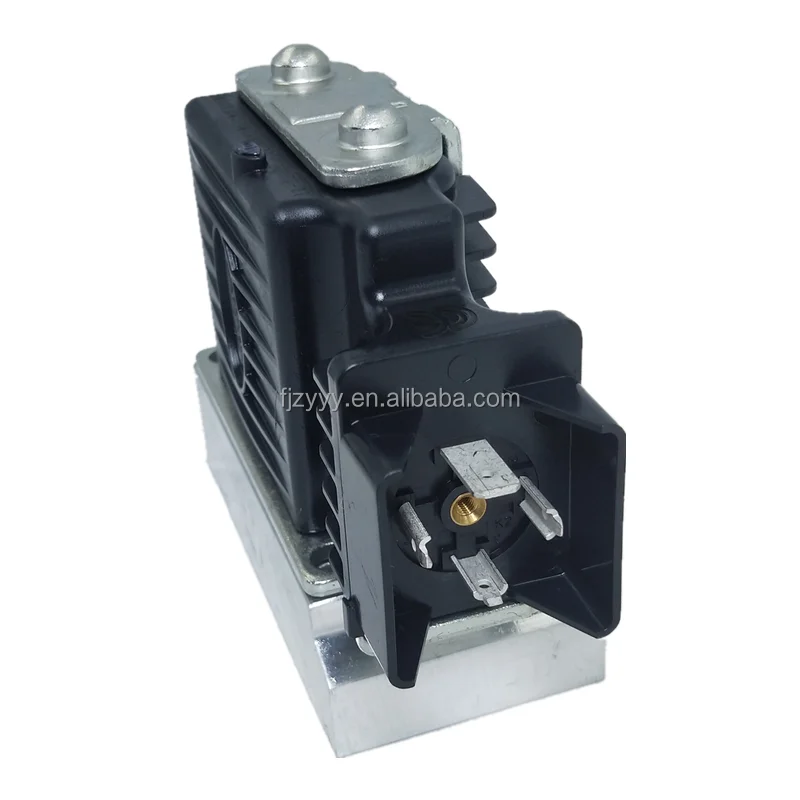

• Multi-Interface Compatibility: Available with standard Hirschmann (DIN) or Deutsch connectors, supporting various voltage and signal interface standards.

Detailed Specifications & Parameters:

• Featured Part Matrix:

  • 157B4032 (PVEH): High dynamic response module for premium applications requiring fast cycles and precision.

  • 157B4033 (PVEA): Standard proportional type, balancing performance and cost for general mobile hydraulics.

  • 157B4034 (PVEM): Mid-range proportional type for applications with moderate speed requirements.

  • 157B4036 / 157B4128: Specialized variants for specific connector types or analog signal standards.

• Core Technical Specs:

  • Supply Voltage: 11V – 30V DC.

  • Control Signal: Ratiometric voltage, 0-10V, or 4-20mA options (depending on part number).

  • Protection Class: IP66 / IP67.

  • Electrical Connector: 4-Pin DIN Hirschmann / 4-Pin Deutsch (DT).
