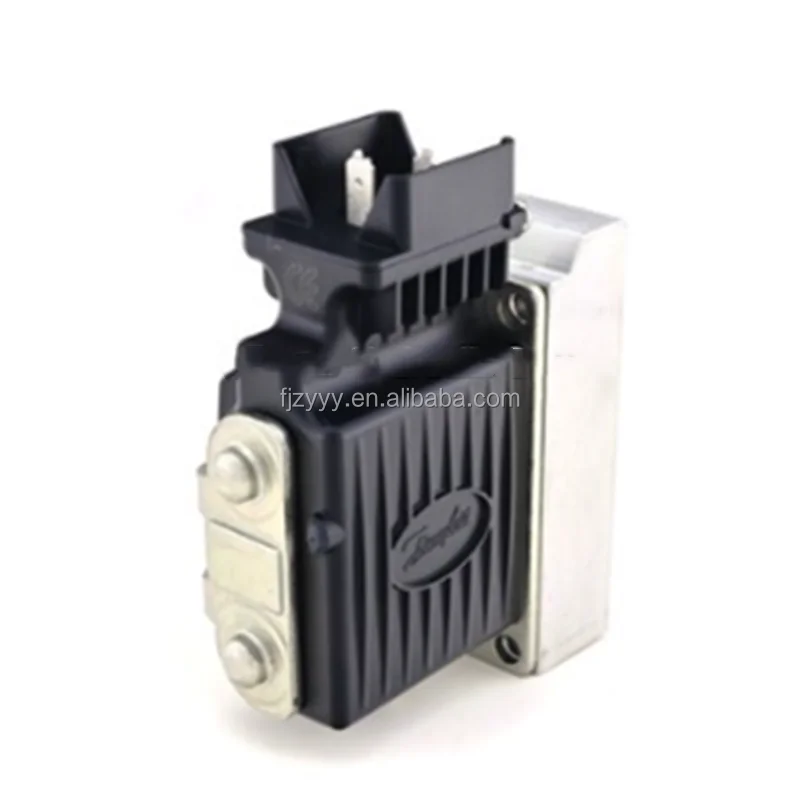

Danfoss PVEM 32 Actuator | 11166829 | Electronic Actuator for PVG 32 Valve | 11-32V DC

PVEM Series Proportional Actuator (for PVG 32 Valves)

Product Overview: The PVEM Series (Part No. 11166829) is a vital control component for Danfoss PVG 32 load-sensing proportional valve groups. Designed as a mid-range dynamic performance actuator, the PVEM is ideal for hydraulic applications requiring reliable and smooth control without the need for ultra-high frequency response. It integrates an electronic control module that converts electrical input signals into precise spool displacement, making it a standard choice for truck-mounted cranes, aerial work platforms, forestry machinery, and general industrial hydraulic systems.

Key Technical Advantages:

• Optimized Dynamic Performance: Provides smooth flow regulation, effectively reducing system vibrations and extending the service life of hydraulic components.

• Wide Voltage Adaptation: Supports 11-32V DC input, ensuring seamless compatibility with both 12V and 24V mobile electrical systems using a single hardware profile.

• Integrated Diagnostics: Features a built-in LED status indicator for real-time monitoring (e.g., power OK, signal out of range, or wiring faults), significantly reducing troubleshooting time.

• High Environmental Durability: Built with a rugged encapsulation process, it offers superior resistance to vibration and shock, ensuring stable operation in harsh outdoor conditions.

Detailed Specifications & Parameters:

• Core Model: PVEM 32 (Part No. 11166829).

• Compatibility: Designed for Danfoss PVG 32 proportional valve systems.

• Core Technical Specs:

  • Supply Voltage: 11 – 32V DC.

  • Power Consumption: Approx. 7W.

  • Control Signal: Ratiometric voltage control.

  • Connector Type: Typically Hirschmann or universal style (depending on configuration).

  • Protection Rating: IP65 water and dust resistance.

  • Operating Temperature: -30°C to +90°C (-22°F to +194°F).
