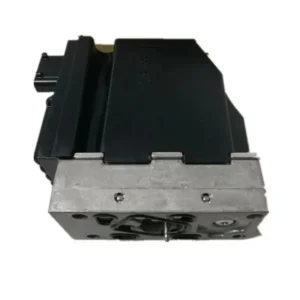

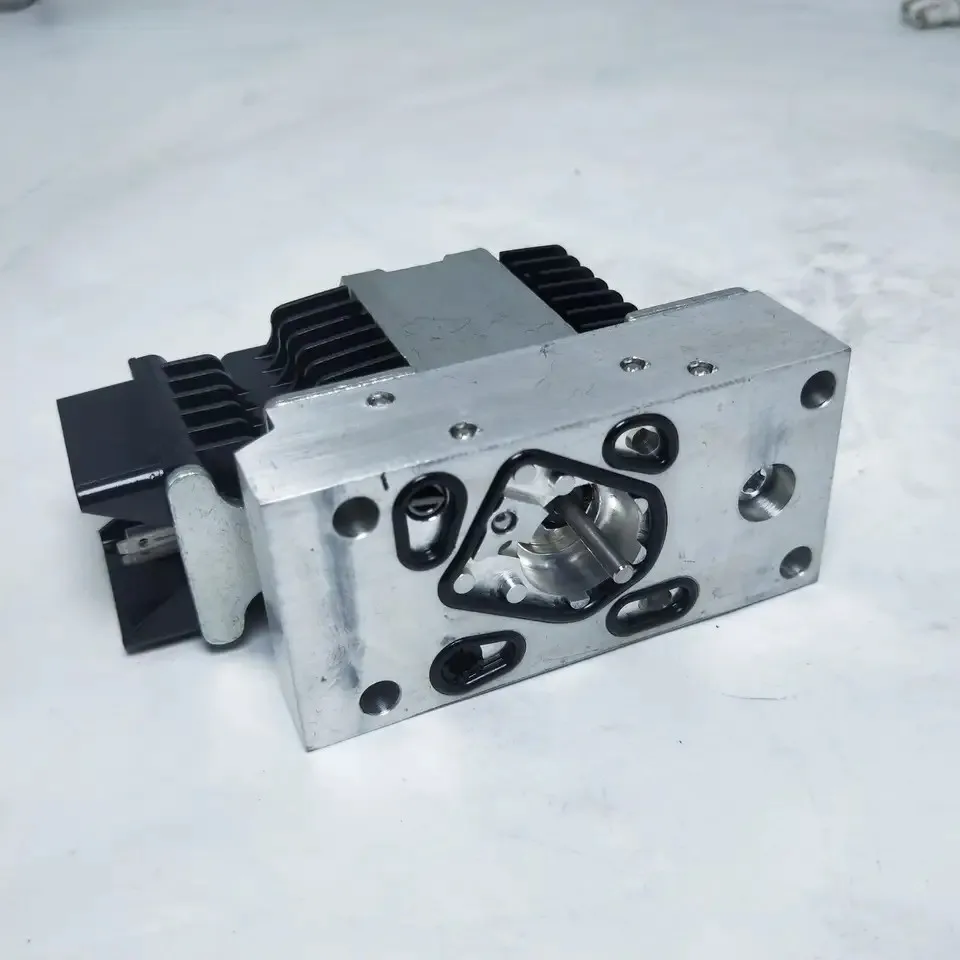

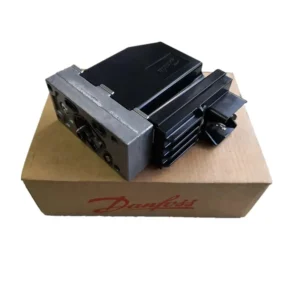

Danfoss 157B Series PVE Proportional Electric Actuators

Product Overview:

The Danfoss 157B series electronic actuators (PVE) represent the intelligent brain of the PVG 32, PVG 100, and PVG 128 proportional valve systems. These modules convert electrical command signals into precise spool displacement, enabling exquisite control over the speed and direction of hydraulic actuators like booms and winches. From the standard 157B4032 to the high-dynamic, self-diagnostic 157B4128, Danfoss PVE modules are the industry-leading choice for construction machinery, forestry equipment, and material handling due to their exceptional vibration and environmental resilience.

Featured models: 157B4035, 157B4032, 157B4734, 157B4116, and 157B4128.

Key Technical Advantages:

• Integrated Spool Position Feedback (LVDT): High-precision internal sensors monitor spool position in real-time, ensuring ultra-low hysteresis and superior repeatability.

• Plug-and-Play Modularity: Standardized 157B interfaces allow for rapid assembly with various PVB valve bodies, minimizing maintenance downtime.

• Smart Self-Diagnostics: Advanced modules like the 157B4128 feature bi-color LED status indicators to signal issues such as signal loss, voltage faults, or spool jamming.

• All-Weather Durability: Fully encapsulated electronics provide IP66/IP67 protection, handling extreme thermal shocks, salt spray, and high-vibration environments with ease.

• Low Power Consumption: Optimized electromagnetic drive algorithms provide high actuation force while minimizing module heat generation.

Detailed Specifications & Parameters:

• Featured Model Matrix:

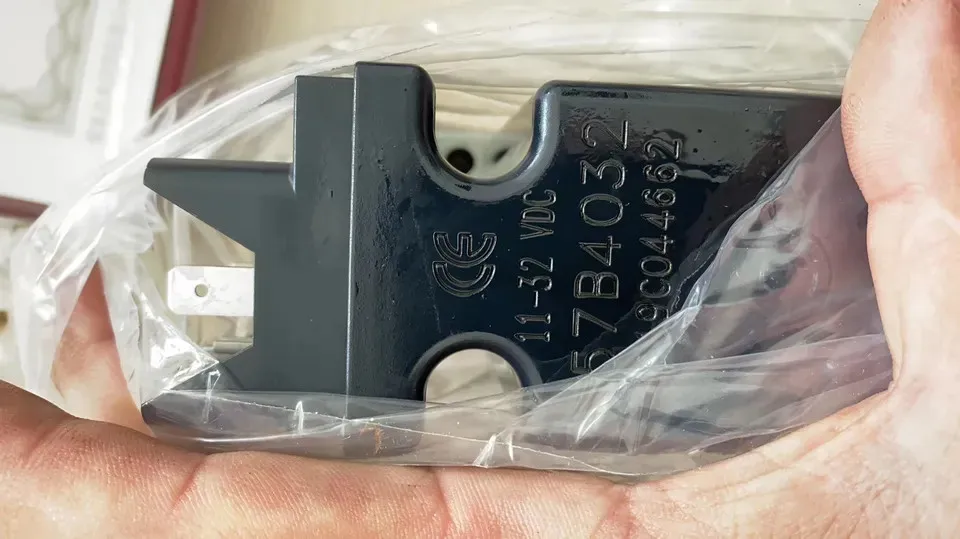

  • 157B4032 / 157B4035: PVEM proportional actuators for smooth, linear control.

  • 157B4116: High-frequency PVEA series featuring faster response and basic diagnostics.

  • 157B4128: PVES ultra-high-precision module, ideal for applications requiring extreme fine-metering.

  • 157B4734: Specialized sealing grade, optimized for high-humidity and contaminated environments.

• Core Technical Specs:

  • Supply Voltage: Wide range 11V – 32V DC input.

  • Input Signals: Ratiometric voltage or PWM (Pulse Width Modulation).

  • Hysteresis Accuracy: Typically $\le 0.5\%$.

  • Operating Temperature: $-40^\circ\text{C}$ to $+90^\circ\text{C}$.

  • Electrical Connectors: Compatible with AMP, Hirschmann, or Deutsch interfaces.
