Danfoss MBS 3050 & MBS 5100 Pressure Transmitter | 060G3557 | 060N1034 | 060N1039 | 060N1218

Danfoss MBS 3050 & MBS 5100 High-Resistance Pressure Transmitters

Product Overview:

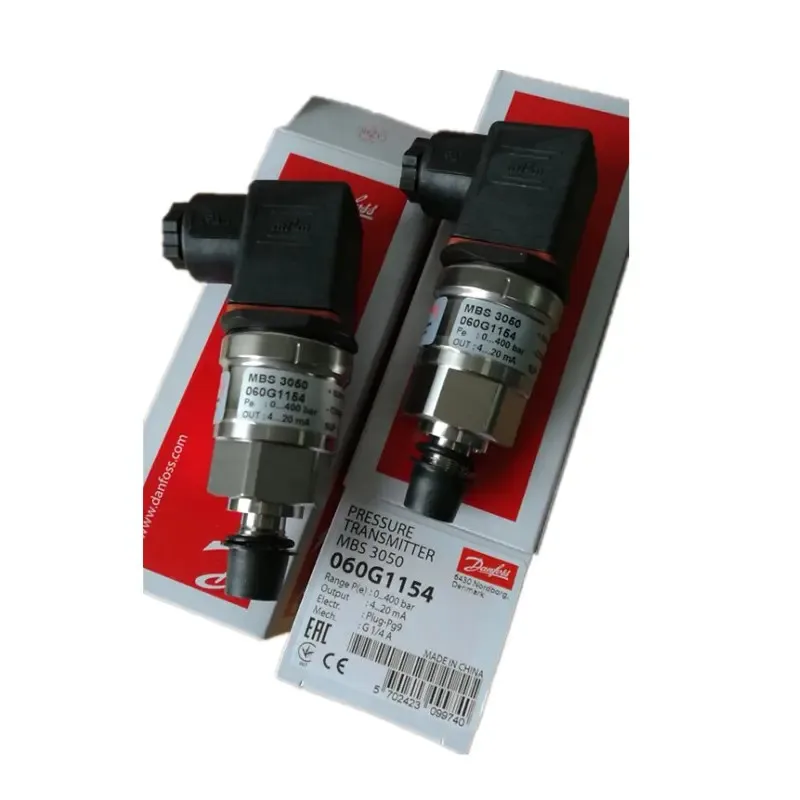

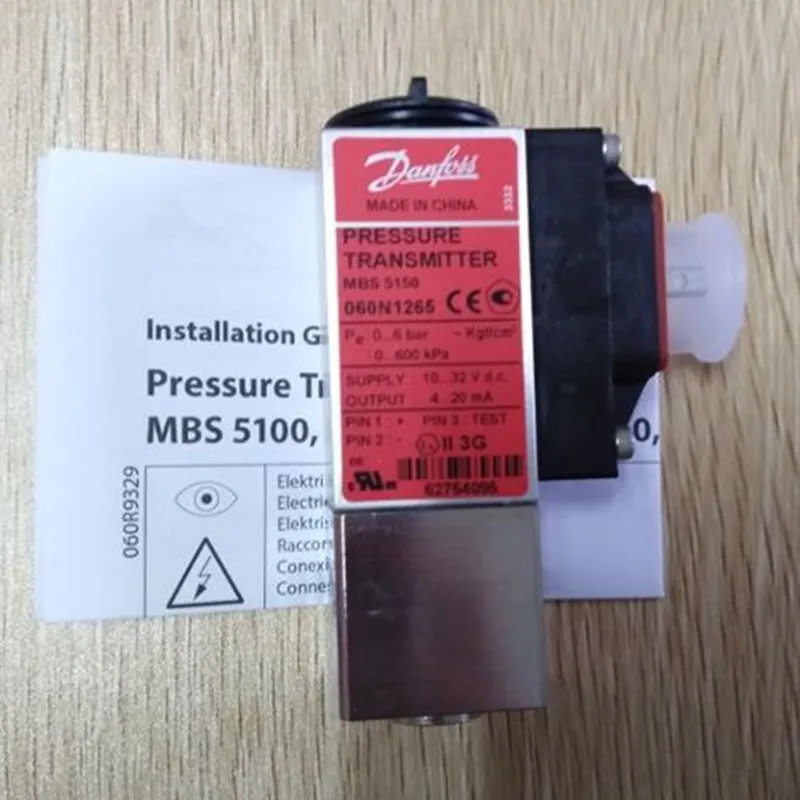

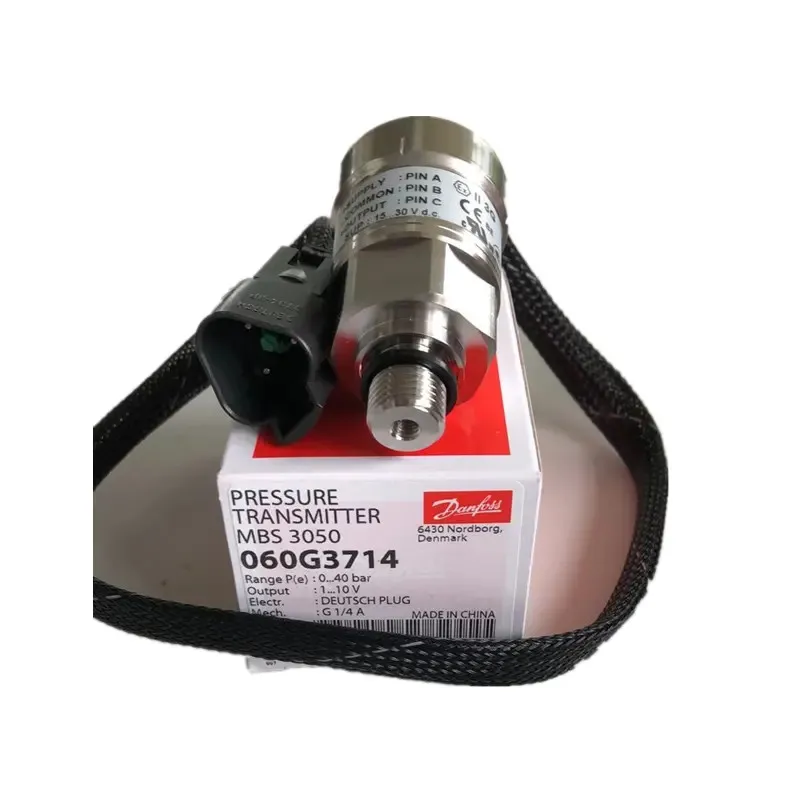

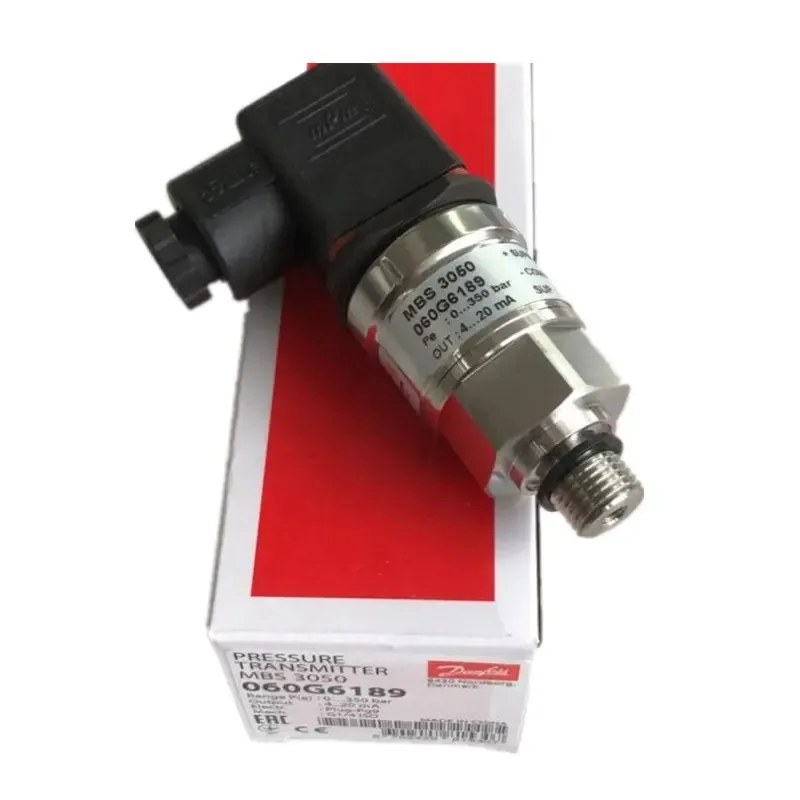

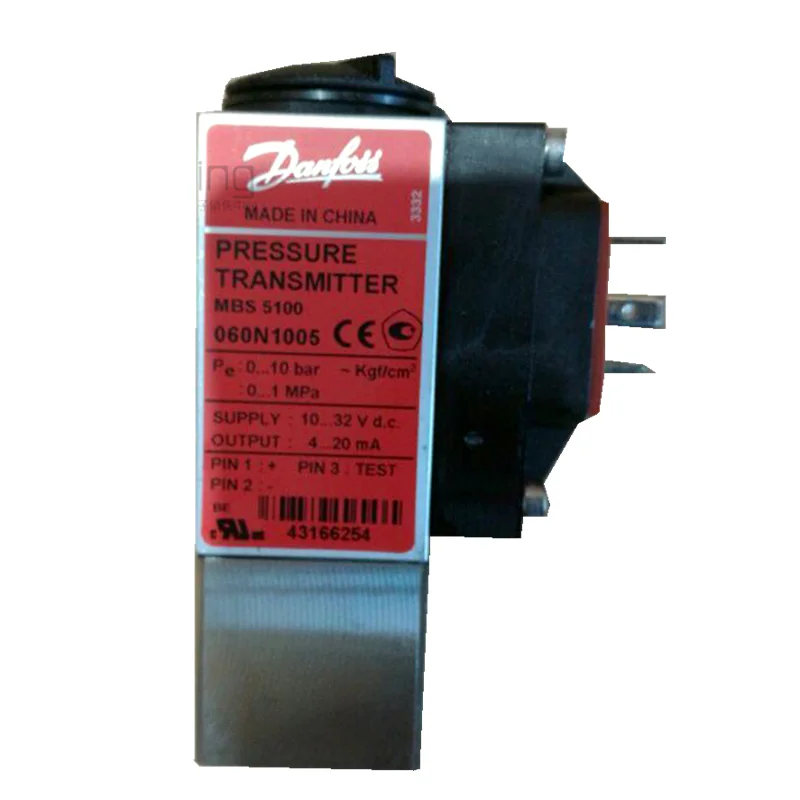

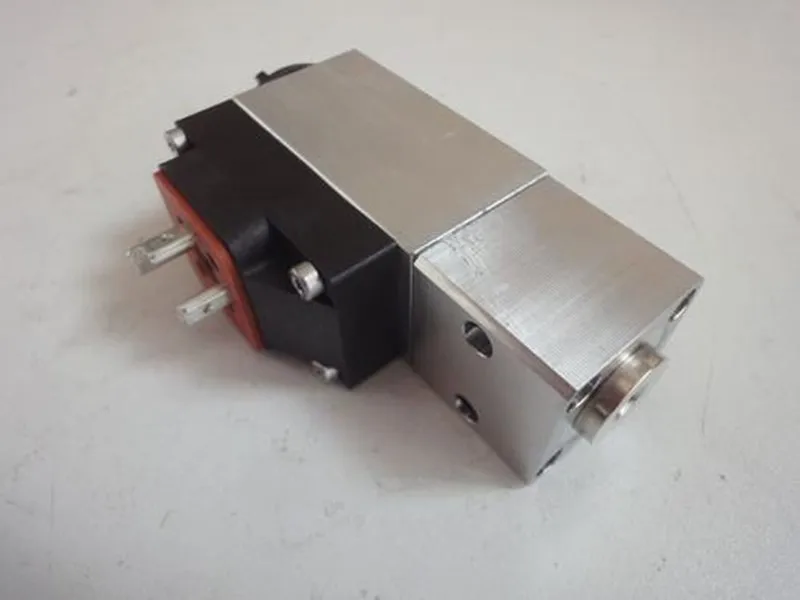

The Danfoss MBS series of pressure transmitters are engineered for the most demanding industrial and marine applications. The MBS 3050 features an integrated pulse snubber, making it immune to cavitation, liquid hammer, and severe pressure peaks common in hydraulic systems. Conversely, the MBS 5100 utilizes a specialized block-type design and is certified by nearly all major ship classification societies, making it the premier choice for engine rooms and manifold-mounted hydraulic blocks. These sensors ensure continuous and precise 4-20 mA feedback under conditions of high temperature, extreme vibration, and electromagnetic interference.

Featured part numbers: 060G3557 (MBS 3050), and the MBS 5100 series including 060N1034, 060N1035, 060N1036, 060N1039, 060N1218, 060N1261, and 060N1266.

Key Technical Advantages:

• Superior Pulse Resistance: The MBS 3050 includes a built-in damper, specifically designed to handle shocks from rapid valve switching, significantly extending the diaphragm’s service life.

• Global Marine Certifications: The MBS 5100 complies with DNV, LR, ABS, and BV standards, suitable for worldwide maritime equipment maintenance.

• Exceptional Stability & Accuracy: Advanced piezoresistive technology provides excellent zero-point stability and ultra-low hysteresis over a wide temperature range.

• Ruggedized Construction: All-stainless steel housing with an IP65 or higher enclosure rating, capable of withstanding oil, salt spray, and high humidity.

Detailed Specifications & Parameters:

• Featured Ordering Code Matrix:

  • 060G3557 (MBS 3050): Pressure range $0-250\text{ bar}$, $G$ $1/4$ $A$ connection, optimized for high-pressure hydraulics.

  • 060N1034 / 060N1035 / 060N1036: MBS 5100 block design, covering measurement ranges from $0-10\text{ bar}$ to $0-40\text{ bar}$.

  • 060N1039: Specialized for low-pressure gas or oil monitoring.

  • 060N1218 / 060N1261 / 060N1266: Customized variants optimized for specific electrical connections (e.g., DIN plugs) and pressure requirements.

• Core Technical Specs:

  • Output Signal: 4-20 mA.

  • Accuracy (Typ.): ±0.3% FS.

  • Ambient Temperature: $-40°C$ to $+85°C$.

  • Media Temperature: Up to $+125°C$.
