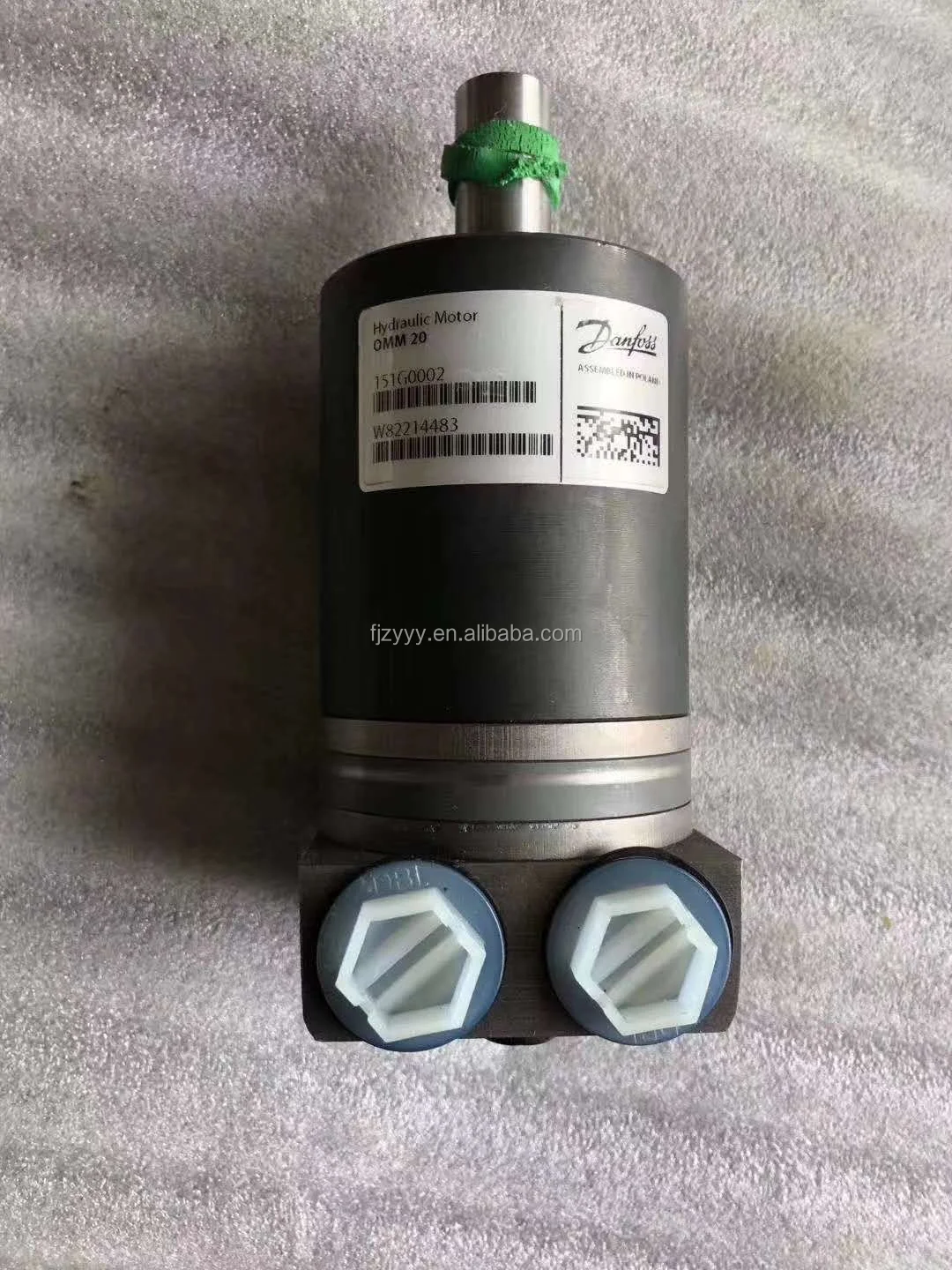

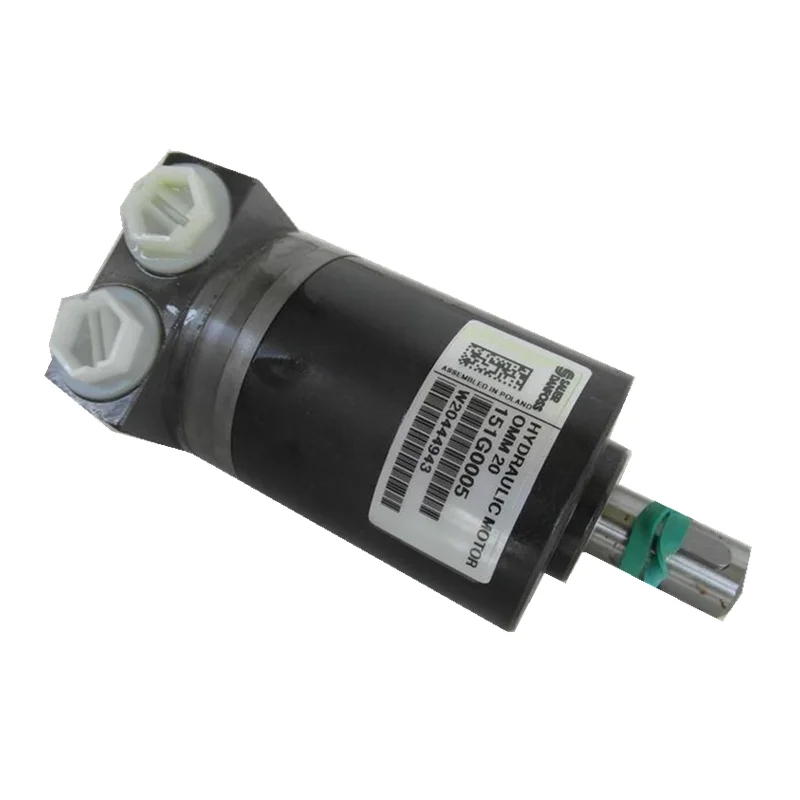

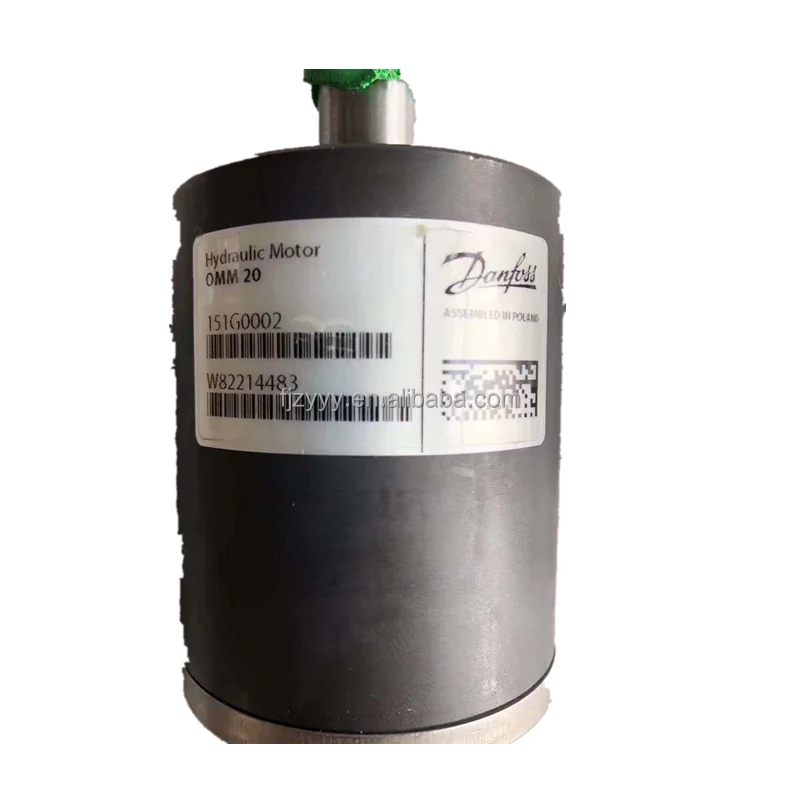

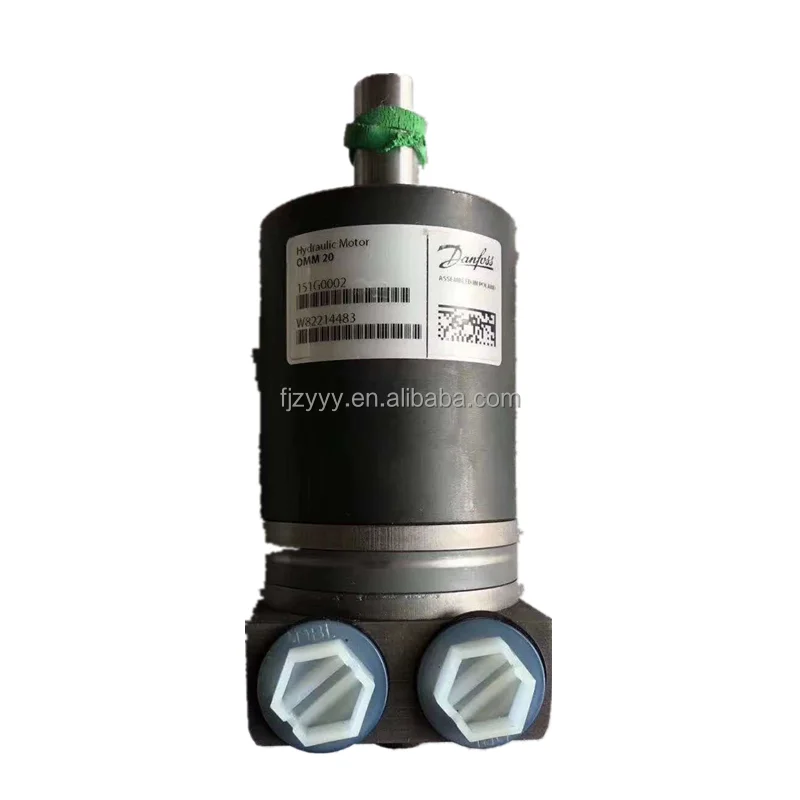

Danfoss OMM Series Micro LSHT Hydraulic Orbit Motors

Product Overview: The Danfoss OMM Series is the industry benchmark for micro-hydraulic drive technology. As the most compact member of the Danfoss orbital family, the OMM is engineered for high-efficiency power transmission in restricted spaces. This category features the most demanded genuine part numbers: OMM32 (151G0003, 151G0006), 151G0009, 151G2004, OMM50 (151G0013), and 151G0229.

Utilizing advanced spool valve technology, the OMM series offers exceptional power density. Its lightweight construction makes it the premier choice for fan drive units, small harvesters, conveyor drives, industrial sweepers, and automated assembly lines.

Key Technical Advantages:

• Ultra-Compact Footprint: Minimal dimensions allow for seamless integration into machinery where mounting space is severely limited.

• Superior High-Speed Stability: Capable of maintaining low-vibration and smooth torque delivery even at high rotational speeds.

• High-Pressure Shaft Sealing: Equipped with premium seals to handle back-pressure spikes, ensuring a long and reliable service life.

• Precise OEM Interchangeability:

  • 151G0003 / 151G0006 (OMM32): Specifies exact mounting flange and shaft dimensions.

  • 151G0013 (OMM50): Offers the maximum displacement and torque combination in the series.

Detailed Specifications & Parameters:

• Core Series: Danfoss OMM Series (Micro Hydraulic Motor)

• Featured Model/Part Numbers: OMM32, OMM50, 151G0003, 151G0006, 151G0009, 151G2004, 151G0013, 151G0229

• Core Performance Specs:

  • Displacement Range: 8.2 cc/rev to 50.3 cc/rev.

  • Rated Pressure: Continuous up to 100 Bar (1450 PSI); Intermittent peaks up to 225 Bar (3260 PSI).

  • Torque Capability: Continuous torque ranging from 11 Nm up to 61 Nm.

  • Speed Capacity: Continuous speeds up to 630 – 2000 RPM (displacement dependent).

  • Mounting Standards: 3-Bolt circular flange or threaded mounts; Shaft options include 16mm Keyed or Splined designs.
