Danfoss OMM Series Motor | OMM8 OMM12.5 OMM20 | 151G0041 151G0001 151G0002

Model Number

OMM32 151G0006, OMM20 151G0005, OMM50 151G0037

Inquiry

Product Description

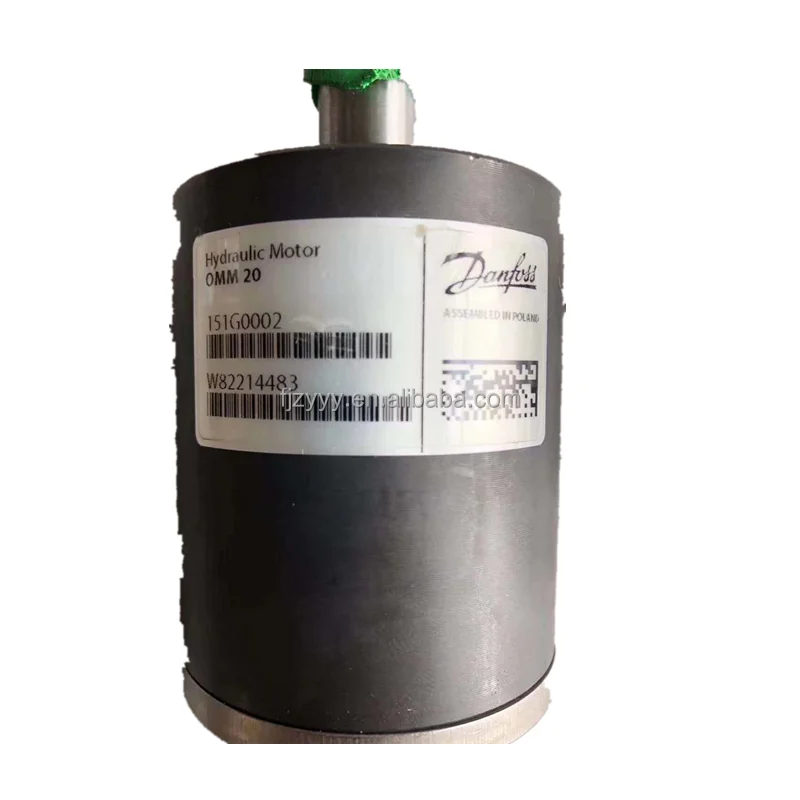

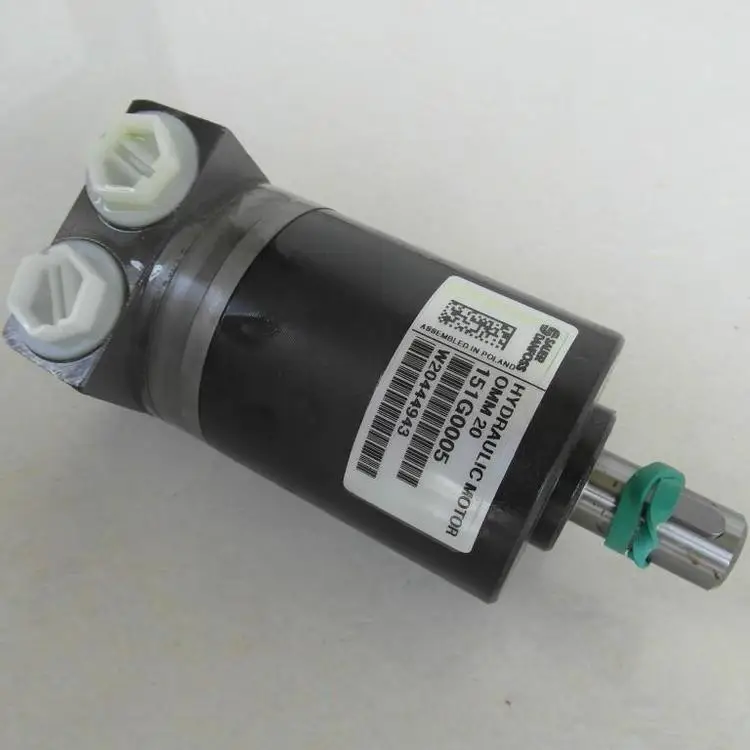

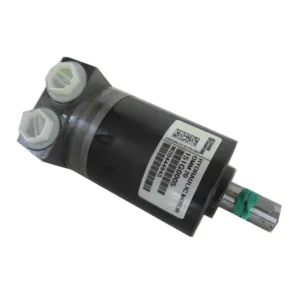

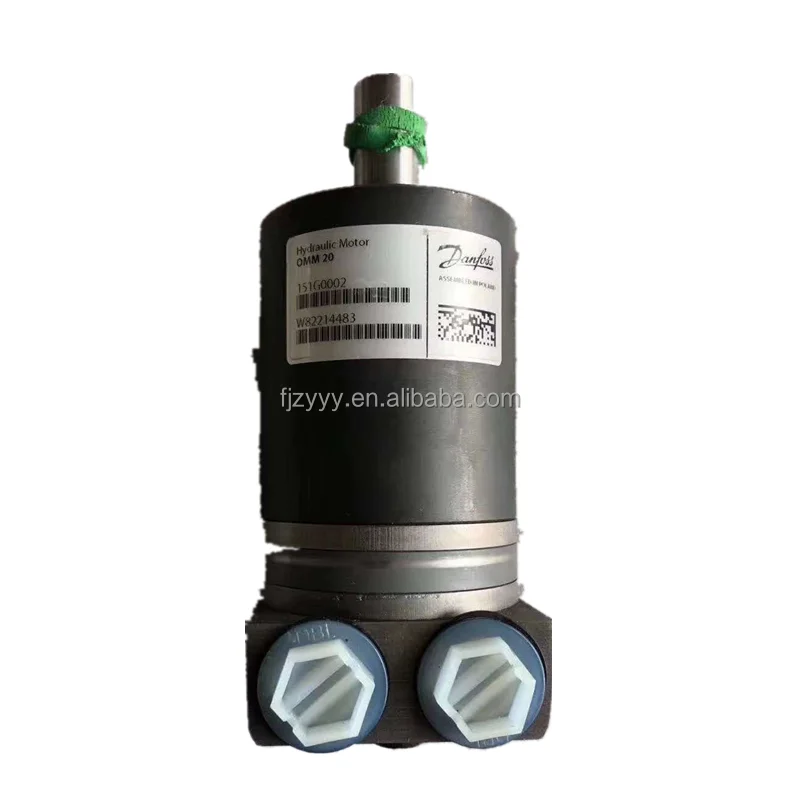

Danfoss OMM Series Micro LSHT Hydraulic Orbit Motors

Product Overview: The Danfoss OMM Series is the industry benchmark for micro-hydraulic drive technology. As the most compact member of the Danfoss orbital family, the OMM series is engineered to deliver high speeds and stable torque within an extremely small installation footprint. This category focuses on key models and precise part numbers: OMM8 (151G0041), OMM12.5 (151G0001, 151G0004), and OMM20 (151G0002, 151G0005).

Featuring a spool valve design, the OMM series offers exceptional power density. Its lightweight construction makes it the premier choice for fan drives, lawnmowers, automated conveyor lines, sweeper brush systems, and handheld hydraulic tools.

Key Technical Advantages:

  • Ultra-Compact Envelope: Minimal dimensions allow for seamless integration into complex machinery where mounting space is severely restricted.

  • Superior High-Speed Capability: Capable of maintaining low-vibration and smooth power delivery even at high rotational speeds.

  • High-Pressure Shaft Sealing: Equipped with premium seals that ensure reliable performance even without an external case drain (application dependent).

  • Precise Part Number Matching:

    • 151G0041 (OMM8): Optimized for ultra-micro high-speed applications.

    • 151G0001 / 151G0004 (OMM12.5): Industry-standard specifications for guaranteed 100% OEM interchangeability.

    • 151G0002 / 151G0005 (OMM20): Perfectly balances compact size with higher torque output.

Detailed Specifications & Parameters:

  • Core Series: Danfoss OMM Series (Micro Hydraulic Motor)

  • Featured Models/Part Numbers: OMM8, OMM12.5, OMM20, 151G0041, 151G0001, 151G0004, 151G0002, 151G0005

  • Core Performance Specs:

    • Displacement Range: 8.2 cc/rev, 12.9 cc/rev, 20.0 cc/rev.

    • Rated Pressure: Continuous up to 100-140 Bar; Intermittent peaks exceeding 225 Bar.

    • Speed Capacity: Continuous speeds ranging from 1000 up to 2000 RPM.

    • Torque Capability: Continuous torque spanning from 11 Nm up to 25 Nm.

    • Mounting Standards: 3-Bolt circular flange or threaded mounts, with 16mm Keyed or Splined shaft options.

151B-3103 OMV 630 HYDRAULIC MOTOR
151B-3104 OMV 800 HYDRAULIC MOTOR
151B-3105 OMV 315 HYDRAULIC MOTOR
151B-3106 OMV 400 HYDRAULIC MOTOR
151B-3107 OMV 500 HYDRAULIC MOTOR
151B-3108 OMV 630 HYDRAULIC MOTOR
151B-3109 OMV 800 HYDRAULIC MOTOR
151B-3110 OMV 315 HYDRAYLIC MOTOR
151B-3111 OMV 400 HYDRAULIC MOTOR
151B-3113 OMV 630 HYDRAULIC MOTOR
151B-3114 OMV 800 HYDRAULIC MOTOR
151B-3132 OMV 500 HYDRAULIC MOTOR
151B-3136 OMV 500 HYDRAULIC MOTOR
151B-3173 OMV 630 HYDRAULIC MOTOR
151B-3178 OMV 630 HYDRAULIC MOTOR
151B-3179 OMV 800 HYDRAULIC MOTOR
151B-3180 OMV 400 HYDRAULIK MOTOR
151B-3183 OMV 800 ?50 CYL.
151B-3189 OMV 630 50CYL HYDRAULIC MOTOR
151B-3192 OMV 400 HYDRAULIC MOTOR
151B-3200 OMT 160 FX HYDRAULIC MOTOR
151B-3205 OMT 500 FX HYDRAULIC MOTOR
