Danfoss MBS Series High-Performance Pressure Transmitters

Product Overview:

The Danfoss MBS Series pressure transmitters set the industry standard for pressure monitoring in heavy-duty industrial and marine hydraulic systems. This series includes the MBS 5100 block-type marine transmitter, designed for extreme environments, and the MBS 3000 compact transmitter for versatile industrial applications. With exceptional vibration stability, high-precision 4-20 mA output, and comprehensive global marine approvals, the MBS series ensures consistent and reliable data feedback under high temperatures, severe mechanical shock, and electromagnetic interference.

Featured on this page are the marine block-type MBS 5100 (060N1202), the dampened MBS 5153, and the compact industrial favorites MBS 3000 (060G1122, 060G1103).

Key Technical Advantages:

• Global Marine Approvals: MBS 5100/5153 carry certifications from DNV, GL, LR, BV, and ABS, making them ideal for ship engines and deck machinery.

• Superior EMC Protection: Optimized for electromagnetic compatibility to ensure signal integrity in electrically noisy environments.

• Integrated Pulse Snubber: Models like the MBS 5153 feature a built-in snubber to protect the sensor element against cavitation, liquid hammer, and pressure peaks.

• Long-Term Stability: Laser-welded stainless steel diaphragms guarantee excellent thermal stability and an extended service life.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • MBS 5100 (060N1202): Block-design, marine pressure transmitter for high-vibration engine rooms.

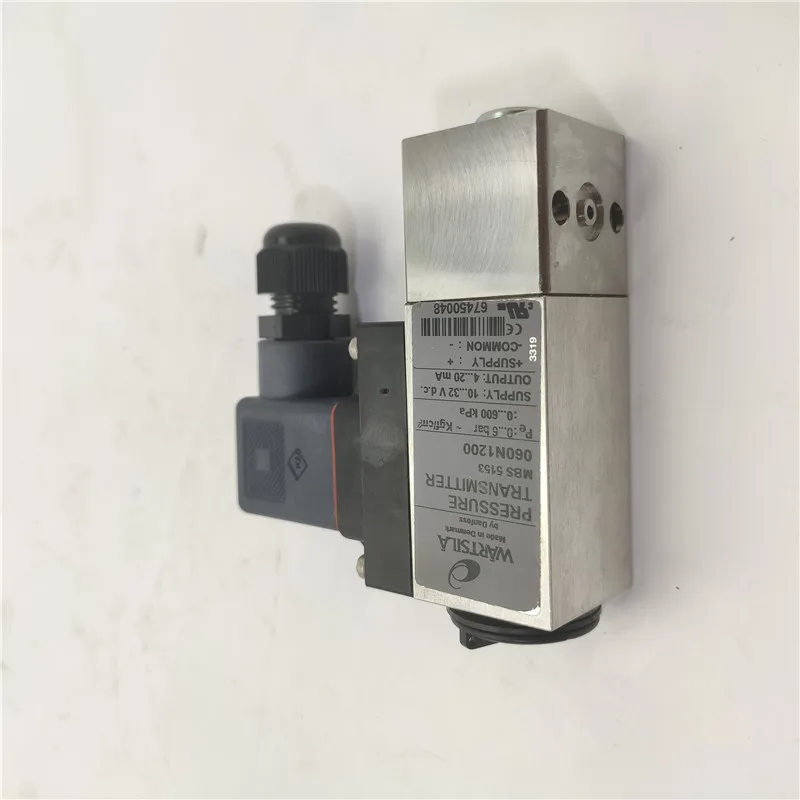

  • MBS 5153 (Enhanced Marine): Features an integrated pulse snubber for severe hydraulic shocks.

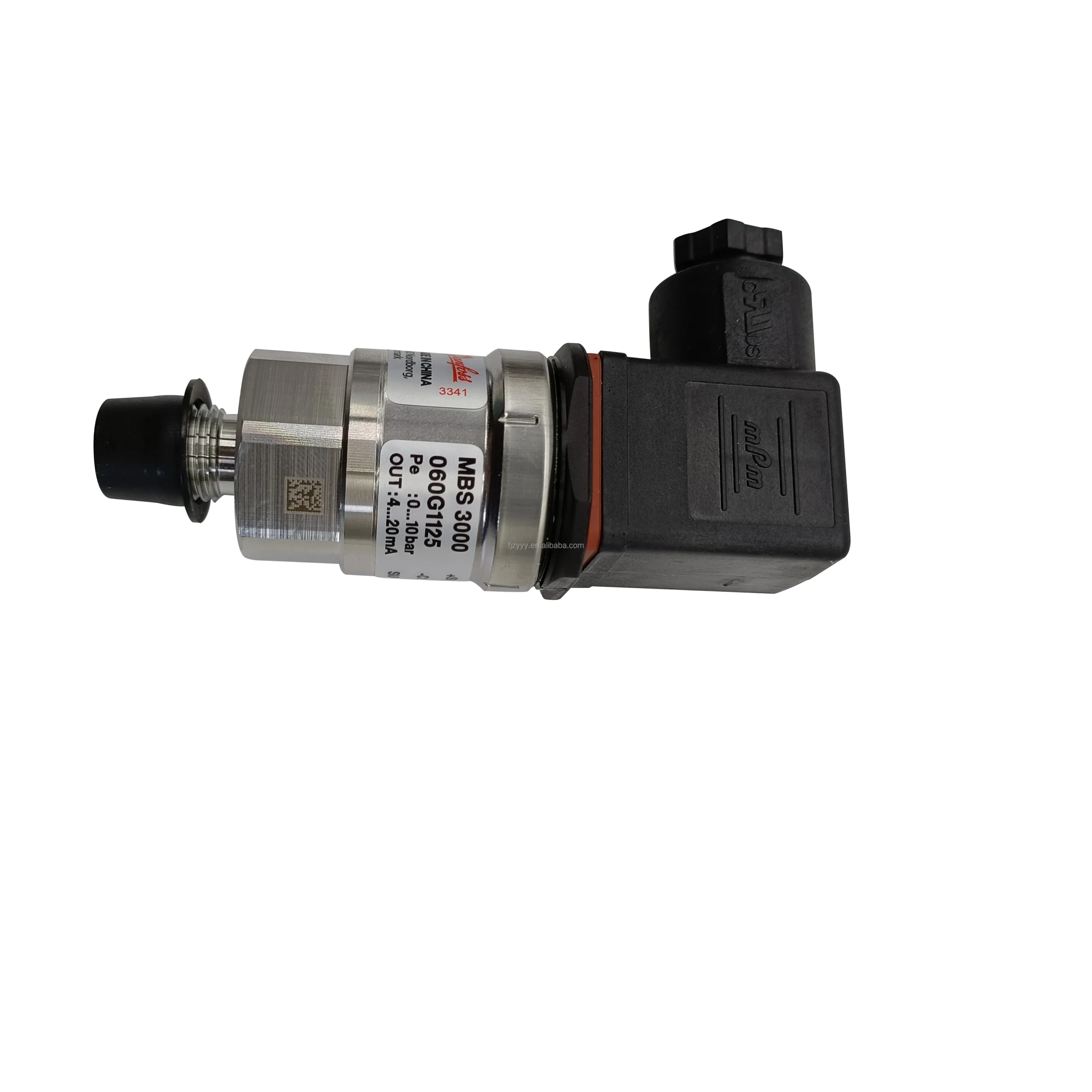

  • MBS 3000 (060G1122): Compact industrial transmitter with standard 4-20 mA output.

  • MBS 3000 (060G1103): High-performance industrial version with exceptional zero-point stability.

• Core Technical Specs:

  • Output Signal: Standard 4 – 20 mA.

  • Operating Temperature: $-40$°C to $+85$°C.

  • Enclosure Rating: IP65 (Compliant with industrial and maritime sealing standards).

  • Electrical Connection: DIN 43650-A plug or cable connection.
