Danfoss MBS 3000 Compact Pressure Transmitters

Product Overview:

The Danfoss MBS 3000 is a compact pressure transmitter designed for use in almost all industrial applications. It offers reliable pressure measurement, even under severe environmental conditions such as high vibration, pressure peaks, or electromagnetic interference. Featuring a standard 4-20 mA output signal, superior EMC immunity, and excellent shock resistance, the MBS 3000 is built for durability. Its laser-welded stainless steel diaphragm (AISI 316L) ensures medium compatibility and long-term stability, making it ideal for hydraulics, compressors, and industrial process control.

Featured models include: 060G3944, 060G1104, 060G1133, 060G1413, and 060G1124/1125.

Key Technical Advantages:

• Industrial-Grade Immunity: Exceptional EMC protection ensures clear signal transmission even near frequency converters and high-power electrical equipment.

• Ruggedized Design: Optimized for hydraulic pulses and cavitation; the laser-welded AISI 316L stainless steel diaphragm provides high corrosion resistance and long life.

• High Precision: Fully temperature-compensated to maintain accurate measurement across a range of $-40$°C to $+85$°C.

• Standard Fitting Compatibility: Available with widely used 1/4″ NPT and G 1/4A thread connections for easy installation and maintenance.

Detailed Specifications & Parameters:

• Featured Model Matrix (Part Numbers):

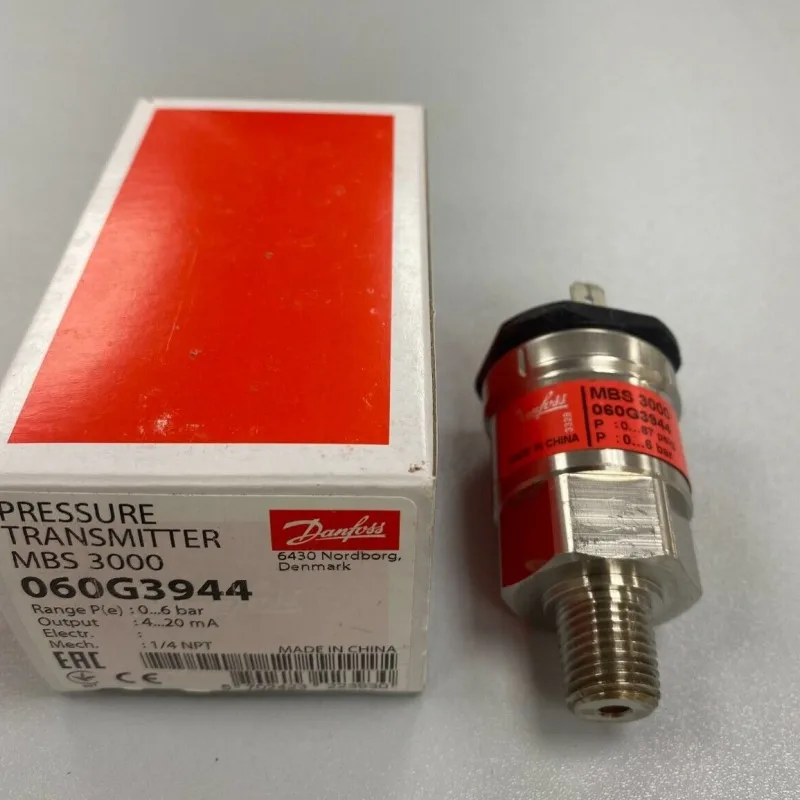

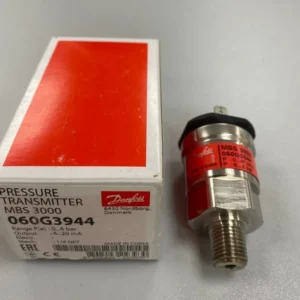

  • MBS 3000-060G3944: Industrial standard version with 1/4″ NPT connection.

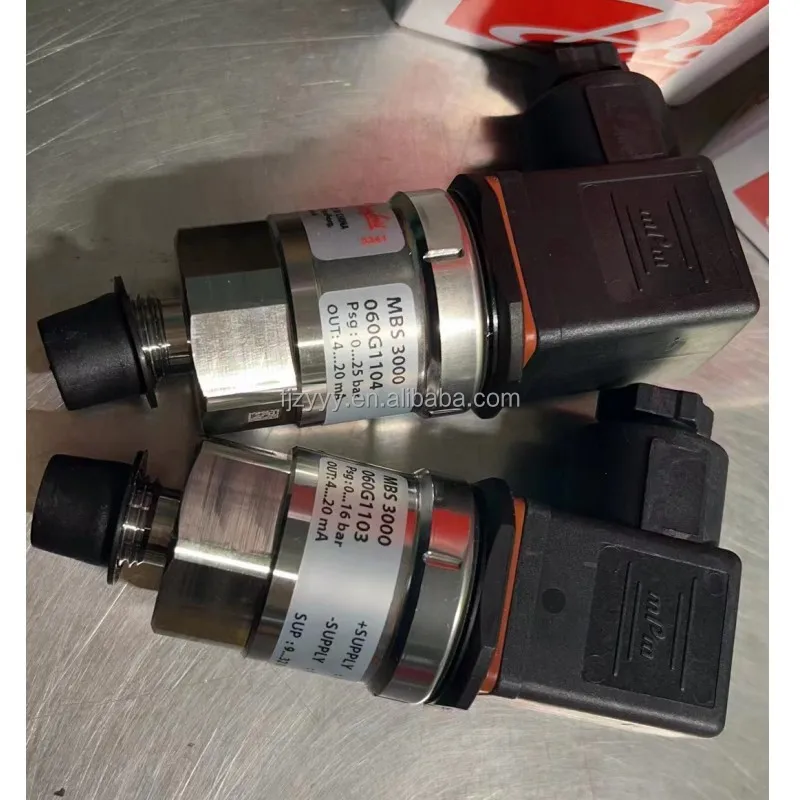

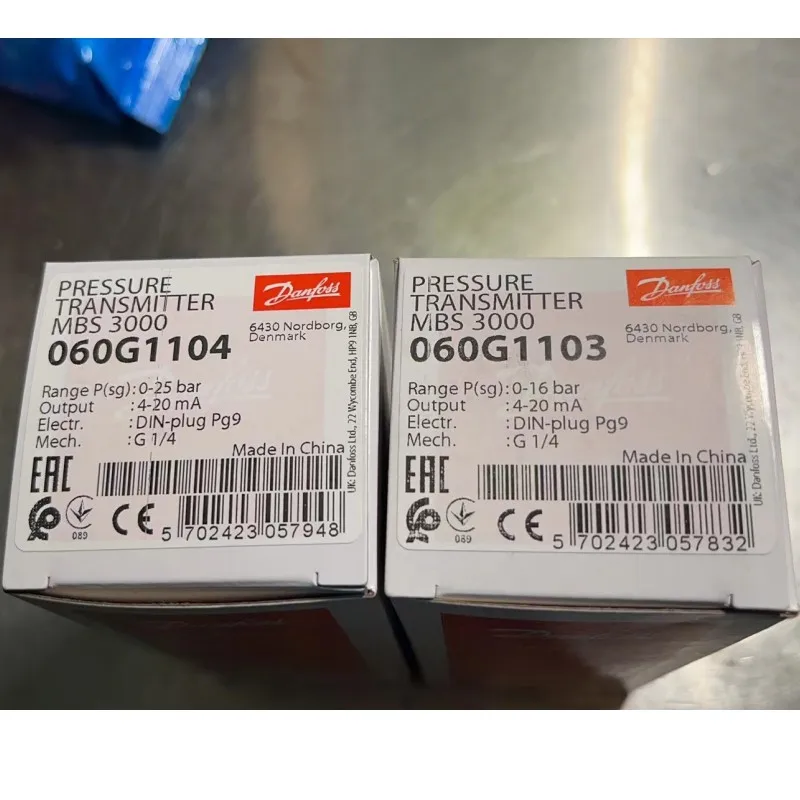

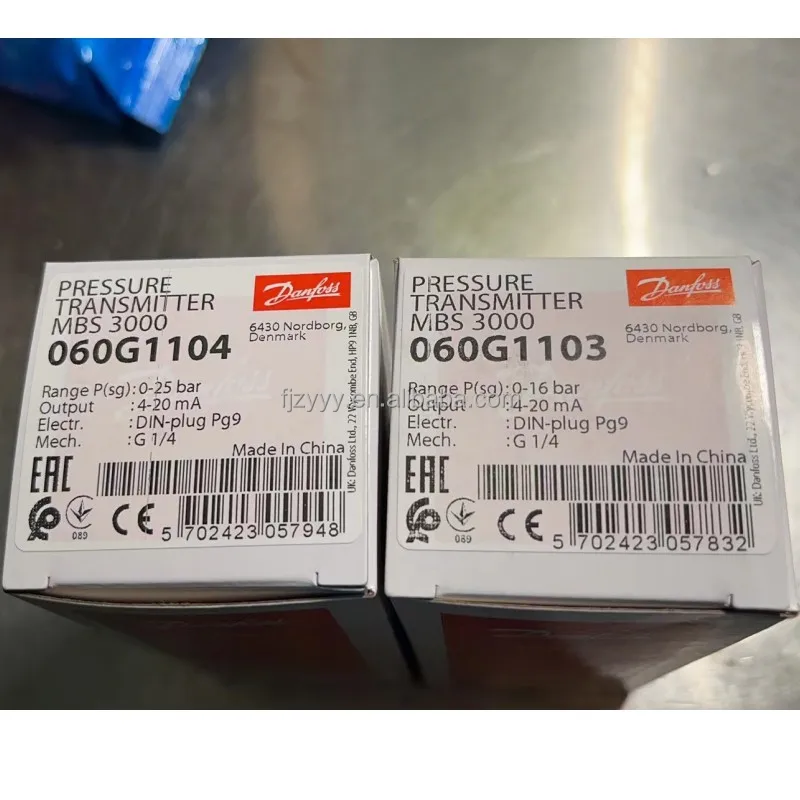

  • 060G1103 / 060G1104: Universal range models (e.g., 0-10 bar, 0-16 bar).

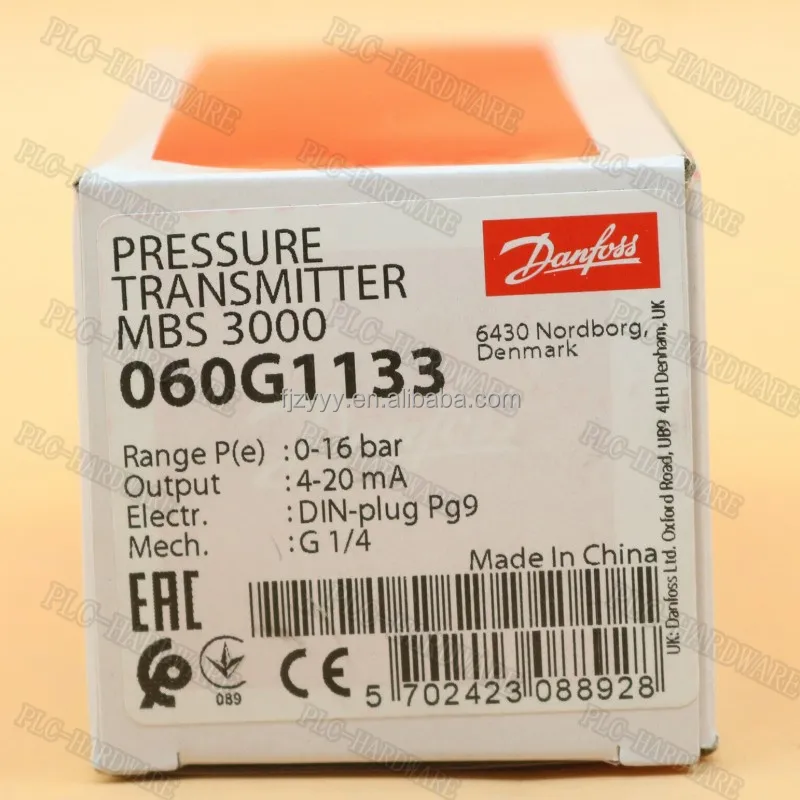

  • MBS 3000-060G1133: High-demand model for typical industrial pressure monitoring.

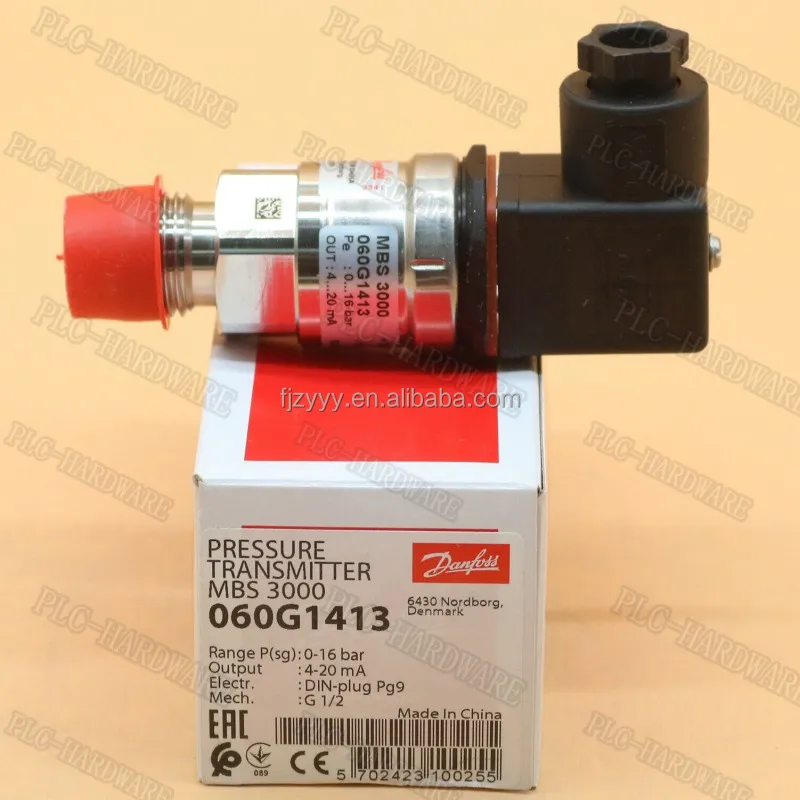

  • 060G1413: Specialized configuration for specific accuracy or connection requirements.

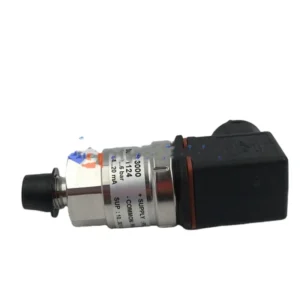

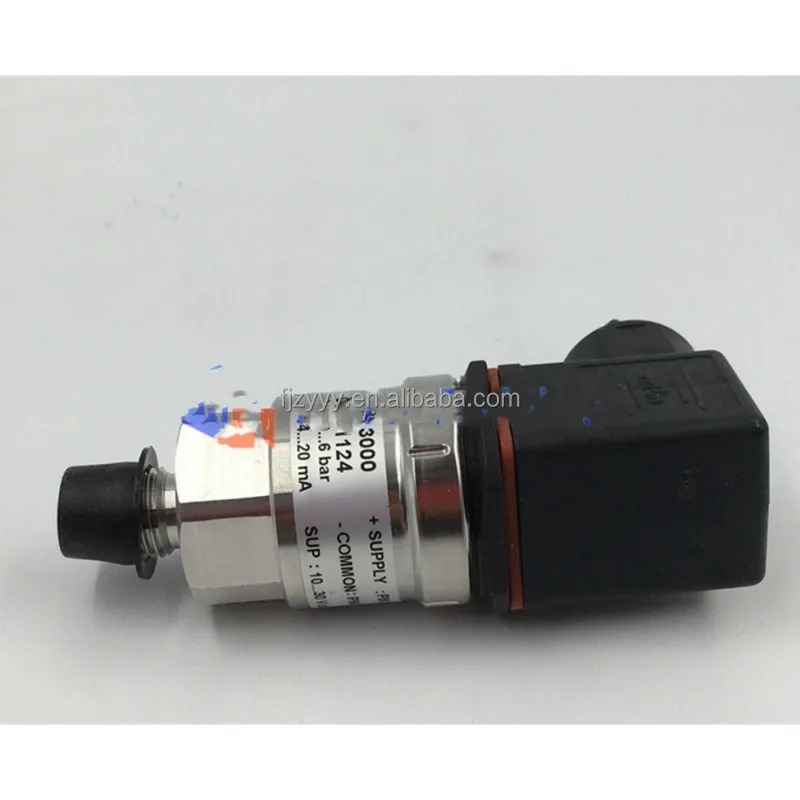

  • 060G1124 / 060G1125: Optimized models for high-pressure segments (e.g., 0-250 bar, 0-400 bar).

• Core Technical Specs:

  • Output Signal: $4 – 20 \text{ mA}$ (2-wire).

  • Supply Voltage: $9 – 32 \text{ V DC}$.

  • Pressure Connection: $1/4″ \text{ NPT}$ or $G 1/4 A$ (PN dependent).

  • Accuracy: $\pm 0.5\% \text{ FS}$ (typical).

  • Enclosure Rating: IP65.
