Danfoss MBS Pressure Transmitter | MBS 1250 3050 4510 1700 | Industrial & Hydraulic

Danfoss MBS Series General Industrial & Hydraulic Pressure Transmitters

Product Overview:

The Danfoss MBS Series stands as the global benchmark for pressure monitoring in hydraulic, pneumatic, and general industrial applications. This comprehensive range spans from the ultra-compact MBS 1200 to the pulse-resistant MBS 3050 and the high-precision MBS 4510. Engineered to withstand severe vibration in mobile hydraulics and high-frequency shocks in industrial pump stations, MBS transmitters utilize laser-welded stainless steel diaphragms and superior EMC protection to deliver stable, reliable $4-20\text{ mA}$ or ratiometric signals.

This page features the core series: MBS 1200/1250 (Compact), MBS 1700/1750 (General Purpose), MBS 3050 (Heavy Duty/Dampened), and MBS 4510 (Flush Diaphragm).

Key Technical Advantages:

• Heavy-Duty Pulse Protection: The MBS 3050/1250 are designed specifically for hydraulic systems prone to water hammer, cavitation, and extreme pressure peaks, featuring integrated pulse snubbers.

• Ultra-Compact Footprint: The MBS 1200 series provides a competitive solution for space-constrained OEM machinery without compromising durability.

• Flush Diaphragm Technology: The MBS 4510 utilizes a flush diaphragm to prevent clogging from high-viscosity or crystallizing media, making it ideal for process control.

• Industrial-Grade Reliability: All models meet stringent industrial standards, offering excellent thermal stability and long-term zero-point consistency.

Detailed Specifications & Parameters:

• Core Series Matrix:

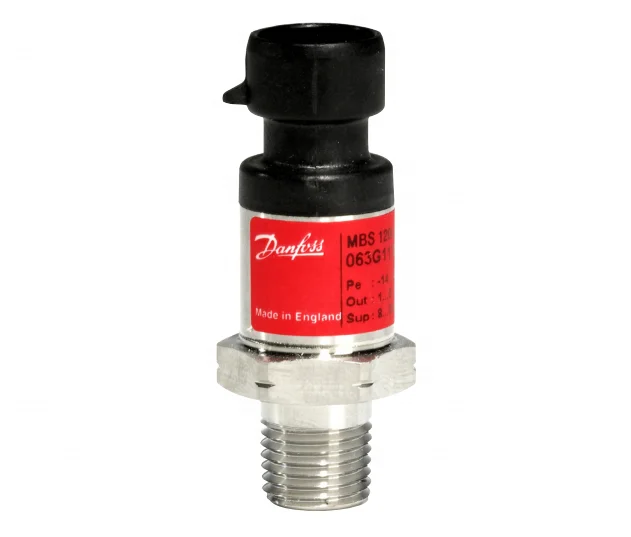

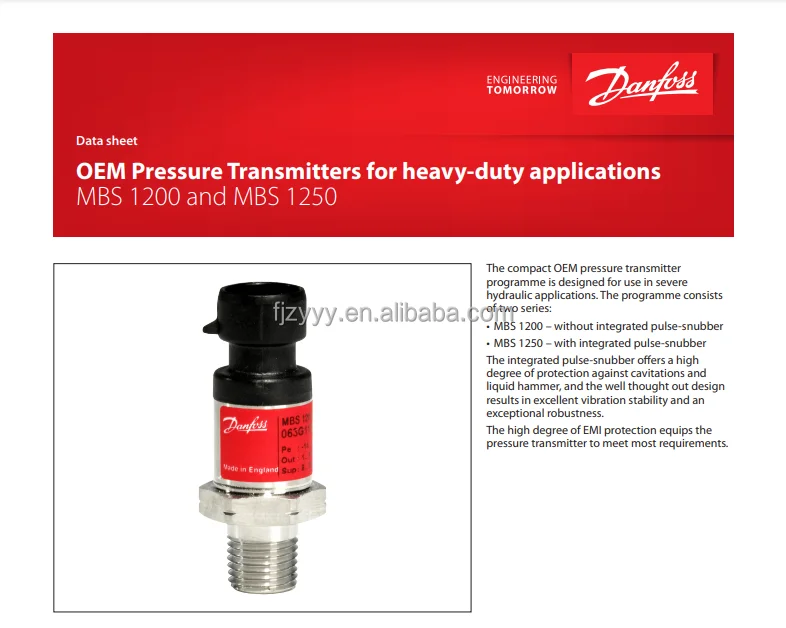

  • MBS 1200 / 1250: Compact OEM pressure transmitters; MBS 1250 includes integrated pulse snubber.

  • MBS 1700 / 1750: Standard industrial applications with versatile port and connector options.

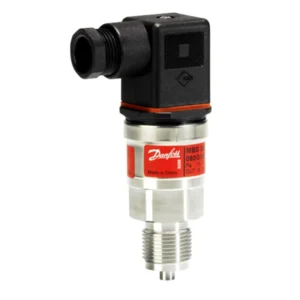

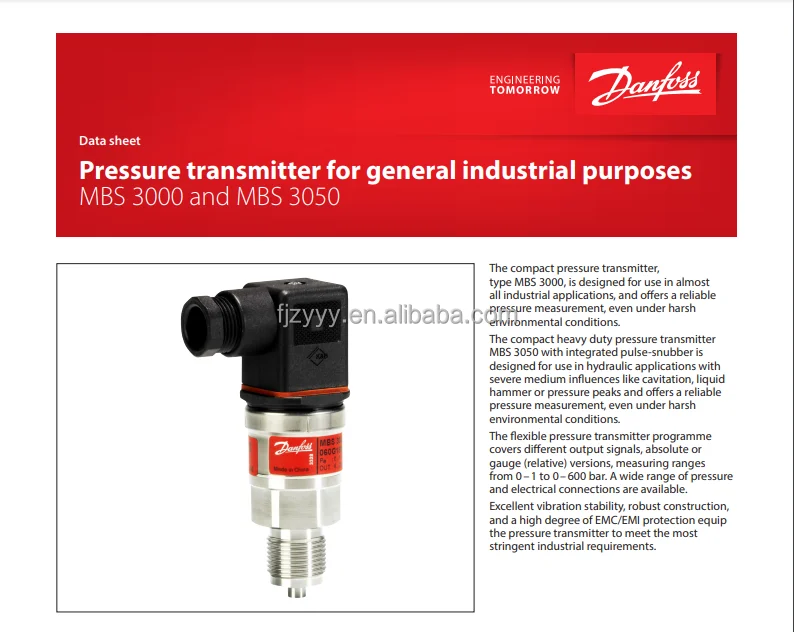

  • MBS 3050: Heavy-duty hydraulic specialist with extreme vibration and shock resistance.

  • MBS 4510: High-precision flush diaphragm transmitter for demanding media.

• Core Technical Specs:

  • Output Signal: $4-20\text{ mA}$, $0-10\text{ V}$, or Ratiometric.

  • Pressure Ranges: From $0-1\text{ bar}$ up to $0-600\text{ bar}$ (model dependent).

  • Operating Temperature: Up to $125$°C (available for specific models).

  • Enclosure Rating: IP65 / IP67.

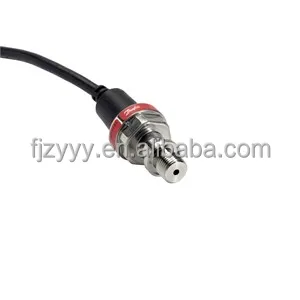

  • Electrical Connection: DIN 43650, M12x1, or direct cable.
