Danfoss LC/LV/KC Motor | LC25 LC30 LV30 KC45 | Plug-in Piston Motor | Lc25csfr1ff07snnfff18nnbnpn

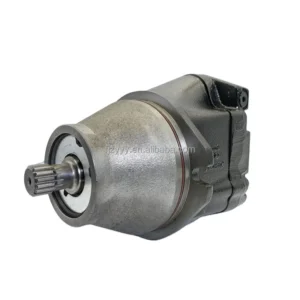

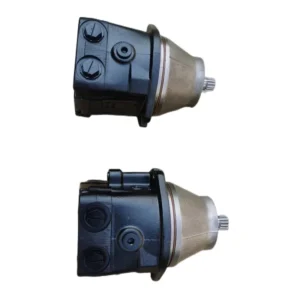

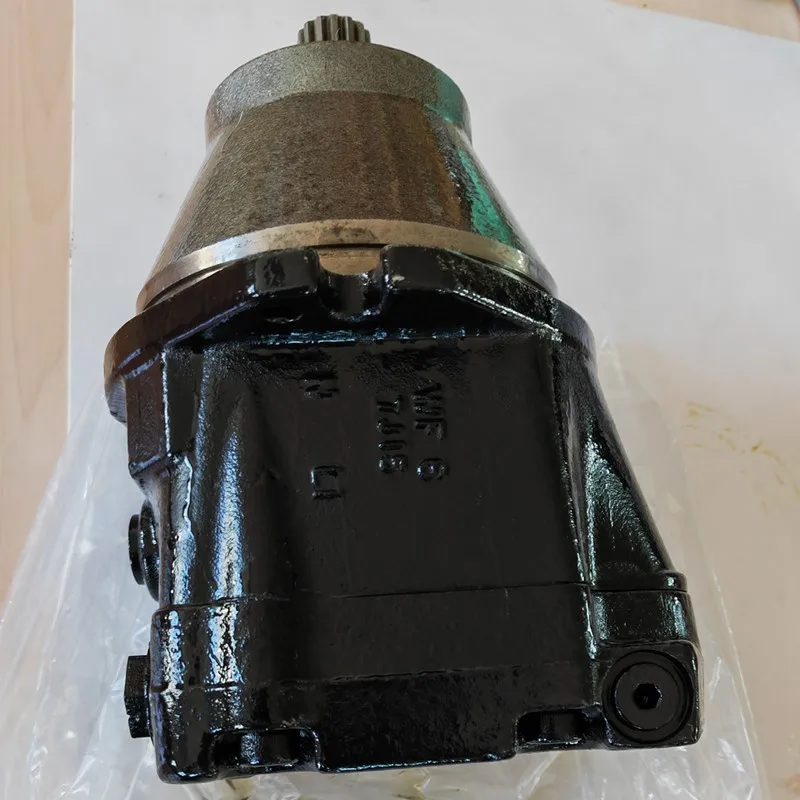

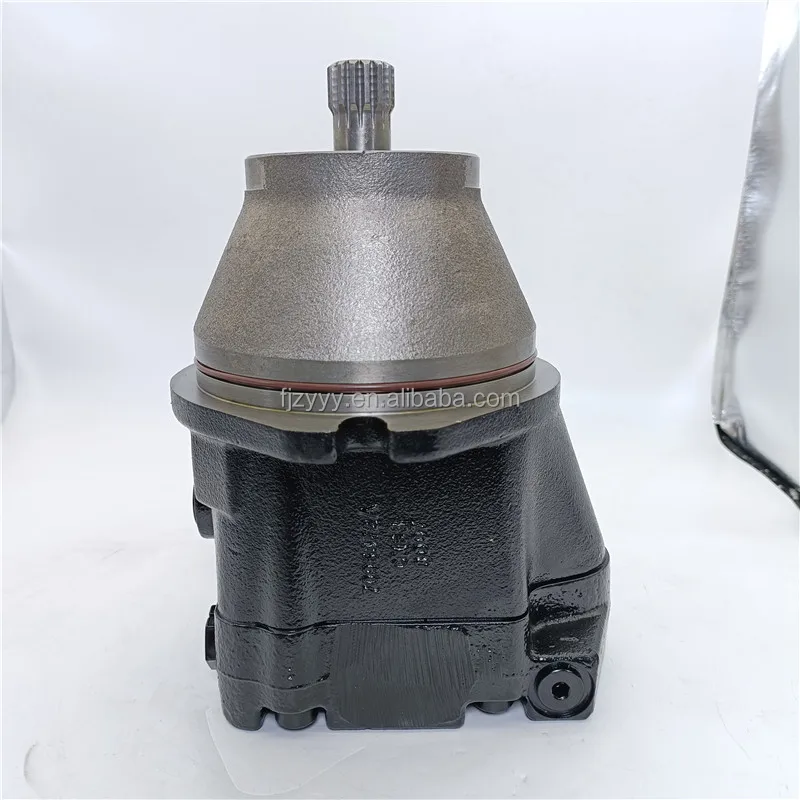

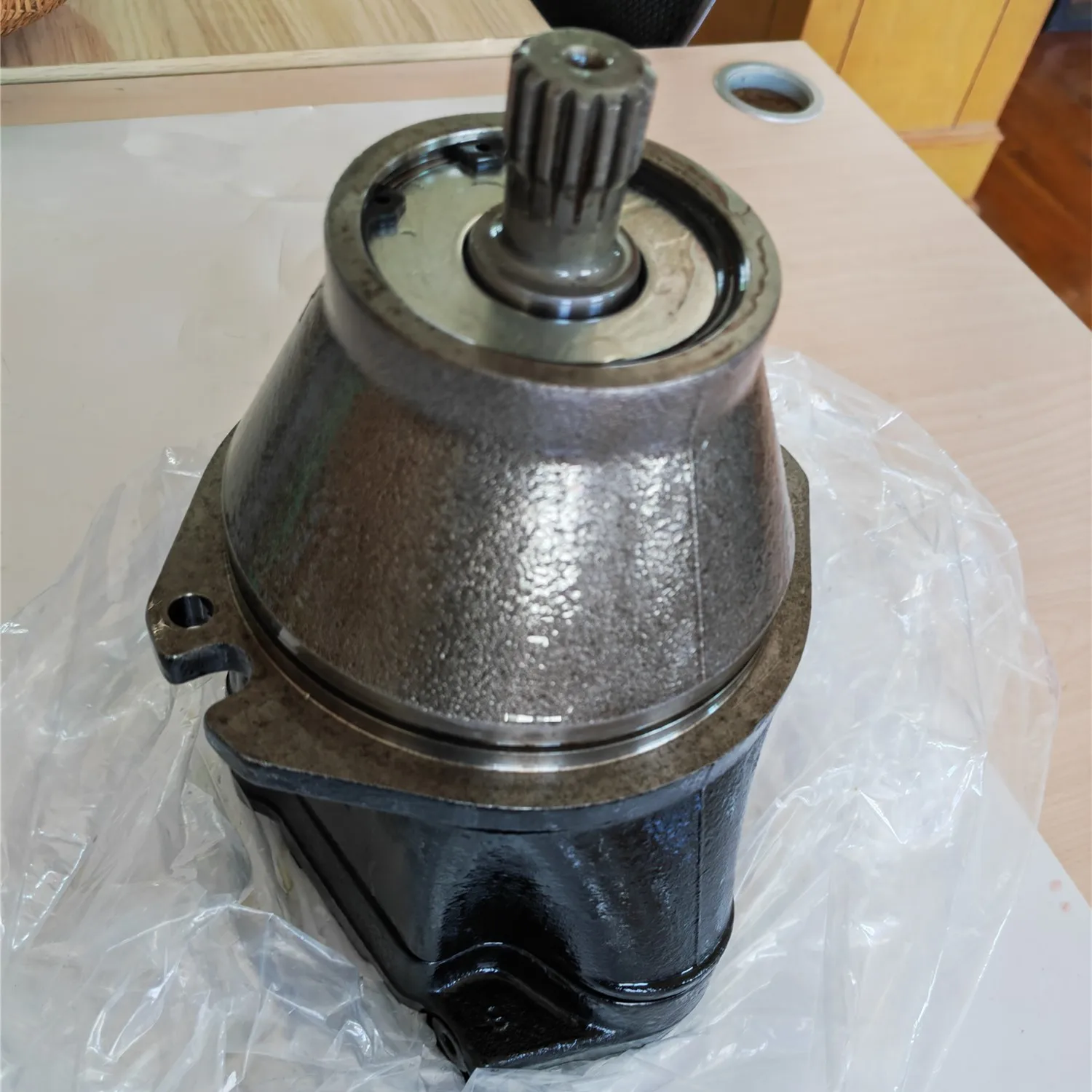

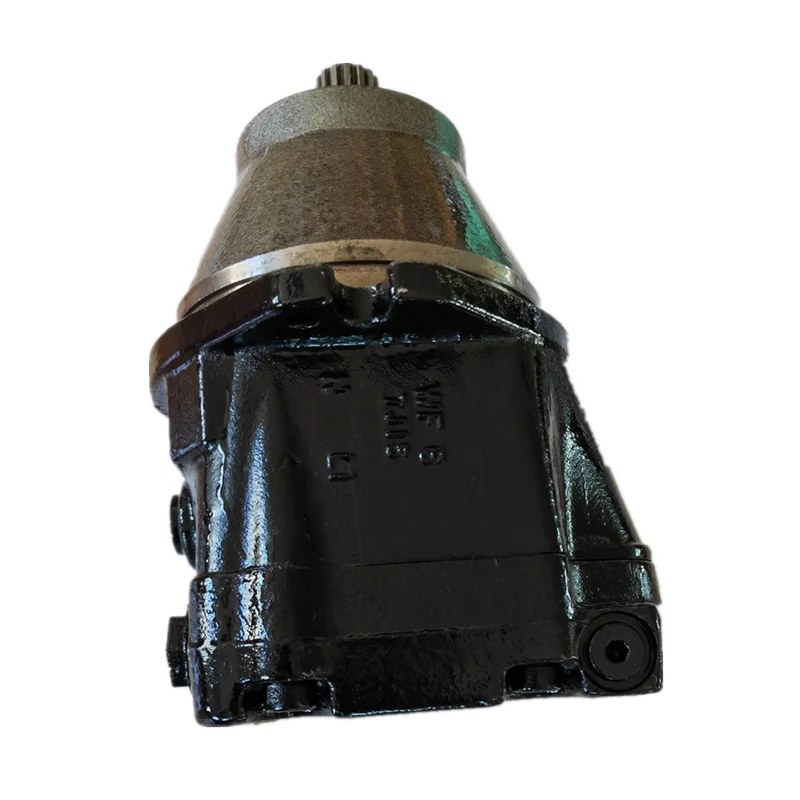

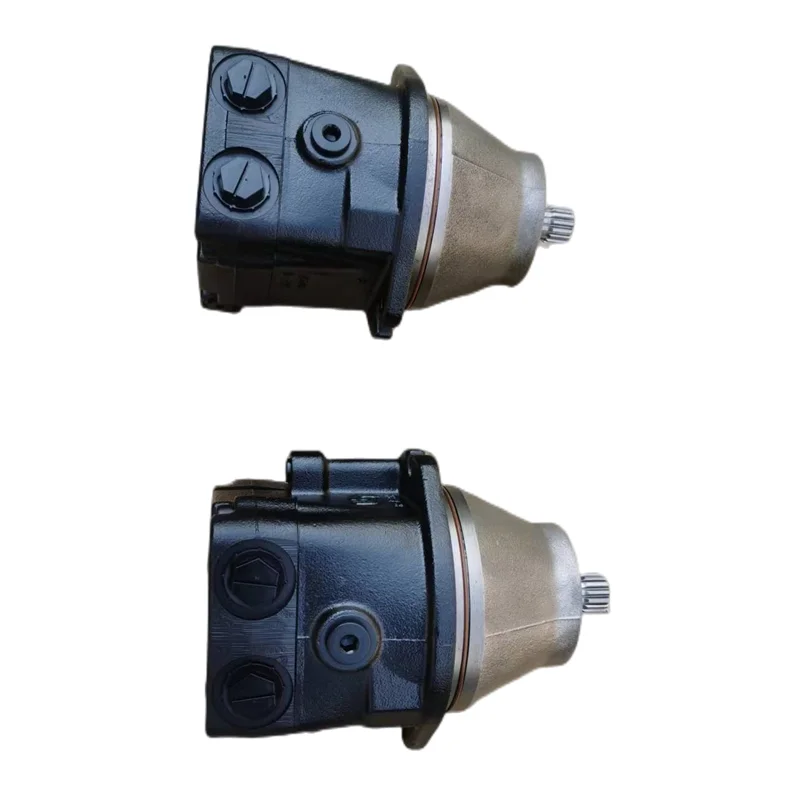

Danfoss L & K Series Plug-in Axial Piston Hydraulic Motors

Product Overview: The Danfoss LC, LV, and KC Series are axial piston units specifically engineered for compact closed-circuit hydrostatic transmissions. This lineup features LC/KC (Fixed Displacement) and LV (Variable Displacement) motors, renowned for their Plug-in design that significantly reduces the axial length of the drivetrain. This category covers the core sizes: LC25, LC30, LC35, LV25, LV30, and KC45, including the high-precision long-code model Lc25csfr1ff07snnfff18nnbnpn. These motors are the premier choice for compact rollers, municipal sweepers, turf care equipment, and small crawler drives.

Key Technical Advantages:

• Elite Spatial Efficiency: The plug-in flange design allows the motor body to be recessed within the gearbox, making it the industry standard for space-constrained chassis drives.

• Flexible Displacement Adjustment (LV): The LV series variable motor allows for real-time displacement changes based on load, offering a wider speed range and enhanced tractive effort.

• High Volumetric Efficiency: Utilizes proven swashplate technology to ensure stable power delivery across the entire pressure spectrum.

• Rugged Reliability: Specifically built to withstand the frequent starts, stops, and reversals typical of mobile machinery, with superior resistance to shock loads.

• Target Applications: Vibratory roller wheel motors, self-propelled agricultural harvesters, and auxiliary drives for material handling equipment.

Detailed Models & Parameters:

• Core Series: Danfoss L & K Series (LC, LV, KC).

• Technical Spec Decoding (Lc25csfr1ff07…):

  • LC25: L-Series fixed motor, size 25cc.

  • CS: Relates to specific control valve configurations.

  • FR1FF07: Involves shaft spline standards, seal types, and charge pressure settings.

• Full Displacement Spectrum:

  • Fixed Series: LC25 (25cc), LC30 (30cc), LC35 (35cc), KC45 (45cc).

  • Variable Series: LV25 (25cc), LV30 (30cc).

• Core Performance Specs:

  • Rated Pressure: 210 Bar (3000 PSI).

  • Peak Pressure: 350 Bar (5000 PSI).

  • Max Speed: Capable of speeds up to 3500+ RPM.
