Danfoss H1B160 Motor | H1B160-AD2MANB | Variable Bent Axis Piston Pump | PADNkN

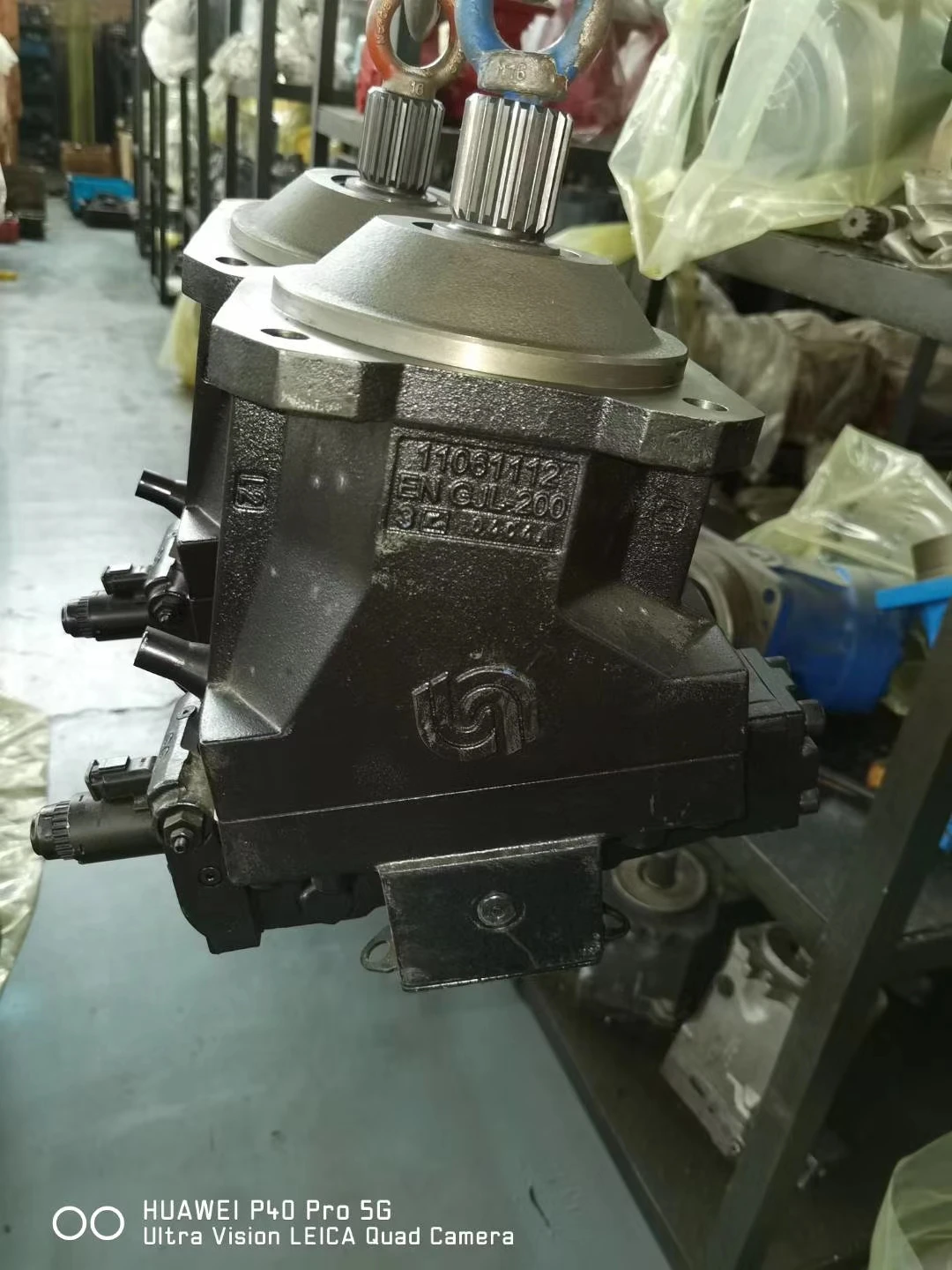

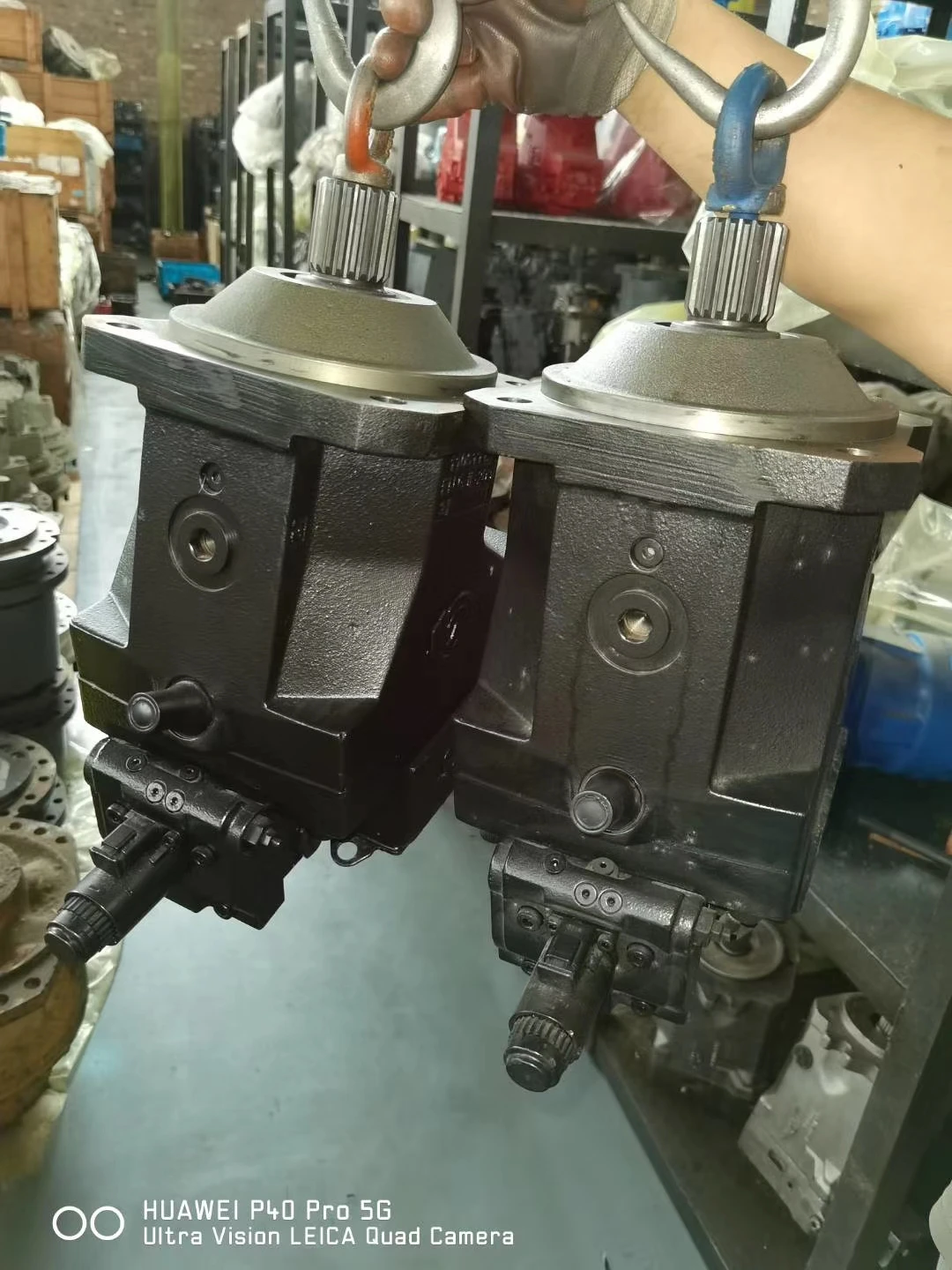

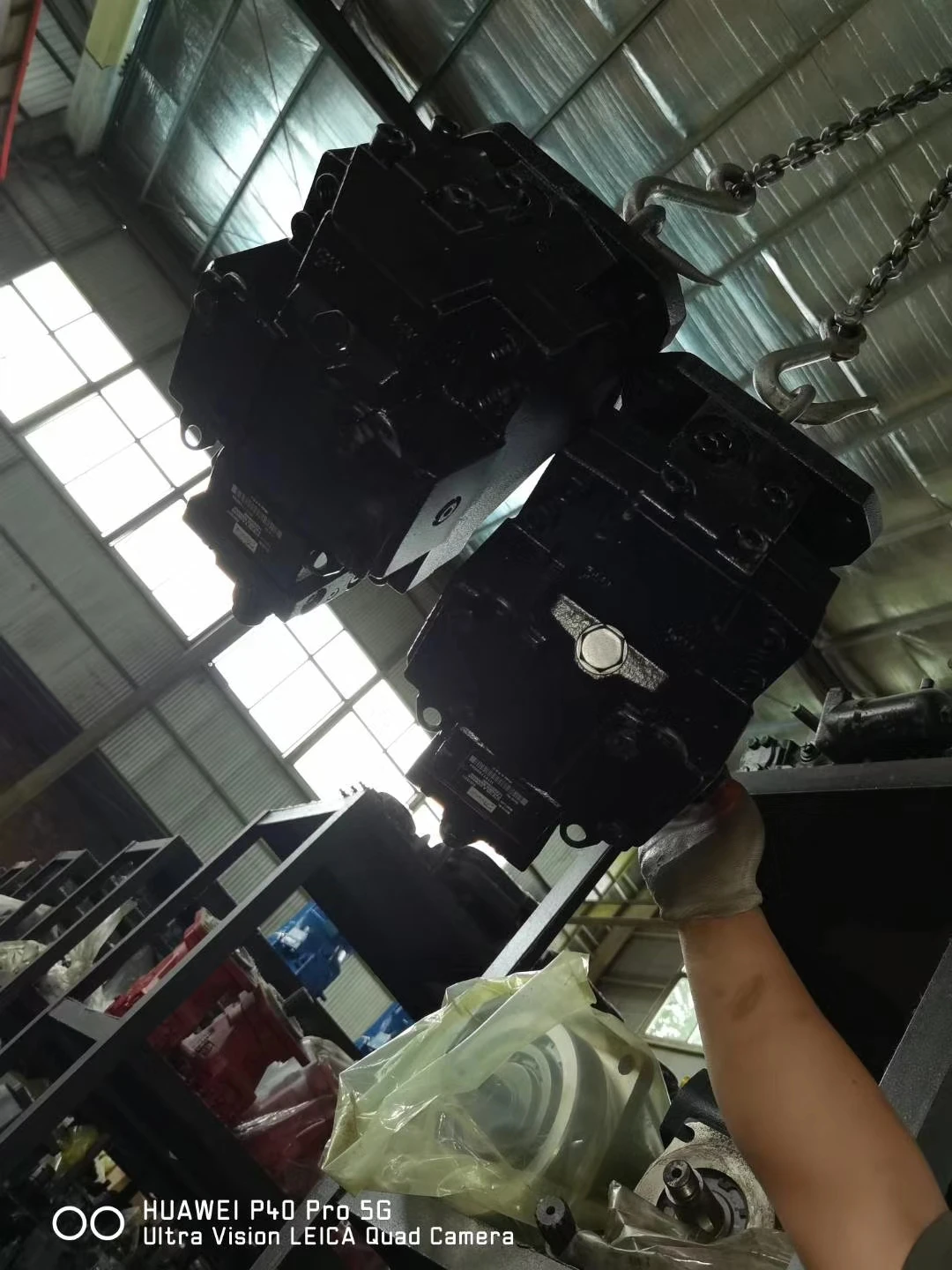

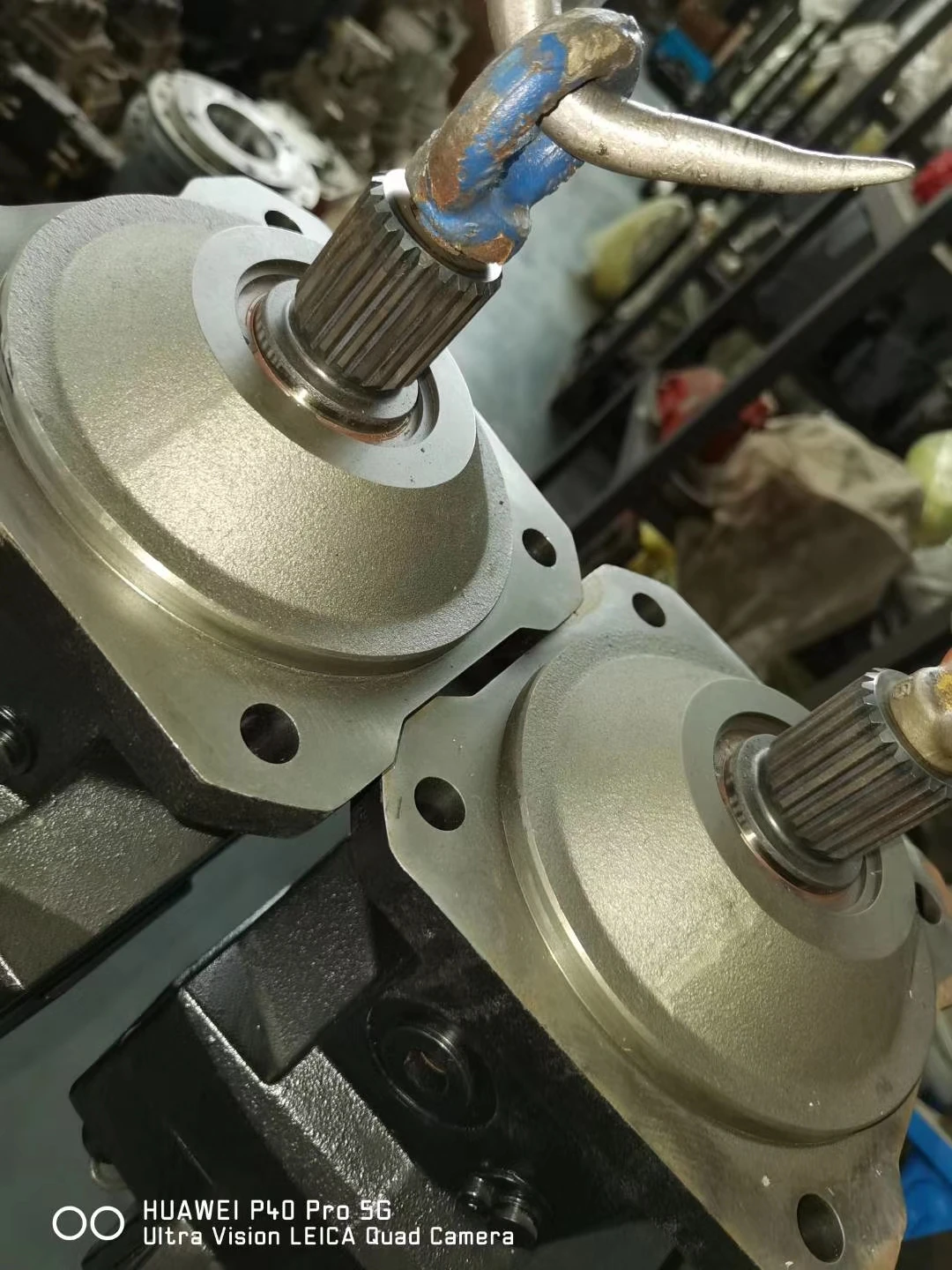

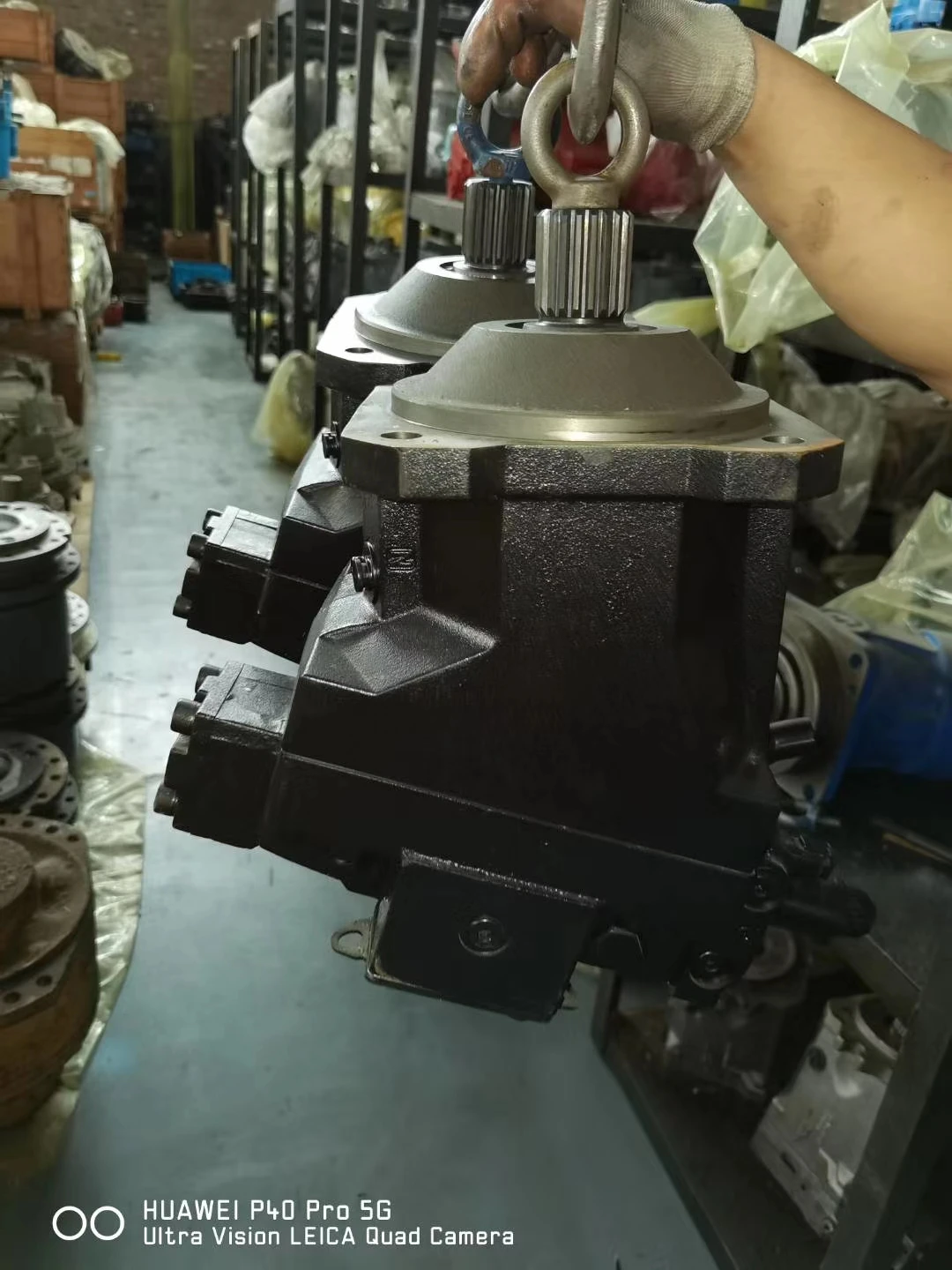

Danfoss H1B160 Series High-Pressure Variable Bent Axis Piston Motors

Product Overview: The Danfoss H1B series is the cornerstone of high efficiency and reliability in the field of hydrostatic transmissions. As an advanced bent-axis variable displacement motor, it is specifically engineered for heavy-duty operations in both closed and open-circuit systems. The featured model H1B160-AD2MANB (Config Code: PADNkN) provides a powerful 160cc displacement, delivering staggering torque and power density at a rated pressure of 450 Bar. Utilizing a 32-degree swashplate angle design, this motor achieves exceptional starting torque and unparalleled volumetric efficiency, making it the premier choice for rotary drilling rig power heads, crawler drives, large rollers, and heavy forestry machinery.

Key Technical Advantages:

• Premium Bent Axis Technology: The unique 32° bent-axis architecture provides superior dynamic balance, allowing the motor to operate smoothly under extreme pressures and high speeds.

• Extreme High-Pressure Durability: Rated for continuous operation at 450 Bar (6525 PSI) with peak capabilities up to 480 Bar, meeting the demands of heavy machinery prone to frequent shock loads.

• Advanced AD2 Control Modality: The AD2 control provides precise pressure compensation and flow regulation, ensuring optimal power distribution across various operating conditions.

• Superior Starting Torque Efficiency: The optimized spherical valve plate design enhances starting torque and significantly reduces mechanical noise and vibration.

• Modular Integrated Design: Complies with standard PADNkN mounting specs and supports multi-sensor integration (e.g., speed sensors) for seamless interfacing with modern electronic control systems.

Detailed Models & Parameters:

• Core Series: Danfoss H1B Series (Bent Axis Variable).

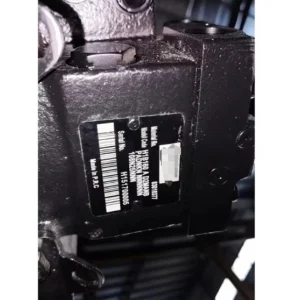

• Model Keywords: H1B160, H1B160AD2, H1B160-AD2MANB.

• Configuration Code: PADNkN.

• Max Displacement: 160.7 cm³/rev (9.81 in³/rev).

• Pressure Ratings: Rated at 450 Bar (6525 PSI) continuous; Peak capability up to 480 Bar (6960 PSI).

• Maximum Speed: Rated up to 3750+ rpm.

• Target Applications: Rotary drilling rigs, pavers, combine harvesters, and heavy material handlers.
