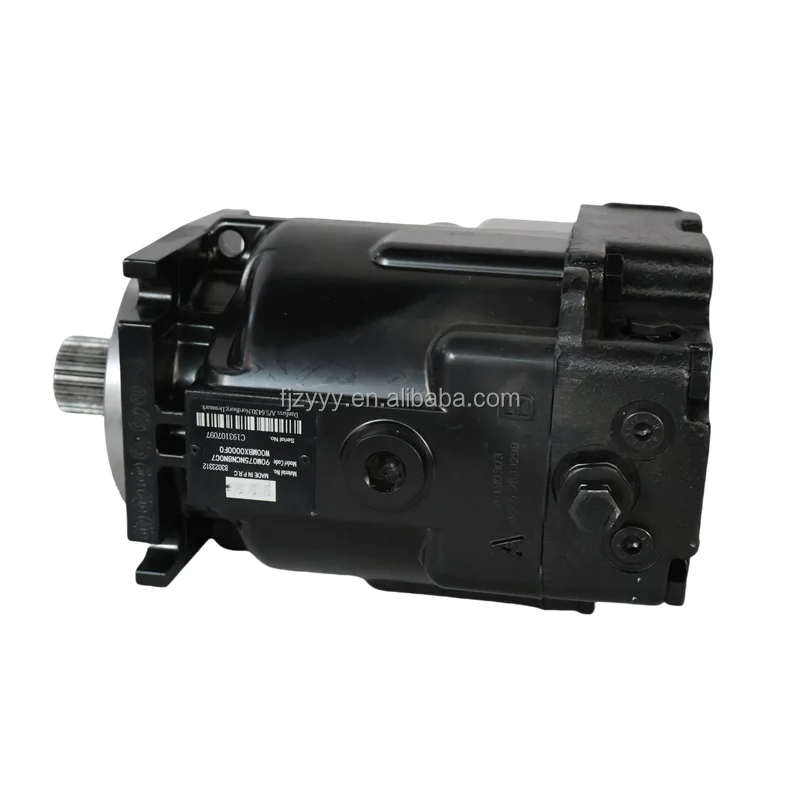

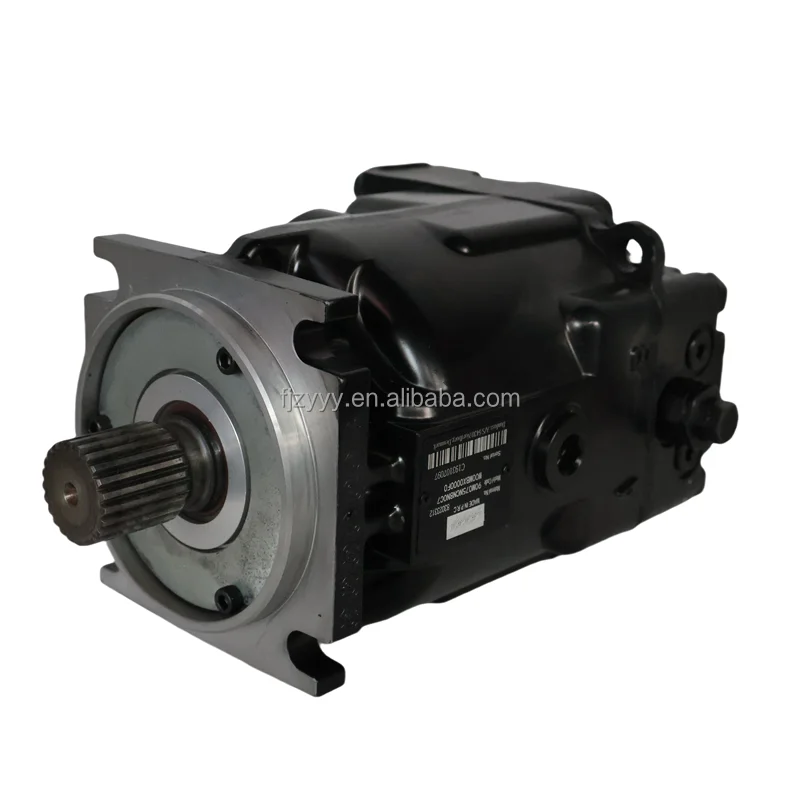

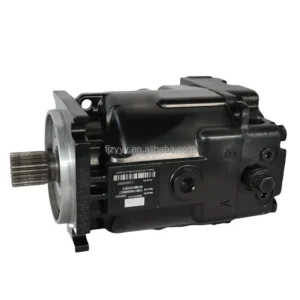

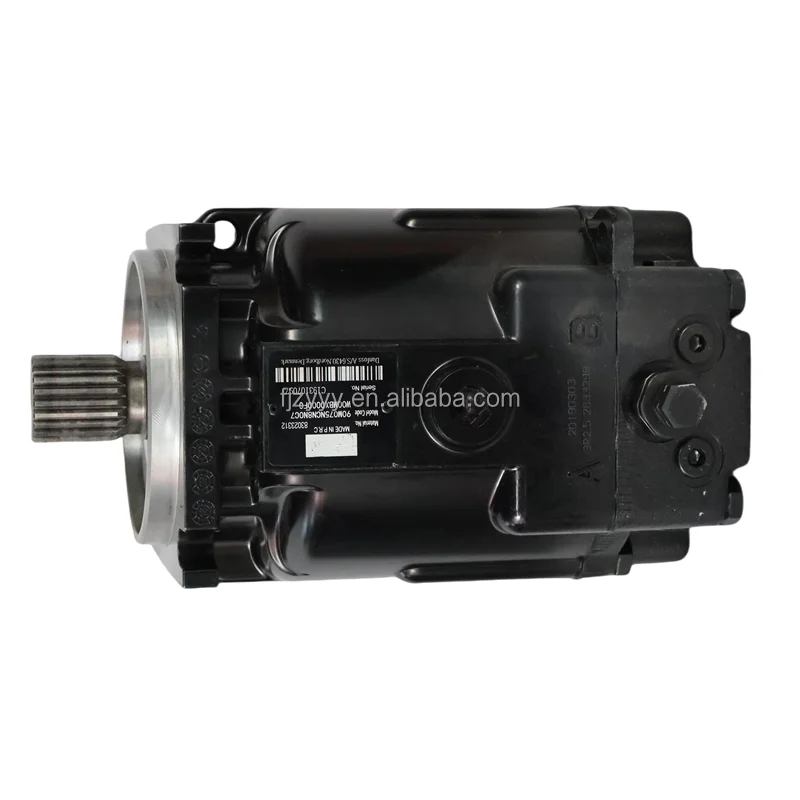

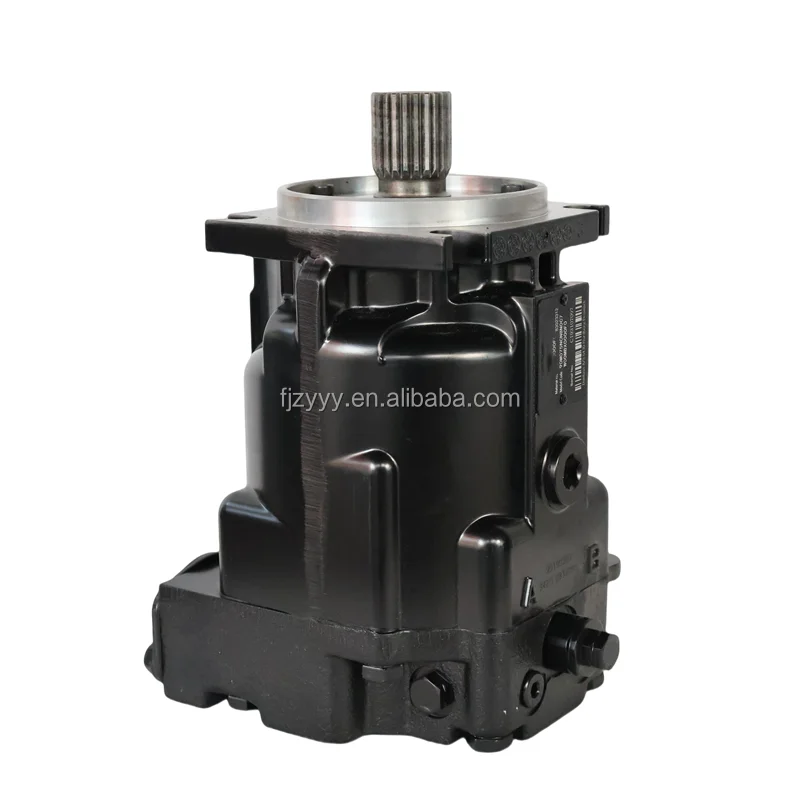

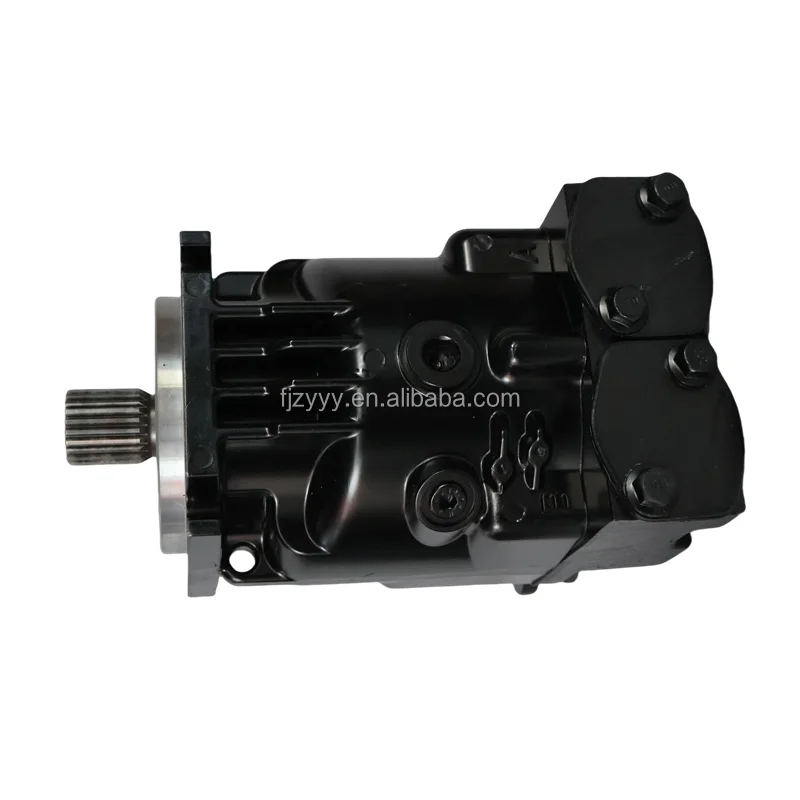

Danfoss 90M Series High-Pressure Closed-Circuit Axial Piston Motors

Product Overview: The Danfoss 90M Series represents the pinnacle of high-performance axial piston motors, engineered specifically for heavy-duty closed-circuit hydrostatic transmissions. As a global industry benchmark, the 90 Series is built to withstand extreme operational pressures and speeds. This lineup covers displacements from 90M055 to the massive 90M250. This page features the core model: 90M075, including the precision configuration code T90-M-075-NC-0-N-D-N-0-C6-W-00-MIX-00-0. These motors are the definitive choice for concrete mixer drum drives, large-scale road construction machinery, crawler excavator travel systems, and heavy-duty forestry equipment.

Key Technical Advantages:

• Elite High-Pressure Resilience: Rated for a continuous pressure of 420 Bar (6000 PSI) with peak capabilities reaching 480 Bar (7000 PSI), designed for intense duty cycles.

• Superior Power Density: The compact architecture delivers massive torque and power within a minimal footprint, optimizing overall machine spatial design.

• High-Speed Capability: Features precision-balanced rotating groups that support high continuous operational RPMs, significantly boosting productivity.

• Rugged Longevity: Specifically engineered for the most punishing 24/7 construction environments with reinforced internal components.

• Target Applications: Transit mixers, heavy-duty pavers, oil rig drives, vibratory rollers, and tracked vehicle drives.

Detailed Models & Parameters:

• Core Series: Danfoss 90 Series (90M Fixed Motor).

• Technical Spec Decoding (90M075NC…):

  • 90M: Series 90 fixed displacement piston motor.

  • 075: Displacement size 75 cc/rev.

  • NC: Relates to specific shaft configurations and housing standards.

  • C6-W: Includes specific end-cap configurations, seal standards, and factory settings.

• Full Displacement Spectrum: 90M055, 90M075, 90M100, 90M130, 90M180, 90M250 (cc/rev).

• Core Performance Specs:

  • Max Pressure: 480 Bar (7000 PSI).

  • Max Speed: Up to 4500+ RPM depending on frame size.
